Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

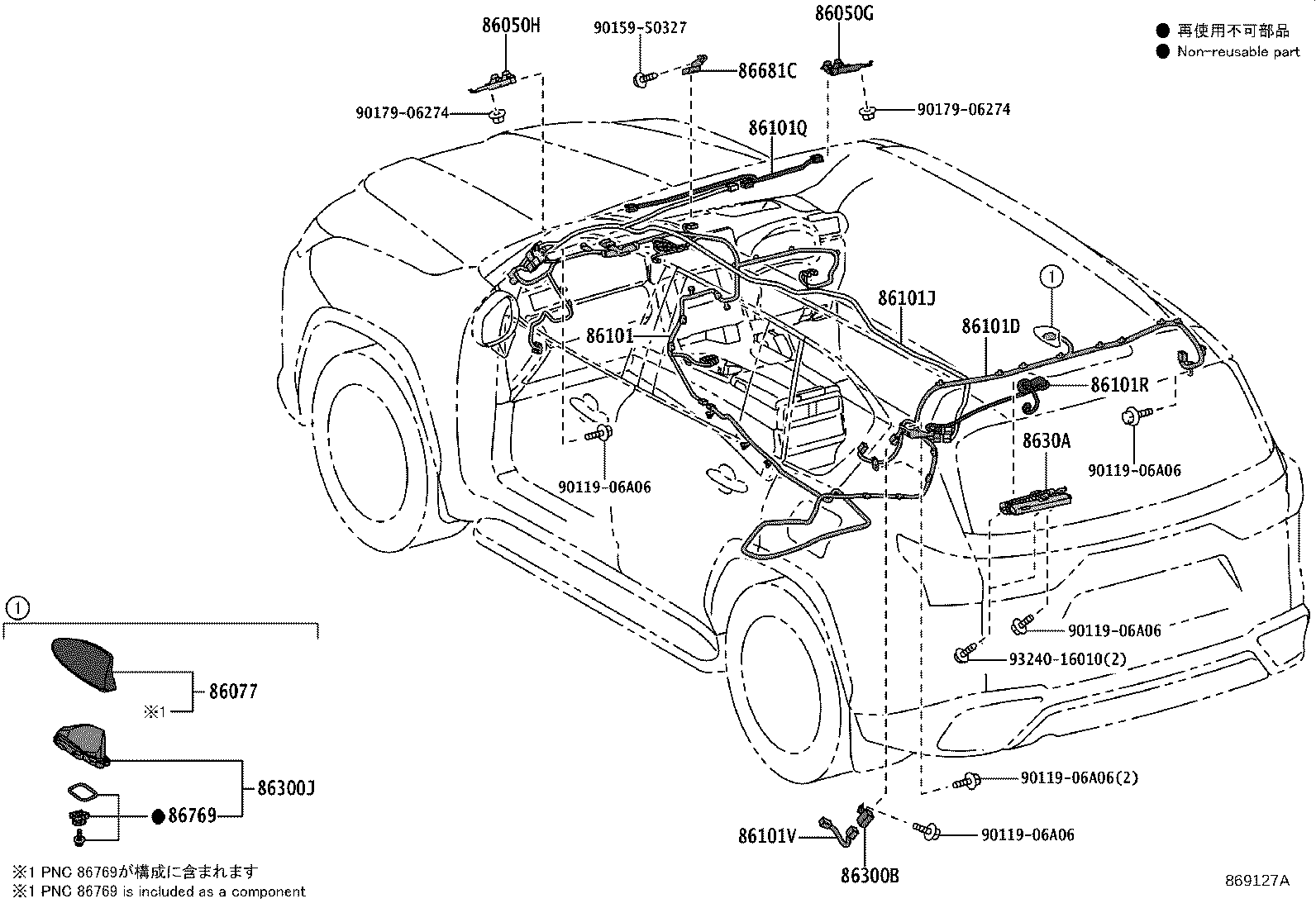

Exploded illustration 869127A 86101V — CORD SUB-ASSY, ANTENNA, NO.6 (1 parts) 86300B — ANTENNA ASSY, AMPLIFIER, NO.1 (1 parts) 86050H — ANTENNA ASSY, TELEVISION, NO.1 LH (1 parts) 86050G — ANTENNA ASSY, TELEVISION, NO.1 RH (1 parts) 86681C — DIVIDER, ANTENNA (1 parts) 86101 — CORD SUB-ASSY, ANTENNA (1 parts) 86101D — CORD SUB-ASSY, ANTENNA, NO.3 (1 parts) 86101R — CORD SUB-ASSY, ANTENNA, NO.5 (1 parts) 8630A — ANTENNA SUB-ASSY, RADIO (1 parts) 86101J — CORD SUB-ASSY, ANTENNA, NO.2 (1 parts) 86101Q — CORD SUB-ASSY, ANTENNA, NO.4 (1 parts) 9011906A06 — not listed in this catalogue 9015950327 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 86077 — COVER KIT, ANTENNA (7 parts) 86769 — HOUSING, ROOF ANTENNA (1 parts) 86300J — ANTENNA ASSY, ROOF (1 parts) 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9324016010 — not listed in this catalogue
869127A · 14 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
86050G — Antenna Assy, Television, NO.1 RH
86050-53180 Antenna Assy, Television, NO.1 RH
2021-12 → 2024-11 ended
VJA310 ¥6,400
86050H — Antenna Assy, Television, NO.1 LH
86050-53190 Antenna Assy, Television, NO.1 LH
2021-12 → 2024-11 ended
VJA310 ¥6,400
86077 — Cover Kit, Antenna
86077-76030-A0 note Cover Kit, Antenna
2021-12 → 2024-11 ended
VJA310 ¥1,840
86077-76030-A1 note Cover Kit, Antenna
2021-12 → 2024-11 ended
VJA310 ¥1,840
86077-76030-B2 note Cover Kit, Antenna
2021-12 → 2024-11 ended
VJA310 ¥1,840
86077-76030-B7 note Cover Kit, Antenna
2021-12 → 2024-11 ended
VJA310 ¥2,030
86077-76030-C1 note Cover Kit, Antenna
2021-12 → 2024-11 ended
VJA310 ¥1,840
86077-76030-C2 note Cover Kit, Antenna
2021-12 → 2024-11 ended
VJA310 ¥2,030
86077-76030-G0 note Cover Kit, Antenna
2021-12 → 2024-11 ended
VJA310 ¥1,840
86101 — Cord Sub-assy, Antenna
86101-6A350 Cord Sub-assy, Antenna
2021-12 → 2024-11 ended
VJA310 ¥10,400
86101D — Cord Sub-assy, Antenna, NO.3
86101-6A270 Cord Sub-assy, Antenna, NO.3
2021-12 → 2024-11 ended
VJA310 ¥9,000
86101J — Cord Sub-assy, Antenna, NO.2
86101-6A330 Cord Sub-assy, Antenna, NO.2
2021-12 → 2024-11 ended
VJA310 ¥8,400
86101Q — Cord Sub-assy, Antenna, NO.4
86101-6A690 Cord Sub-assy, Antenna, NO.4
2021-12 → 2024-11 ended
VJA310 ¥2,650
86101R — Cord Sub-assy, Antenna, NO.5
86101-6A680 Cord Sub-assy, Antenna, NO.5
2021-12 → 2024-11 ended
VJA310 ¥3,950
86101V — Cord Sub-assy, Antenna, NO.6
86101-6A220 Cord Sub-assy, Antenna, NO.6
2021-12 → 2024-11 ended
VJA310 ¥430
86300B — Antenna Assy, Amplifier, NO.1
86300-48351 Antenna Assy, Amplifier, NO.1
2021-12 → 2024-11 ended
VJA310 ¥5,700
86300J — Antenna Assy, Roof
86760-62010 Antenna Assy, Roof
2021-12 → 2024-11 ended
VJA310 ¥11,700
8630A — Antenna Sub-assy, Radio
8630A-60030 Antenna Sub-assy, Radio
2021-12 → 2024-11 ended
VJA310 ¥24,100
86681C — Divider, Antenna
86681-60270 Divider, Antenna
2021-12 → 2024-11 ended
VJA310 ¥13,000
86769 — Housing, Roof Antenna
86769-48020 Housing, Roof Antenna
2021-12 → 2024-11 ended
VJA310 ¥510
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
