Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

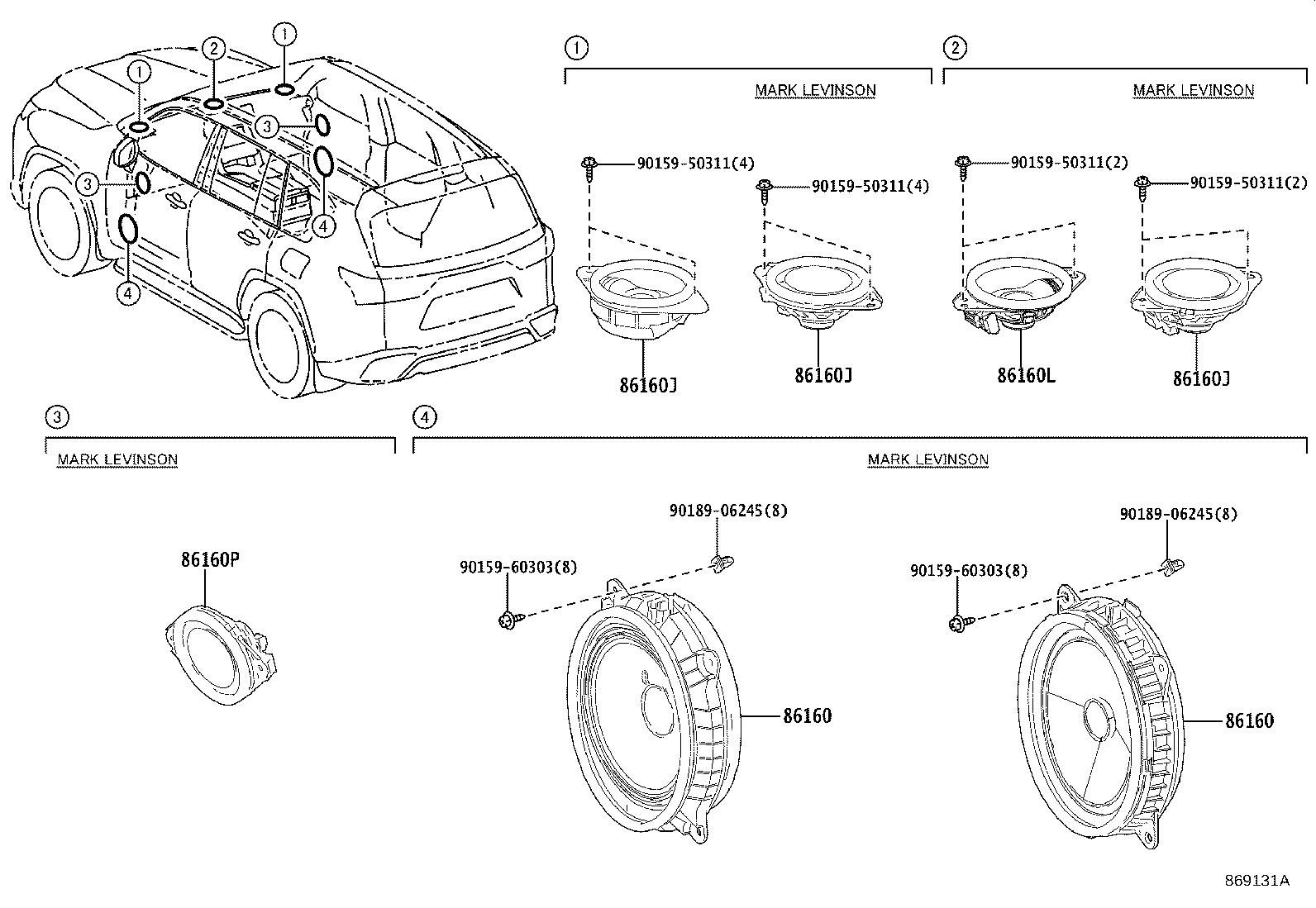

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-60740 |
Speaker Assy, Front NO.1
2021-12 → 2022-11
ended
|
VJA310 | ¥7,000 | |
| 86160-60741 |
Speaker Assy, Front NO.1
2022-12 → 2024-11
ended
|
VJA310 | ¥6,300 | |
| 86160-78100 note |
Speaker Assy, Front NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥23,500 | |
| 86160J — Speaker Assy, Front NO.3 | ||||
| 86160-60720 note |
Speaker Assy, Front NO.3
2021-12 → 2024-11
ended
|
VJA310 | ¥14,200 | |
| 86160-60730 |
Speaker Assy, Front NO.3
2021-12 → 2024-11
ended
|
VJA310 | ¥6,300 | |
| 86160L — Speaker Assy, Front NO.4 | ||||
| 86160-11060 |
Speaker Assy, Front NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥6,300 | |
| 86160-11060 note |
Speaker Assy, Front NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥6,300 | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-60720 note |
Speaker Assy, Front NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥14,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
