Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

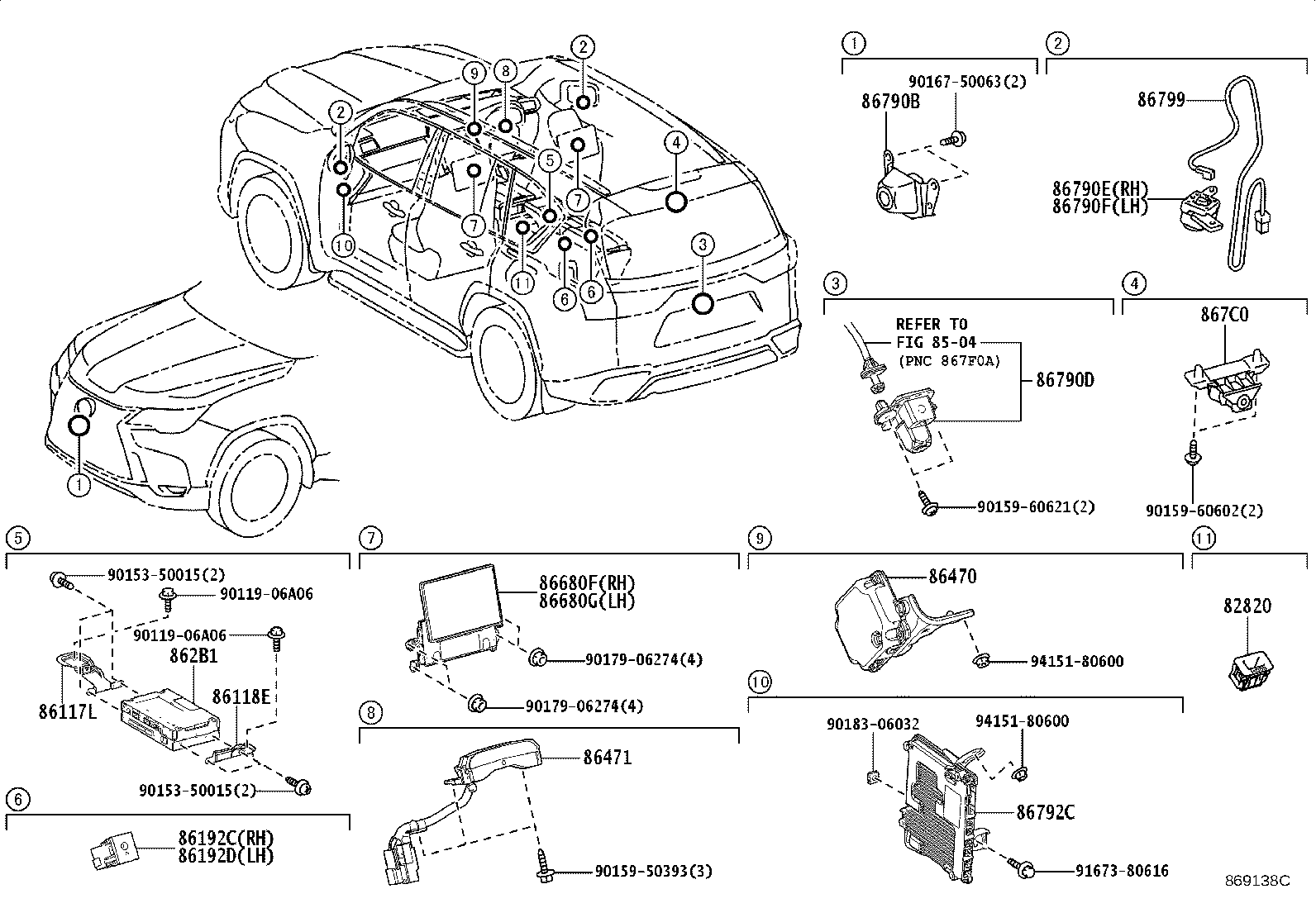

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82820 — Cover, Connector | ||||
| 82821-60D10 note |
Cover, Connector
2021-12 → 2024-11
ended
|
VJA310 | ¥230 | |
| 82821-60D10 note |
Cover, Connector
2021-12 → 2024-11
ended
|
VJA310 | ¥230 | |
| 86117L — Bracket, Multi-display Controller, NO.1 | ||||
| 86117-60190 note |
Bracket, Multi-display Controller, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥1,110 | |
| 86117-60190 note |
Bracket, Multi-display Controller, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥1,110 | |
| 86118E — Bracket, Multi-display Controller, NO.2 | ||||
| 86118-60140 note |
Bracket, Multi-display Controller, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥550 | |
| 86118-60140 note |
Bracket, Multi-display Controller, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥550 | |
| 86192C — Terminal, Headphone, RH | ||||
| 86192-60130 note |
Terminal, Headphone, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥3,780 | |
| 86192-60130 note |
Terminal, Headphone, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥3,780 | |
| 86192D — Terminal, Headphone, LH | ||||
| 86192-60120 note |
Terminal, Headphone, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥3,780 | |
| 86192-60120 note |
Terminal, Headphone, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥3,780 | |
| 862B1 — Controller, Multi-display | ||||
| 862B0-60050 note |
Controller, Multi-display
2021-12 → 2023-02
ended
|
VJA310 | ¥126,000 | |
| 862B0-60050 note |
Controller, Multi-display
2021-12 → 2023-02
ended
|
VJA310 | ¥126,000 | |
| 862B0-60051 note |
Controller, Multi-display
2023-03 → 2024-11
ended
|
VJA310 | ¥126,000 | |
| 862B0-60051 note |
Controller, Multi-display
2023-03 → 2024-11
ended
|
VJA310 | ¥126,000 | |
| 86680F — Display Assy, Multi Information, NO.1 | ||||
| 86680-60590 note |
Display Assy, Multi Information, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥175,000 | |
| 86680-60590 note |
Display Assy, Multi Information, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥175,000 | |
| 86680G — Display Assy, Multi Information, NO.2 | ||||
| 86680-60590 note |
Display Assy, Multi Information, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥175,000 | |
| 86680-60600 note |
Display Assy, Multi Information, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥265,000 | |
| 86790B — Camera Assy, Television, FR | ||||
| 86790-60410 |
Camera Assy, Television, FR
2021-12 → 2022-08
ended
|
VJA310 | ¥34,100 | |
| 86790-60411 |
Camera Assy, Television, FR
2022-08 → 2024-11
ended
|
VJA310 | ¥30,900 | |
| 86790D — Camera Assy, Television, RR | ||||
| 86790-60380 |
Camera Assy, Television, RR
2021-12 → 2024-11
ended
|
VJA310 | ¥34,000 | |
| 86790E — Camera Assy, Television, Side RH | ||||
| 86790-60400 |
Camera Assy, Television, Side RH
2021-12 → 2022-08
ended
|
VJA310 | ¥34,100 | |
| 86790-60401 |
Camera Assy, Television, Side RH
2022-08 → 2024-11
ended
|
VJA310 | ¥30,900 | |
| 86790F — Camera Assy, Television, Side LH | ||||
| 86790-60390 |
Camera Assy, Television, Side LH
2021-12 → 2022-08
ended
|
VJA310 | ¥34,100 | |
| 86790-60391 |
Camera Assy, Television, Side LH
2022-08 → 2024-11
ended
|
VJA310 | ¥30,900 | |
| 86792C — Computer, Parking Assist | ||||
| 86792-60810 |
Computer, Parking Assist
2021-12 → 2022-08
ended
|
VJA310 | ¥105,000 | |
| 86792-60811 |
Computer, Parking Assist
2022-08 → 2023-10
ended
|
VJA310 | ¥105,000 | |
| 86792-60812 |
Computer, Parking Assist
2023-10 → 2024-11
ended
|
VJA310 | ¥105,000 | |
| 86799 — Wire, Television Camera | ||||
| 86799-60080 |
Wire, Television Camera
2021-12 → 2024-11
ended
|
VJA310 | ¥720 | |
| 867C0 — Camera Assy, Inner Mirror | ||||
| 867C0-60020 |
Camera Assy, Inner Mirror
2021-12 → 2024-11
ended
|
VJA310 | ¥40,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
