Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

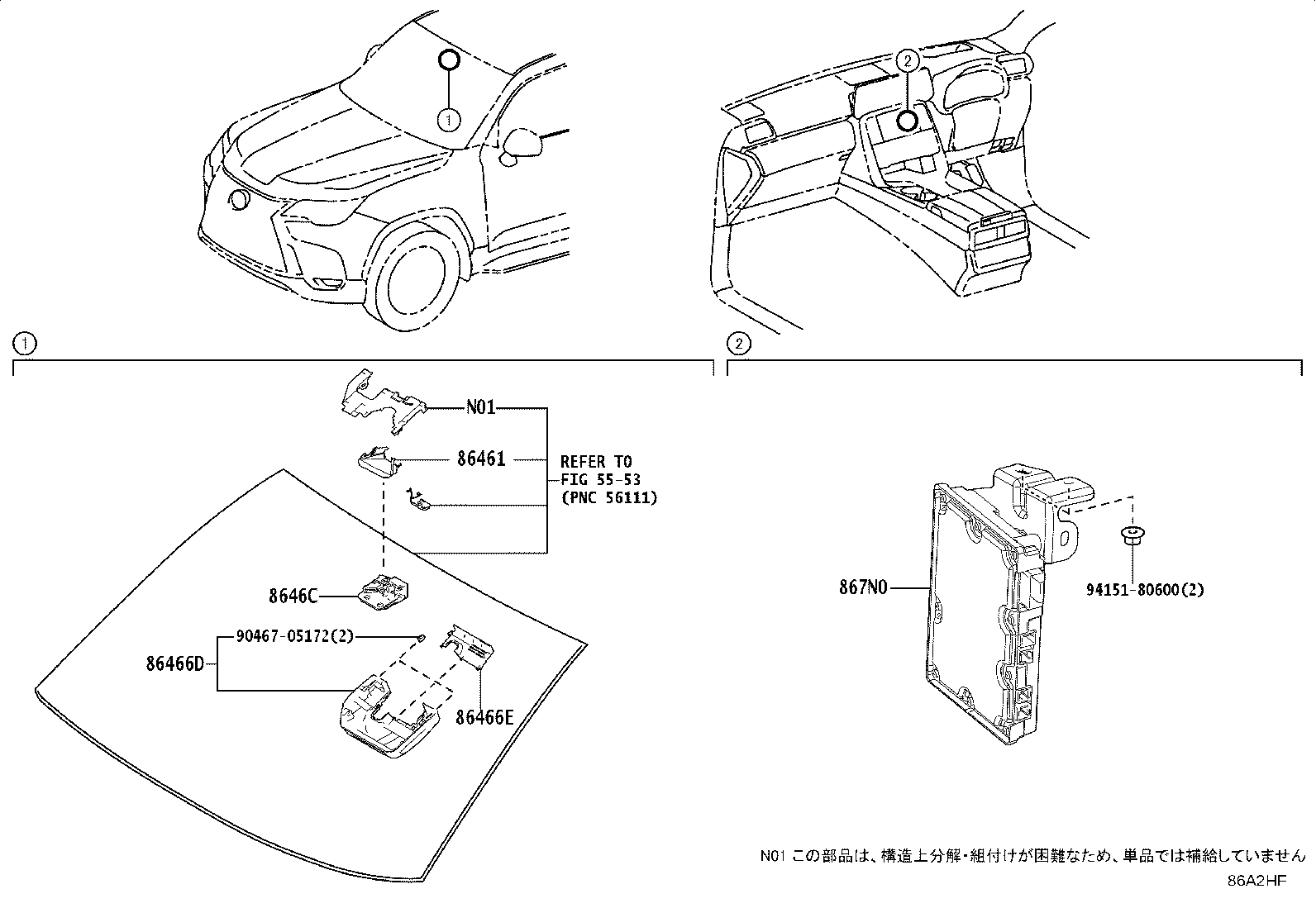

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86466D — Cover, Forward Recognition, NO.1 | ||||
| 86466-60080 |
Cover, Forward Recognition, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥3,400 | |
| 86466E — Cover, Forward Recognition, NO.2 | ||||
| 86466-60100 |
Cover, Forward Recognition, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥630 | |
| 8646C — Camera, Forward Recognition | ||||
| 8646C-60090 note |
Camera, Forward Recognition
2021-12 → 2022-11
ended
|
VJA310 | ¥47,300 | |
| 8646C-60091 note |
Camera, Forward Recognition
2022-11 → 2023-10
ended
|
VJA310 | ¥47,300 | |
| 8646C-60180 note |
Camera, Forward Recognition
2023-10 → 2024-11
ended
|
VJA310 | ¥47,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
