Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

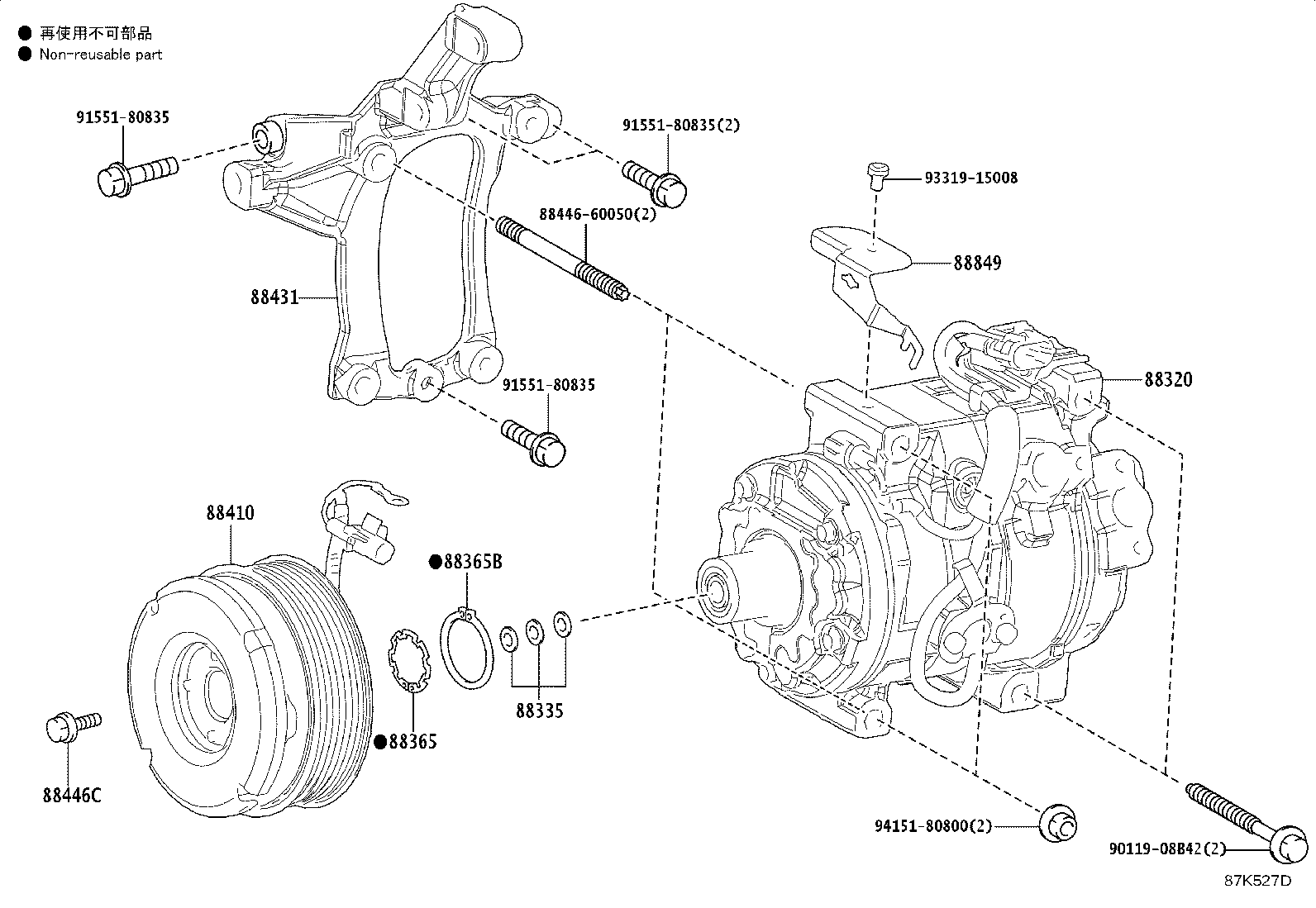

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88320 — Compressor Assy, Cooler | ||||
| 88320-60C30 |
Compressor Assy, Cooler
2021-12 → 2024-11
ended
|
VJA310 | — | |
| 88335 — Gasket Kit, Overhaul | ||||
| 88335-14020 |
Gasket Kit, Overhaul
2021-12 → 2024-11
ended
|
VJA310 | — | |
| 88365 — Ring, Snap | ||||
| 90099-07065 |
Ring, Snap
2021-12 → 2024-11
ended
|
VJA310 | ¥90 | |
| 88365B — Ring, Snap, NO.2 | ||||
| 90099-07114 |
Ring, Snap, NO.2
2021-12 → 2024-11
ended
|
VJA310 | — | |
| 88410 — Clutch Assy, Magnet | ||||
| 88410-60510 |
Clutch Assy, Magnet
2021-12 → 2024-11
ended
|
VJA310 | ¥23,000 | |
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 12502-70020 |
Bracket, Compressor Mounting, NO.1
2021-12 → 2022-02
ended
|
VJA310 | ¥9,200 | |
| 12502-70021 |
Bracket, Compressor Mounting, NO.1
2022-03 → 2024-11
ended
|
VJA310 | ¥8,400 | |
| 88446C — Bolt, Magnet Clutch Setting | ||||
| 90099-04349 |
Bolt, Magnet Clutch Setting
2021-12 → 2024-11
ended
|
VJA310 | — | |
| 88849 — Bracket, Cooler Compressor, NO.2 | ||||
| 88849-60030 |
Bracket, Cooler Compressor, NO.2
2021-12 → 2024-11
ended
|
VJA310 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
