Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

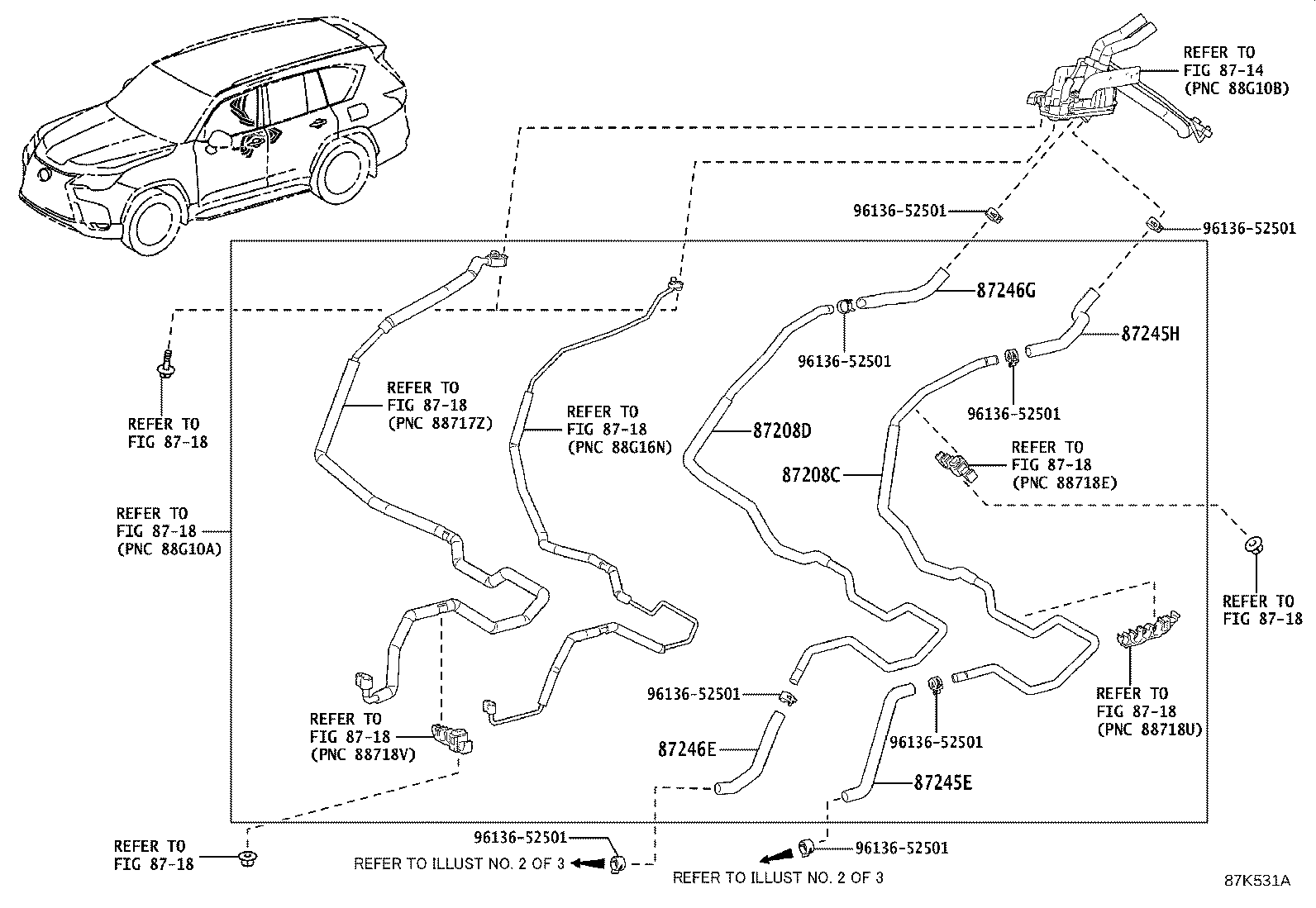

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87208C — Pipe Sub-assy, Heater Water, C | ||||
| 87208-60B10 |
Pipe Sub-assy, Heater Water, C
2021-12 → 2024-11
ended
|
VJA310 | — | |
| 87208D — Pipe Sub-assy, Heater Water, D | ||||
| 87208-60B20 |
Pipe Sub-assy, Heater Water, D
2021-12 → 2024-11
ended
|
VJA310 | — | |
| 87245E — Hose, Heater Water, Inlet E | ||||
| 87245-60T50 |
Hose, Heater Water, Inlet E
2021-12 → 2024-11
ended
|
VJA310 | ¥860 | |
| 87245-60T50 note |
Hose, Heater Water, Inlet E
2021-12 → 2024-11
ended
|
VJA310 | ¥860 | |
| 87245H — Hose, Heater Water, Inlet H | ||||
| 87245-60T60 |
Hose, Heater Water, Inlet H
2021-12 → 2024-11
ended
|
VJA310 | ¥910 | |
| 87245-60T60 note |
Hose, Heater Water, Inlet H
2021-12 → 2024-11
ended
|
VJA310 | ¥910 | |
| 87246E — Hose, Heater Water, Outlet E | ||||
| 87245-60T40 |
Hose, Heater Water, Outlet E
2021-12 → 2024-11
ended
|
VJA310 | ¥730 | |
| 87245-60T40 note |
Hose, Heater Water, Outlet E
2021-12 → 2024-11
ended
|
VJA310 | ¥730 | |
| 87246G — Hose, Heater Water, Outlet G | ||||
| 87245-60T70 |
Hose, Heater Water, Outlet G
2021-12 → 2024-11
ended
|
VJA310 | ¥750 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
