Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

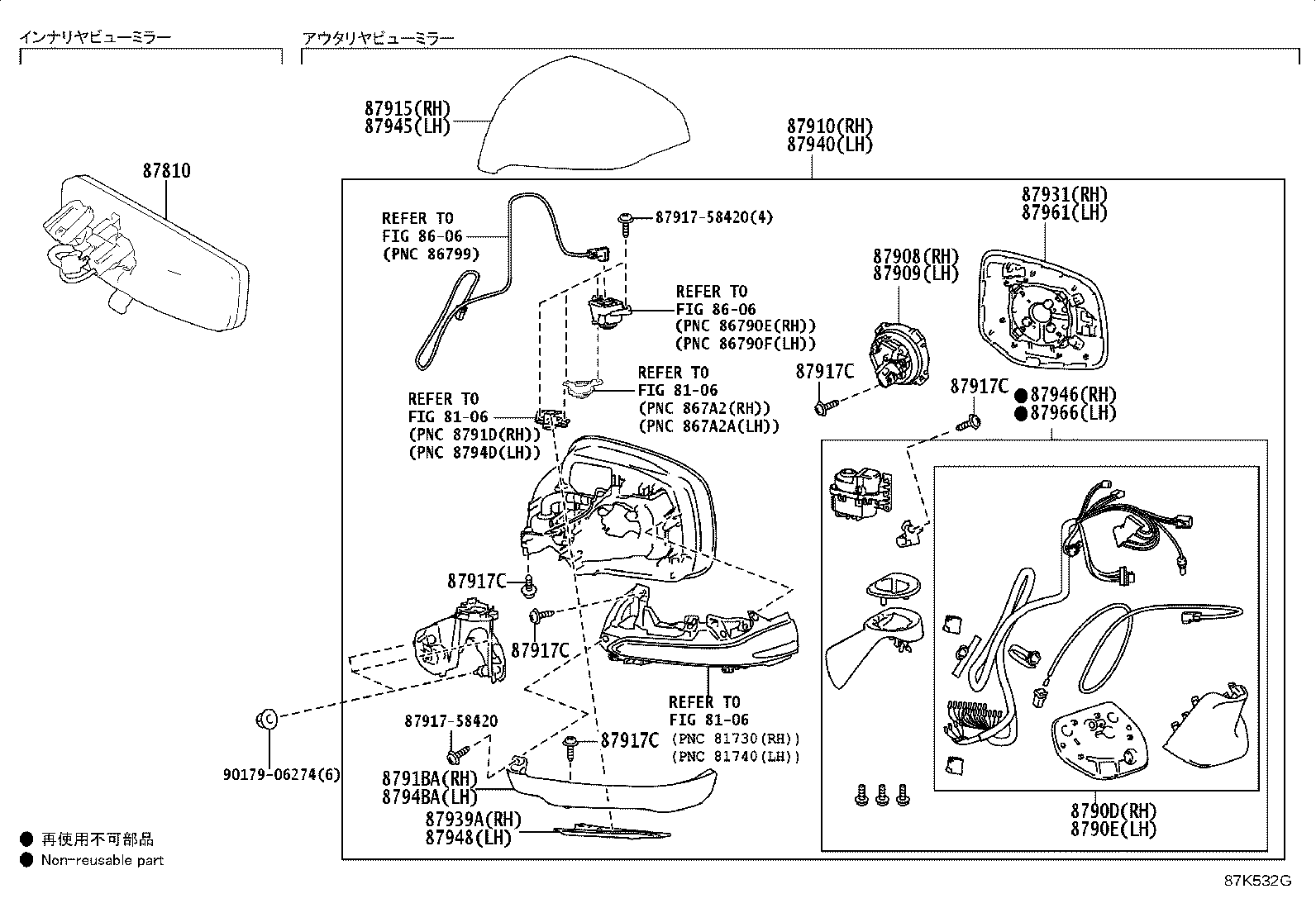

Exploded illustration 87K532G 87810 — MIRROR ASSY, INNER REAR VIEW (1 parts) 9017906274 — not listed in this catalogue 87946 — RETRACTOR, OUTER MIRROR, RH (2 parts) 87966 — RETRACTOR, OUTER MIRROR, LH (2 parts) 87915 — COVER, OUTER MIRROR, RH (7 parts) 87945 — COVER, OUTER MIRROR, LH (7 parts) 8106 — not listed in this catalogue 8606 — not listed in this catalogue 8606 — not listed in this catalogue 8106 — not listed in this catalogue 8106 — not listed in this catalogue 8791BA — COVER, OUTER MIRROR, RH NO.3 (1 parts) 8794BA — COVER, OUTER MIRROR, LH NO.3 (1 parts) 87931 — OUTER MIRROR, RH (1 parts) 87961 — MIRROR OUTER, LH (1 parts) 87939A — COVER, OUTER MIRROR HOLE, RH (1 parts) 87948 — COVER, OUTER MIRROR HOLE, LH (1 parts) 87917C — SCREW, OUTER MIRROR (2 parts) 87917C — SCREW, OUTER MIRROR (2 parts) 87917C — SCREW, OUTER MIRROR (2 parts) 87910 — MIRROR ASSY, OUTER REAR VIEW, RH (6 parts) 87940 — MIRROR ASSY, OUTER REAR VIEW, LH (6 parts) 8791758420 — not listed in this catalogue 8791758420 — not listed in this catalogue 87917C — SCREW, OUTER MIRROR (2 parts) 87917C — SCREW, OUTER MIRROR (2 parts) 8790D — WIRE SET, OUTER MIRROR REPAIR, RH (1 parts) 8790E — WIRE SET, OUTER MIRROR REPAIR, LH (1 parts) 87908 — ACTUATOR ASSY, OUTER MIRROR, RH (1 parts) 87909 — ACTUATOR ASSY, OUTER MIRROR, LH (1 parts)
87K532G · 22 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
87810 — Mirror Assy, Inner Rear View
87840-0W240 Mirror Assy, Inner Rear View
2021-12 → 2024-11 ended
VJA310 ¥79,600
87908 — Actuator Assy, Outer Mirror, RH
87908-60V81 Actuator Assy, Outer Mirror, RH
2021-12 → 2024-11 ended
VJA310 ¥20,400
87909 — Actuator Assy, Outer Mirror, LH
87908-60V81 Actuator Assy, Outer Mirror, LH
2021-12 → 2024-11 ended
VJA310 ¥20,400
8790D — Wire Set, Outer Mirror Repair, RH
8790D-60X40 Wire Set, Outer Mirror Repair, RH
2023-10 → 2024-11 ended
VJA310 ¥14,100
8790E — Wire Set, Outer Mirror Repair, LH
8790E-60X40 Wire Set, Outer Mirror Repair, LH
2023-10 → 2024-11 ended
VJA310 —
87910 — Mirror Assy, Outer Rear View, RH
87910-60X40 note Mirror Assy, Outer Rear View, RH
2021-12 → 2022-08 ended
VJA310 ¥182,000
87910-60X41 note Mirror Assy, Outer Rear View, RH
2022-08 → 2023-09 ended
VJA310 ¥182,000
87910-60X42 note Mirror Assy, Outer Rear View, RH
2023-10 → 2024-11 ended
VJA310 ¥165,000
87910-6A510 note Mirror Assy, Outer Rear View, RH
2021-12 → 2022-08 ended
VJA310 ¥178,000
87910-6A511 note Mirror Assy, Outer Rear View, RH
2022-08 → 2023-09 ended
VJA310 ¥178,000
87910-6A512 note Mirror Assy, Outer Rear View, RH
2023-10 → 2024-11 ended
VJA310 ¥162,000
87915 — Cover, Outer Mirror, RH
87915-60140-A1 note Cover, Outer Mirror, RH
2021-12 → 2024-11 ended
VJA310 ¥3,210
87915-60140-B0 note Cover, Outer Mirror, RH
2021-12 → 2024-11 ended
VJA310 ¥3,210
87915-60160-A0 note Cover, Outer Mirror, RH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87915-60160-B1 note Cover, Outer Mirror, RH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87915-60160-C0 note Cover, Outer Mirror, RH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87915-60160-C1 note Cover, Outer Mirror, RH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87915-60160-G0 note Cover, Outer Mirror, RH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87917C — Screw, Outer Mirror
87917-15010 Screw, Outer Mirror
2021-12 → 2023-10 ended
VJA310 ¥50
87917-15010 Screw, Outer Mirror
2023-10 → 2024-11 ended
VJA310 ¥50
8791BA — Cover, Outer Mirror, RH NO.3
8791B-60X40 Cover, Outer Mirror, RH NO.3
2021-12 → 2024-11 ended
VJA310 ¥2,150
87931 — Outer Mirror, RH
87931-60V80 Outer Mirror, RH
2021-12 → 2024-11 ended
VJA310 ¥18,600
87939A — Cover, Outer Mirror Hole, RH
87939-60X40 Cover, Outer Mirror Hole, RH
2021-12 → 2024-11 ended
VJA310 ¥930
87940 — Mirror Assy, Outer Rear View, LH
87940-60X40 note Mirror Assy, Outer Rear View, LH
2021-12 → 2022-08 ended
VJA310 ¥182,000
87940-60X41 note Mirror Assy, Outer Rear View, LH
2022-08 → 2023-09 ended
VJA310 ¥182,000
87940-60X42 note Mirror Assy, Outer Rear View, LH
2023-10 → 2024-11 ended
VJA310 ¥165,000
87940-6A380 note Mirror Assy, Outer Rear View, LH
2021-12 → 2022-08 ended
VJA310 ¥178,000
87940-6A381 note Mirror Assy, Outer Rear View, LH
2022-08 → 2023-09 ended
VJA310 ¥178,000
87940-6A382 note Mirror Assy, Outer Rear View, LH
2023-10 → 2024-11 ended
VJA310 ¥162,000
87945 — Cover, Outer Mirror, LH
87945-60140-A1 note Cover, Outer Mirror, LH
2021-12 → 2024-11 ended
VJA310 ¥3,210
87945-60140-B0 note Cover, Outer Mirror, LH
2021-12 → 2024-11 ended
VJA310 ¥3,210
87945-60160-A0 note Cover, Outer Mirror, LH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87945-60160-B1 note Cover, Outer Mirror, LH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87945-60160-C0 note Cover, Outer Mirror, LH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87945-60160-C1 note Cover, Outer Mirror, LH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87945-60160-G0 note Cover, Outer Mirror, LH
2021-12 → 2024-11 ended
VJA310 ¥3,540
87946 — Retractor, Outer Mirror, RH
87946-60X40 Retractor, Outer Mirror, RH
2021-12 → 2023-10 ended
VJA310 ¥20,800
87946-60X41 Retractor, Outer Mirror, RH
2023-10 → 2024-11 ended
VJA310 —
87948 — Cover, Outer Mirror Hole, LH
87948-60X40 Cover, Outer Mirror Hole, LH
2021-12 → 2024-11 ended
VJA310 ¥930
8794BA — Cover, Outer Mirror, LH NO.3
8794B-60X40 Cover, Outer Mirror, LH NO.3
2021-12 → 2024-11 ended
VJA310 ¥2,150
87961 — Mirror Outer, LH
87961-60V80 Mirror Outer, LH
2021-12 → 2024-11 ended
VJA310 ¥18,600
87966 — Retractor, Outer Mirror, LH
87966-60X40 Retractor, Outer Mirror, LH
2021-12 → 2023-10 ended
VJA310 ¥20,800
87966-60X41 Retractor, Outer Mirror, LH
2023-10 → 2024-11 ended
VJA310 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
