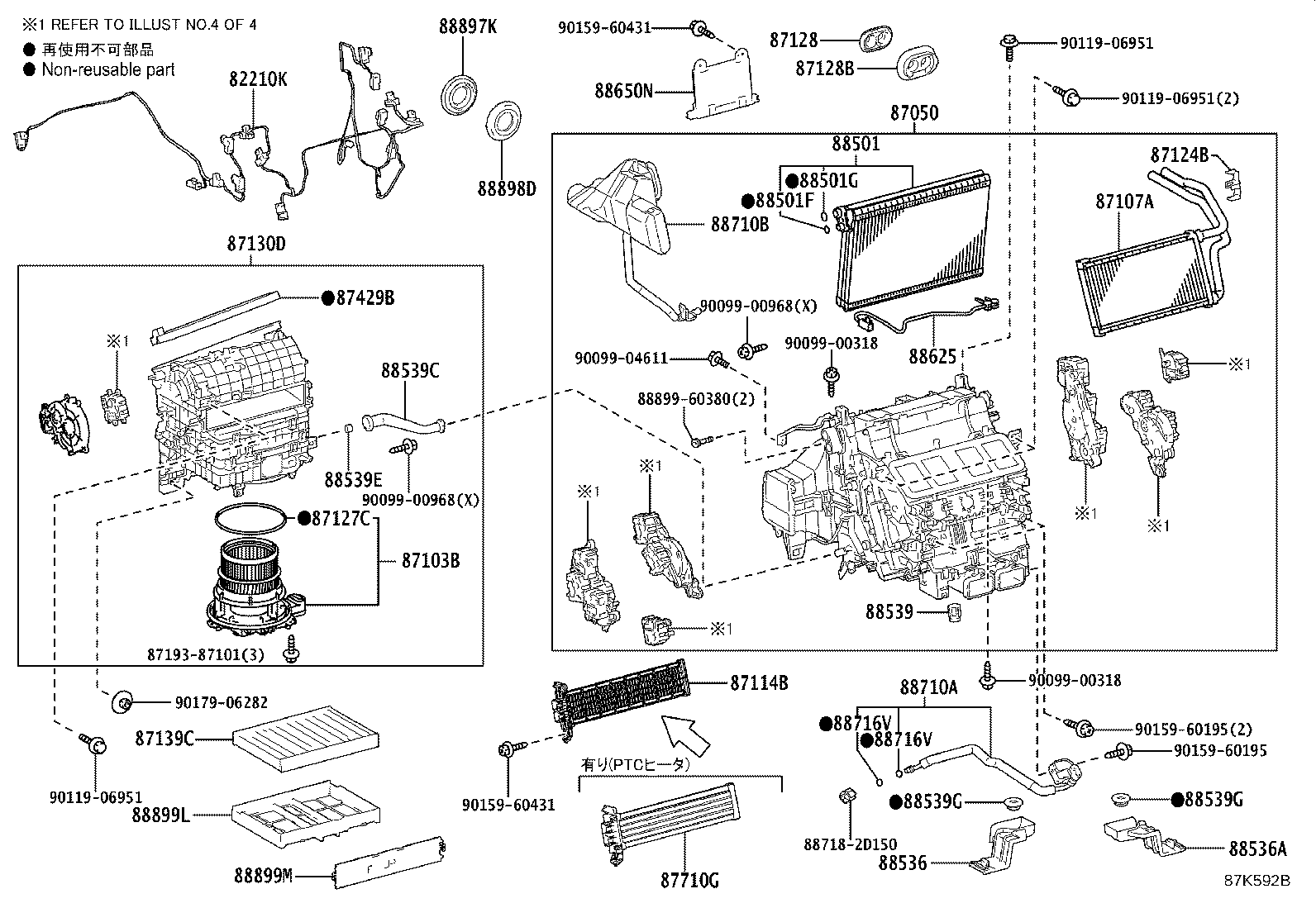

Exploded illustration 87K592B 88625 — THERMISTOR, COOLER, NO.1 (1 parts) 88539 — HOSE, COOLER UNIT DRAIN, NO.1 (1 parts) 87050 — RADIATOR ASSY, AIR CONDITIONER (2 parts) 88710B — TUBE ASSY, AIR CONDITIONER (2 parts) 87128B — GROMMET, HEATER, NO.2 (1 parts) 87128 — GROMMET, HEATER (1 parts) 88898D — GROMMET (1 parts) 88897K — GROMMET, (FOR COOLER PIPE) (1 parts) 88536 — BRACKET, COOLING UNIT, NO.1 (1 parts) 88539G — GROMMET (FOR COOLER UNIT DRAIN HOSE) (1 parts) 88539G — GROMMET (FOR COOLER UNIT DRAIN HOSE) (1 parts) 9015960195 — not listed in this catalogue 9015960195 — not listed in this catalogue 88536A — BRACKET, COOLING UNIT, NO.2 (1 parts) 9011906951 — not listed in this catalogue 88539E — HOSE, COOLER UNIT DRAIN, NO.3 (1 parts) 88539C — HOSE, COOLER UNIT DRAIN, NO.2 (1 parts) 87130D — BLOWER ASSY (2 parts) 9009900968 — not listed in this catalogue 82210K — HARNESS ASSY, AIR CONDITIONER (1 parts) 9011906951 — not listed in this catalogue 9017906282 — not listed in this catalogue 87139C — FILTER, CLEAN AIR (2 parts) 88899M — PLATE, COVER(FOR AIR FILTER) (1 parts) 88899L — PARTS, COOLING UNIT (1 parts) 9015960431 — not listed in this catalogue 87107A — UNIT SUB-ASSY, HEATER RADIATOR (1 parts) 87124B — CLAMP, HEATER (1 parts) 9015960431 — not listed in this catalogue 87114B — COVER, HEATER (1 parts) 87710G — QUICK HEATER ASSY (1 parts) 87429B — PACKING, COOLER UNIT, NO.1 (1 parts) 9011906951 — not listed in this catalogue 8889960380 — not listed in this catalogue 9009904611 — not listed in this catalogue 9009900318 — not listed in this catalogue 88501 — EVAPORATOR SUB-ASSY, COOLER, NO.1 (1 parts) 88501G — O-RING, COOLER EVAPORATOR NO.1(SUCTION) (1 parts) 88501F — O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) (1 parts) 9009900318 — not listed in this catalogue 87103B — MOTOR SUB-ASSY, BLOWER W/FAN (1 parts) 8719387101 — not listed in this catalogue 9009900968 — not listed in this catalogue 87127C — PACKING, BLOWER MOTOR SUB-ASSY, NO.1 (1 parts) 88710A — TUBE ASSY, AIR CONDITIONER (1 parts) 88716V — RING, O(FOR COOLER UNIT) (1 parts) 88716V — RING, O(FOR COOLER UNIT) (1 parts) 887182D150 — not listed in this catalogue 88650N — AMPLIFIER ASSY, AIR CONDITIONER (2 parts)
87K592B · 33 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
82210K — Harness Assy, Air Conditioner
82212-60560 Harness Assy, Air Conditioner
2021-12 → 2024-11 ended
VJA310 —
87050 — Radiator Assy, Air Conditioner
87050-60N90 Radiator Assy, Air Conditioner
2021-12 → 2024-11 ended
VJA310 ¥153,000
87050-60P00 note Radiator Assy, Air Conditioner
2021-12 → 2024-11 ended
VJA310 ¥135,000
87103B — Motor Sub-assy, Blower W/Fan
87103-50190 Motor Sub-assy, Blower W/Fan
2021-12 → 2024-11 ended
VJA310 —
87107A — Unit Sub-assy, Heater Radiator
87107-60460 Unit Sub-assy, Heater Radiator
2021-12 → 2024-11 ended
VJA310 —
87114B — Cover, Heater
87114-30010 Cover, Heater
2021-12 → 2024-11 ended
VJA310 —
87124B — Clamp, Heater
87124-33070 Clamp, Heater
2021-12 → 2024-11 ended
VJA310 ¥0
87127C — Packing, Blower Motor Sub-assy, NO.1
87127-11010 Packing, Blower Motor Sub-assy, NO.1
2021-12 → 2024-11 ended
VJA310 —
87128 — Grommet, Heater
87128-60120 Grommet, Heater
2021-12 → 2024-11 ended
VJA310 ¥400
87128B — Grommet, Heater, NO.2
87128-28020 Grommet, Heater, NO.2
2021-12 → 2024-11 ended
VJA310 —
87130D — Blower Assy
87130-60640 Blower Assy
2023-02 → 2024-10 ended
VJA310 —
87130-60710 Blower Assy
2021-12 → 2023-01 ended
VJA310 —
87139C — Filter, Clean Air
87139-30110 note Filter, Clean Air
2021-12 → 2024-11 ended
VJA310 ¥4,000
87139-60030 note Filter, Clean Air
2021-12 → 2024-11 ended
VJA310 ¥4,000
87429B — Packing, Cooler Unit, NO.1
87429-60020 Packing, Cooler Unit, NO.1
2021-12 → 2024-11 ended
VJA310 —
87710G — Quick Heater Assy
87710-60070 note Quick Heater Assy
2021-12 → 2024-11 ended
VJA310 —
88501 — Evaporator Sub-assy, Cooler, NO.1
88501-60680 Evaporator Sub-assy, Cooler, NO.1
2021-12 → 2024-11 ended
VJA310 —
88501F — O-ring, Cooler Evaporator NO.1(DISCHARGE)
90099-14120 note O-ring, Cooler Evaporator NO.1(DISCHARGE)
2021-12 → 2024-11 ended
VJA310 —
88501G — O-ring, Cooler Evaporator NO.1(SUCTION)
90099-14121 note O-ring, Cooler Evaporator NO.1(SUCTION)
2021-12 → 2024-11 ended
VJA310 —
88536 — Bracket, Cooling Unit, NO.1
88688-60B80 Bracket, Cooling Unit, NO.1
2021-12 → 2024-11 ended
VJA310 —
88536A — Bracket, Cooling Unit, NO.2
88688-60B90 Bracket, Cooling Unit, NO.2
2021-12 → 2024-11 ended
VJA310 —
88539 — Hose, Cooler Unit Drain, NO.1
88899-10110 Hose, Cooler Unit Drain, NO.1
2021-12 → 2024-11 ended
VJA310 —
88539C — Hose, Cooler Unit Drain, NO.2
88539-60440 Hose, Cooler Unit Drain, NO.2
2021-12 → 2024-11 ended
VJA310 —
88539E — Hose, Cooler Unit Drain, NO.3
88539-30A00 Hose, Cooler Unit Drain, NO.3
2021-12 → 2024-11 ended
VJA310 —
88539G — Grommet (FOR COOLER UNIT DRAIN HOSE)
90480-26029 Grommet (FOR COOLER UNIT DRAIN HOSE)
2021-12 → 2024-11 ended
VJA310 —
88625 — Thermistor, Cooler, NO.1
88620-50020 Thermistor, Cooler, NO.1
2021-12 → 2024-11 ended
VJA310 —
88650N — Amplifier Assy, Air Conditioner
88650-60X90 Amplifier Assy, Air Conditioner
2021-12 → 2023-10 ended
VJA310 ¥0
886H0-60010 Amplifier Assy, Air Conditioner
2023-10 → 2024-11 ended
VJA310 —
88710A — Tube Assy, Air Conditioner
88710-60N40 Tube Assy, Air Conditioner
2021-12 → 2024-11 ended
VJA310 ¥3,560
88710B — Tube Assy, Air Conditioner
88710-60N80 Tube Assy, Air Conditioner
2021-12 → 2024-11 ended
VJA310 ¥37,900
88710-60N90 note Tube Assy, Air Conditioner
2021-12 → 2024-11 ended
VJA310 ¥5,800
88716V — Ring, O(FOR COOLER UNIT)
90099-14119 note Ring, O(FOR COOLER UNIT)
2021-12 → 2024-11 ended
VJA310 —
88897K — Grommet, (FOR COOLER PIPE)
88897-11020 Grommet, (FOR COOLER PIPE)
2021-12 → 2024-11 ended
VJA310 —
88898D — Grommet
88899-11020 Grommet
2021-12 → 2024-11 ended
VJA310 ¥0
88899L — Parts, Cooling Unit
88899-50140 Parts, Cooling Unit
2021-12 → 2024-11 ended
VJA310 ¥0
88899M — Plate, Cover(FOR AIR FILTER)
88899-50150 Plate, Cover(FOR AIR FILTER)
2021-12 → 2024-11 ended
VJA310 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
