Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

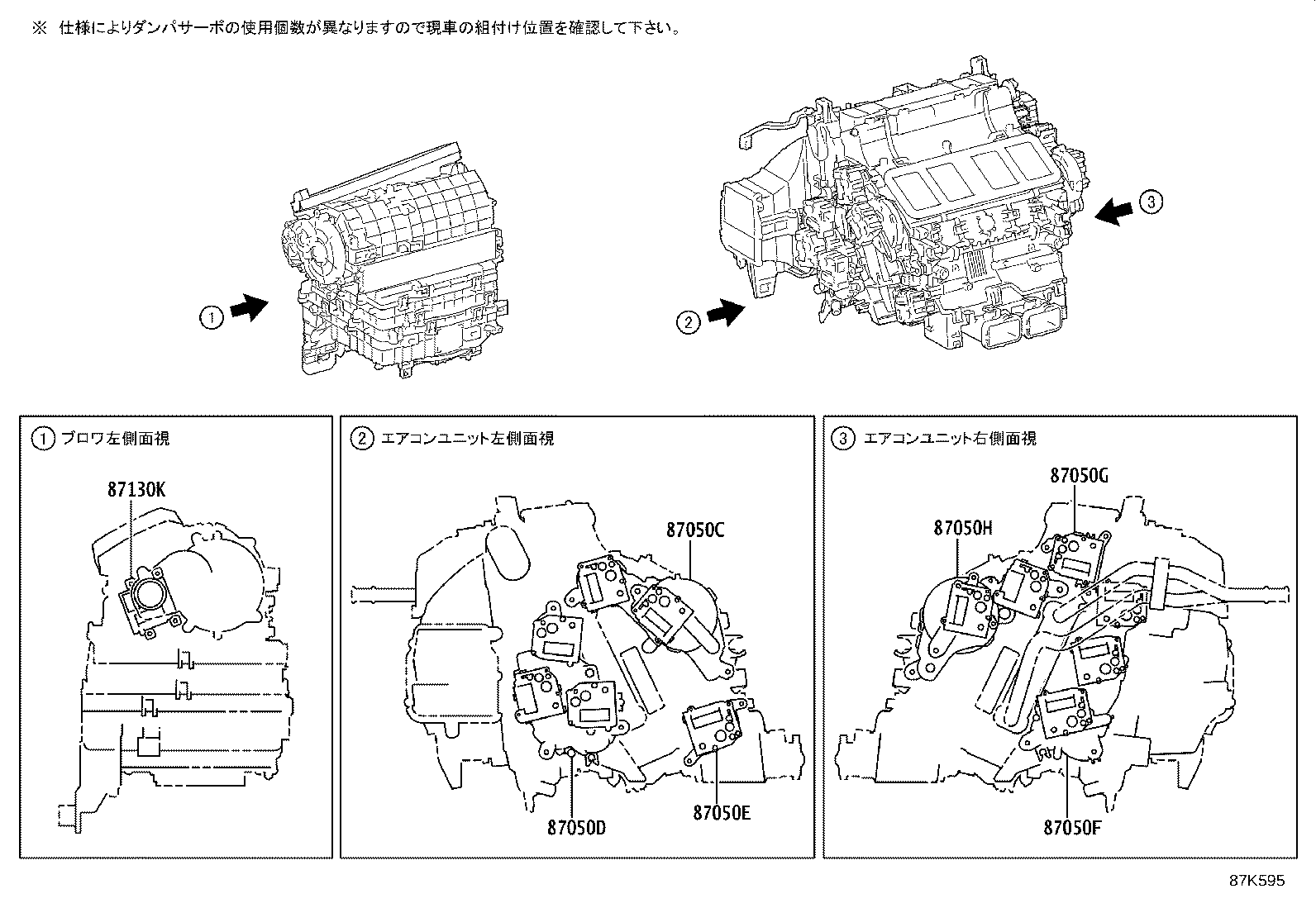

Exploded illustration 87K595 87050C — DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 (1 parts) 87050F — DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 (1 parts) 87050H — DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.6 (1 parts) 87050D — DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 (1 parts) 87050E — DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 (2 parts) 87050G — DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5 (1 parts) 87130K — DAMPER SERVO SUB-ASSY, BLOWER, NO.1 (1 parts)
87K595 · 7 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
87050C — Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87106-11060 Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2021-12 → 2024-11 ended
VJA310 —
87050D — Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87106-50710 Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2021-12 → 2024-11 ended
VJA310 —
87050E — Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
87106-50610 Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2021-12 → 2023-08 ended
VJA310 —
87106-60430 Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2023-08 → 2024-11 ended
VJA310 —
87050F — Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
87106-50720 Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
2021-12 → 2024-11 ended
VJA310 ¥0
87050G — Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
87106-60370 Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
2021-12 → 2024-11 ended
VJA310 —
87050H — Damper Servo Sub-assy, Air Conditioner Radiator, NO.6
87106-50730 Damper Servo Sub-assy, Air Conditioner Radiator, NO.6
2021-12 → 2024-11 ended
VJA310 —
87130K — Damper Servo Sub-assy, Blower, NO.1
87106-50760 Damper Servo Sub-assy, Blower, NO.1
2021-12 → 2024-11 ended
VJA310 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
