Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

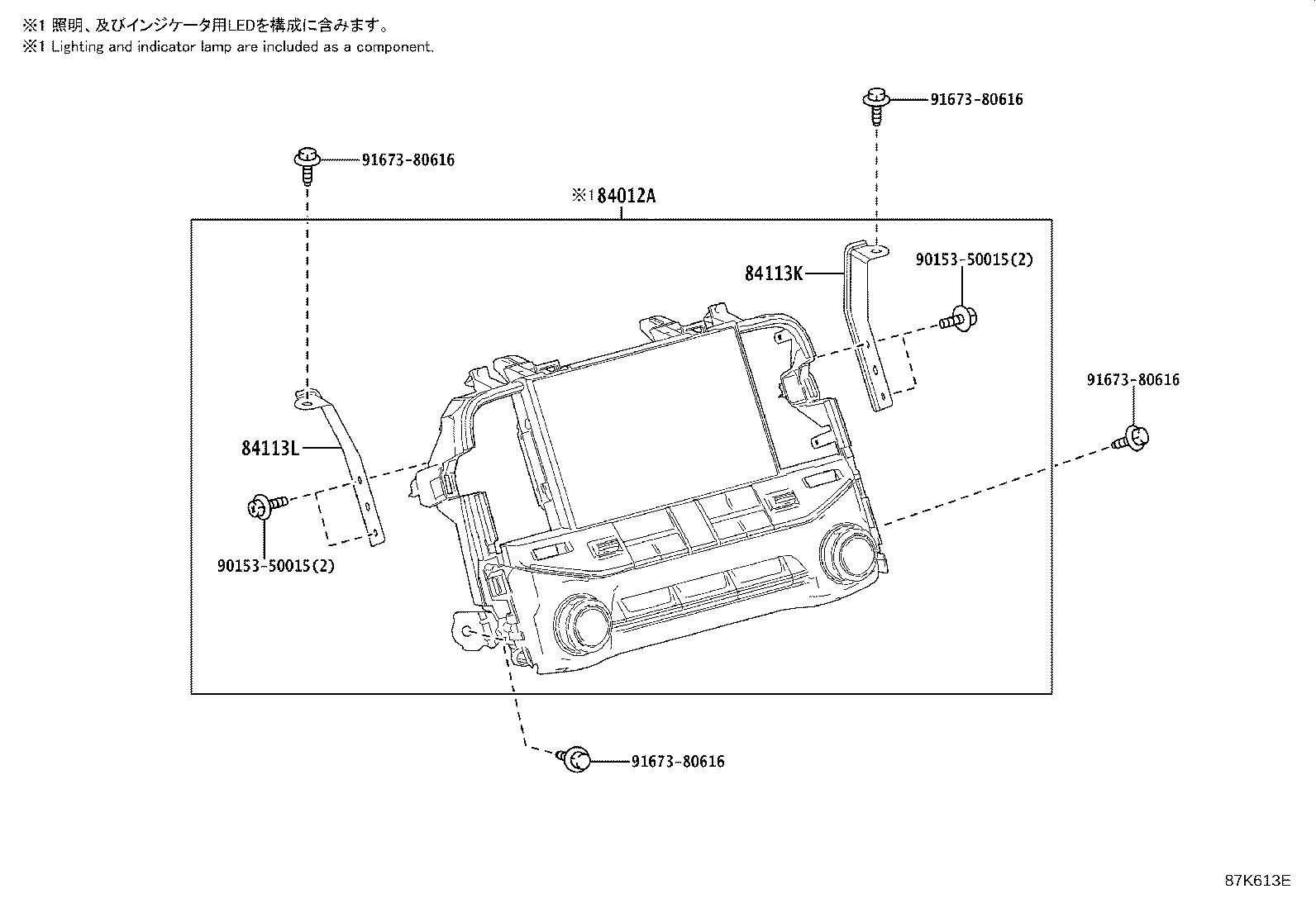

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84012A — Control & Panel Sub-assy, Integration | ||||
| 84012-60860 |
Control & Panel Sub-assy, Integration
2021-12 → 2024-11
ended
|
VJA310 | ¥194,000 | |
| 84113K — Bracket, Switch, RH | ||||
| 84113-60050 |
Bracket, Switch, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥380 | |
| 84113L — Bracket, Switch, LH | ||||
| 84113-60040 |
Bracket, Switch, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥380 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
