Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

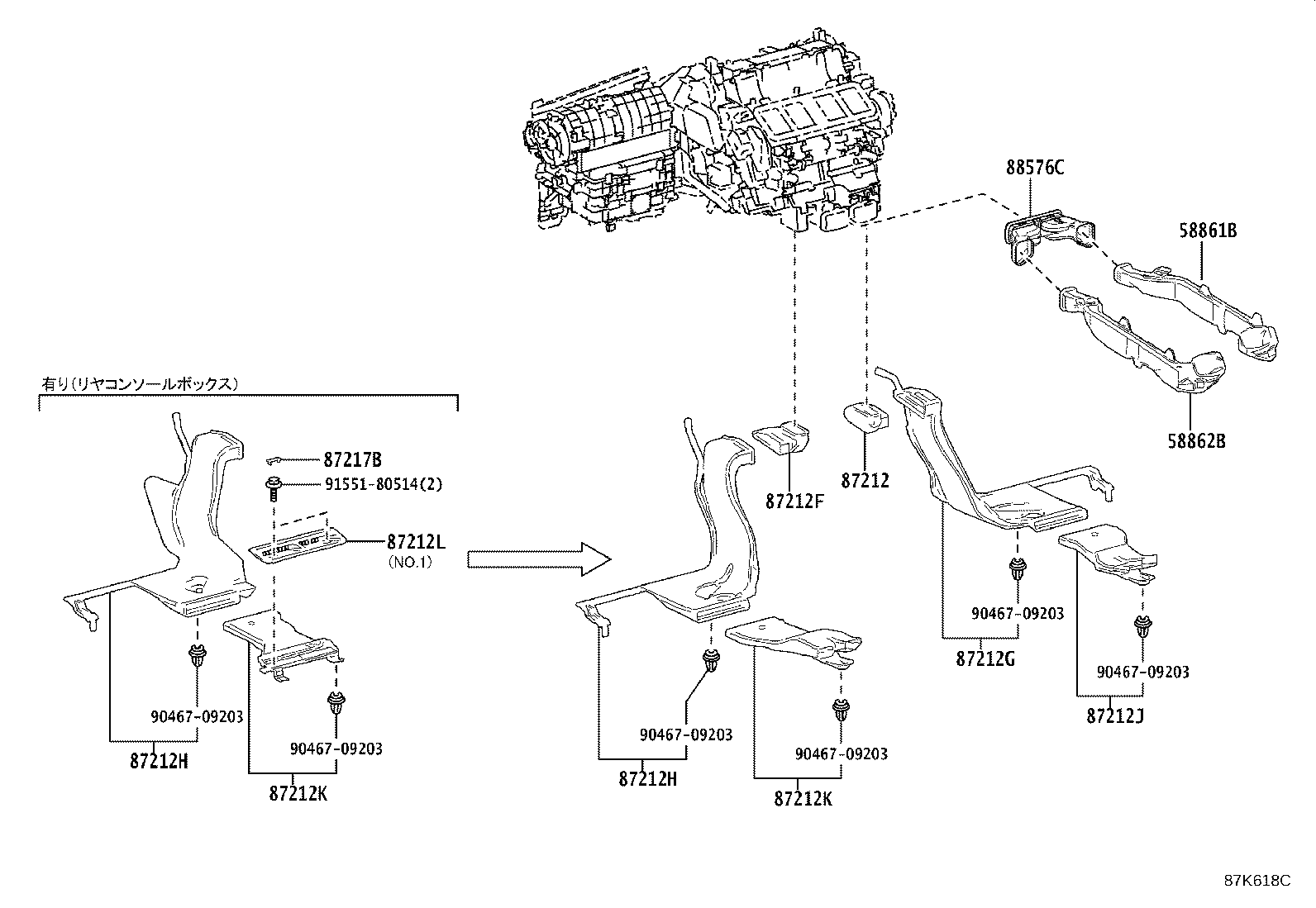

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58861B — Duct, Console Box, NO.1 | ||||
| 58861-60200 |
Duct, Console Box, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥1,630 | |
| 58862B — Duct, Console Box, NO.2 | ||||
| 58862-60160 |
Duct, Console Box, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥1,630 | |
| 87212 — Duct, Air, Rear NO.1 | ||||
| 87212-60150 |
Duct, Air, Rear NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥980 | |
| 87212F — Duct, Air, Rear NO.2 | ||||
| 87213-60030 |
Duct, Air, Rear NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥980 | |
| 87212G — Duct, Air, Rear NO.3 | ||||
| 87215-60030 |
Duct, Air, Rear NO.3
2021-12 → 2024-11
ended
|
VJA310 | ¥4,210 | |
| 87212H — Duct, Air, Rear NO.4 | ||||
| 87216-60040 |
Duct, Air, Rear NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥4,040 | |
| 87216-60050 note |
Duct, Air, Rear NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥4,480 | |
| 87212J — Duct, Air, Rear NO.5 | ||||
| 87217-60010 |
Duct, Air, Rear NO.5
2021-12 → 2024-11
ended
|
VJA310 | ¥2,170 | |
| 87212K — Duct, Air, Rear NO.6 | ||||
| 87218-60070 |
Duct, Air, Rear NO.6
2021-12 → 2024-11
ended
|
VJA310 | ¥1,550 | |
| 87218-60080 note |
Duct, Air, Rear NO.6
2021-12 → 2024-11
ended
|
VJA310 | ¥2,570 | |
| 87212L — Duct, Air, Rear NO.7 | ||||
| 87211-60390 note |
Duct, Air, Rear NO.7
2021-12 → 2024-11
ended
|
VJA310 | ¥10,800 | |
| 87211-60400 note |
Duct, Air, Rear NO.7
2021-12 → 2024-11
ended
|
VJA310 | ¥11,800 | |
| 87217-50070-C0 note |
Duct, Air, Rear NO.7
2021-12 → 2024-11
ended
|
VJA310 | ¥1,720 | |
| 87217B — Plug, Air Duct | ||||
| 90950-01693-C1 note |
Plug, Air Duct
2021-12 → 2024-11
ended
|
VJA310 | ¥160 | |
| 88576C — Duct, Cooler Air, NO.1 | ||||
| 88576-60060 |
Duct, Cooler Air, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
