Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

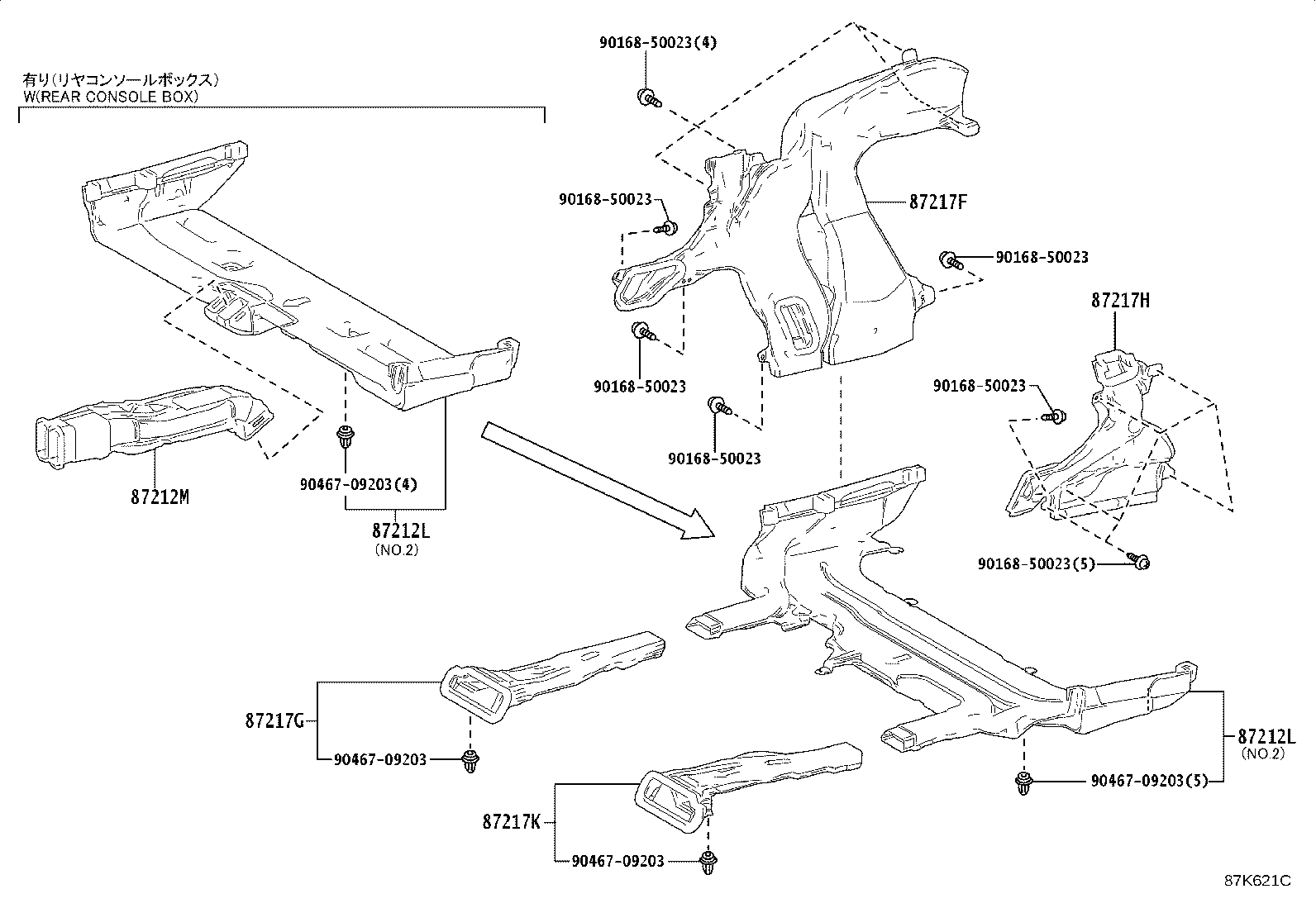

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87212L — Duct, Air, Rear NO.7 | ||||
| 87211-60390 note |
Duct, Air, Rear NO.7
2021-12 → 2024-11
ended
|
VJA310 | ¥10,800 | |
| 87211-60400 note |
Duct, Air, Rear NO.7
2021-12 → 2024-11
ended
|
VJA310 | ¥11,800 | |
| 87217-50070-C0 note |
Duct, Air, Rear NO.7
2021-12 → 2024-11
ended
|
VJA310 | ¥1,720 | |
| 87212M — Duct, Air, Rear NO.8 | ||||
| 87211-60410 note |
Duct, Air, Rear NO.8
2021-12 → 2024-11
ended
|
VJA310 | ¥4,160 | |
| 87217F — Duct, Air, Rear Side NO.3 | ||||
| 87220-60030 |
Duct, Air, Rear Side NO.3
2021-12 → 2024-11
ended
|
VJA310 | ¥7,000 | |
| 87217G — Duct, Air, Rear Side NO.4 | ||||
| 87220-60080 |
Duct, Air, Rear Side NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥3,470 | |
| 87217H — Duct, Air, Rear Side NO.5 | ||||
| 87230-60030 |
Duct, Air, Rear Side NO.5
2021-12 → 2024-11
ended
|
VJA310 | ¥3,640 | |
| 87217K — Duct, Air, Rear Side NO.6 | ||||
| 87230-60070 |
Duct, Air, Rear Side NO.6
2021-12 → 2024-11
ended
|
VJA310 | ¥3,470 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
