Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

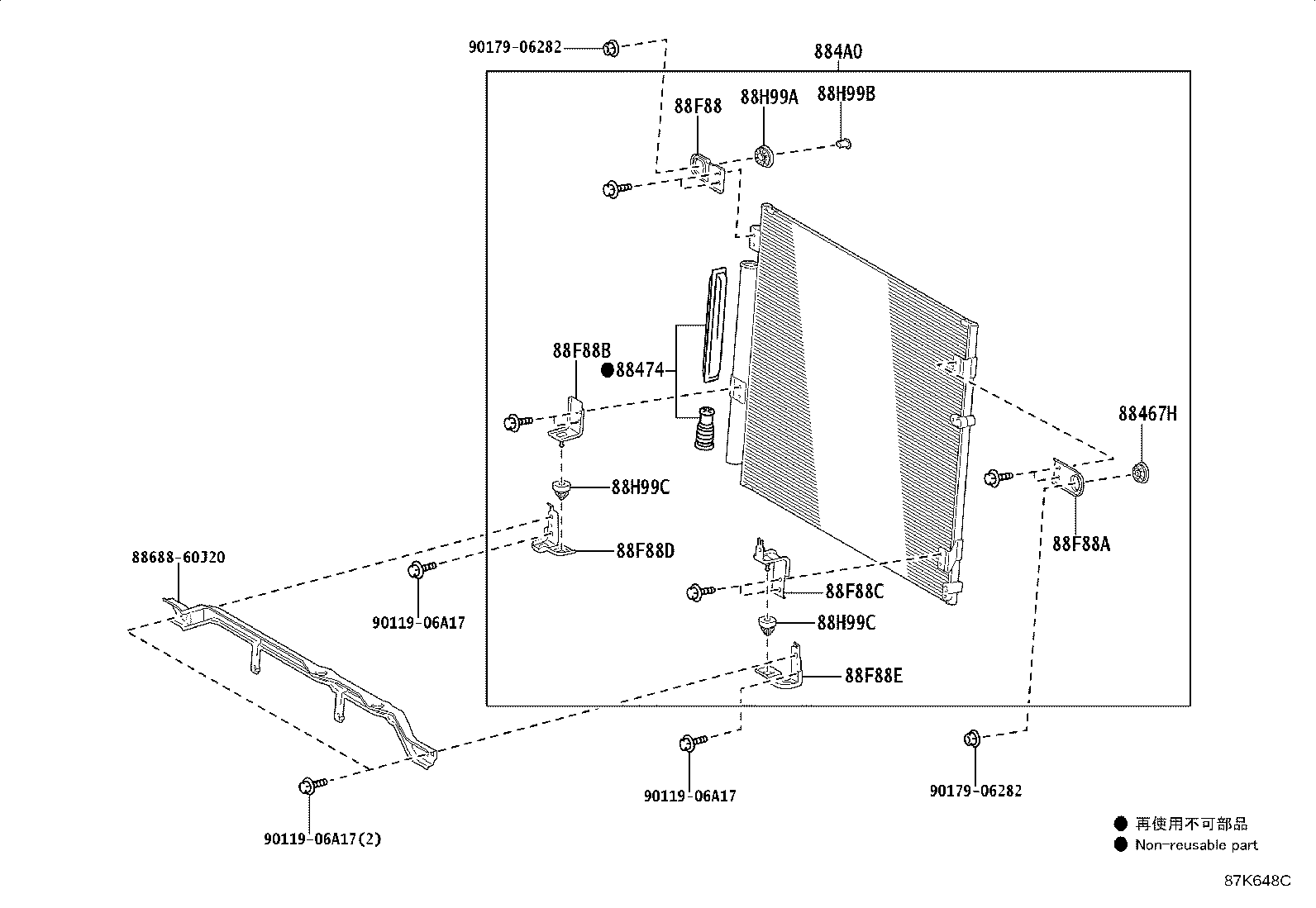

Exploded illustration 87K648C 884A0 — CONDENSER ASSY, COOLER (1 parts) 88467H — CUSHION, CONDENSER BRACKET, NO.1 (1 parts) 88F88A — BRACKET, CONDENSER, NO.2 (1 parts) 88F88 — BRACKET, CONDENSER, NO.1 (1 parts) 88H99A — BUSH, CONDENSER BRACKET, NO.1 (1 parts) 88H99B — BUSH, CONDENSER BRACKET, NO.2 (1 parts) 9017906282 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 8868860J20 — not listed in this catalogue 9017906282 — not listed in this catalogue 88474 — DRYER, COOLER (1 parts) 88F88C — BRACKET, CONDENSER, NO.4 (1 parts) 88F88B — BRACKET, CONDENSER, NO.3 (1 parts) 88F88D — BRACKET, CONDENSER, NO.5 (1 parts) 88F88E — BRACKET, CONDENSER, NO.6 (1 parts) 88H99C — BUSH, CONDENSER BRACKET, NO.3 (1 parts) 88H99C — BUSH, CONDENSER BRACKET, NO.3 (1 parts)
87K648C · 13 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
12 parts on this figure
Part number Description Fitment Price
88467H — Cushion, Condenser Bracket, NO.1
88467-35040 Cushion, Condenser Bracket, NO.1
2021-12 → 2024-11 ended
VJA310 ¥0
88474 — Dryer, Cooler
88474-12010 Dryer, Cooler
2021-12 → 2024-11 ended
VJA310 ¥0
884A0 — Condenser Assy, Cooler
884A0-60040 Condenser Assy, Cooler
2021-12 → 2024-11 ended
VJA310 ¥30,600
88F88 — Bracket, Condenser, NO.1
88688-60C40 Bracket, Condenser, NO.1
2021-12 → 2024-11 ended
VJA310 —
88F88A — Bracket, Condenser, NO.2
88688-60C50 Bracket, Condenser, NO.2
2021-12 → 2024-11 ended
VJA310 —
88F88B — Bracket, Condenser, NO.3
88688-60C60 Bracket, Condenser, NO.3
2021-12 → 2024-11 ended
VJA310 —
88F88C — Bracket, Condenser, NO.4
88688-60C70 Bracket, Condenser, NO.4
2021-12 → 2024-11 ended
VJA310 —
88F88D — Bracket, Condenser, NO.5
88688-60C80 Bracket, Condenser, NO.5
2021-12 → 2024-11 ended
VJA310 —
88F88E — Bracket, Condenser, NO.6
88688-60C90 Bracket, Condenser, NO.6
2021-12 → 2024-11 ended
VJA310 —
88H99A — Bush, Condenser Bracket, NO.1
88899-60530 Bush, Condenser Bracket, NO.1
2021-12 → 2024-11 ended
VJA310 —
88H99B — Bush, Condenser Bracket, NO.2
88899-60540 Bush, Condenser Bracket, NO.2
2021-12 → 2024-11 ended
VJA310 —
88H99C — Bush, Condenser Bracket, NO.3
88899-60550 Bush, Condenser Bracket, NO.3
2021-12 → 2024-11 ended
VJA310 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
