Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB1# · catalogue 811110 · Japan
Discontinued model
Data version 1982-12

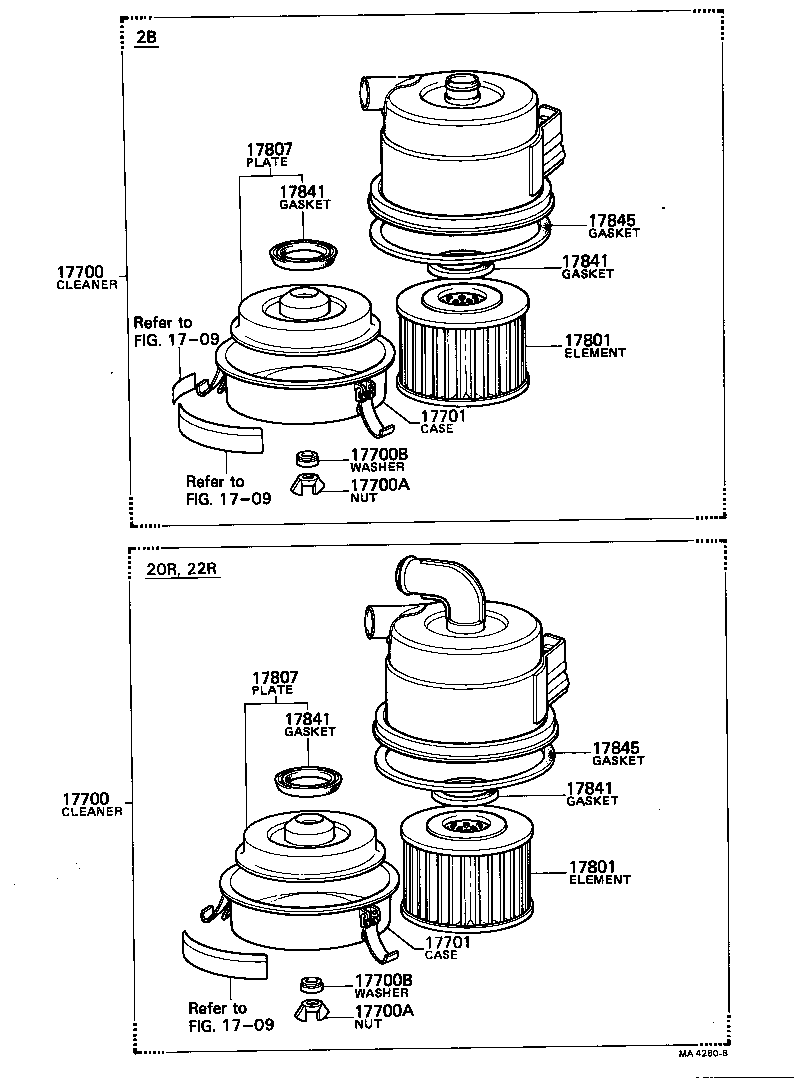

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-35070 |
Cleaner Assy, Air
1980-08 → 1982-04
ended
|
22R RB13 | ¥31,300 | |
| 17700-38070 |
Cleaner Assy, Air
1977-08 → 1979-09
ended
|
20R RB11 | ¥31,300 | |
| 17700-38071 |
Cleaner Assy, Air
1979-09 → 1980-08
ended
|
20R RB1# | — | |
| 17700-56141 |
Cleaner Assy, Air
1977-08 → 1979-09
ended
|
2B BB10 | ¥30,500 | |
| 17700-56142 |
Cleaner Assy, Air
1979-09 → 1982-04
ended
|
2B BB1# | ¥30,500 | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 94271-00800 |
Nut, Wing(FOR AIR CLEANER)
1977-08 → 1982-04
ended
|
2B BB1# | — | |
| 94271-00800 |
Nut, Wing(FOR AIR CLEANER)
1977-08 → 1982-04
ended
|
20R,22R RB1# | — | |
| 17700B — Washer, Seal(FOR AIR CLEANER) | ||||
| 90210-08004 |
Washer, Seal(FOR AIR CLEANER)
1977-08 → 1982-04
ended
|
2B BB1# | ¥320 | |
| 90210-08004 |
Washer, Seal(FOR AIR CLEANER)
1977-08 → 1982-04
ended
|
20R,22R RB1# | ¥320 | |
| 17701 — Case Sub-assy, Air Cleaner | ||||
| 17701-38070 |
Case Sub-assy, Air Cleaner
1977-08 → 1979-09
ended
|
20R RB11 | — | |
| 17701-48070 |
Case Sub-assy, Air Cleaner
1977-08 → 1979-09
ended
|
2B BB10 | — | |
| 17701-48071 |
Case Sub-assy, Air Cleaner
1979-09 → 1982-04
ended
|
2B BB1# | — | |
| 17701-48071 |
Case Sub-assy, Air Cleaner
1979-09 → 1982-04
ended
|
20R,22R RB1# | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-48011 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1982-04
ended
|
2B BB1# | ¥2,630 | |
| 17801-48011 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1982-04
ended
|
20R,22R RB1# | ¥2,630 | |
| 17807 — Plate Sub-assy, Air Cleaner Filter Set | ||||
| 17807-56010 |
Plate Sub-assy, Air Cleaner Filter Set
1977-08 → 1982-04
ended
|
2B BB1# | — | |
| 17807-56010 |
Plate Sub-assy, Air Cleaner Filter Set
1977-08 → 1982-04
ended
|
20R,22R RB1# | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-44030 |
Gasket, Filter Element
1980-08 → 1982-04
ended
|
2B BB11 | — | |
| 17841-44030 |
Gasket, Filter Element
1980-08 → 1982-04
ended
|
22R RB13 | — | |
| 17841-56010 |
Gasket, Filter Element
1977-08 → 1980-08
ended
|
2B BB1# | ¥1,000 | |
| 17841-56010 |
Gasket, Filter Element
1977-08 → 1980-08
ended
|
20R RB1# | ¥1,000 | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-56020 |
Gasket, Air Cleaner Cap
1977-08 → 1982-04
ended
|
2B BB1# | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
1977-08 → 1982-04
ended
|
20R,22R RB1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
