Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB1# · catalogue 811110 · Japan
Discontinued model
Data version 1982-12

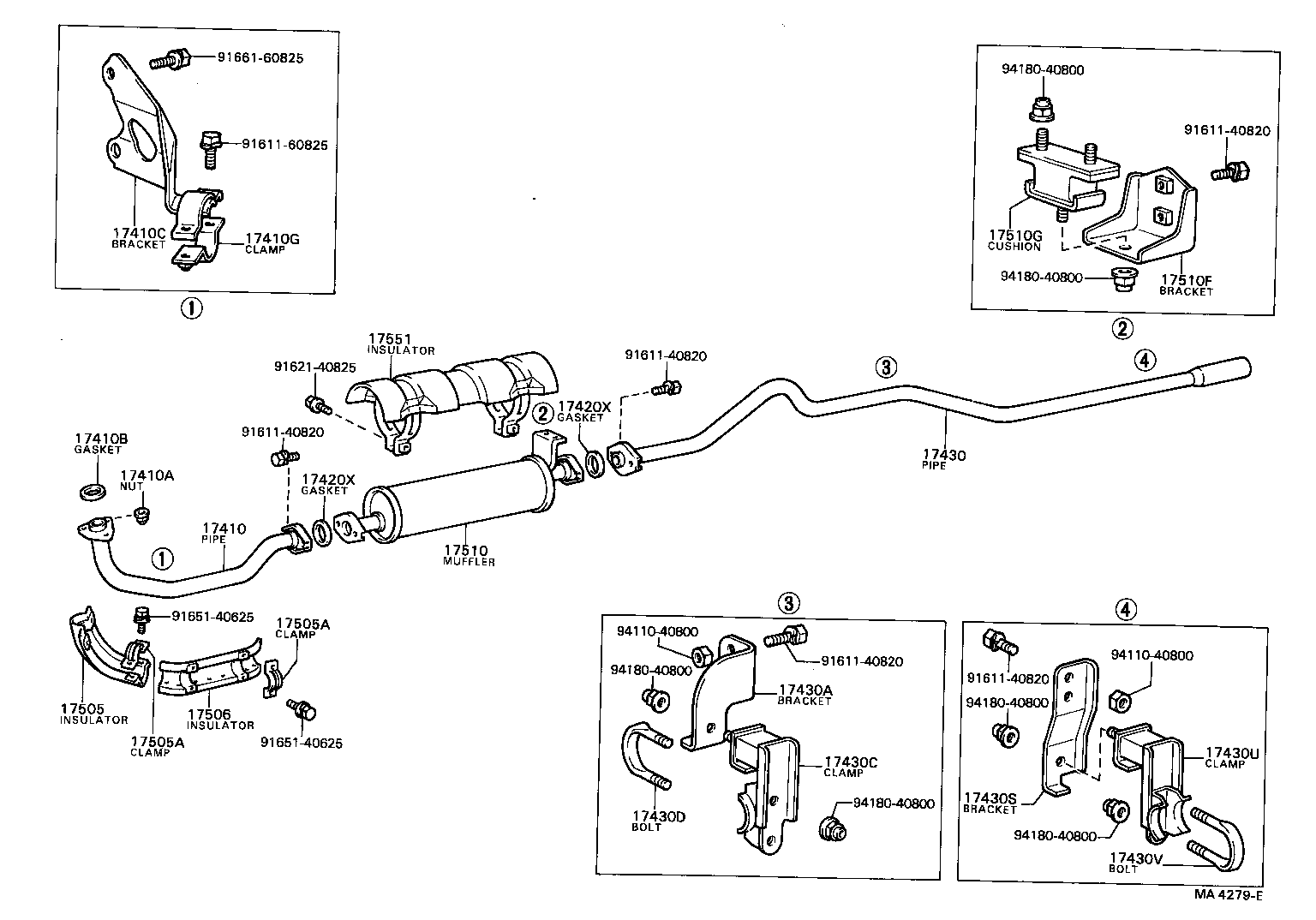

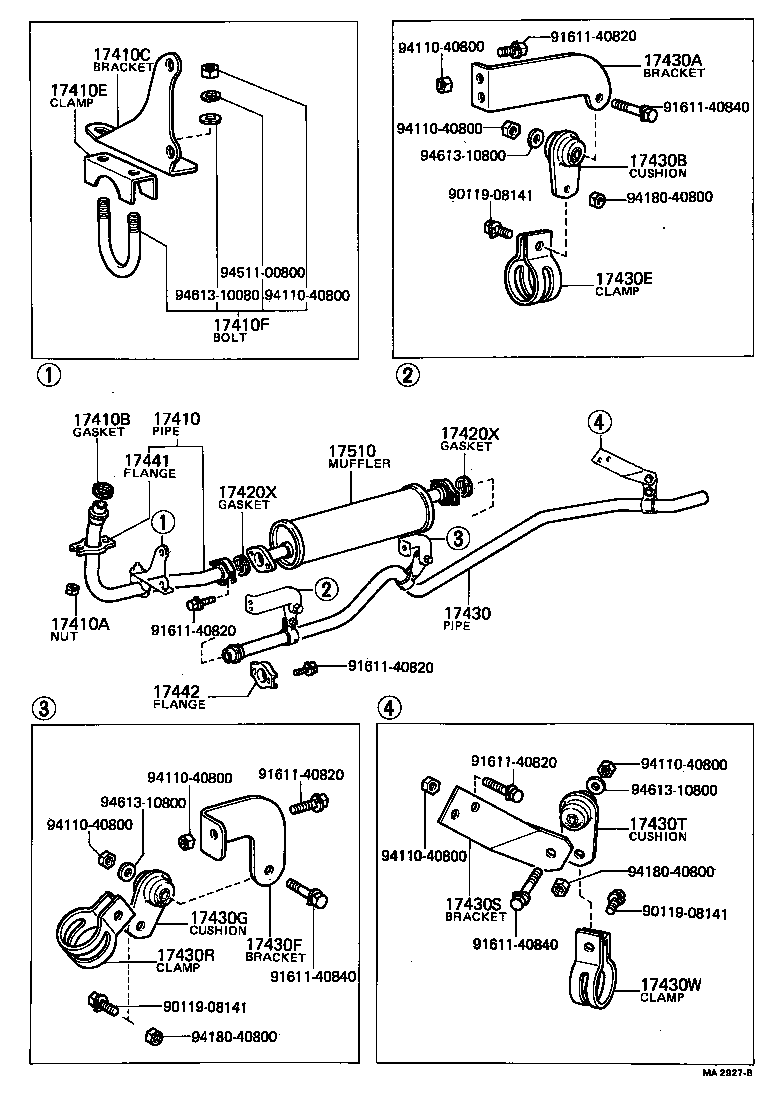

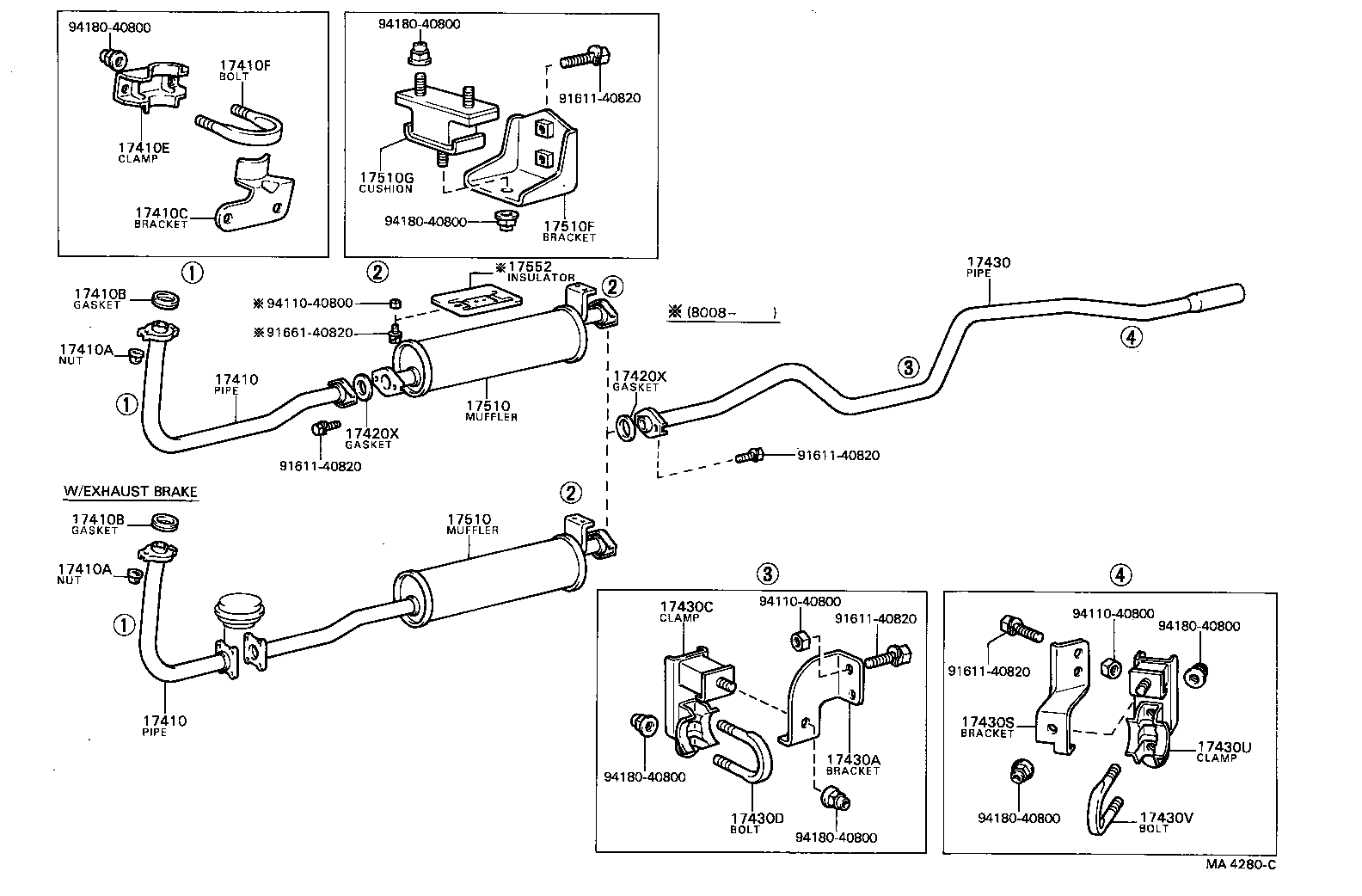

Exhaust Pipe
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17410F | Bolt OR Ring, Exhaust Pipe Front (FOR FRONT) |
| 17410G | Clamp NO.2, Exhaust Pipe Front (FOR FRONT) |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430A | Bracket, Exhaust Tailpipe(FOR FRONT) |
| 17430B | Cushion, Exhaust Tailpipe(FOR FRONT) |
| 17430C | Clamp NO.1, Exhaust Tailpipe (FOR FRONT) |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17430E | Clamp NO.2, Exhaust Tailpipe(FOR FRONT) |
| 17430F | Bracket, Exhaust Tailpipe(FOR CENTER) |
| 17430G | Cushion, Exhaust Tailpipe(FOR CENTER) |
| 17430R | Clamp NO.2, Exhaust Tailpipe (FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17430U | Clamp NO.1, Exhaust Tailpipe (FOR REAR) |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17430W | Clamp NO.2, Exhaust Tailpipe (FOR REAR) |
| 17441 | Flange, Exhaust Pipe |
| 17442 | Flange, Exhaust Pipe, NO.2 |
| 17505 | Insulator Sub-assy, Exhaust Pipe Heat NO.1 |
| 17505A | Clamp, Exhaust Pipe(FOR HEAT INSULATOR) |
| 17506 | Insulator Sub-assy, Exhaust Pipe Heat NO.2 |
| 17510 | Muffler Assy |
| 17510F | Bracket, Muffler, Rear |
| 17510G | Cushion, Muffler, Rear |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17552 | Insulator, Exhaust Pipe Heat, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
