Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB1# · catalogue 811110 · Japan

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 4 illustrations

Illustrations

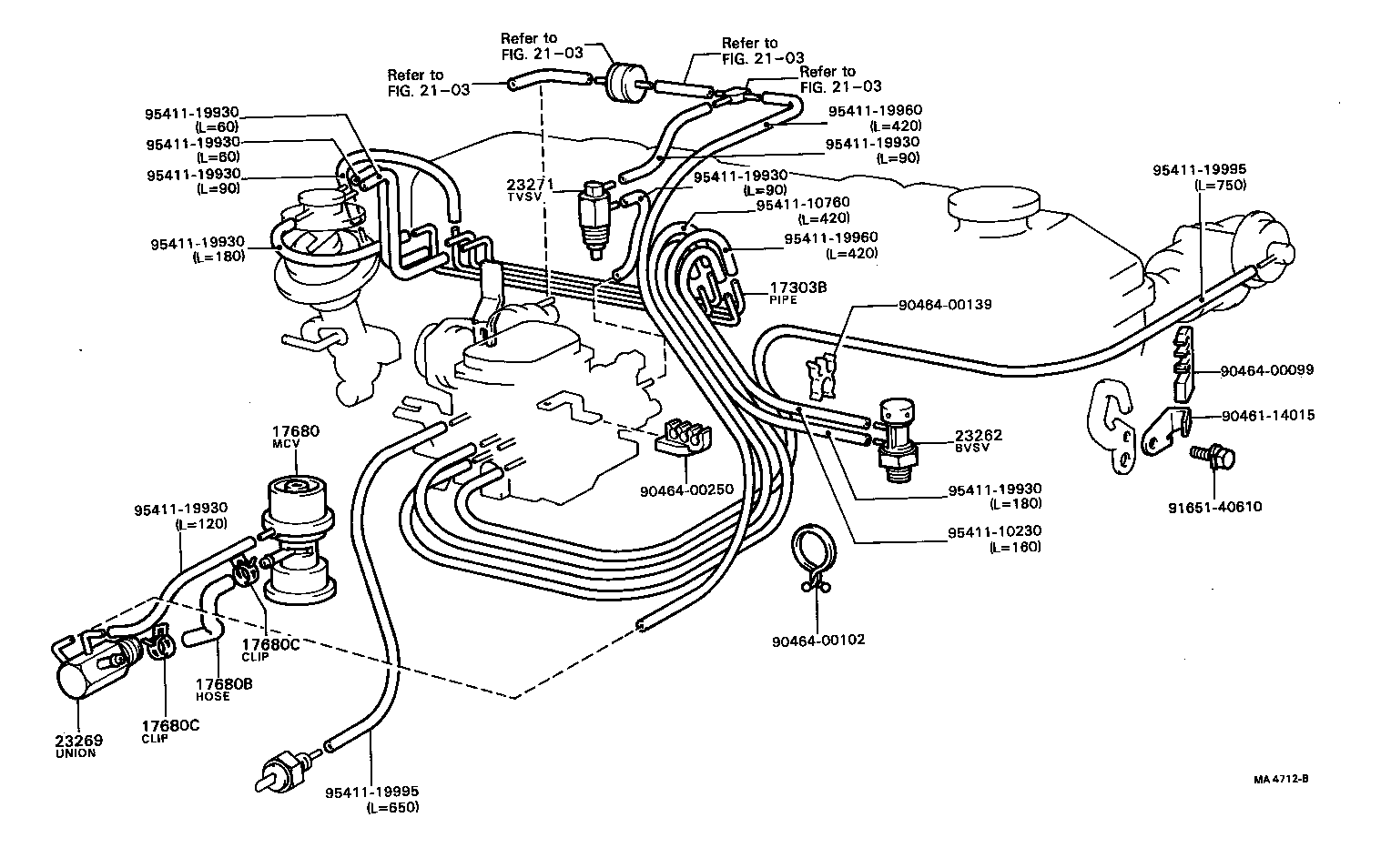

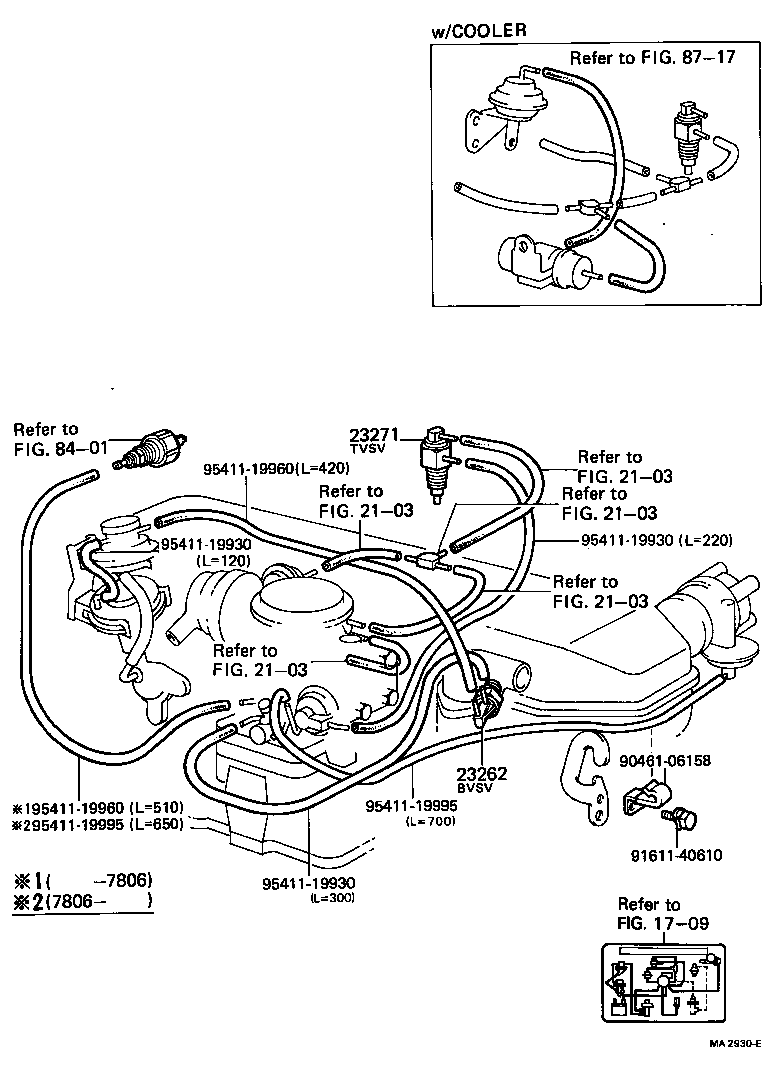

Figure MA9500 MA9500 1977-08 → — Figure MA9500 MA9500 1977-08 → — Figure MA2930E MA2930E 1977-08 → 1980-08 Figure MA4712B MA4712B 1980-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17680C Clamp OR Clip(FOR MIXTURE CONTROL VALVE HOSE)
23262 Valve, Bimetal Vacuum Switching, NO.1
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
