Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB1# · catalogue 811110 · Japan
Discontinued model
Data version 1982-12

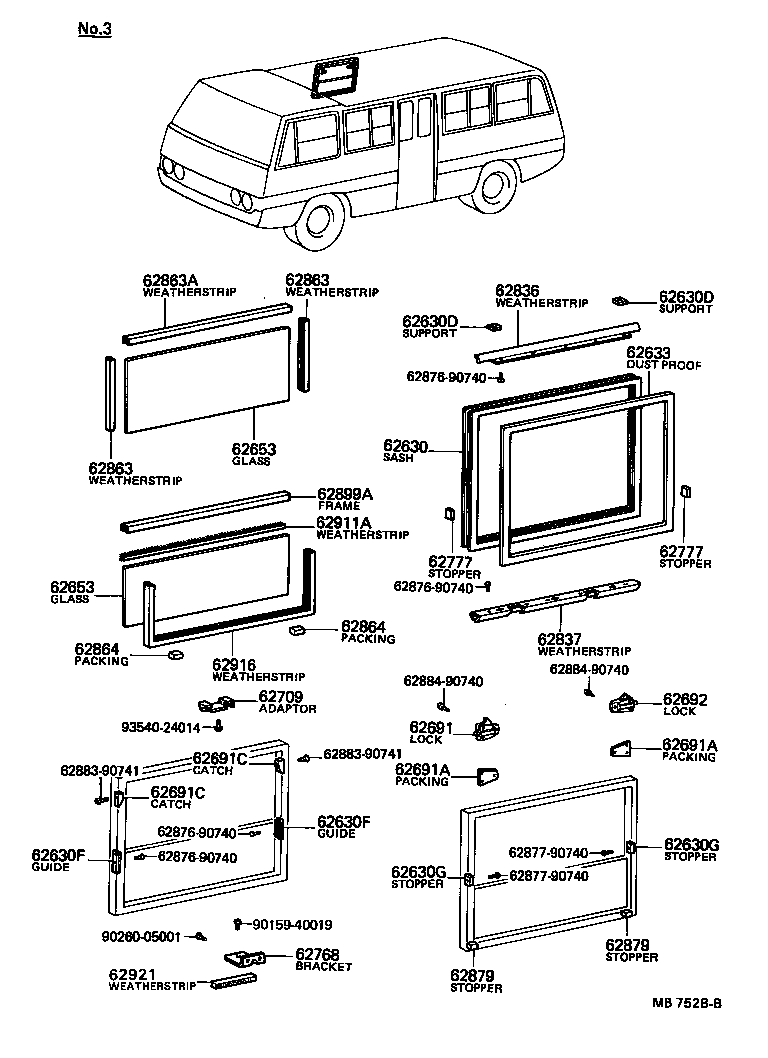

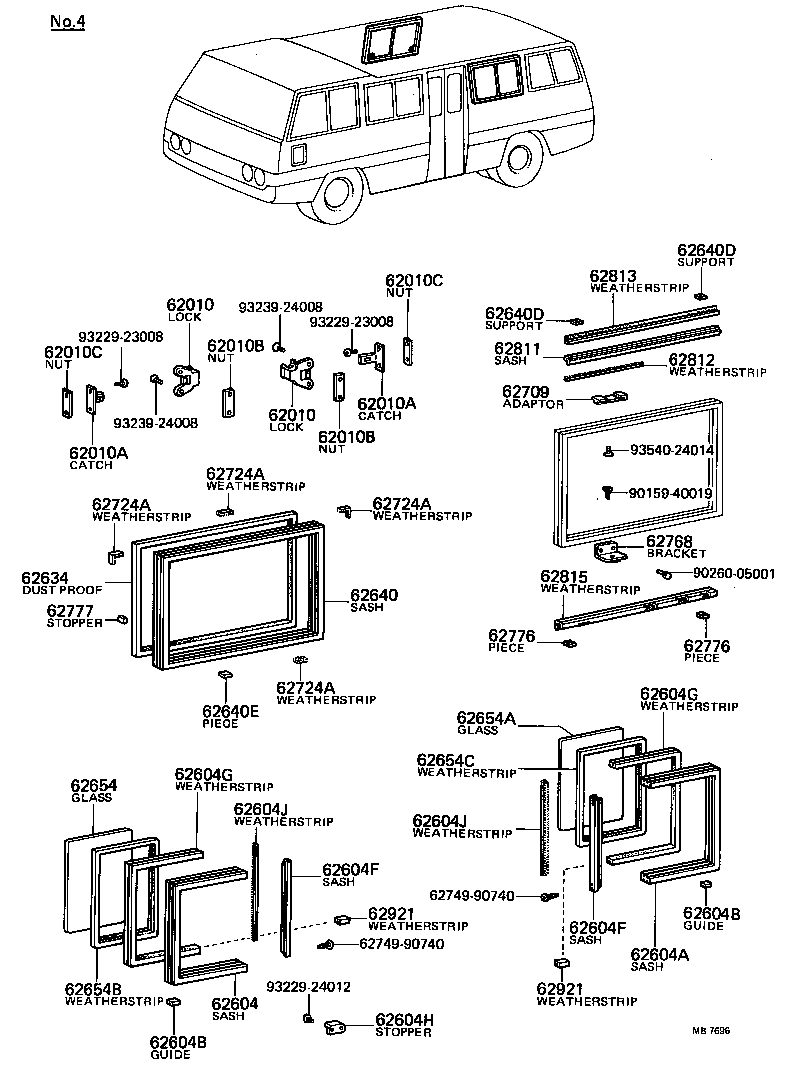

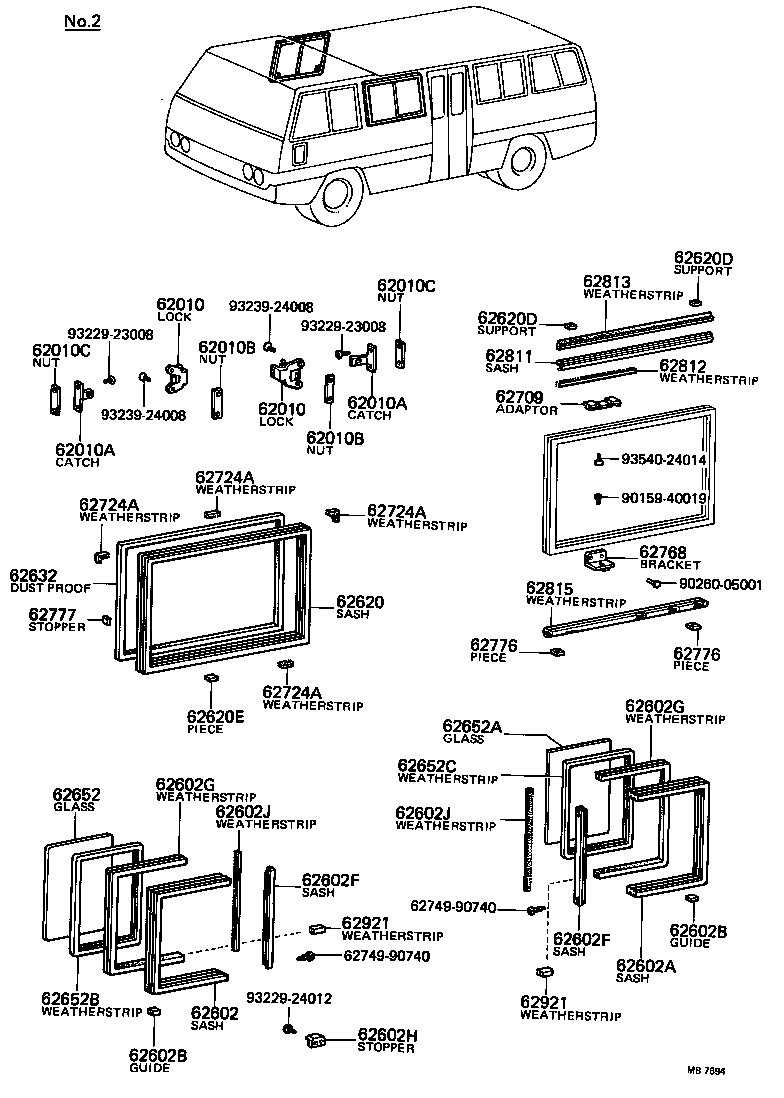

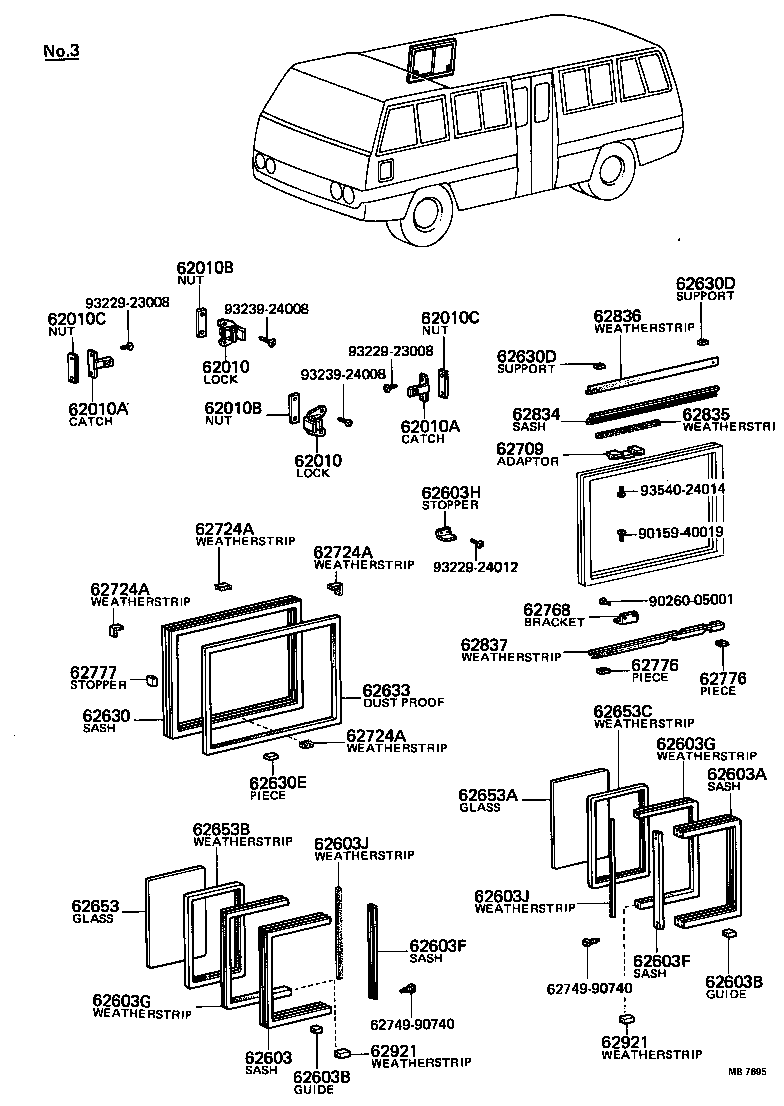

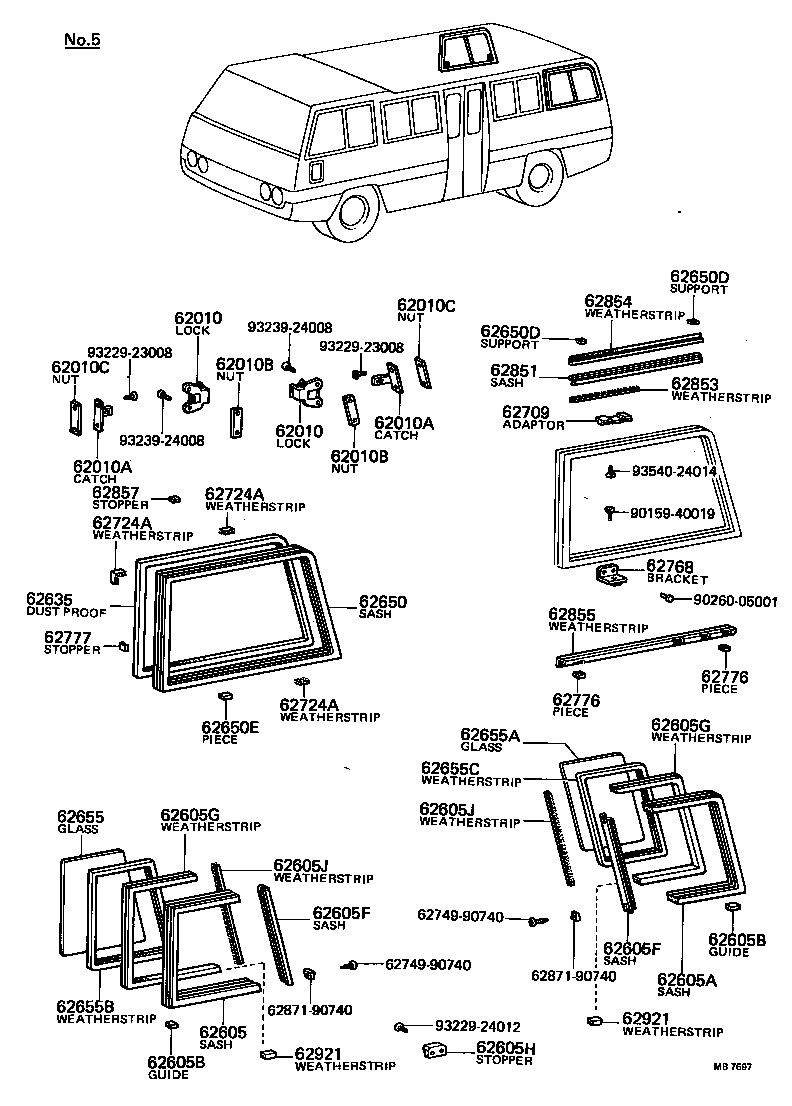

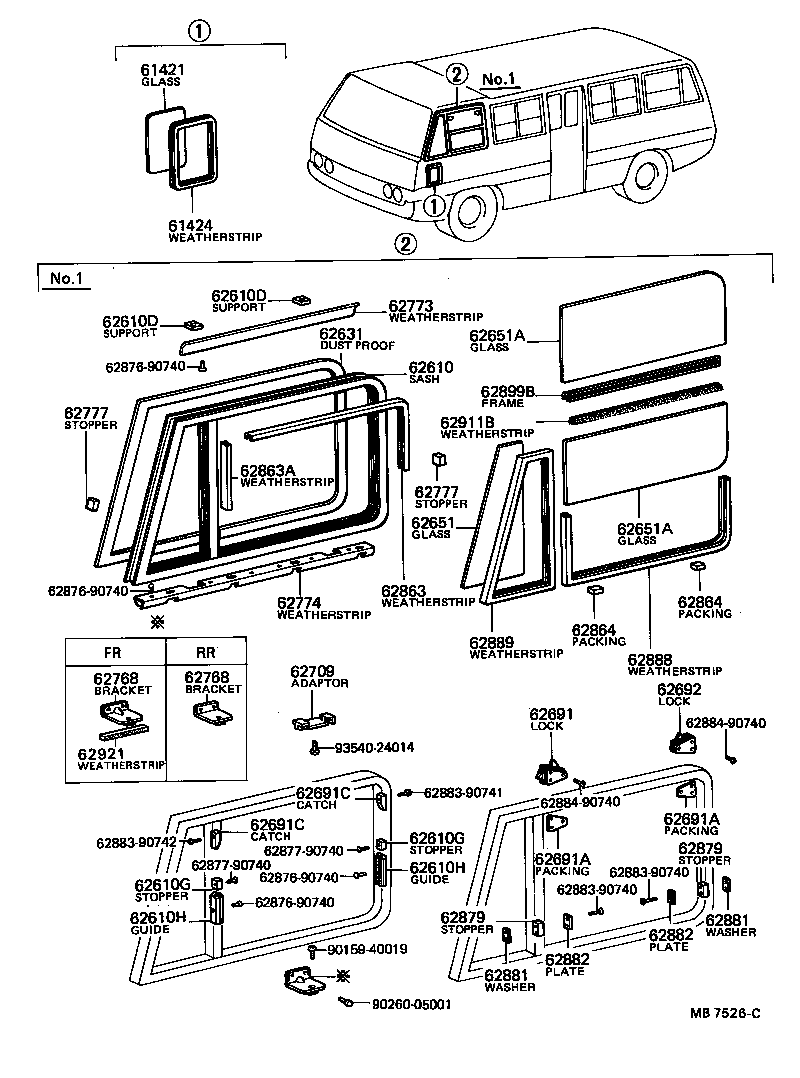

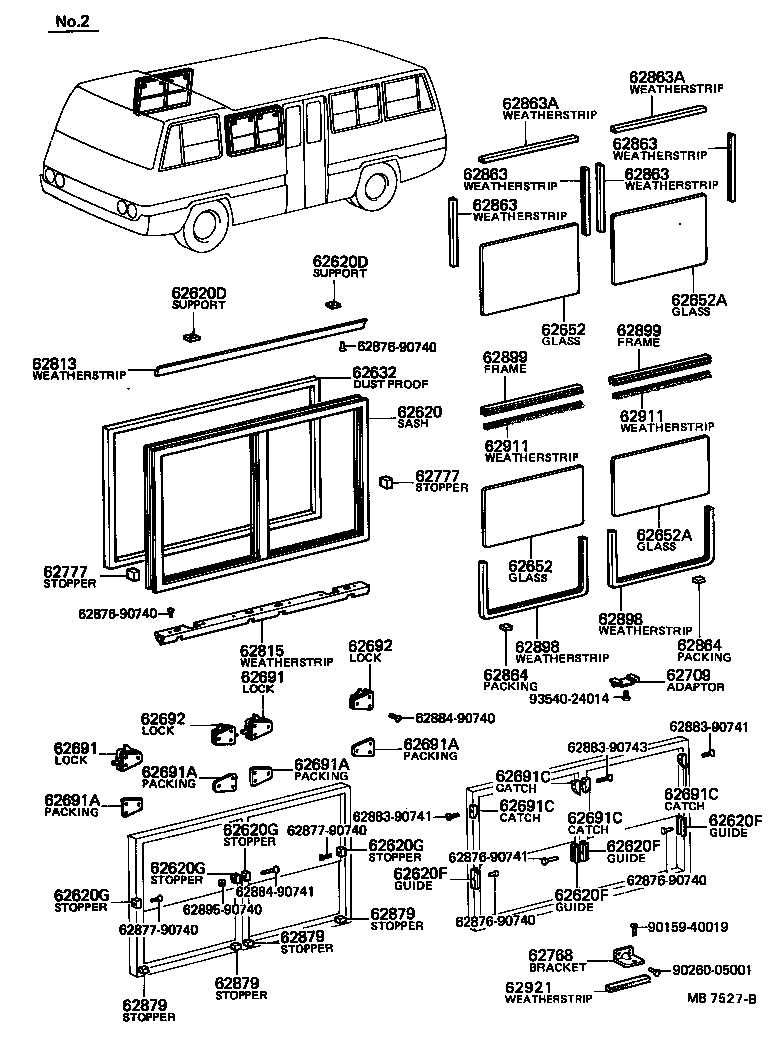

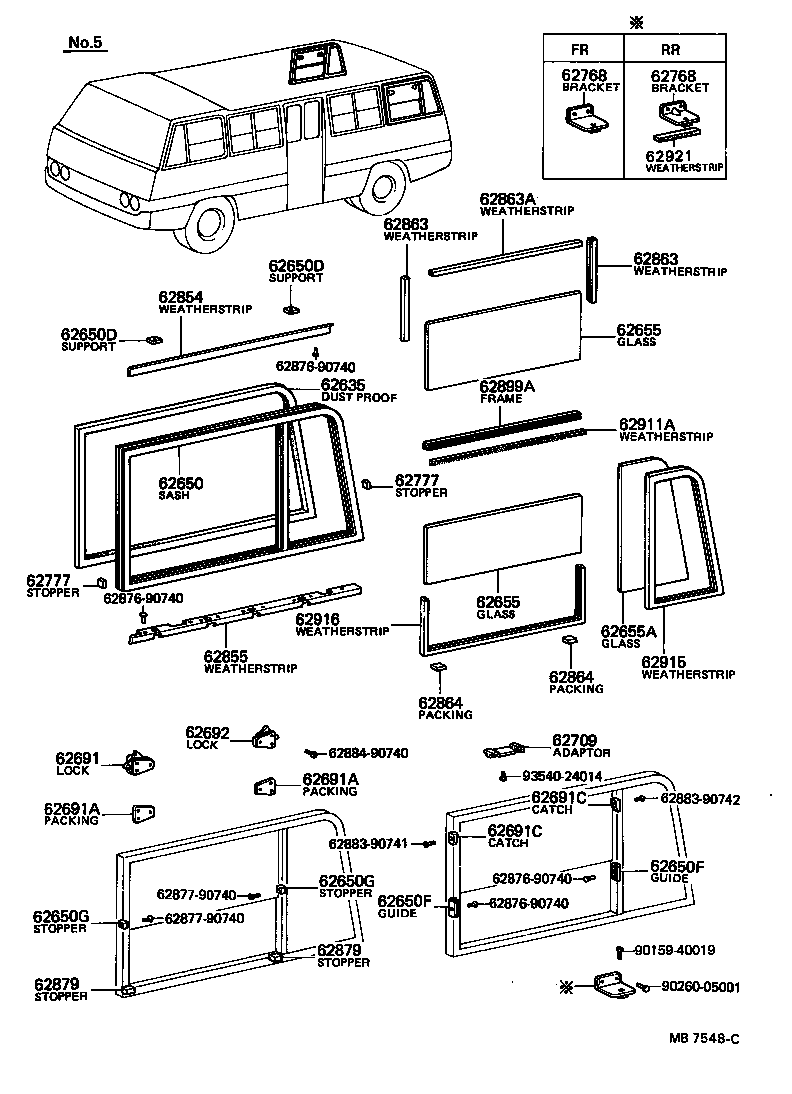

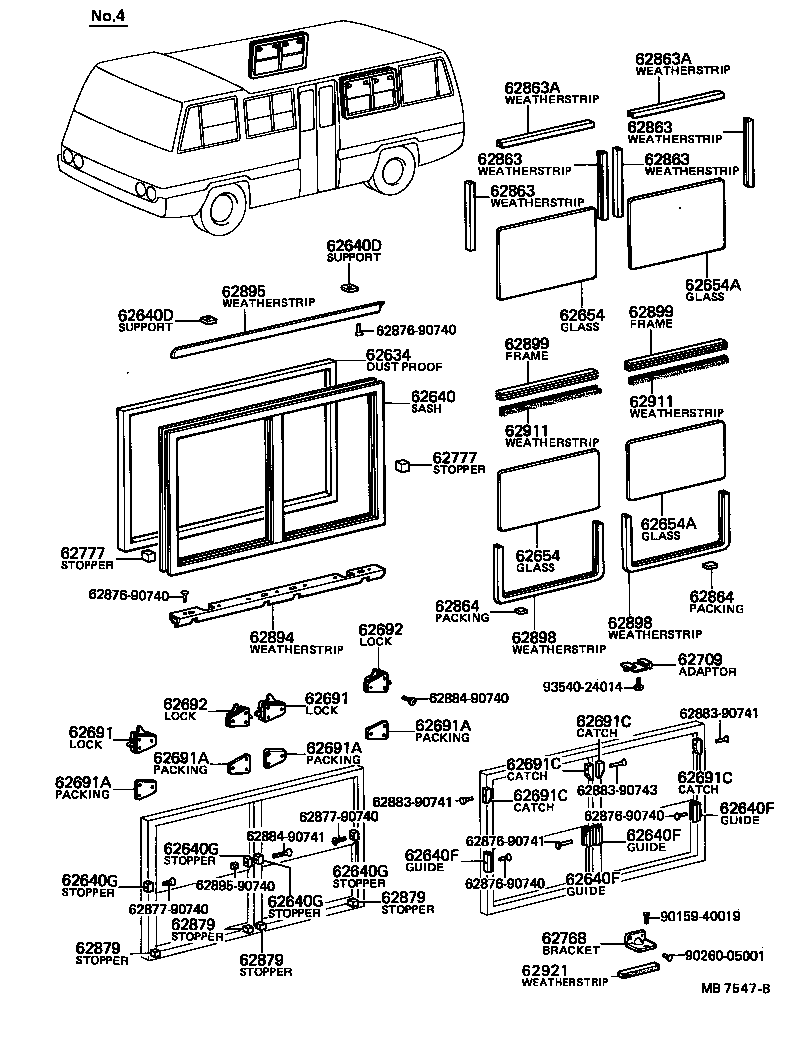

Side Window
138 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 61421 | Glass, Side Lower Window |
| 61424 | Weatherstrip, Side Lower Window Glass |
| 62010 | Lock Assy, Side Window |
| 62010A | Catch, Lock |
| 62010B | Nut, Plate, NO.1 |
| 62010C | Nut, Plate, NO.2 |
| 62601 | Sash Sub-assy, Side Window Inner Front, NO.1 |
| 62601A | Sash Sub-assy, Side Window Inner Rear, NO.1 |
| 62601B | Guide, Side Window Inner Sash, NO.1 |
| 62601F | Sash, Side Window Inner Center, NO.1 |
| 62601G | Weatherstrip, Run Channel, NO.1 |
| 62601H | Stopper, Side Window, NO.1 |
| 62601J | Weatherstrip, Side Window Center, NO.1 |
| 62602 | Sash Sub-assy, Side Window Inner Front, NO.2 |
| 62602A | Sash Sub-assy, Side Window Inner Rear, NO.2 |
| 62602B | Guide, Side Window Inner Sash, NO.2 |
| 62602F | Sash, Side Window Inner Center, NO.2 |
| 62602G | Weatherstrip, Run Channel, NO.2 |
| 62602H | Stopper, Side Window, NO.2 |
| 62602J | Weatherstrip, Side Window Center, NO.2 |
| 62603 | Sash Sub-assy, Side Window Inner Front, NO.3 |
| 62603A | Sash Sub-assy, Side Window Inner Rear, NO.3 |
| 62603B | Guide, Side Window Inner Sash, NO.3 |
| 62603F | Sash, Side Window Inner Center, NO.3 |
| 62603G | Weatherstrip, Run Channel, NO.3 |
| 62603H | Stopper, Side Window, NO.3 |
| 62603J | Weatherstrip, Side Window Center, NO.3 |
| 62604 | Sash Sub-assy, Side Window Inner Front, NO.4 |
| 62604A | Sash Sub-assy, Side Window Inner Rear, NO.4 |
| 62604B | Guide, Side Window Inner Sash, NO.4 |
| 62604F | Sash, Side Window Inner Center, NO.4 |
| 62604G | Weatherstrip, Run Channel, NO.4 |
| 62604H | Stopper, Side Window, NO.4 |
| 62604J | Weatherstrip, Side Window Center, NO.4 |
| 62605 | Sash Sub-assy, Side Window Inner Front, NO.5 |
| 62605A | Sash Sub-assy, Side Window Inner Rear, NO.5 |
| 62605B | Guide, Side Window Inner Sash, NO.5 |
| 62605F | Sash, Side Window Inner Center,NO.5 |
| 62605G | Weatherstrip, Run Channel, NO.5 |
| 62605H | Stopper, Side Window, NO.5 |
| 62605J | Weatherstrip, Side Window Center, NO.5 |
| 62610 | Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE) |
| 62610D | Support, Side Window Outer Sash, NO.1 |
| 62610E | Piece, Side Window Outer Sash, NO.1 |
| 62610F | Stopper, Side Window, Rear |
| 62610G | Stopper, Side Window Glass, Lower |
| 62610H | Guide, Slide Rail |
| 62620 | Sash Assy, Side Window Outer, NO.2 (FOR SLIDE TYPE) |
| 62620D | Support, Side Window Outer Sash, NO.2 |
| 62620E | Piece, Side Window Outer Sash, NO.2 |
| 62620F | Guide, Slide Rail |
| 62620G | Stopper, Side Window Glass, Lower |
| 62630 | Sash Assy, Side Window Outer, NO.3 (FOR SLIDE TYPE) |
| 62630D | Support, Side Window Outer Sash, NO.3 |
| 62630E | Piece, Side Window Outer Sash, NO.3 |
| 62630F | Guide, Slide Rail |
| 62630G | Stopper, Side Window Glass, Lower |
| 62631 | Dust Proof, Side Window, NO.1 |
| 62632 | Dust Proof, Side Window, NO.2 |
| 62633 | Dust Proof, Side Window, NO.3 |
| 62634 | Dust Proof, Side Window, NO.4 |
| 62635 | Dust Proof, Side Window, NO.5 |
| 62640 | Sash Assy, Side Window Outer, NO.4 (FOR SLIDE TYPE) |
| 62640D | Support, Side Window Outer Sash, NO.4 |
| 62640E | Piece, Side Window Outer Sash, NO.4 |
| 62640F | Guide, Slide Rail |
| 62640G | Stopper, Side Window Glass, Lower |
| 62650 | Sash Assy, Side Window Outer, NO.5 (FOR SLIDE TYPE) |
| 62650D | Support, Side Window Outer Sash, NO.5 |
| 62650E | Piece, Side Window Outer Sash, NO.5 |
| 62650F | Guide, Slide Rail |
| 62650G | Stopper, Side Window Glass, Lower |
| 62651 | Glass, Side Window, NO.1, Front (FOR SLIDE TYPE) |
| 62651A | Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE) |
| 62651B | Weatherstrip, Side Window, Front NO.1 |
| 62651C | Weatherstrip, Side Window, Rear NO.1 |
| 62652 | Glass, Side Window, NO.2, Front (FOR SLIDE TYPE) |
| 62652A | Glass, Side Window, NO.2, Rear (FOR SLIDE TYPE) |
| 62652B | Weatherstrip, Side Window, Front NO.2 |
| 62652C | Weatherstrip, Side Window, Rear NO.2 |
| 62653 | Glass, Side Window, NO.3, Front (FOR SLIDE TYPE) |
| 62653A | Glass, Side Window, NO.3, Rear (FOR SLIDE TYPE) |
| 62653B | Weatherstrip, Side Window, Front NO.3 |
| 62653C | Weatherstrip, Side Window, Rear NO.3 |
| 62654 | Glass, Side Window, NO.4, Front (FOR SLIDE TYPE) |
| 62654A | Glass, Side Window, NO.4, Rear (FOR SLIDE TYPE) |
| 62654B | Weatherstrip, Side Window, Front NO.4 |
| 62654C | Weatherstrip, Side Window, Rear NO.4 |
| 62655 | Glass, Side Window, NO.5, Front (FOR SLIDE TYPE) |
| 62655A | Glass, Side Window, NO.5, Rear (FOR SLIDE TYPE) |
| 62655B | Weatherstrip, Side Window, Front NO.5 |
| 62655C | Weatherstrip, Side Window, Rear NO.5 |
| 62691 | Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE) |
| 62691A | Packing, Side Window Lock, NO.1 |
| 62691C | Catch, Lock |
| 62692 | Lock, Side Window, NO.2 Glass (FOR SLIDE TYPE) |
| 62709 | Adapter, Side Window |
| 62724A | Weatherstrip, Water Proof |
| 62767 | Sash, Front Side Window Water Proof, LH |
| 62768 | Bracket, Side Window, Lower |
| 62769 | Weatherstrip, Front Side Window, Upper |
| 62773 | Weatherstrip, Front Side Window Water Proof, Upper |
| 62774 | Weatherstrip, Front Side Window Water Proof |
| 62776 | Piece, Side Window Water Proof, Lower |
| 62777 | Stopper, Side Window |
| 62811 | Sash, Side Window Water Proof |
| 62812 | Weatherstrip, Side Window, Upper |
| 62813 | Weatherstrip, Side Window Water Proof, Upper |
| 62815 | Weatherstrip, Side Window Water Proof |
| 62834 | Sash, Center Side Window Water Proof |
| 62835 | Weatherstrip, Center Side Window, Upper |
| 62836 | Weatherstrip, Center Side Window Water Proof, Upper |
| 62837 | Weatherstrip, Center Side Window Water Proof |
| 62851 | Sash, Rear Side Window Water Proof |
| 62853 | Weatherstrip, Rear Side Window, Upper |
| 62854 | Weatherstrip, Rear Side Window Water Proof, Upper |
| 62855 | Weatherstrip, Rear Side Window Water Proof |
| 62857 | Stopper, Sliding Window |
| 62863 | Weatherstrip, Lide Glass Seal |
| 62863A | Weatherstrip, Slide Glass Seal |
| 62864 | Packing, Side Slide Glass Seal |
| 62879 | Stopper, Slide Glass |
| 62881 | Washer, Plate |
| 62882 | Plate, Slide Glass Stopper |
| 62888 | Weatherstrip, Front Side Window Glass Seal, Lower |
| 62889 | Weatherstrip, Front Side Window Glass Seal, Front |
| 62894 | Weatherstrip, Center Front Side Window Water Proof, Lower |
| 62895 | Weatherstrip, Center Front Side Window Water Proof, Upper |
| 62898 | Weatherstrip, Center Front Side Window Glass Seal, Lower |
| 62899 | Frame, Center Front Side Window, Center |
| 62899A | Frame, Center Side Window, Center |
| 62899B | Frame, Front Side Window, Center |
| 62911 | Weatherstrip, Center Front Side Window, Center |
| 62911A | Weatherstrip, Center Side Window, Center |
| 62911B | Weatherstrip, Front Side Window, Center |
| 62915 | Weatherstrip, Rear Side Window Glass Seal, Rear |
| 62916 | Weatherstrip, Center Side Window Glass Seal, Lower |
| 62921 | Weatherstrip, Run Channel, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
