Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB1# · catalogue 811110 · Japan
Discontinued model
Data version 1982-12

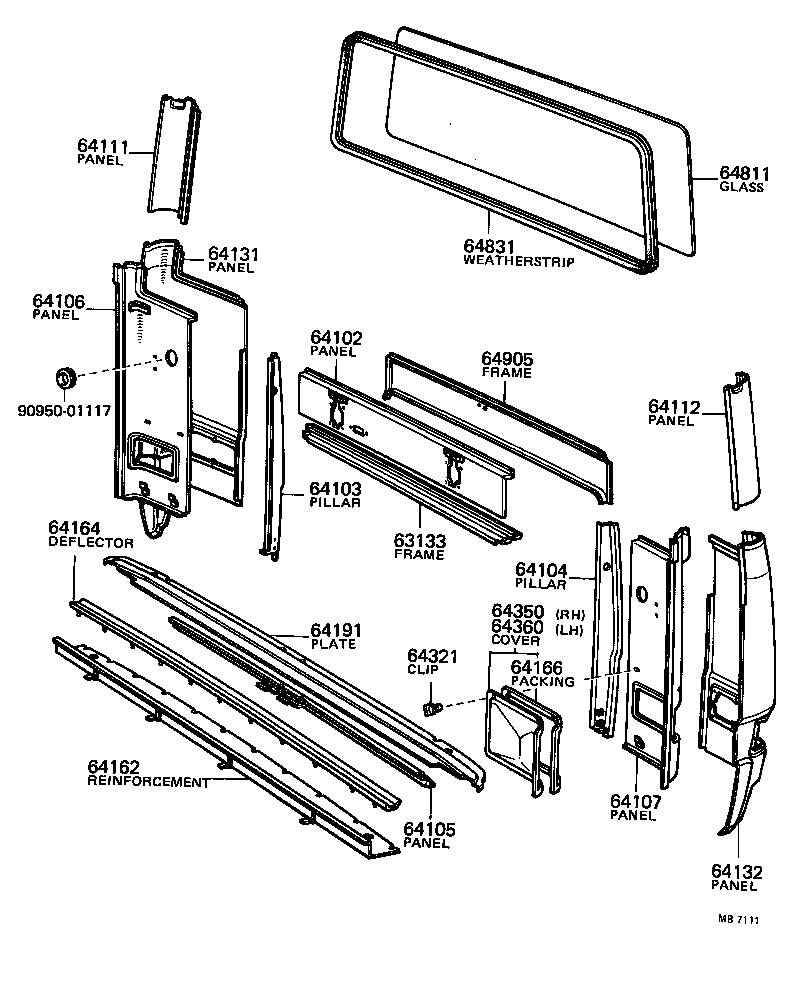

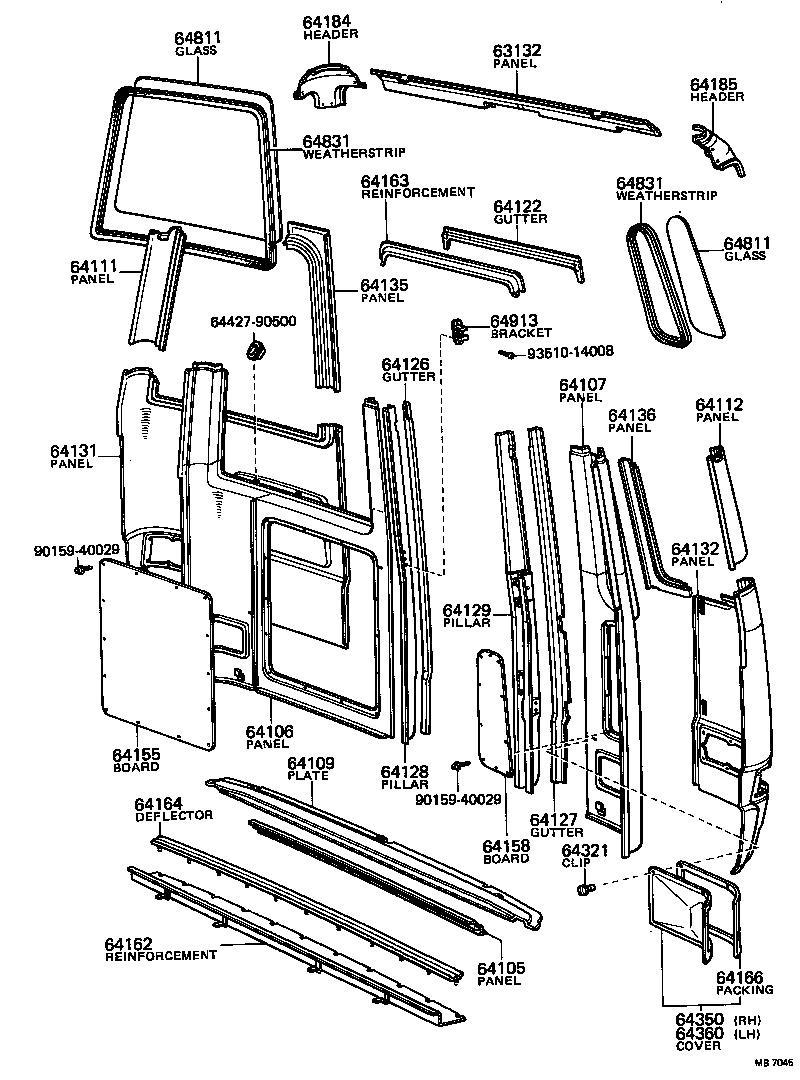

Roof Panel & Back Panel
47 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61441 | Packing, Dust Proof, NO.1 |
| 63132 | Panel, Windshield Header, Inner |
| 63133 | Frame, Back Window Opening, Upper |
| 63135 | Header, Roof Front, RH |
| 63136 | Header,Roof Front, LH |
| 63171 | Panel, Roof, Front |
| 63172 | Panel, Roof, Center |
| 63173 | Panel, Roof, Center Side RH |
| 63174 | Panel, Roof, Rear |
| 63175 | Panel, Roof, Center Side LH |
| 63411 | Duct, Cooler Outside, Front |
| 63412 | Duct, Cooler Outside, Center |
| 63413 | Duct, Cooler Outside, Rear |
| 64102 | Panel Sub-assy, Back Inner, Upper |
| 64103 | Pillar Sub-assy, Luggage Compartment, RH |
| 64104 | Pillar Sub-assy, Luggage Compartment, LH |
| 64105 | Panel Sub-assy, Back, Outer Under |
| 64106 | Panel Sub-assy, Quarter Inner, Lower RH |
| 64107 | Panel Sub-assy, Quarter Inner, Lower LH |
| 64109 | Plate Sub-assy, Rear Floor End |
| 64111 | Panel, Quarter Outer, Upper RH |
| 64112 | Panel, Quarter Outer, Upper LH |
| 64122 | Gutter, Back Door, Upper |
| 64126 | Gutter, Back Door Side, RH |
| 64127 | Gutter, Back Door Side, LH |
| 64128 | Pillar, Back Door, RH |
| 64129 | Pillar, Back Door, LH |
| 64131 | Panel, Quarter Outer Under, RH |
| 64132 | Panel, Quarter Outer Under, LH |
| 64135 | Panel, Back Door Pillar Upper Outer, RH |
| 64136 | Panel, Back Door Pillar Upper Outer, LH |
| 64155 | Board, Back Body Inner, RH |
| 64158 | Board, Back Body Inner, LH |
| 64162 | Reinforcement, Back Body, Inner Under |
| 64163 | Reinforcement, Back Body, Upper |
| 64164 | Deflector, Rear Bumper Stone |
| 64166 | Packing, Combination Lamp Cover |
| 64184 | Header, Roof, Rear RH |
| 64185 | Header, Roof, Rear LH |
| 64191 | Plate, Package Tray Rear End |
| 64321 | Clip, Rear Combination Cover |
| 64350 | Cover Assy, Combination Lamp, RH |
| 64360 | Cover Assy, Combination Lamp, LH |
| 64811 | Glass, Back Window |
| 64831 | Weatherstrip, Back Window Glass |
| 64905 | Frame Sub-assy, Back Upper |
| 64913 | Bracket, Buzzer Switch Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
