Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB1# · catalogue 811110 · Japan

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Protector Pipe, Roll Bar & Handrail

27 part groups · 4 illustrations

Illustrations

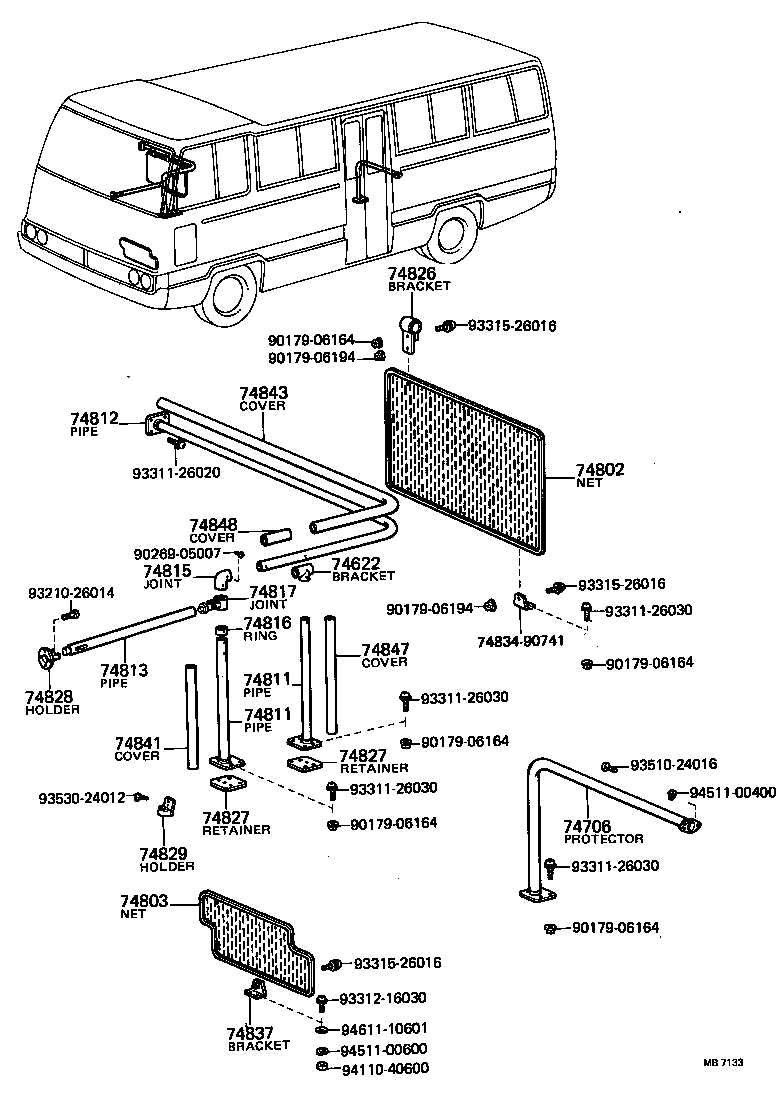

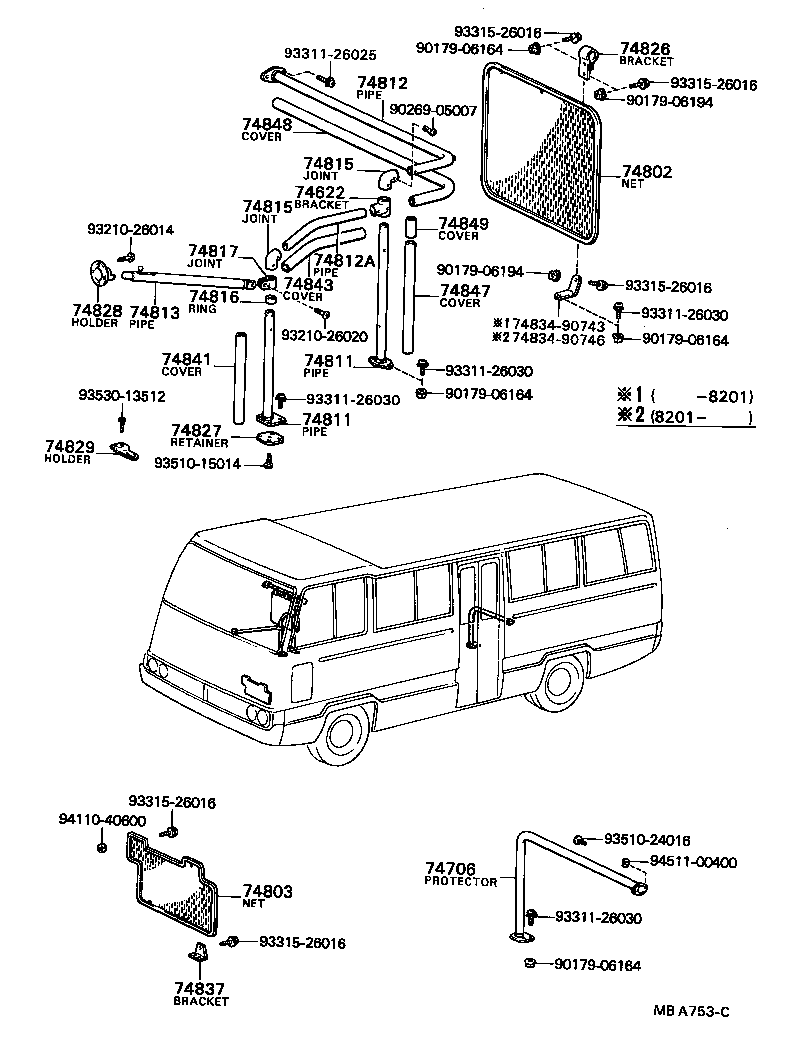

Figure MB7134B MB7134B 1977-08 → — Figure MB7134B MB7134B 1977-08 → — Figure MB7133 MB7133 1977-08 → 1979-11 Figure MBA753C MBA753C 1979-11 → —

Part groups

PNCDescription
74301 Frame Sub-assy, Passenger Seat Protector, NO.1
74304 Net Sub-assy, Passenger Seat, RH
74319 Cover, Passenger Seat Protector Frame
74610 Hand Rail Assy
74622 Bracket, Hand Grip
74634 Bracket, Protector Net Hand Rail Side
74706 Protector Pipe Assy
74802 Net Sub-assy, Protector
74803 Net Sub-assy, Protector Instrument
74811 Pipe, Protector Vertical
74812 Pipe, Protector Horizontal
74812A Pipe, Protector Horizontal, Side
74813 Pipe, Protector Driver
74815 Joint, Protector Pipe T
74816 Ring, Pipe
74817 Joint, Protector Pipe Universal
74822 Bracket, Protector Pipe, Upper
74826 Bracket, Protector Net, Upper
74827 Retainer, Protector Pipe, Lower
74828 Holder, Protector Pipe Instrument
74829 Holder, Protector Pipe, Upper
74837 Bracket, Protector Net Instrument, Under
74841 Cover, Protector Pipe Vertical, Lower
74843 Cover, Protector Pipe Horizontal
74847 Cover, Protector Pipe Vertical, NO.2
74848 Cover, Protector Pipe Horizontal, NO.2
74849 Cover, Protector Pipe Vertical, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
