Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB1# · catalogue 811110 · Japan
Discontinued model
Data version 1982-12
Wiring & Clamp
24 part groups · 5 illustrations
Part groups

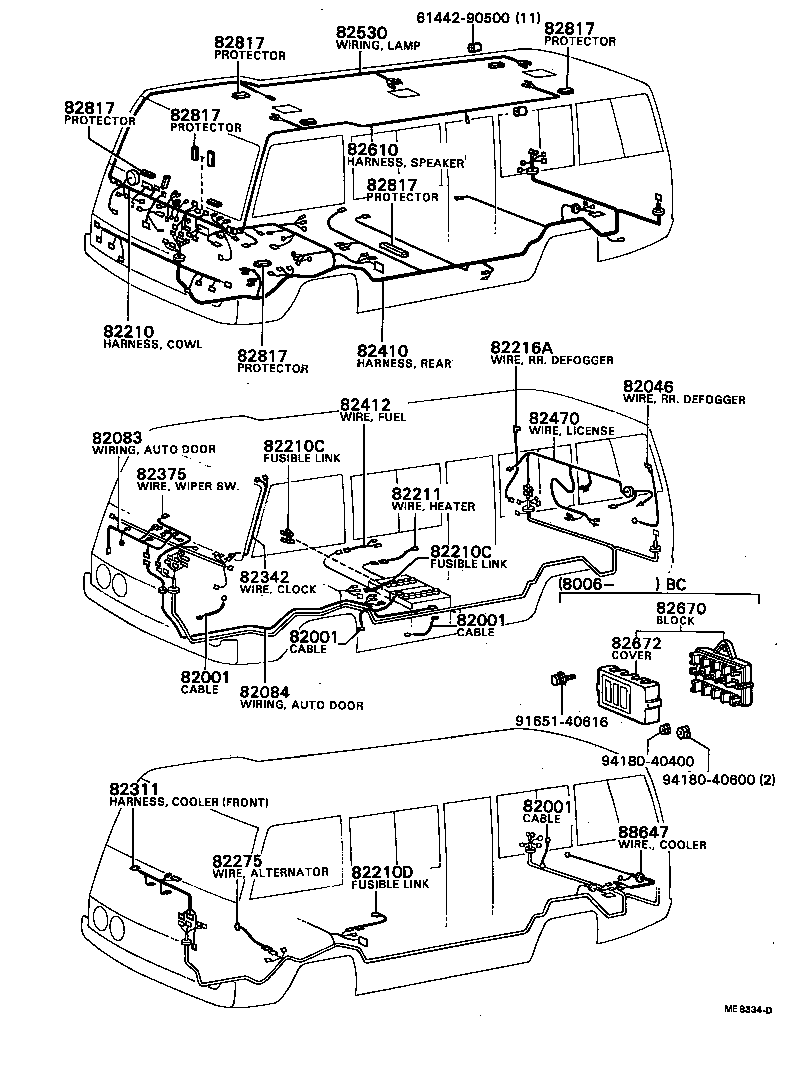

| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82046 | Wire Sub-assy, Rear Window Defogger Earth |
| 82083 | Wiring Sub-assy, Automatic Door |
| 82084 | Wiring Sub-assy, Automatic Door, Rear |
| 82210 | Harness Assy, Wiring Cowl TO Headlamp, NO.1 |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82211 | Wire, Heater Blower Fan Switch |
| 82216A | Wire, Rear Window Defogger |
| 82275 | Wire, Alternator |
| 82311 | Harness Assy, Cooler |
| 82342 | Wire, Clock |
| 82370 | Wire Assy, Wiper Switch TO Wiper |
| 82374 | Wire, Washer |
| 82375 | Wire, Wiper Switch |
| 82410 | Harness Assy, Wiring TO Rear Lamp |
| 82412 | Wire, Fuel Gage |
| 82470 | Wire Assy, License Lamp Feed |
| 82530 | Wiring Assy, Interior Lamp Feed |
| 82610 | Harness Assy, Roof Speaker |
| 82670 | Block Assy, Junction, NO.1 |
| 82672 | Cover, Junktion Block |
| 82817 | Protector, Wiring Harness, NO.1 |
| 88647 | Wire Sub-assy, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
