Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB1# · catalogue 811110 · Japan
Discontinued model
Data version 1982-12
Heating & Air Conditioning - Control & Air Duct
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55905 | Cable Sub-assy, Defrost Control |
| 55907 | Cable Sub-assy, Heater Air Inlet Butterfly |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55914 | Retainer, Heater Control Knob |
| 55937 | Knob, Heater Control Lever |
| 87210 | Damper Assy, Air |
| 87231 | Hose, Heater Defroster, RH |
| 87232 | Hose, Heater Defroster, LH |
| 87294 | Net, Air Duct |

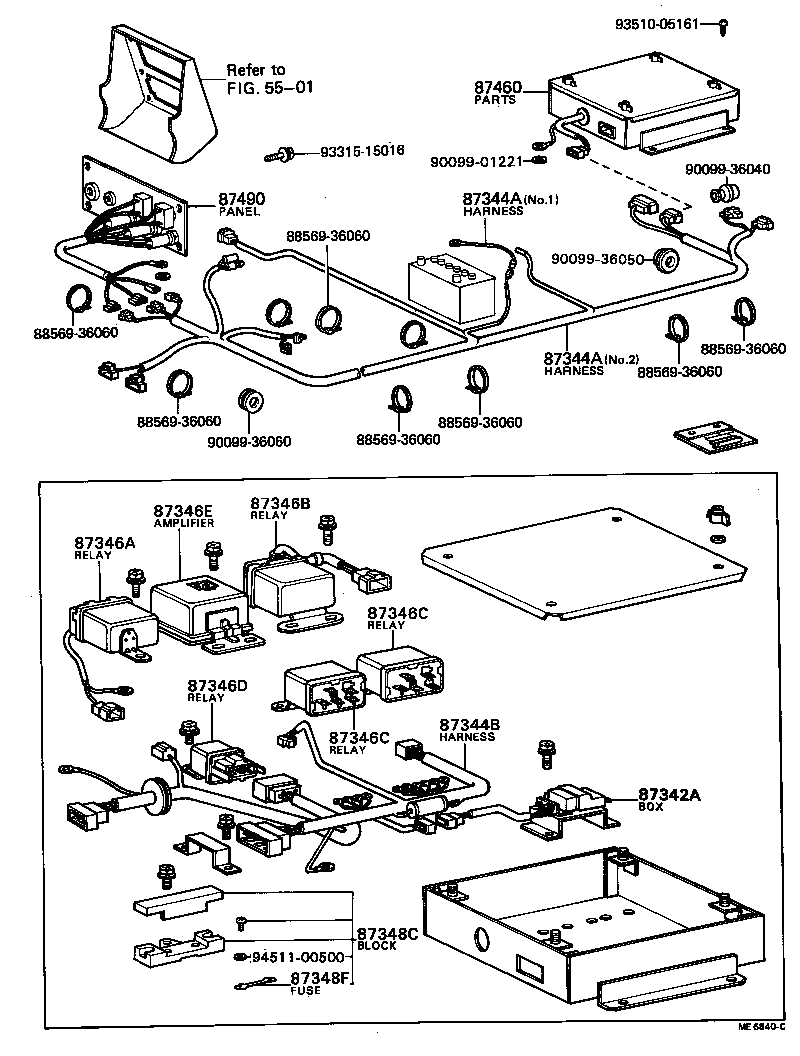

| 87342A | Box Assy, Combustion Heater Control |
| 87344A | Harness Sub-assy, Wiring |
| 87344B | Harness Sub-assy, Combustion Heater |
| 87346A | Relay, Combustion Heater, NO.1 |
| 87346B | Relay, Combustion Heater, NO.2 |
| 87346C | Relay, Combustion Heater, NO.3 |
| 87346D | Relay, Combustion Heater, NO.4 |
| 87346E | Amplifier Assy, Conbustion Heater |
| 87348C | Block, Fuse |
| 87348F | Fuse (FOR COMBUSTION HEATER) |

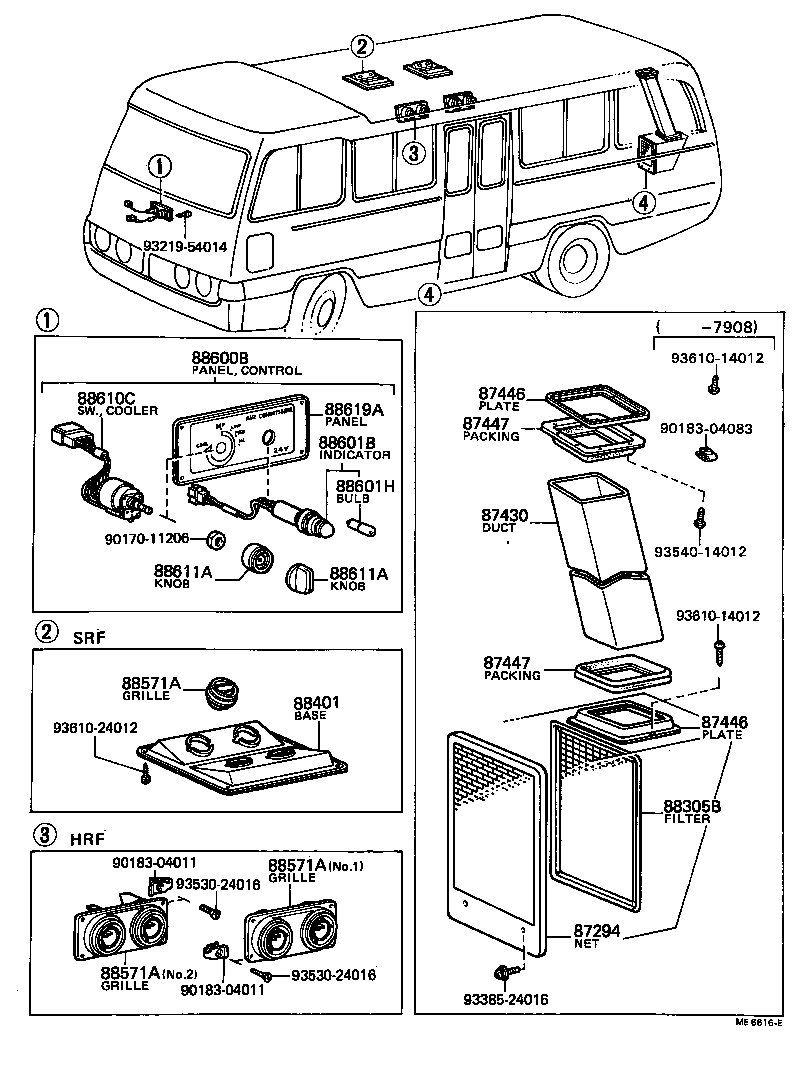

| 87430 | Duct Assy, Air |
| 87446 | Plate, Air Duct |
| 87447 | Packing, Air Duct |
| 87460 | Parts Assy, Electrical |
| 87490 | Panel Assy, Heater Control |
| 88305B | Filter (FOR COOLER UNIT) |
| 88401 | Base Sub-assy, Air Duct Grille Holder |
| 88571A | Grille, Air Outlet |
| 88600B | Panel Assy, Control |
| 88601B | Indicator, Cooler Control Switch |
| 88601H | Bulb, Indicator Lamp |
| 88610C | Switch Assy, Cooler Control |
| 88611A | Knob, Cooler Control Switch |
| 88619A | Panel, Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
