Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 4 illustrations

Illustrations

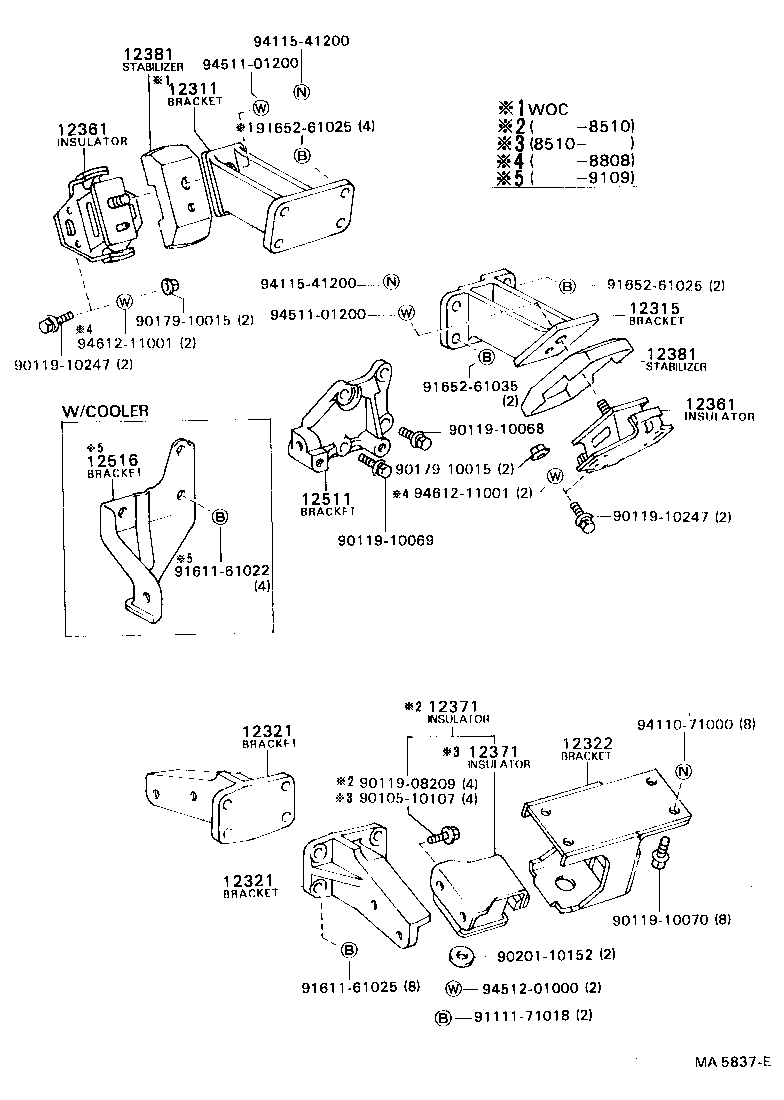

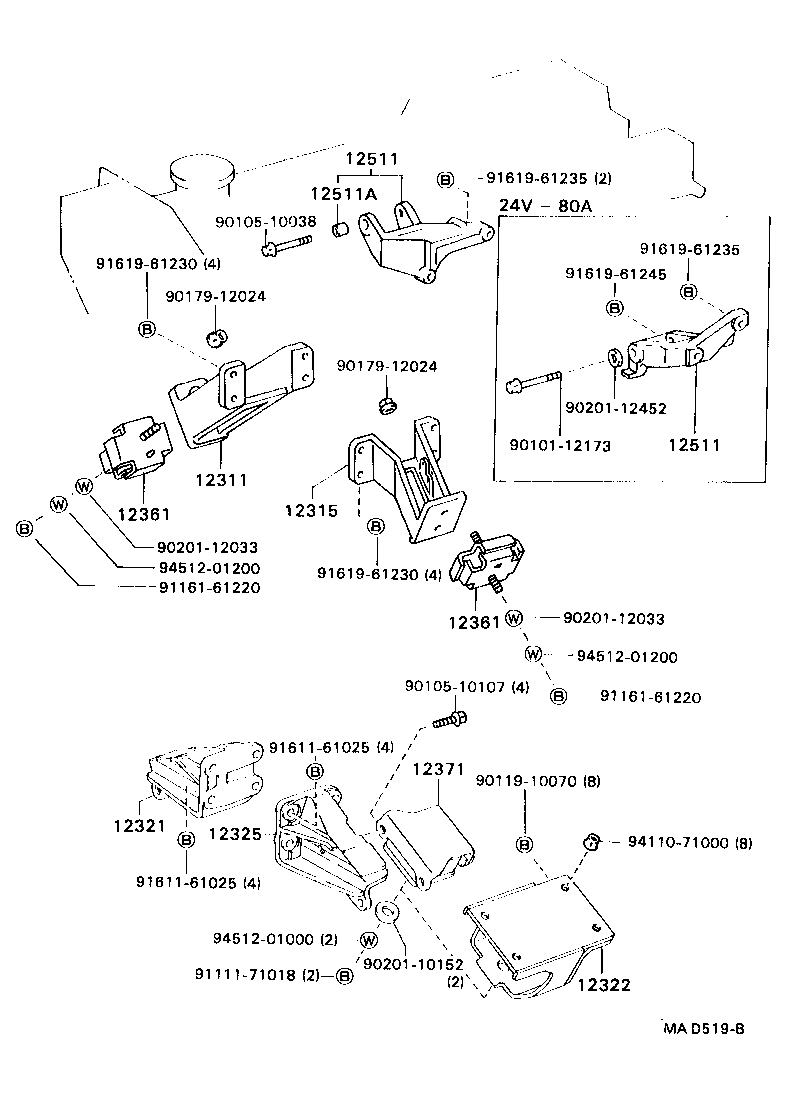

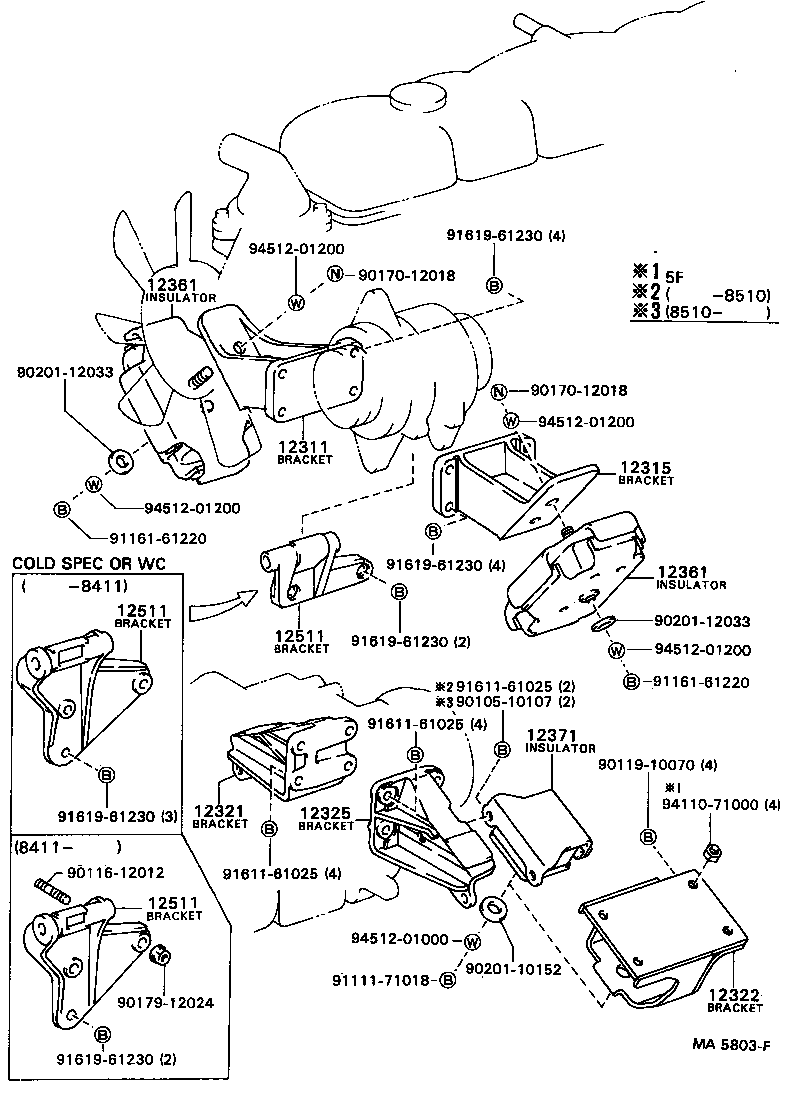

Figure MA5802F MA5802F 1982-05 → — Figure MA5803F MA5803F 1982-05 → 1990-01 Figure MAD519B MAD519B 1990-01 → — Figure MA5837E MA5837E 1982-05 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12516 Bracket, Alternator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
