Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

26 part groups · 5 illustrations

Illustrations

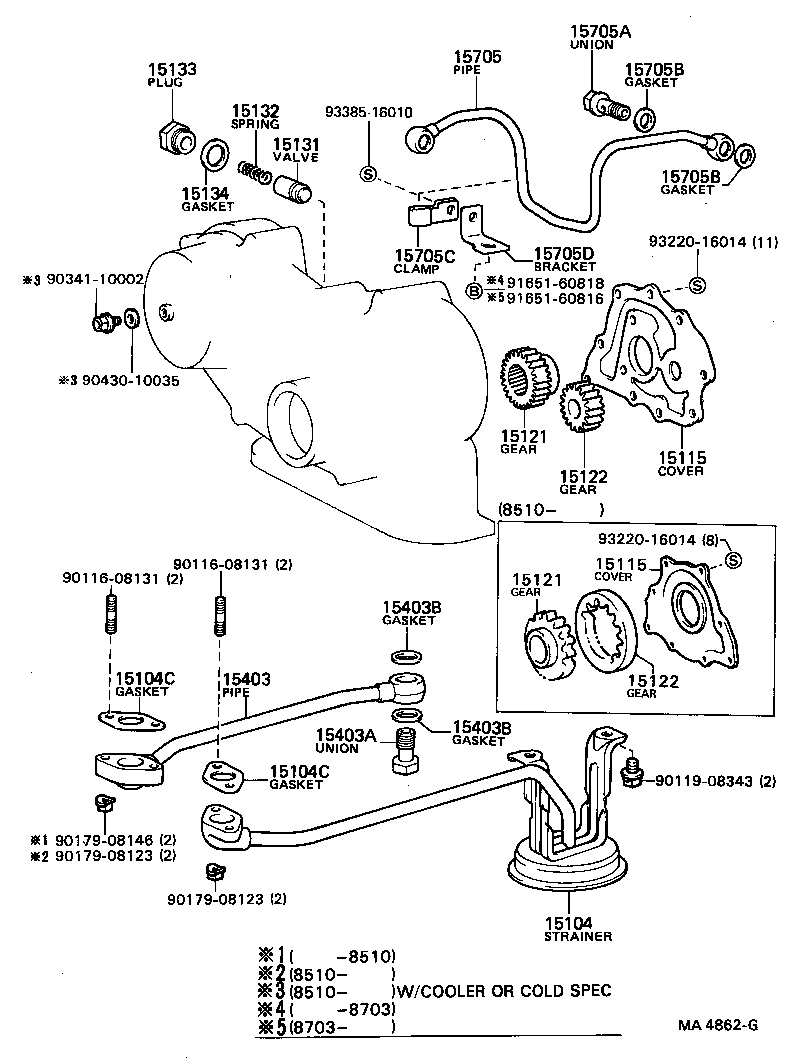

Figure MA6493C MA6493C 1982-05 → — Figure MA4862G MA4862G 1982-05 → 1990-01 Figure MA8662A MA8662A 1985-10 → 1990-01 Figure MAD462B MAD462B 1990-01 → — Figure MA5782B MA5782B 1982-05 → —

Part groups

PNCDescription
15100 Pump Assy, Oil
15100H Bolt, Seal
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15115 Cover, Oil Pump
15115A Ring, O(FOR OIL PUMP COVER)
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15163 Gear, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
15403 Pipe Sub-assy, Oil Pump Outlet
15403A Union(FOR OIL PUMP OUTLET PIPE)
15403B Gasket(FOR OIL PUMP OUTLET PIPE)
15705 Pipe Sub-assy, Oil, Injection Pump Inlet
15705A Union(FOR INJECTION PUMP INLET PIPE)
15705B Gasket(FOR INJECTION PUMP INLET PIPE)
15705C Clamp(FOR INJECTION PUMP INLET PIPE)
15705D Bracket(FOR INJECTION PUMP INLET PIPE)
15706 Pipe Sub-assy, Oil, Injection Pump Outlet
15706A Union(FOR INJECTION PUMP OUTLET PIPE)
15706B Gasket(FOR INJECTION PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
