Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

7 part groups · 4 illustrations

Illustrations

Figure MA6201D

MA6201D 1982-05 → 1988-08

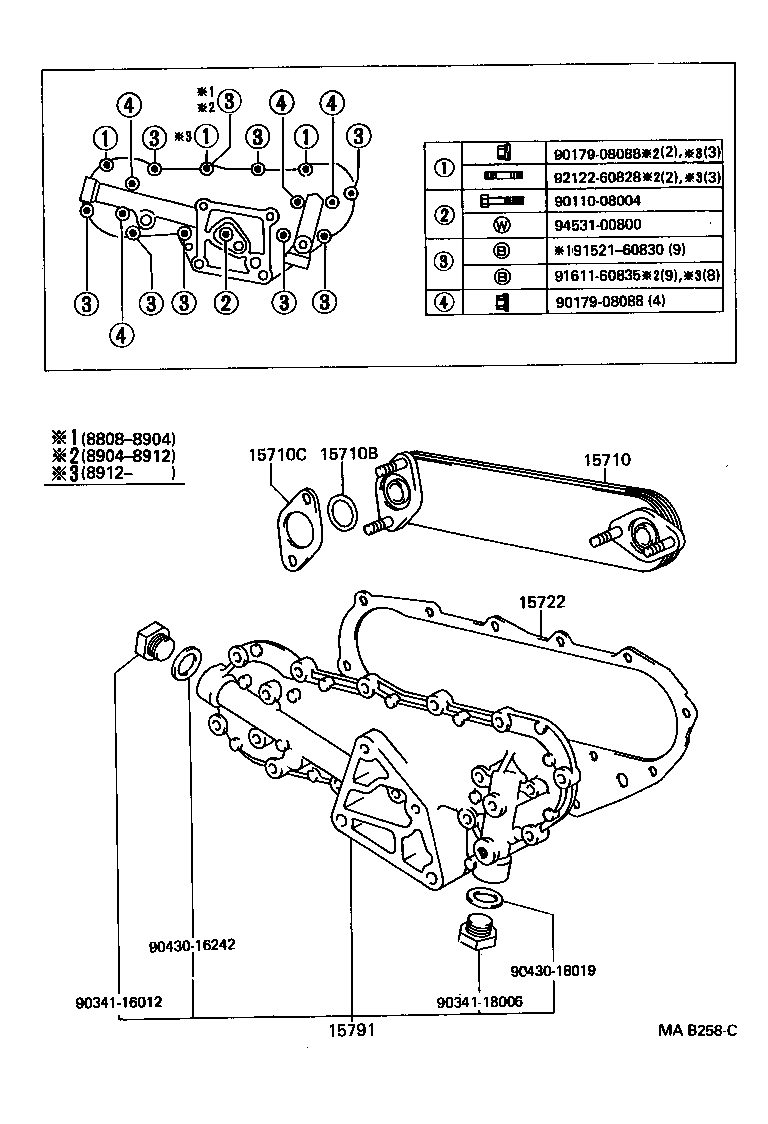

Figure MAB258C

MAB258C 1988-08 → —

Figure MA4865B

MA4865B 1982-05 → 1990-01

Figure MAD466B

MAD466B 1990-01 → —

Part groups

PNC	Description
15690	Valve Assy, Oil Cooler Relief
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15710C	Gasket(FOR OIL COOLER)
15722	Gasket, Oil Cooler
15785	Gasket, Oil Cooler
15791	Case, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
