Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 10 illustrations

Illustrations

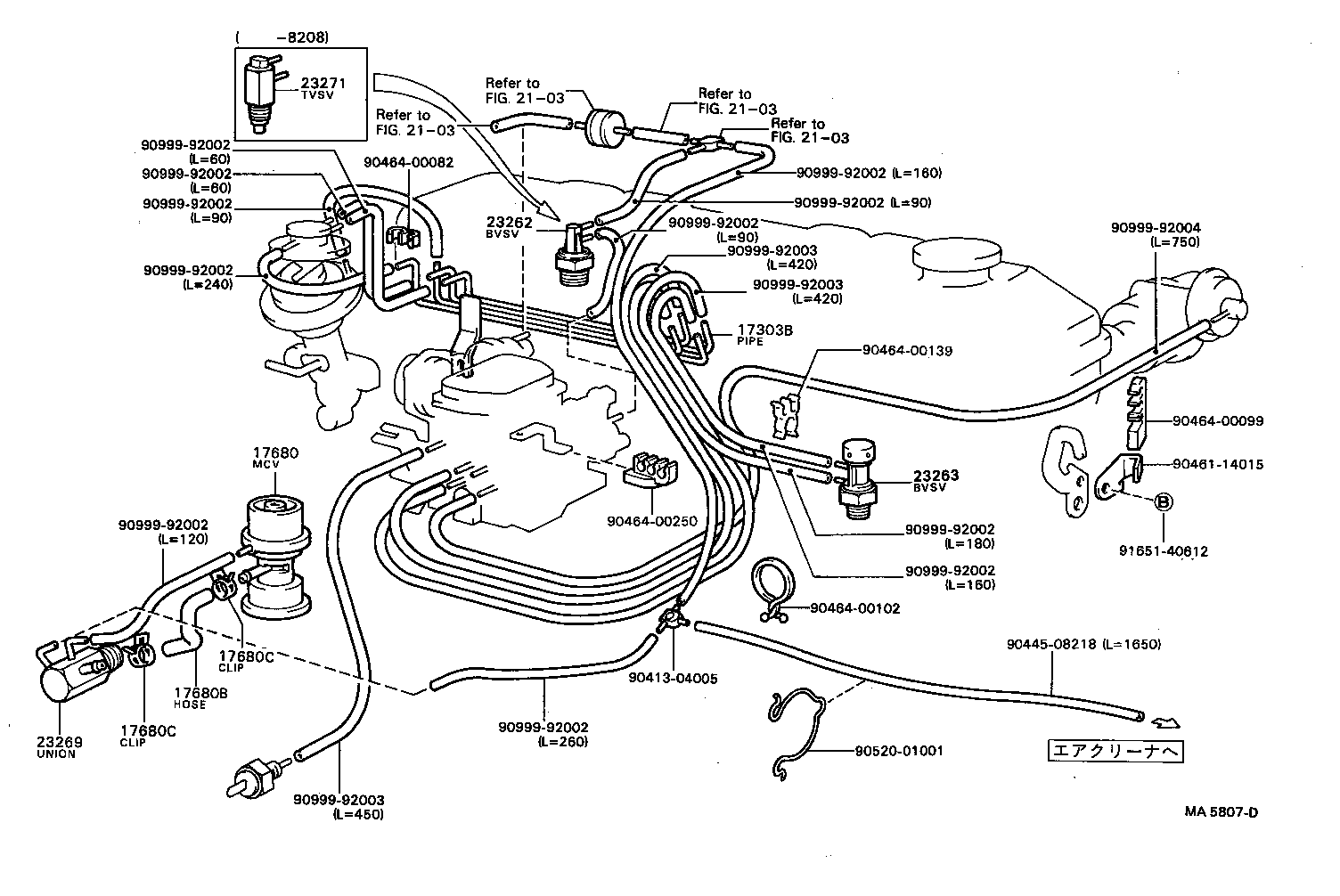

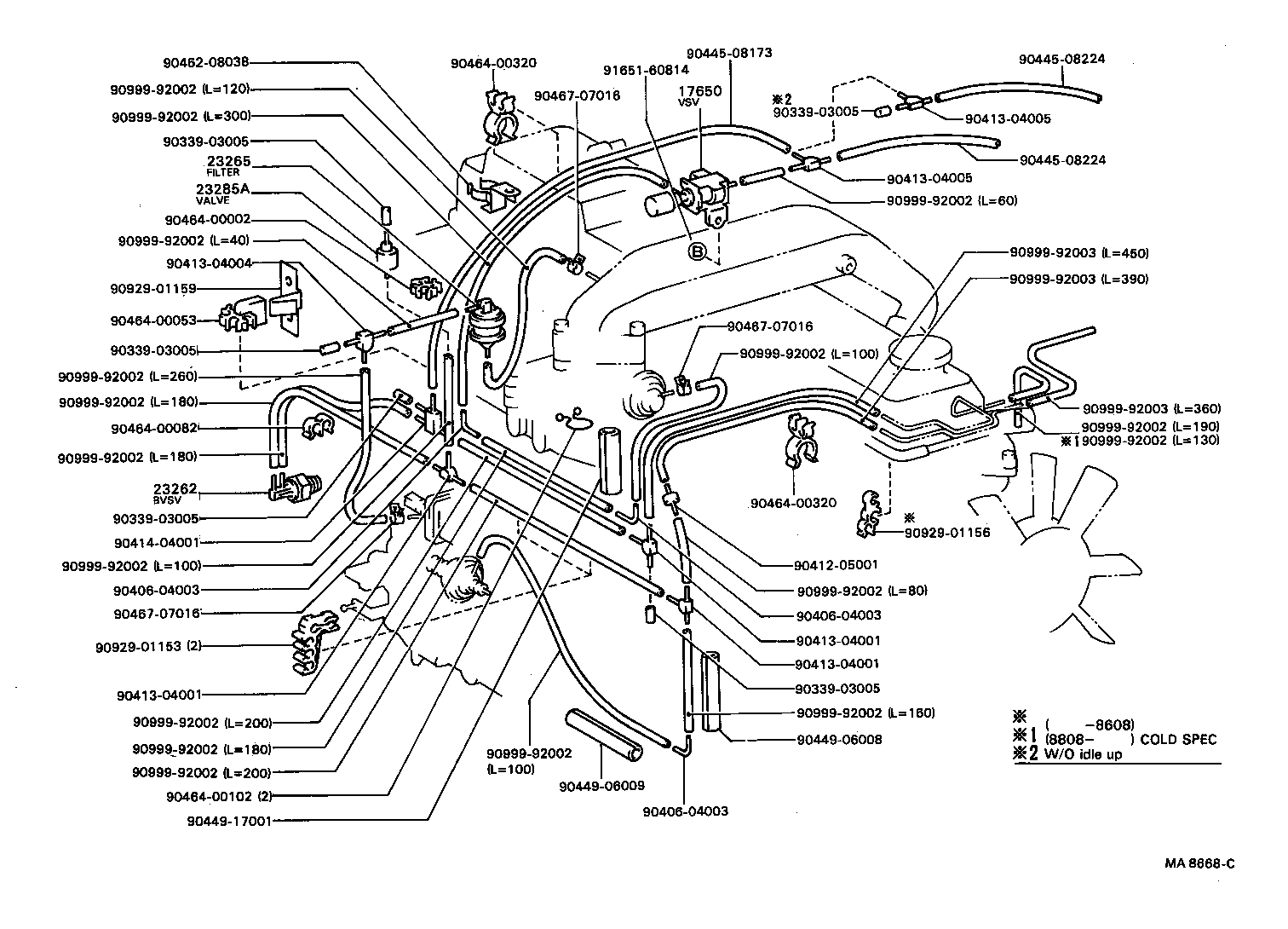

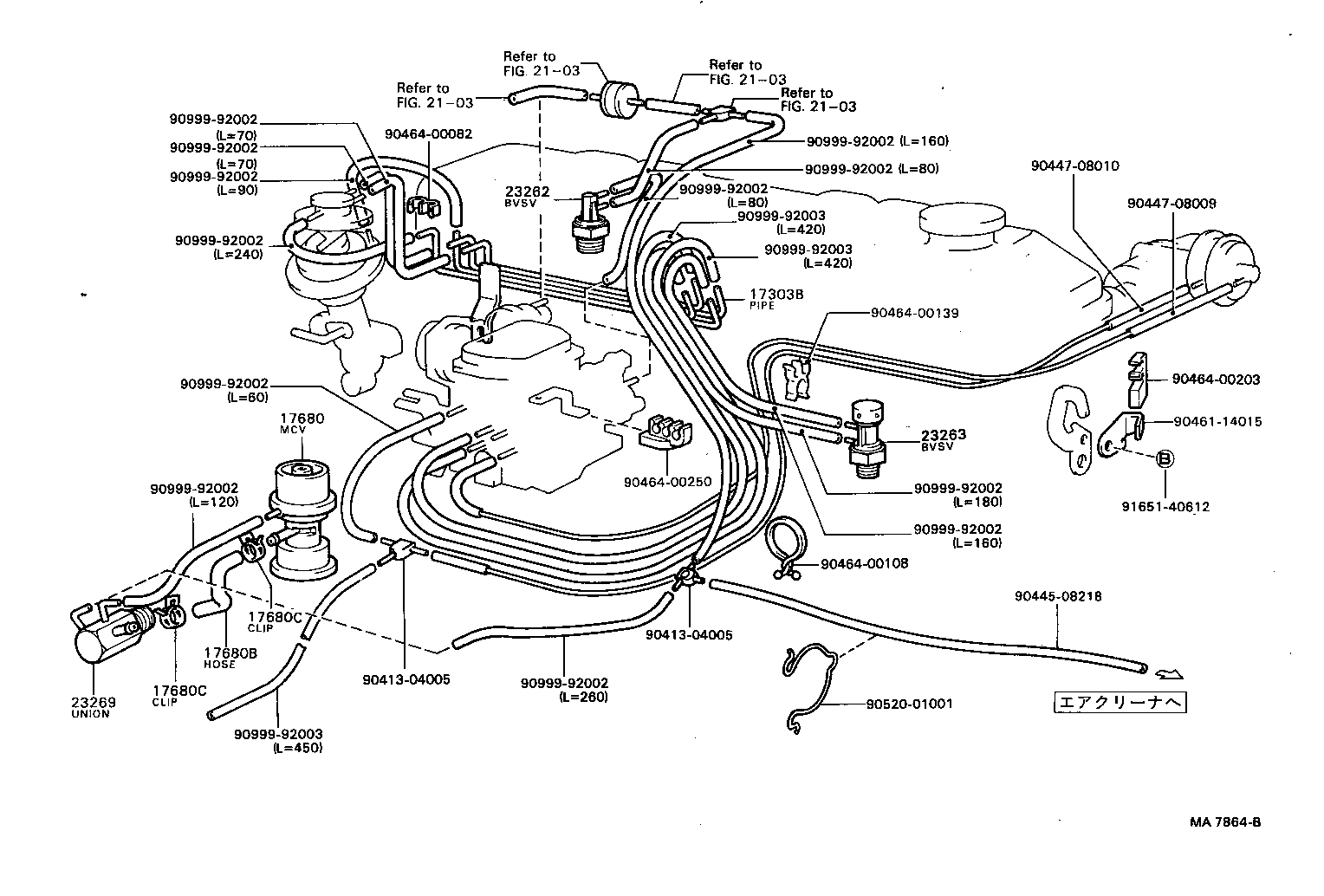

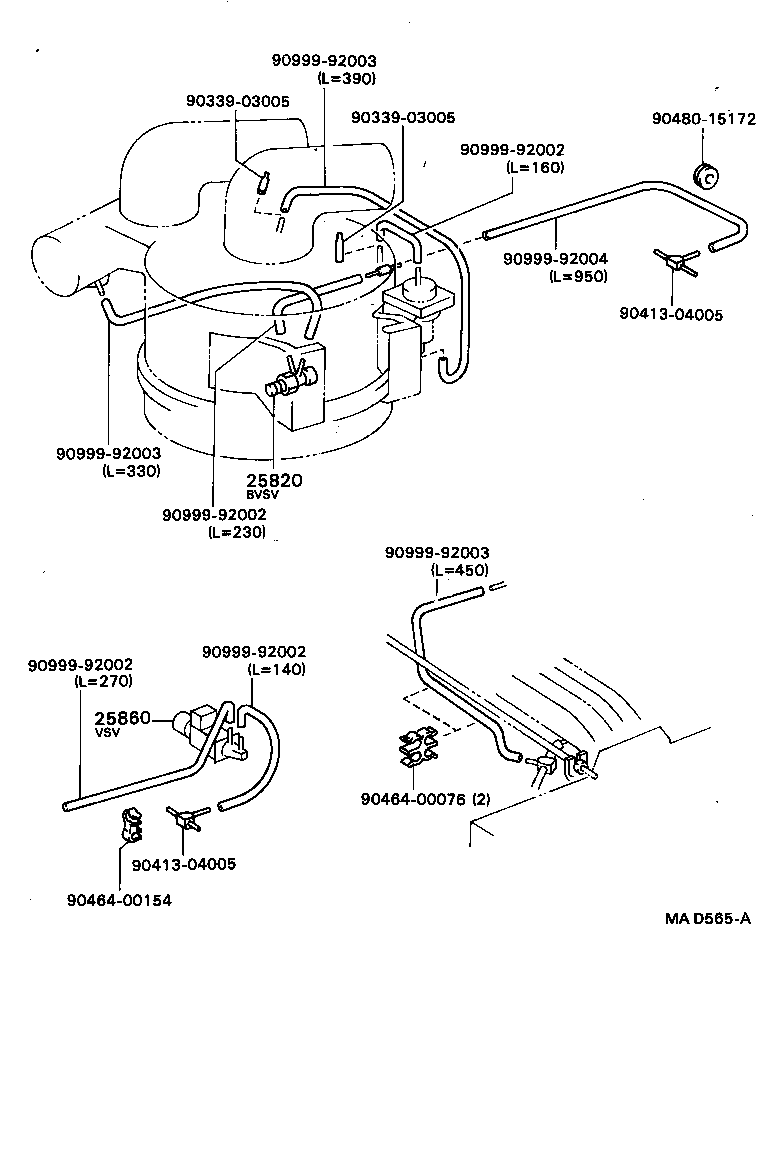

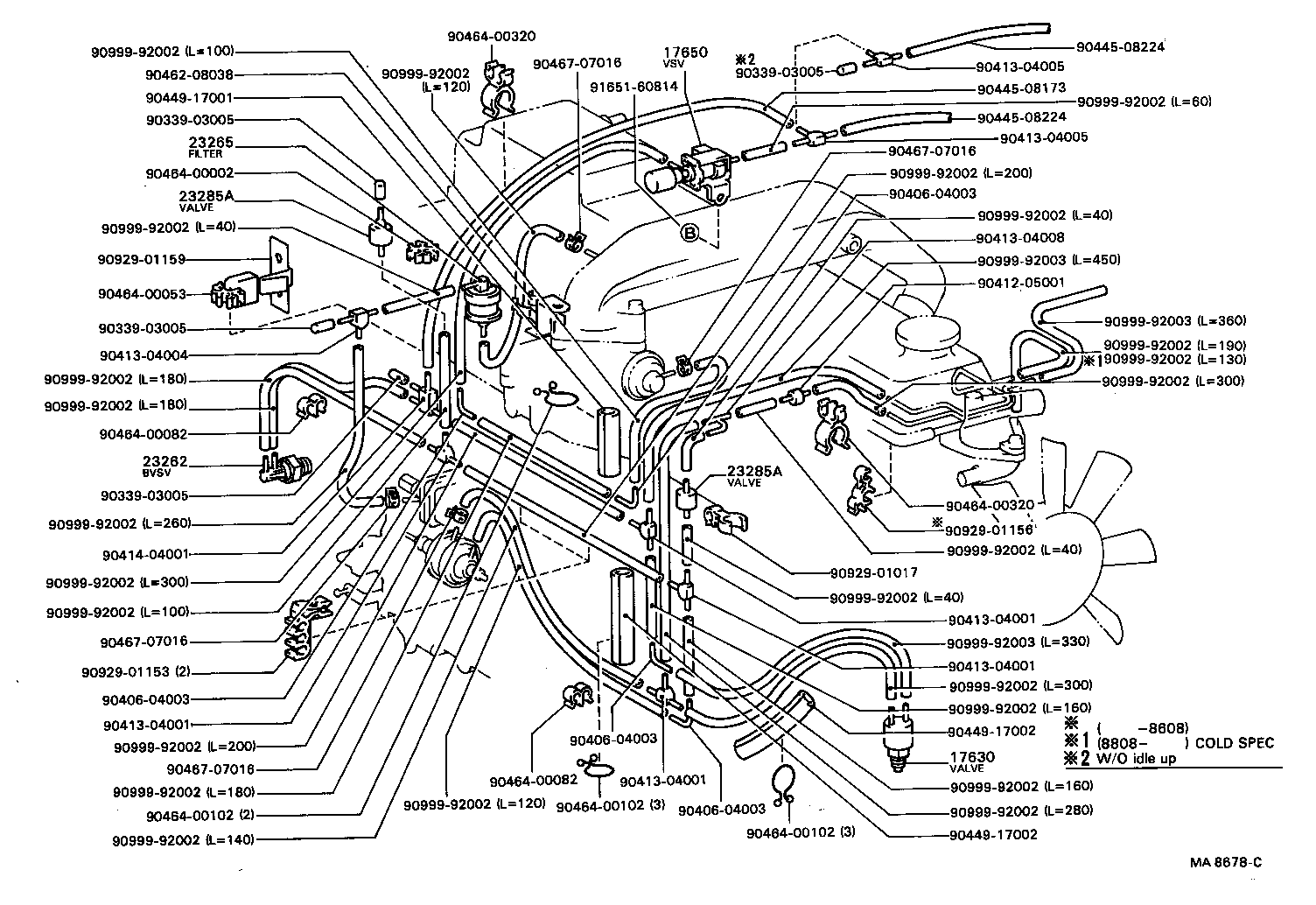

Figure MA9503A MA9503A 1982-05 → — Figure MAC573 MAC573 1988-08 → — Figure MA9503A MA9503A 1982-05 → — Figure MA8668C MA8668C 1985-10 → 1990-01 Figure MA8678C MA8678C 1985-10 → 1990-01 Figure MAD564A MAD564A 1990-01 → — Figure MAD565A MAD565A 1990-01 → — Figure MA9503A MA9503A 1982-05 → — Figure MA5807D MA5807D 1982-05 → 1984-08 Figure MA7864B MA7864B 1984-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17680C Clamp OR Clip(FOR MIXTURE CONTROL VALVE HOSE)
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
23285A Valve, Check, NO.1
25820 Valve Assy, Bimetal, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
