Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan
Discontinued model
Data version 1993-12
Ignition Coil & Spark Plug / Glow Plug
22 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

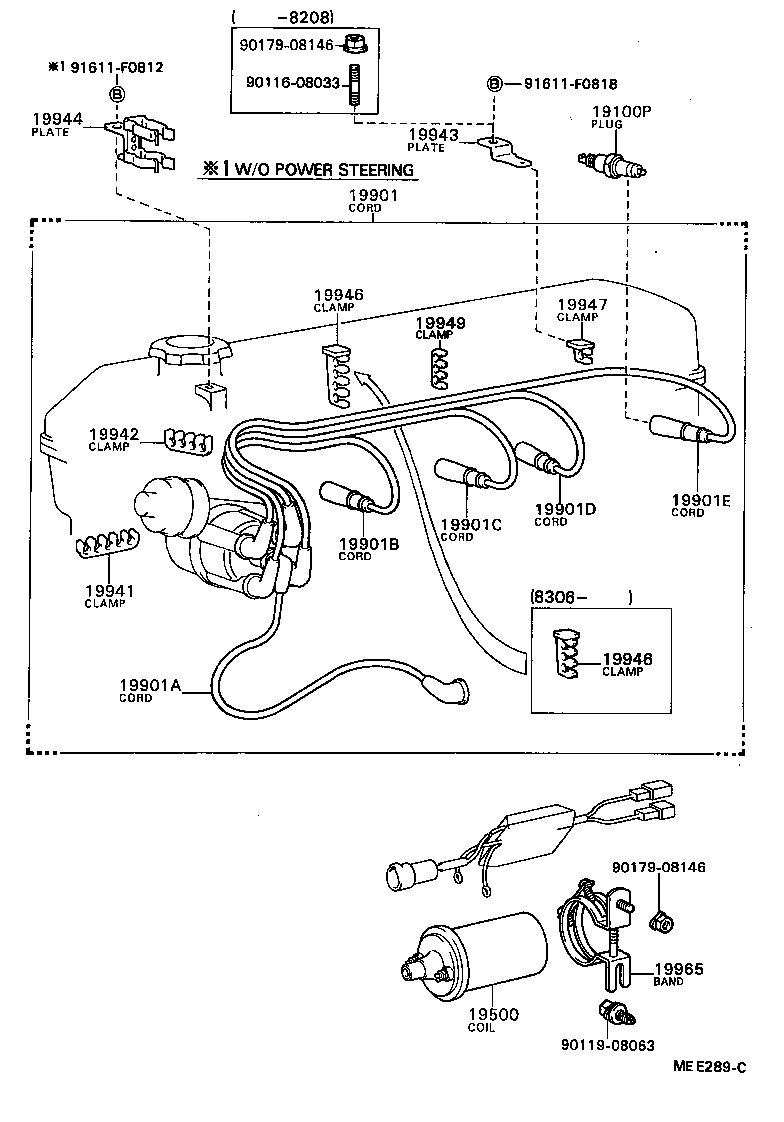

| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |

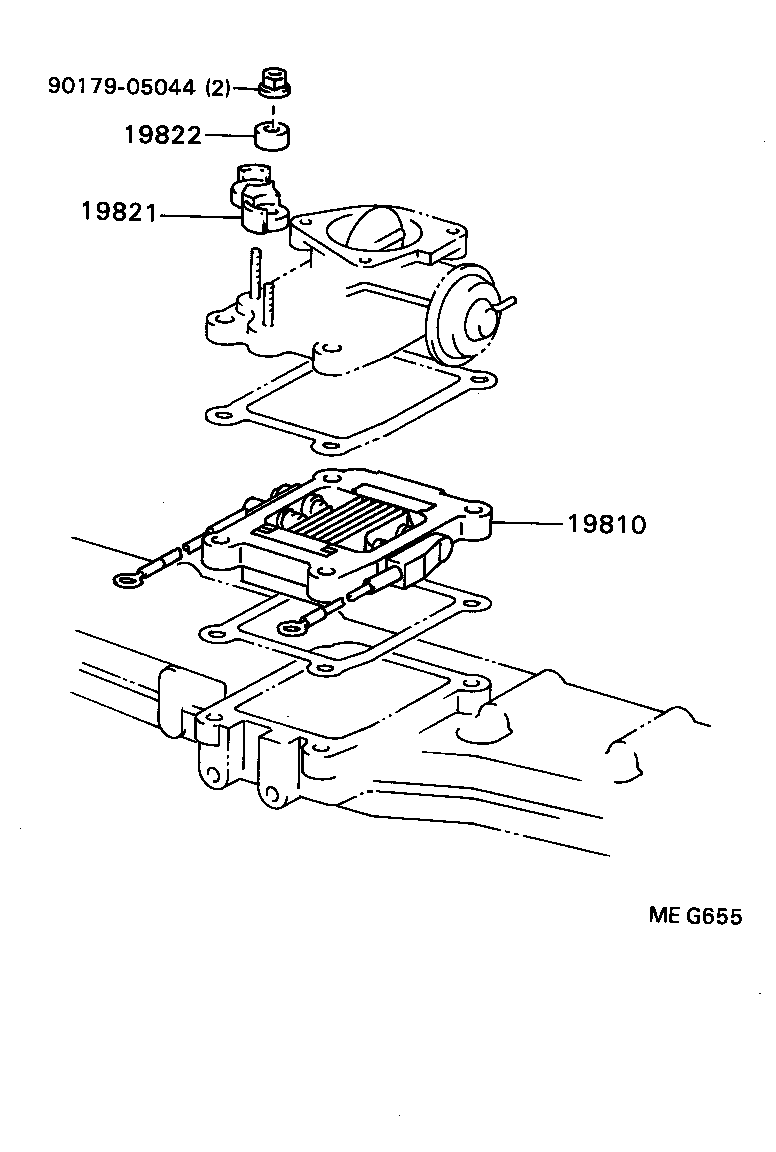

| 19810 | Heater Assy, Intake |
| 19821 | Insulator, Intake Heater Terminal |
| 19822 | Insulator, Intake Heater Terminal, NO.2 |
| 19850 | Plug Assy, Glow |
| 19850B | Grommet, Screw(FOR GLOW PLUG) |
| 19871 | Connector, Glow Plug NO.1 |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901A | Cord, Coil Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19941 | Clamp, Resistive Cord, NO.1 |
| 19942 | Clamp, Resistive Cord, NO.2 |
| 19943 | Plate, Resistive Cord Clamp Support NO.1 |
| 19944 | Plate, Resistive Cord Clamp Support, NO.2 |
| 19946 | Clamp, Resistive Cord, NO.3 |
| 19947 | Clamp, Resistive Cord, NO.4 |
| 19949 | Clamp, Resistive Cord, NO.5 |
| 19965 | Band, Ignition Coil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
