Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

15 part groups · 6 illustrations

Illustrations

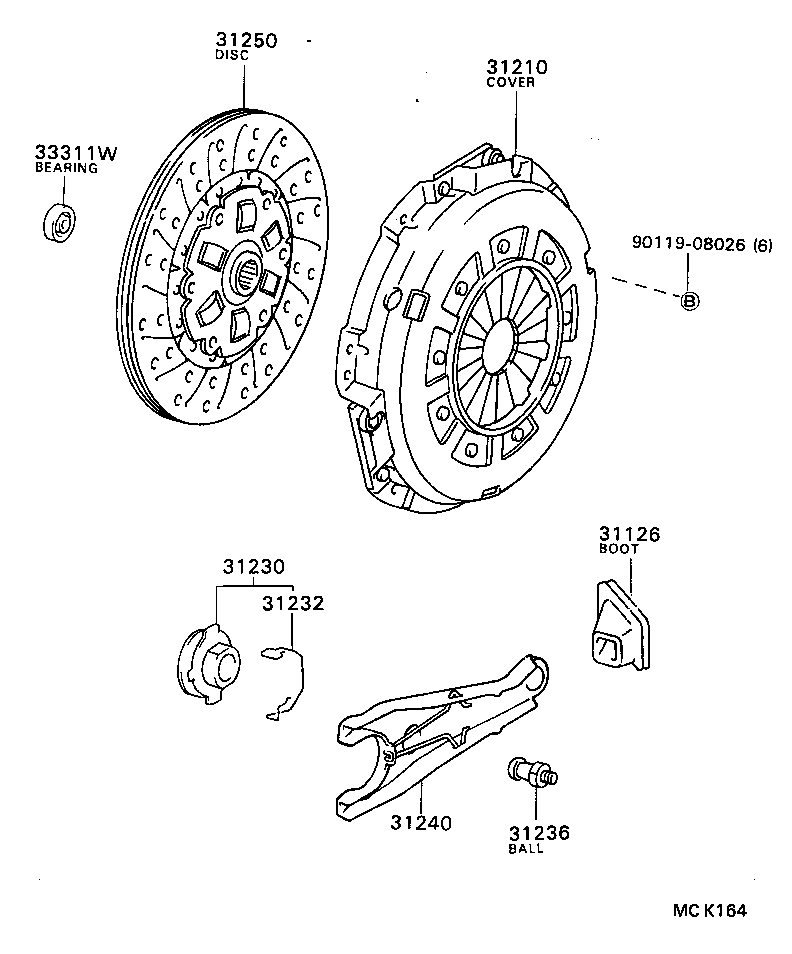

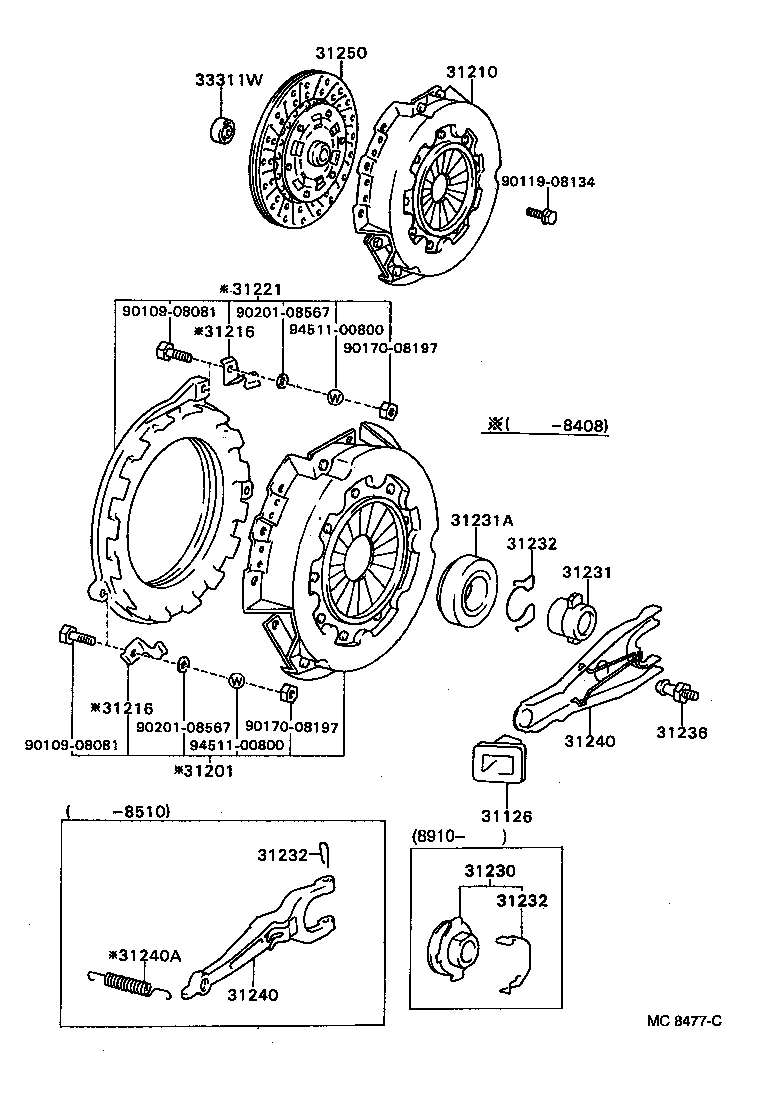

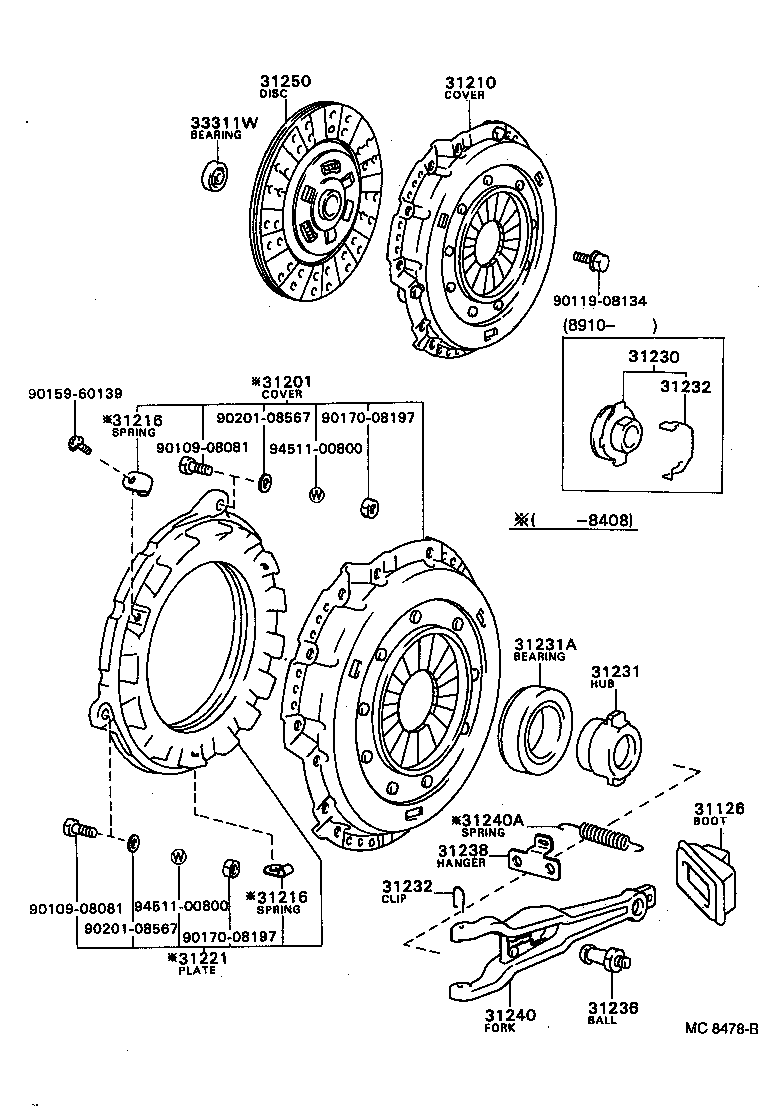

Figure MC8476D MC8476D 1982-05 → 1990-01 Figure MCK164 MCK164 1990-01 → — Figure MC8477C MC8477C 1982-05 → 1990-01 Figure MCK165 MCK165 1990-01 → — Figure MC8478B MC8478B 1982-05 → 1990-01 Figure MCK015 MCK015 1990-01 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31201 Cover Sub-assy, Clutch
31210 Cover Assy, Clutch
31216 Spring, Clutch Retracting
31221 Plate, Clutch Pressure
31230 Bearing Assy, Clutch Release
31231 Hub, Clutch Release Bearing
31231A Bearing, Ball(FOR CLUTCH RELEASE HUB)
31232 Clip OR Spring, Release Bearing Hub
31236 Ball, Release Fork
31238 Hanger, Release Fork Retracting Spring
31240 Fork Assy, Clutch Release
31240A Spring, Tension(FOR CLUTCH RELEASE FORK RETURN)
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
