Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan
Discontinued model
Data version 1993-12

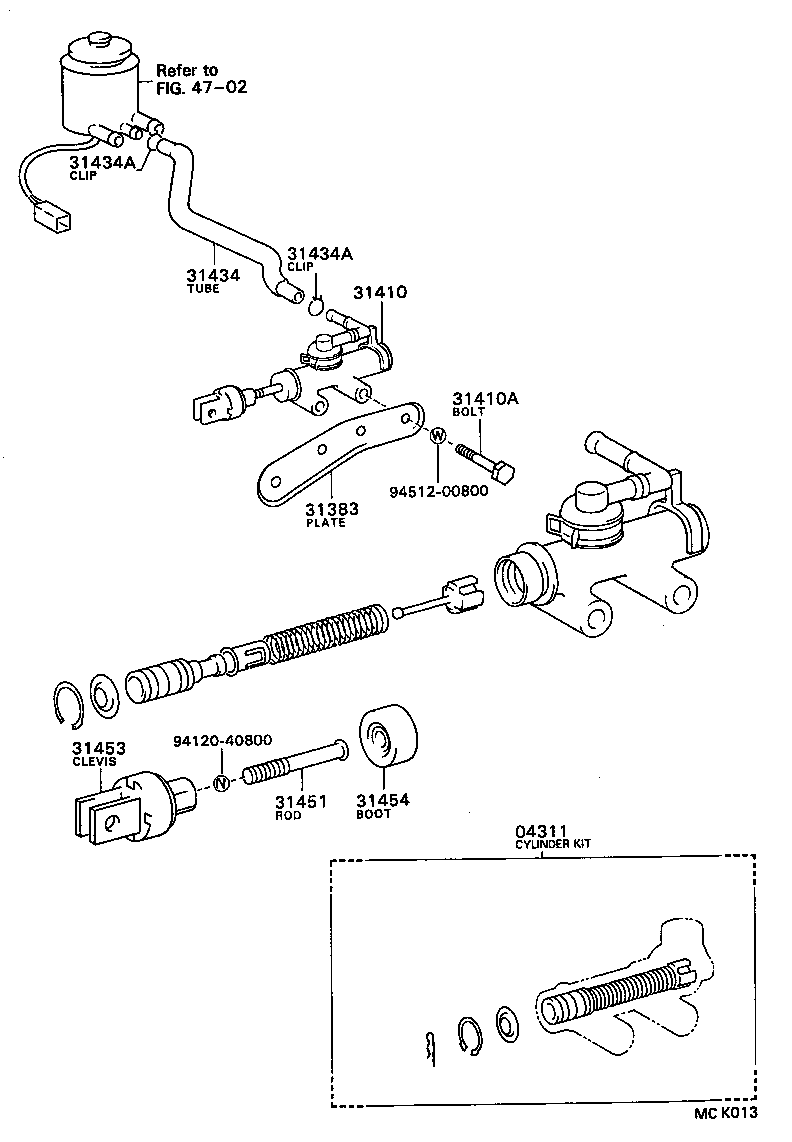

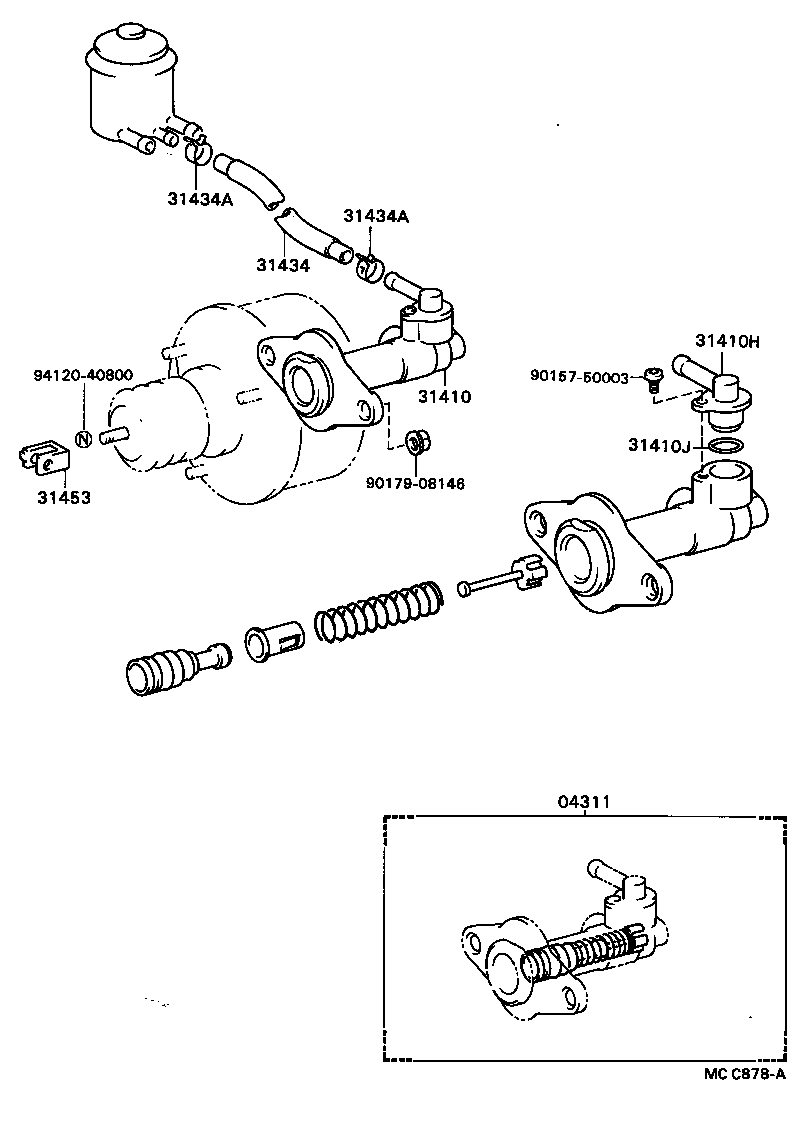

Clutch Master Cylinder
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04311 | Cylinder Kit, Clutch Master |
| 31383 | Plate, Pedal Support Shaft Set |
| 31410 | Cylinder Assy, Clutch Master |
| 31410A | Bolt(FOR CLUTCH MASTER CYLINDER SETTING) |
| 31410F | Bolt, Union(FOR CLUTCH MASTER CYLINDER) |
| 31410G | Gasket(FOR CLUTCH MASTER CYLINDER UNION) |
| 31410H | Union(FOR CLUTCH MASTER CYLINDER) |
| 31410J | Ring, O(FOR CLUTCH MASTER CYLINDER UNION) |
| 31434 | Tube, Clutch Reservoir |
| 31434A | Clip(FOR CLUTCH RESERVOIR TUBE) |
| 31451 | Rod, Clutch Master Cylinder Push |
| 31453 | Clevis, Clutch Master Cylinder Push Rod |
| 31454 | Boot, Clutch Master Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
