Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

49 part groups · 10 illustrations

Illustrations

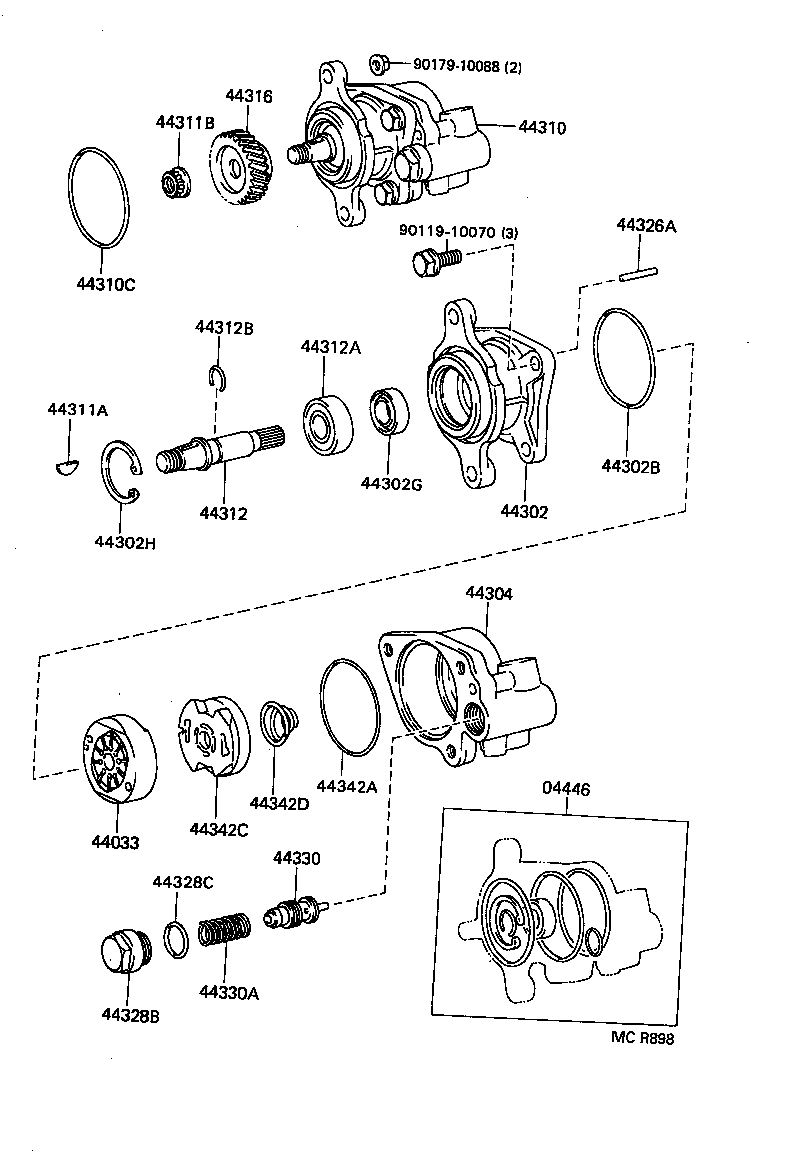

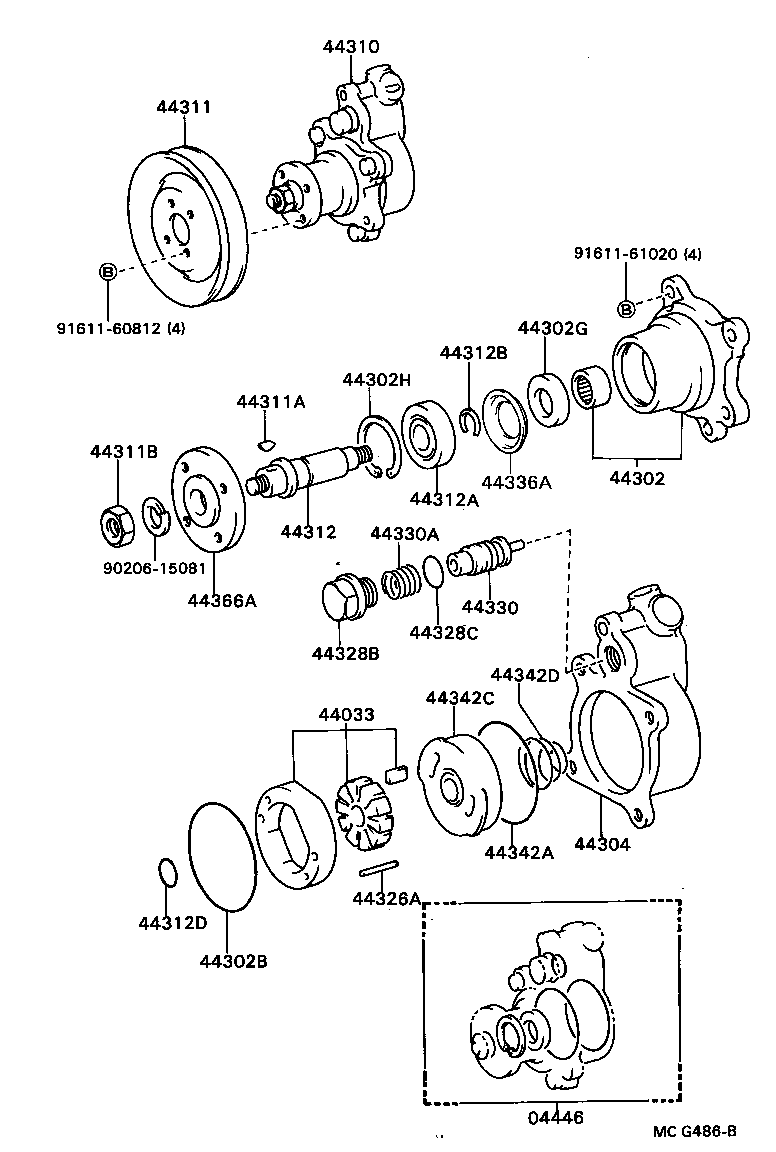

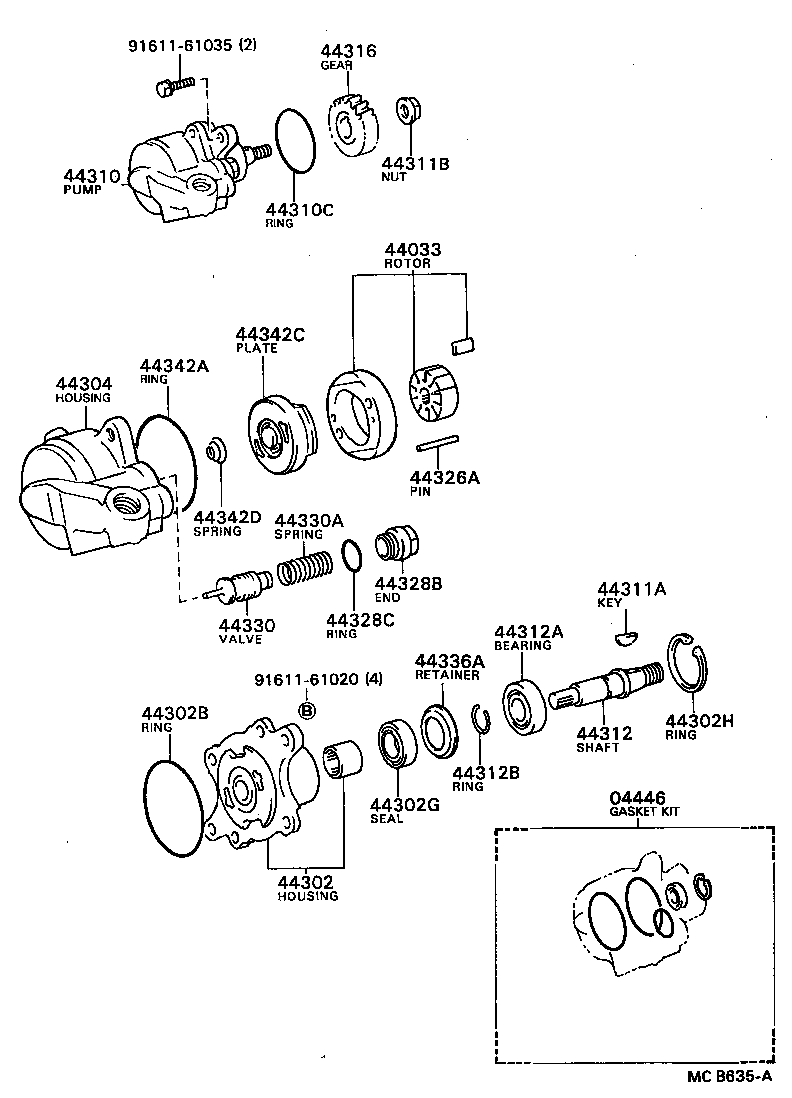

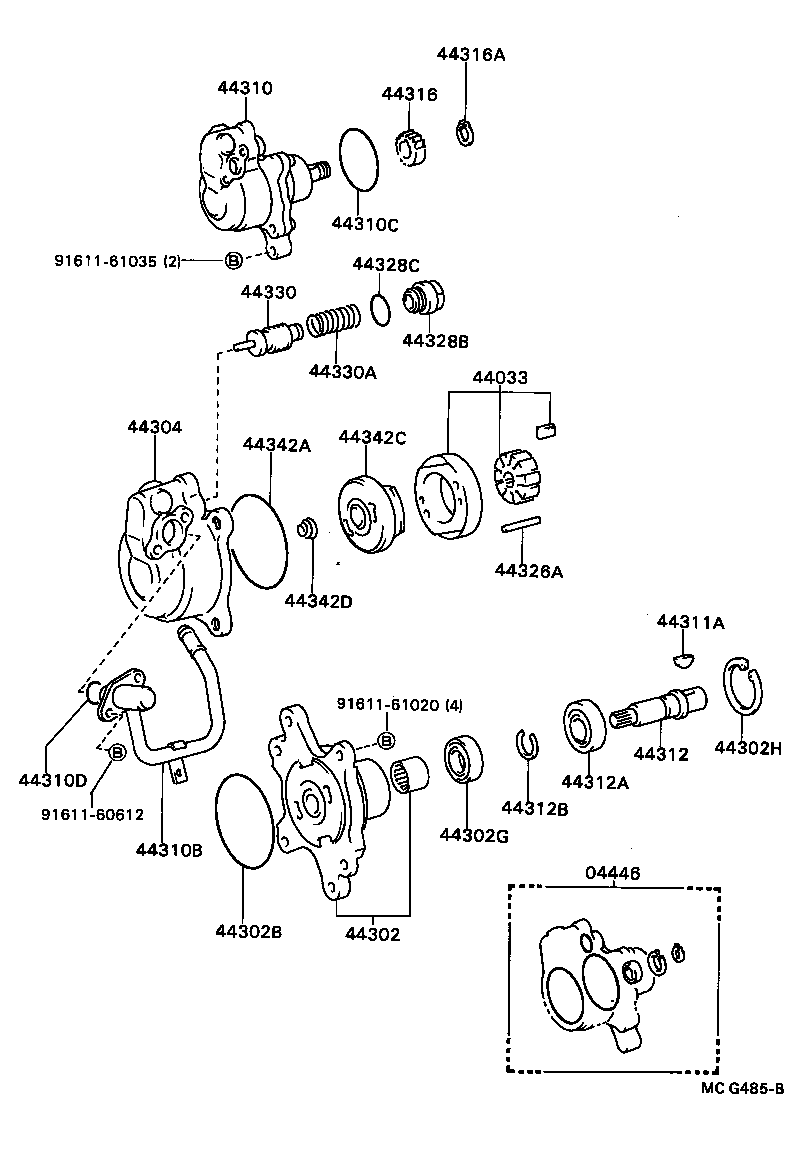

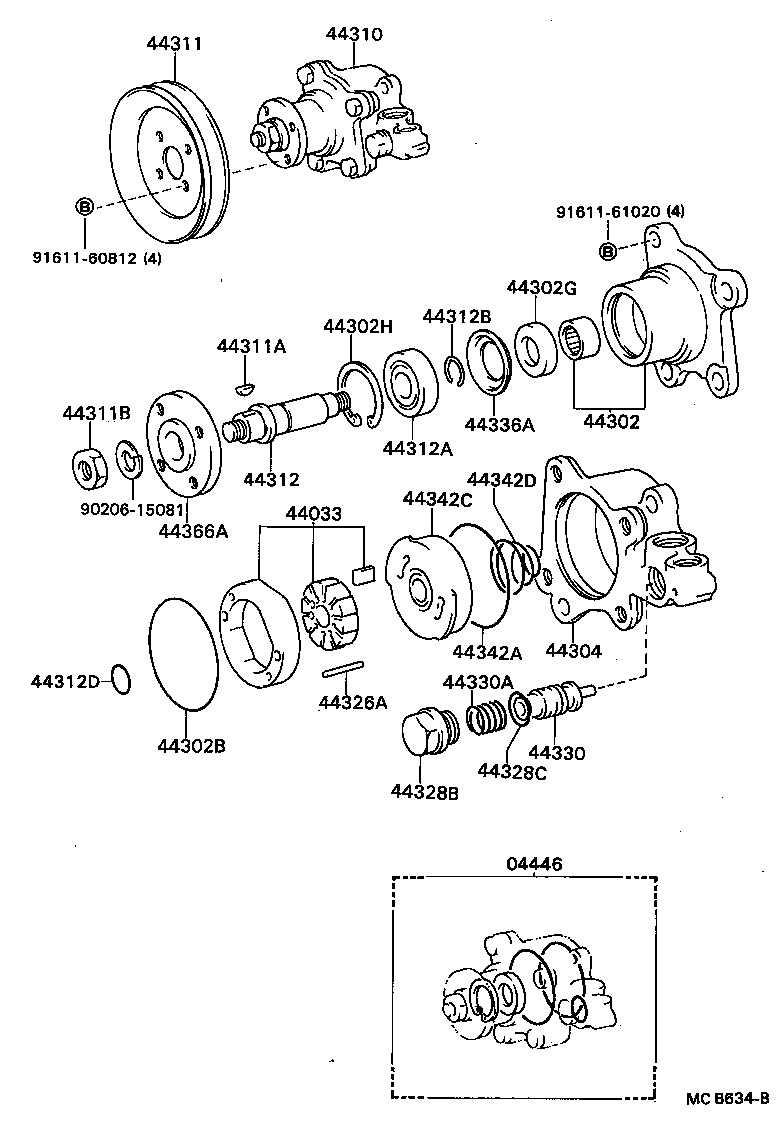

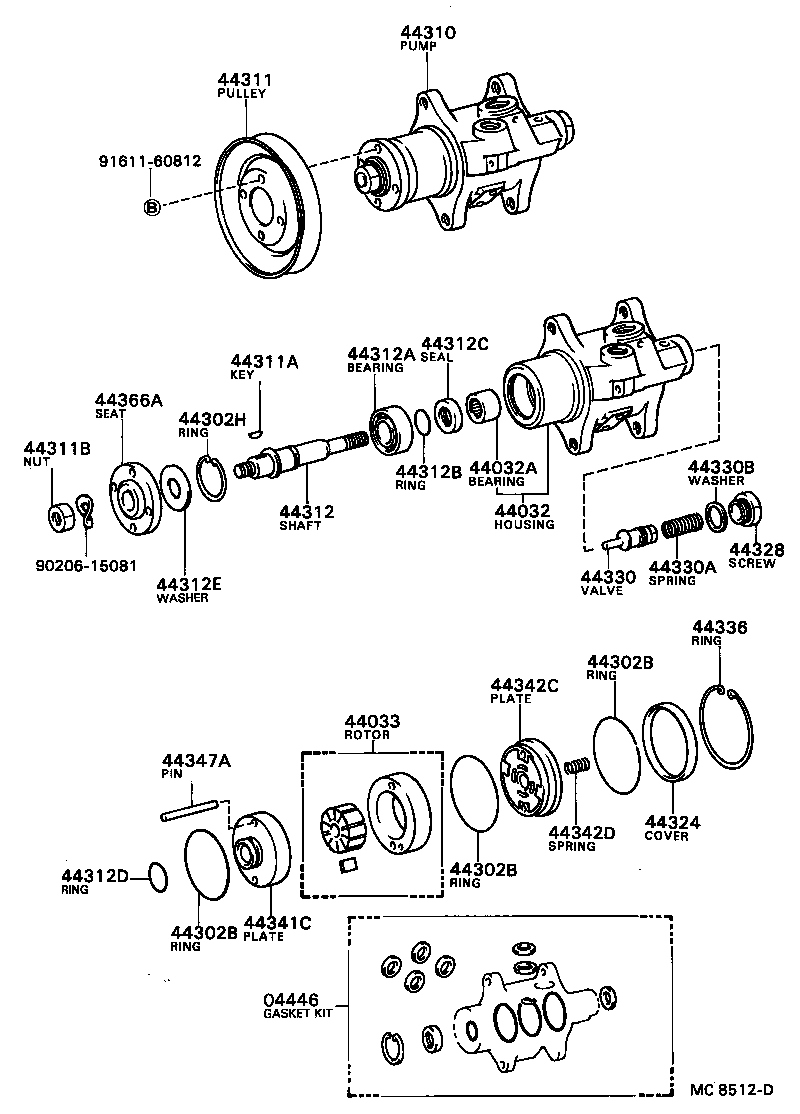

Figure 457367 457367 1982-05 → — Figure MC8512D MC8512D 1982-05 → 1984-08 Figure MC8512D MC8512D 1984-08 → 1985-10 Figure MCB634B MCB634B 1984-08 → — Figure MCB634B MCB634B 1985-10 → 1990-01 Figure MCG486B MCG486B 1988-08 → 1990-01 Figure MCB635A MCB635A 1984-08 → 1988-08 Figure MCG485B MCG485B 1988-08 → — Figure MCR898 MCR898 1990-01 → — Figure 457368 457368 1990-01 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44032 Housing Sub-assy, Pump W/Name Plate
44032A Bearing, Needle Roller(FOR VANE PUMP SHAFT)
44033 Rotor Sub-assy, W/Cam & Vane
44302 Housing Sub-assy, Vane Pump, Front
44302B Ring, O, NO.1(FOR VANE PUMP HOUSING)
44302G Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
44302H Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
44304 Housing Sub-assy, Vane Pump, Rear
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44305A Seal, Dust(FOR RESERVOIR CAP)
44310 Pump Assy, Vane
44310B Union(FOR VANE PUMP)
44310C Ring, O(FOR VANE PUMP)
44310D Ring, O(FOR VANE PUMP UNION)
44311 Pulley, Vane Pump
44311A Key, Vane Pump Pulley
44311B Nut(FOR VANE PUMP PULLEY)
44312 Shaft, Vane Pump
44312A Bearing(FOR VANE PUMP SHAFT)
44312B Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
44312C Seal, Oil(FOR VANE PUMP SHAFT)
44312D Ring, O(FOR VANE PUMP SHAFT)
44312E Washer(FOR VANE PUMP SHAFT)
44316 Gear, Vane Pump
44316A Ring
44324 Cover, Pump
44326A Pin, Straight(FOR VANE PUMP CAM RING)
44328 Screw, Lock(FOR VANE PUMP)
44328B End, Vane Pump Housing
44328C Ring, O(FOR PUMP HOUSING END)
44330 Valve Assy, Flow Control
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44330B Washer, Plate(FOR FLOW CONTROL VALVE)
44336 Ring, Hook Spring
44336A Retainer, Vane Pump Oil Seal
44341C Plate, Thrust, Vane Pump
44342A Ring, O(FOR VANE PUMP SIDE PLATE REAR)
44342C Plate, Pressure
44342D Spring, Compression(FOR PRESSURE PLATE)
44347A Pin, Vane Pump
44362 Reservoir, Oil(FOR VANE PUMP)
44363 Strainer, Oil(FOR VANE PUMP)
44366A Seat, Pump Pulley
44391 Plate, Power Steering Oil Reservoir Caution
44429 Hose, Reservoir TO Oil Pump
44429A Union(FOR RESERVOIR TO OIL PUMP)
44429B Bolt, Union(FOR RESERVOIR TO OIL PUMP UNION)
44429C Gasket(FOR RESERVOIR TO OIL PUMP UNION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
