Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12

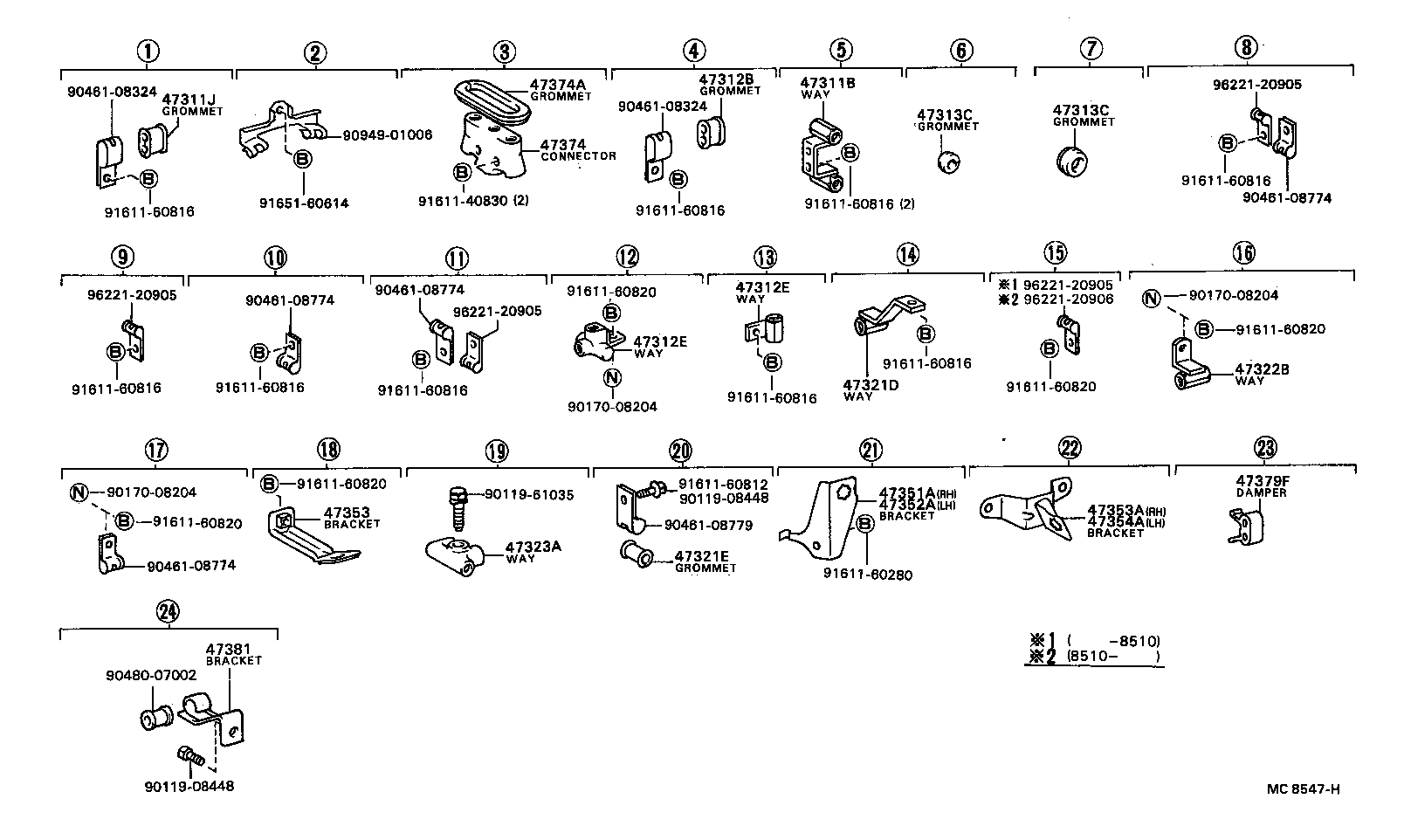

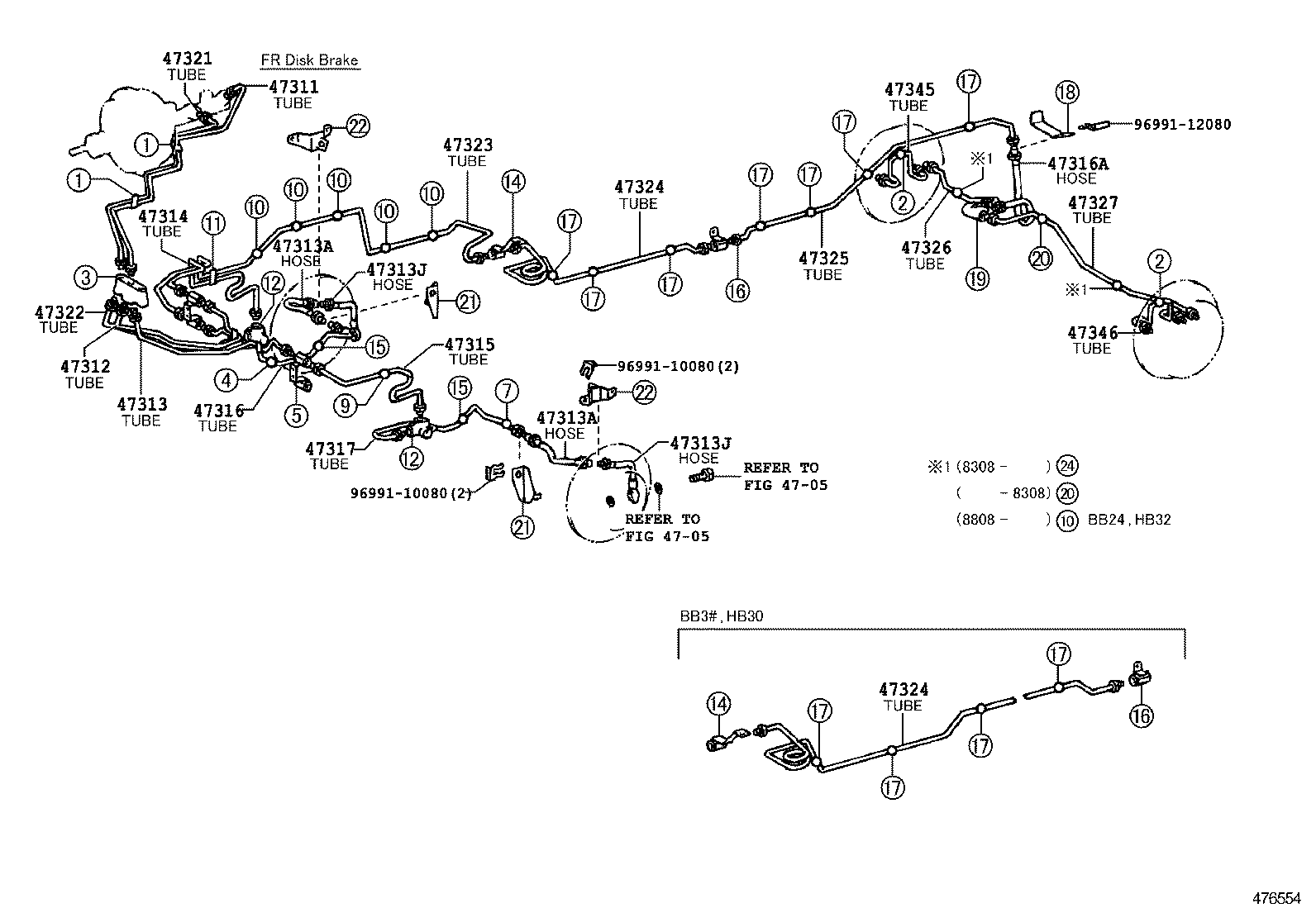

Brake Tube & Clamp

41 part groups · 4 illustrations

PNC	Description
47311	Tube, Front Brake, NO.1
47311B	Way, NO.1(FOR FRONT BRAKE TUBE)
47311J	Grommet, NO.1(FOR FRONT BRAKE TUBE)
47312	Tube, Front Brake, NO.2
47312B	Grommet, NO.2(FOR FRONT BRAKE TUBE)
47312E	Way, NO.2(FOR FRONT BRAKE TUBE)
47313	Tube, Front Brake, NO.3
47313A	Hose, Flexible, NO.1(FOR FRONT)
47313C	Grommet, NO.3(FOR FRONT BRAKE TUBE)
47313J	Hose, Flexible, NO.2(FOR FRONT)
47314	Tube, Front Brake, NO.4
47315	Tube, Front Brake, NO.5
47316	Tube, Front Brake, NO.6
47316A	Hose, Flexible(FOR REAR BRAKE TUBE)
47317	Tube, Front Brake, NO.7
47321	Tube, Rear Brake, NO.1
47321D	Way, NO.1(FOR REAR BRAKE TUBE)
47321E	Grommet(FOR REAR BRAKE TUBE)
47322	Tube, Rear Brake, NO.2
47322B	Way, NO.2(FOR REAR BRAKE TUBE)
47323	Tube, Rear Brake, NO.3
47323A	Way, NO.3(FOR REAR BRAKE TUBE)
47324	Tube, Rear Brake, NO.4
47325	Tube, Rear Brake, NO.5
47326	Tube, Rear Brake, NO.6
47327	Tube, Rear Brake, NO.7
47341B	Tube, Wheel Cylinder, Front RH NO.1
47342	Tube, Wheel Cylinder, Front RH NO.2
47343A	Tube, Wheel Cylinder, Front LH NO.1
47344	Tube, Wheel Cylinder, Front LH NO.2
47345	Tube, Wheel Cylinder, Rear RH
47346	Tube, Wheel Cylinder, Rear LH
47351A	Bracket, Flexible Hose, Front RH NO.1
47352A	Bracket, Flexible Hose, Front LH NO.1
47353	Bracket, Flexible Hose(FOR REAR)
47353A	Bracket, Flexible Hose, Front RH NO.2
47354A	Bracket, Flexible Hose, Front LH NO.2
47374	Connector, Tube
47374A	Grommet(FOR TUBE CONNECTOR)
47379F	Damper, Tube(FOR FRONT)
47381	Bracket, Brake Tube Clamp NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
