Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan
Discontinued model
Data version 1993-12

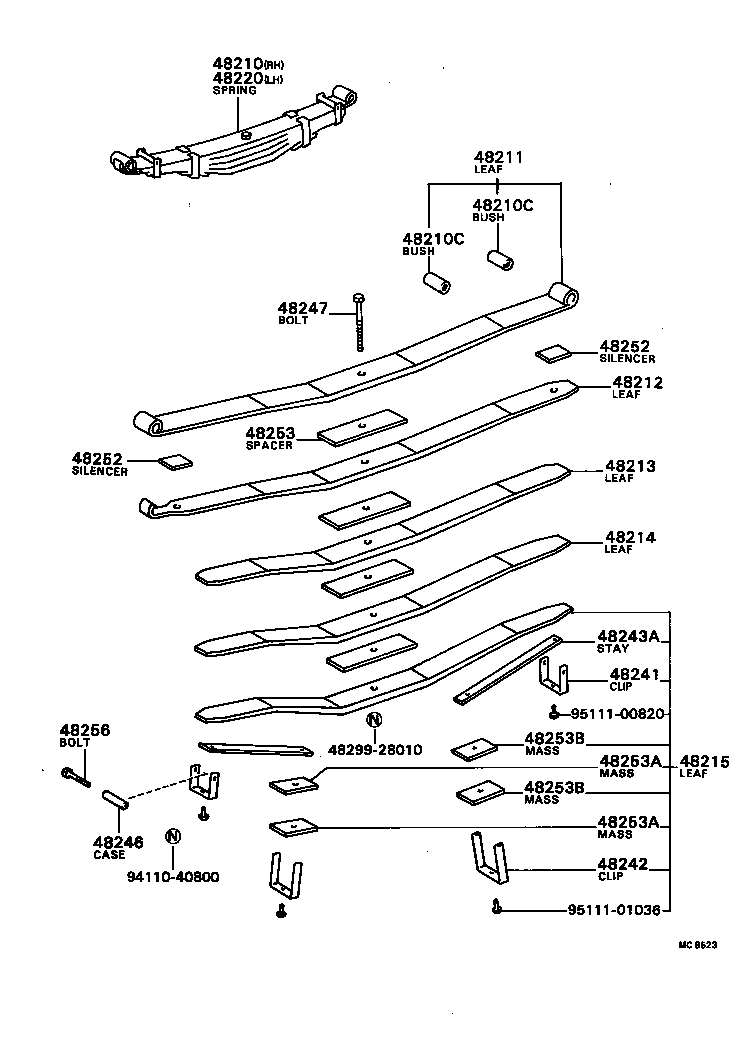

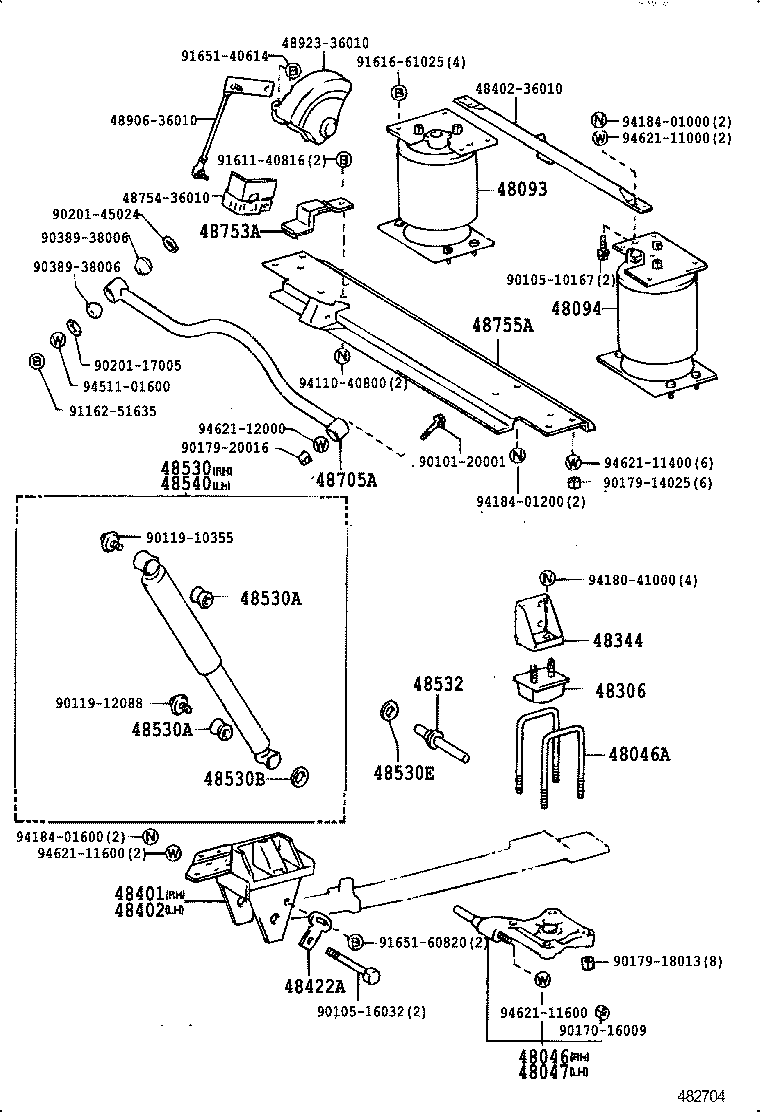

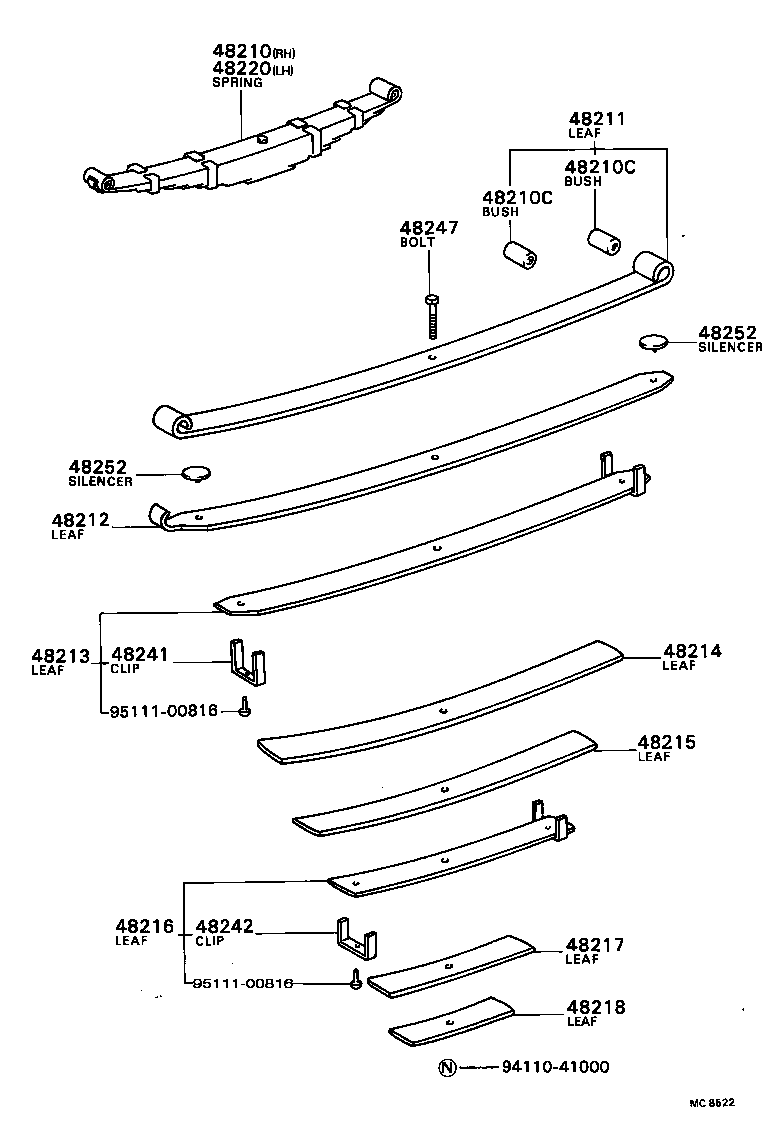

Rear Spring & Shock Absorber
60 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04483 | Shackle Kit, Rear Spring |
| 48046 | Seat Sub-assy, Spring U Bolt, RH |
| 48046A | Bolt, U(FOR REAR SPRING) |
| 48047 | Seat Sub-assy, Spring U Bolt, LH |
| 48093 | Sleeve Sub-assy, Rear Suspension, RH |
| 48094 | Sleeve Sub-assy, Rear Suspension, LH |
| 48210 | Spring Assy, Rear RH |
| 48210C | Bush(FOR REAR SPRING LEAF) |
| 48210G | Bush(FOR REAR SPRING SHACKLE LOWER) |
| 48211 | Leaf, Rear Spring, NO.1 |
| 48212 | Leaf, Rear Spring, NO.2 |
| 48213 | Leaf, Rear Spring, NO.3 |
| 48214 | Leaf, Rear Spring, NO.4 |
| 48215 | Leaf, Rear Spring, NO.5 |
| 48216 | Leaf, Rear Spring, NO.6 |
| 48217 | Leaf, Rear Spring, NO.7 |
| 48218 | Leaf, Rear Spring, NO.8 |
| 48220 | Spring Assy, Rear LH |
| 48241 | Clip, Rear Spring, NO.1 |
| 48242 | Clip, Rear Spring, NO.2 |
| 48243A | Stay, Rear Spring Clip Damper |
| 48246 | Case, Rear Spring Clip Bolt |
| 48247 | Bolt, Rear Spring, Center |
| 48252 | Silencer, Rear Spring |
| 48253 | Spacer, Rear Spring, NO.1 |
| 48253A | Mass Damper, Rear Spring, NO.1 |
| 48253B | Mass Damper, Rear Spring, NO.2 |
| 48255 | Spacer, Rear Spring Leaf |
| 48256 | Bolt, Hexagon(FOR REAR SPRING CLIP SET) |
| 48306 | Bumper Sub-assy, Rear Spring |
| 48344 | Stopper, Bumper, Rear |
| 48401 | Bracket Sub-assy, Rear Spring, Front RH |
| 48402 | Bracket Sub-assy, Rear Spring, Front LH |
| 48404 | Bracket Sub-assy, Rear Spring, Rear RH |
| 48405 | Bracket Sub-assy, Rear Spring, Rear LH |
| 48422A | Support, Rear Spring Pin |
| 48516 | Bracket, Rear Shock Absorber, Upper RH |
| 48517 | Bracket, Rear Shock Absorber, Upper LH |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530A | Bush(FOR REAR SHOCK ABSORBER) |
| 48530B | Washer, Rear Shock Absorber Cushion, NO.1 |
| 48530C | Washer, Rear Shock Absorber Cushion, NO.2 |
| 48530D | Washer, Rear Shock Absorber Cushion, NO.3 |
| 48530E | Washer, Rear Shock Absorber Cushion, NO.4 |
| 48532 | Pin, Rear Shock Absorber Pivot |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48705A | Rod Sub-assy, Lateral Control |
| 48753A | Cover, Rear Suspension Lower Menber |
| 48755A | Member, Rear Suspension Sleeve, Lower |
| 48802 | Link Sub-assy, Stabilizer |
| 48802D | Bush, Stabilizer Link |
| 48802E | Spacer(FOR REAR STABILIZER BAR) |
| 48805 | Bar Sub-assy, Rear Stabilizer |
| 48812 | Bar, Stabilizer, Rear |
| 48815R | Bush, Stabilizer(FOR REAR) |
| 48817R | Cushion, Stabilizer(FOR REAR) |
| 48817S | Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR) |
| 48823R | Cover, Stabilizer Link(FOR REAR) |
| 48836R | Bracket, Rear Stabilizer End, RH |
| 48837R | Bracket, Rear Stabilizer End, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
