Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

11 part groups · 2 illustrations

Illustrations

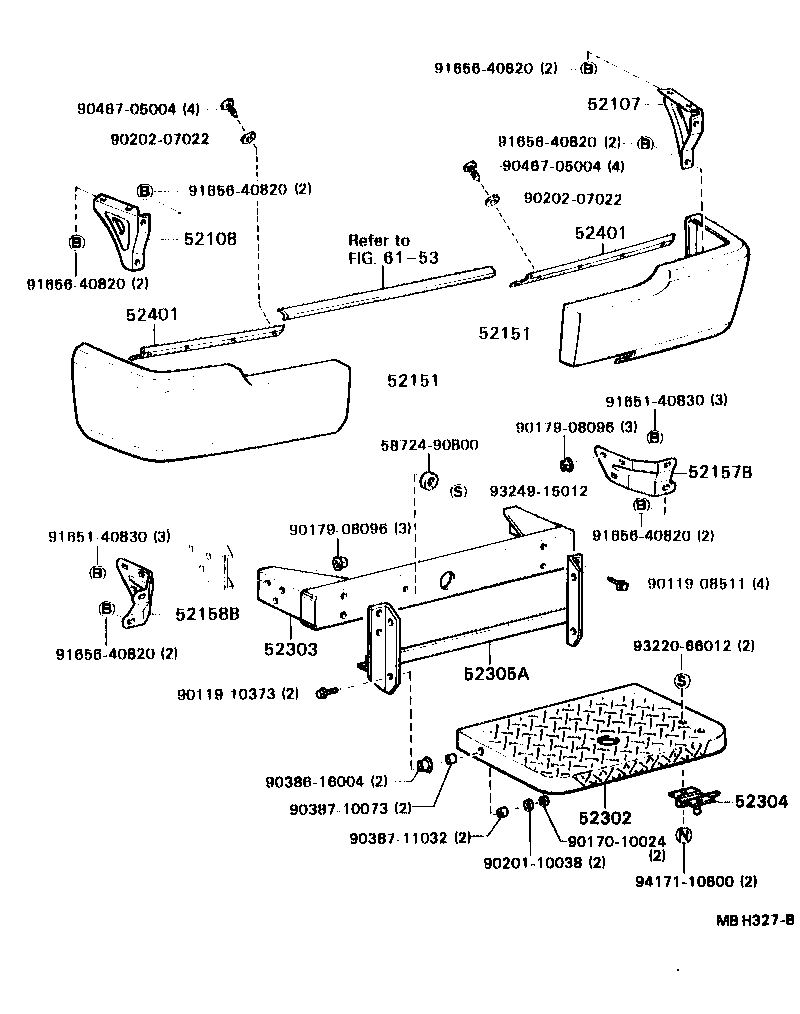

Figure MBD738D MBD738D 1982-05 → — Figure MBH327B MBH327B 1984-08 → —

Part groups

PNCDescription
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52136 Plate, Back Door Step
52151 Bumper Assy, Rear
52157B Stay, Rear Bumper Side, NO.2 RH
52158B Stay, Rear Bumper Side, NO.2 LH
52302 Step Sub-assy, Back
52303 Member Sub-assy, Back Step
52304 Lock Sub-assy, Back Step
52305A Retainer Sub-assy, Back Step
52401 Deflector, Rear Bumper Stone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
