Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Support & Wind Guide

12 part groups · 2 illustrations

Illustrations

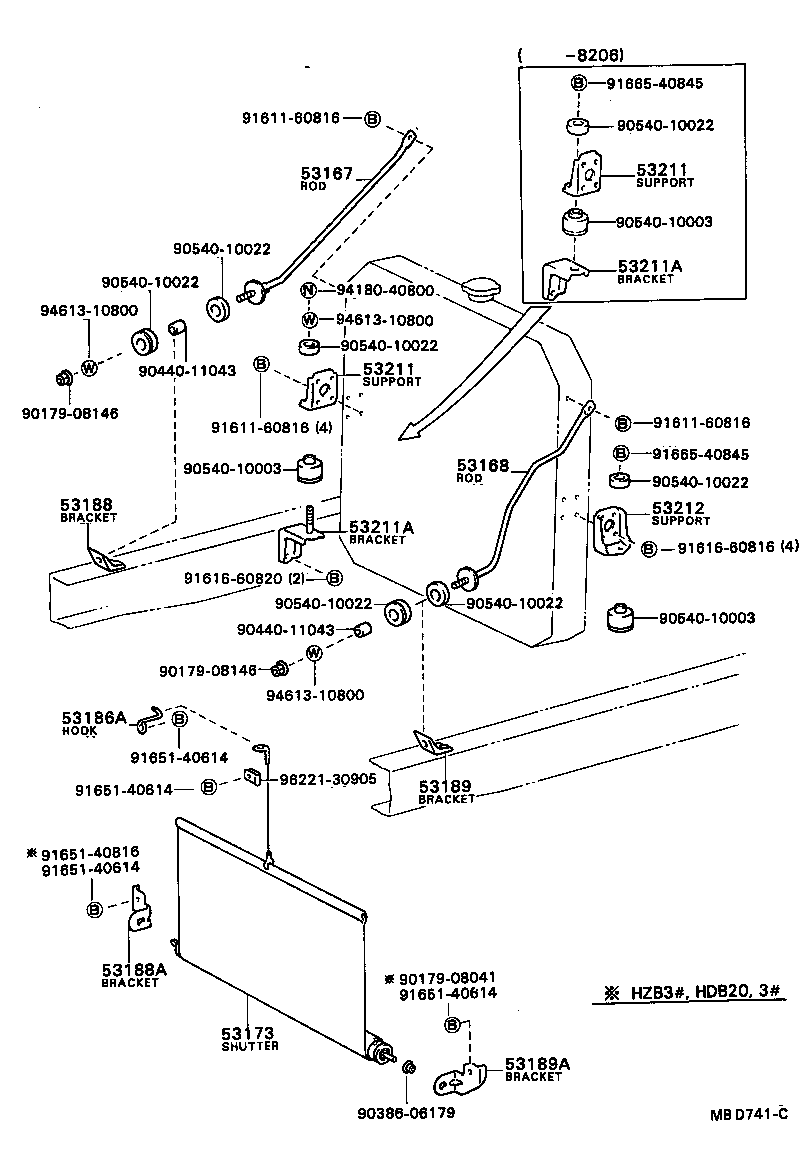

Figure MBD740B MBD740B 1982-05 → — Figure MBD741C MBD741C 1982-05 → —

Part groups

PNCDescription
53167 Rod, Radiator Brace, RH
53168 Rod, Radiator Brace, LH
53173 Shutter Sub-assy, Radiator Wind
53186A Hook, Radiator Shutter
53188 Bracket, Radiator Brace Rod, RH
53188A Bracket, Radiator Shutter Support, RH
53189 Bracket, Radiator Brace Rod, LH
53189A Bracket, Radiator Shutter Support, LH
53211 Support, Radiator, RH
53211A Bracket, Radiator Support, RH
53212 Support, Radiator, LH
53212A Bracket, Radiator Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
