Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

245 part groups · 9 illustrations

Illustrations

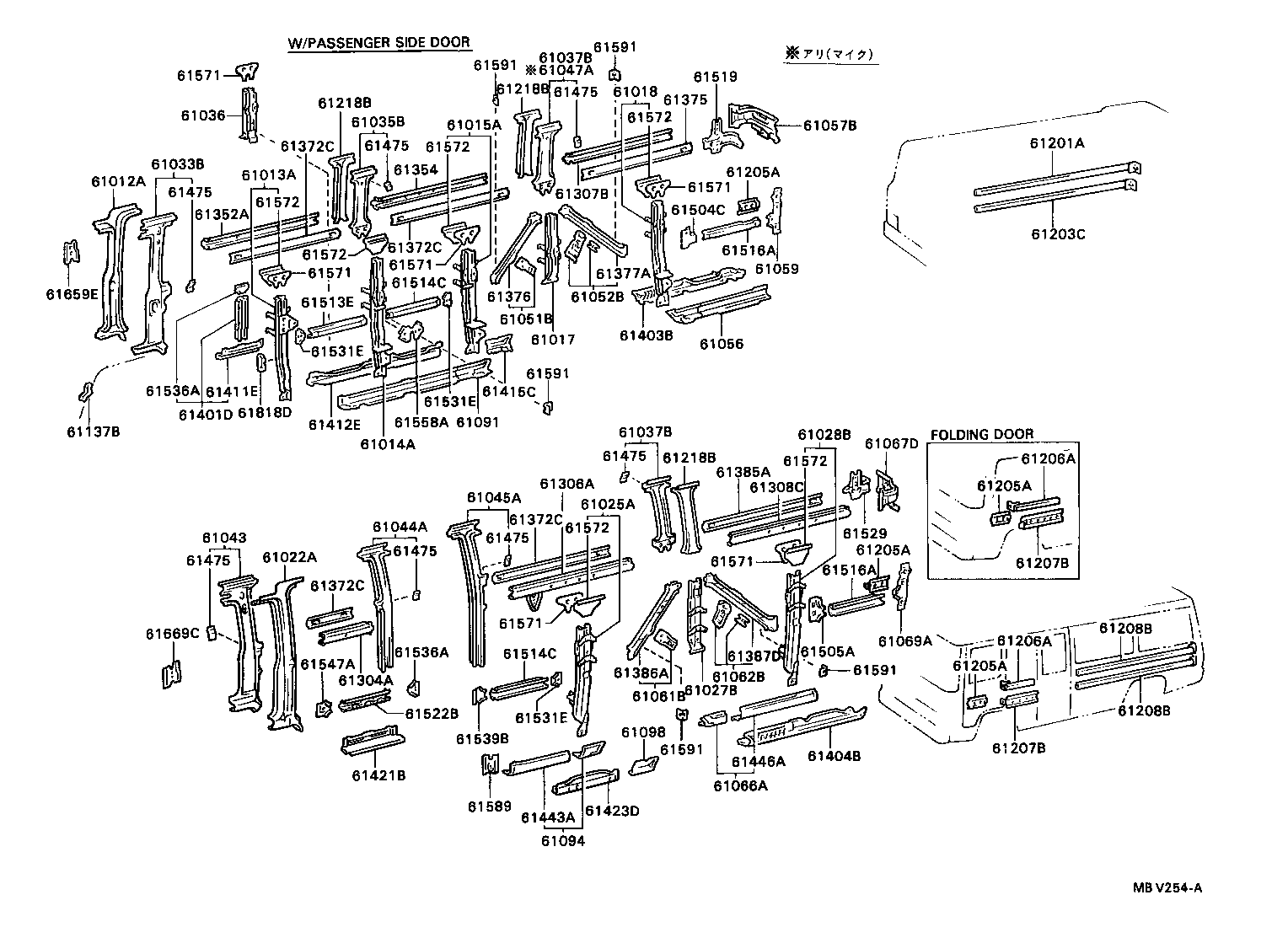

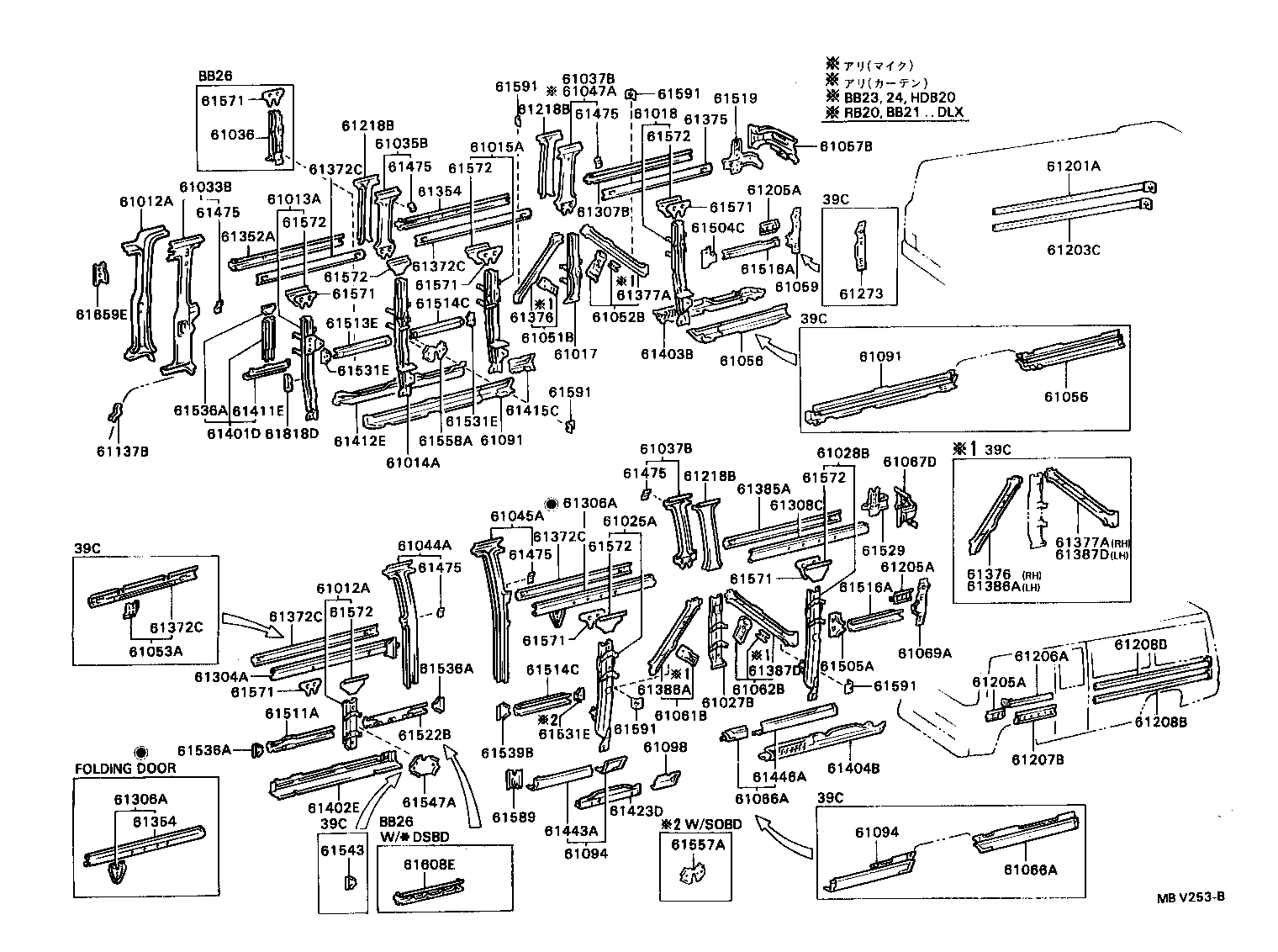

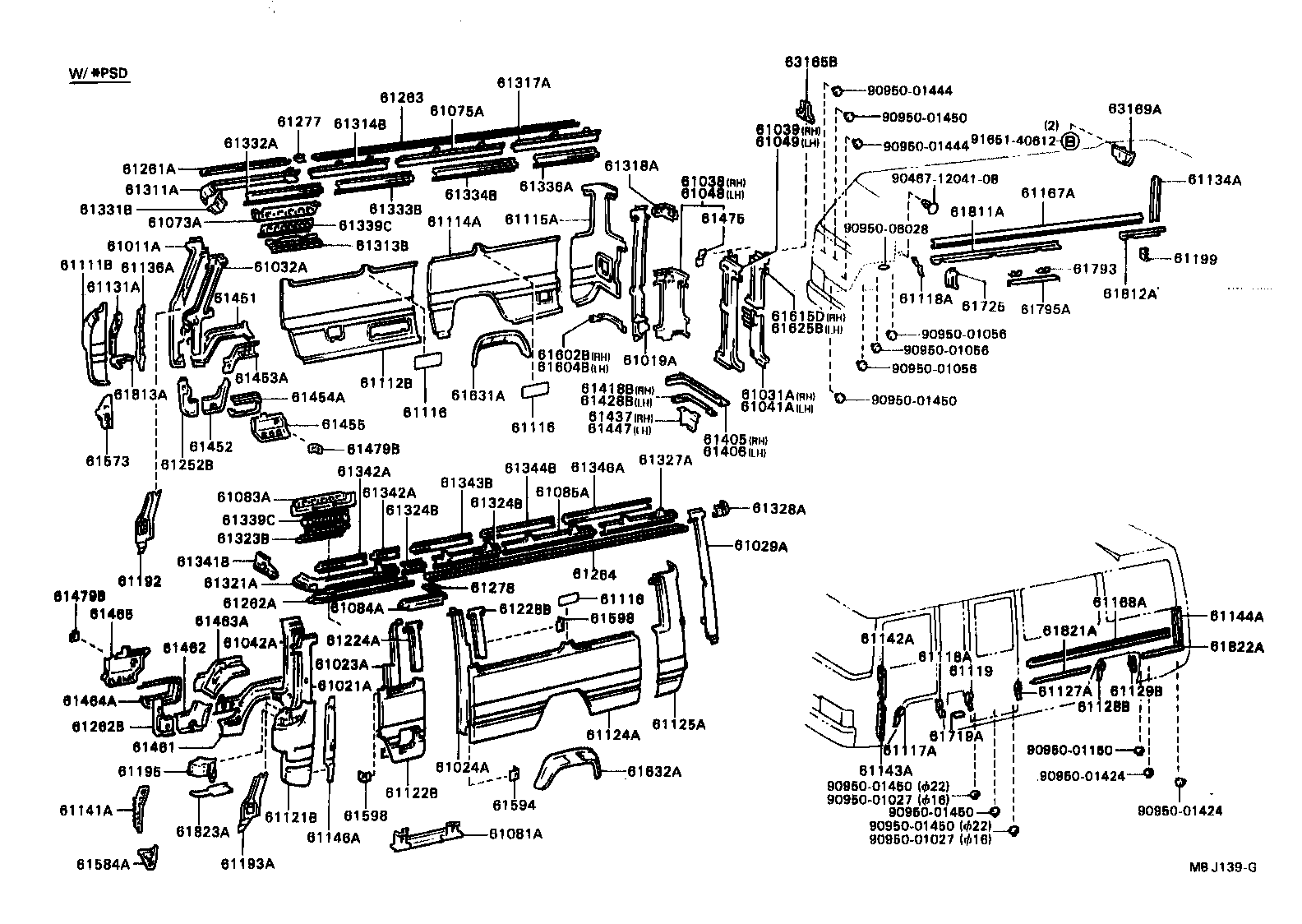

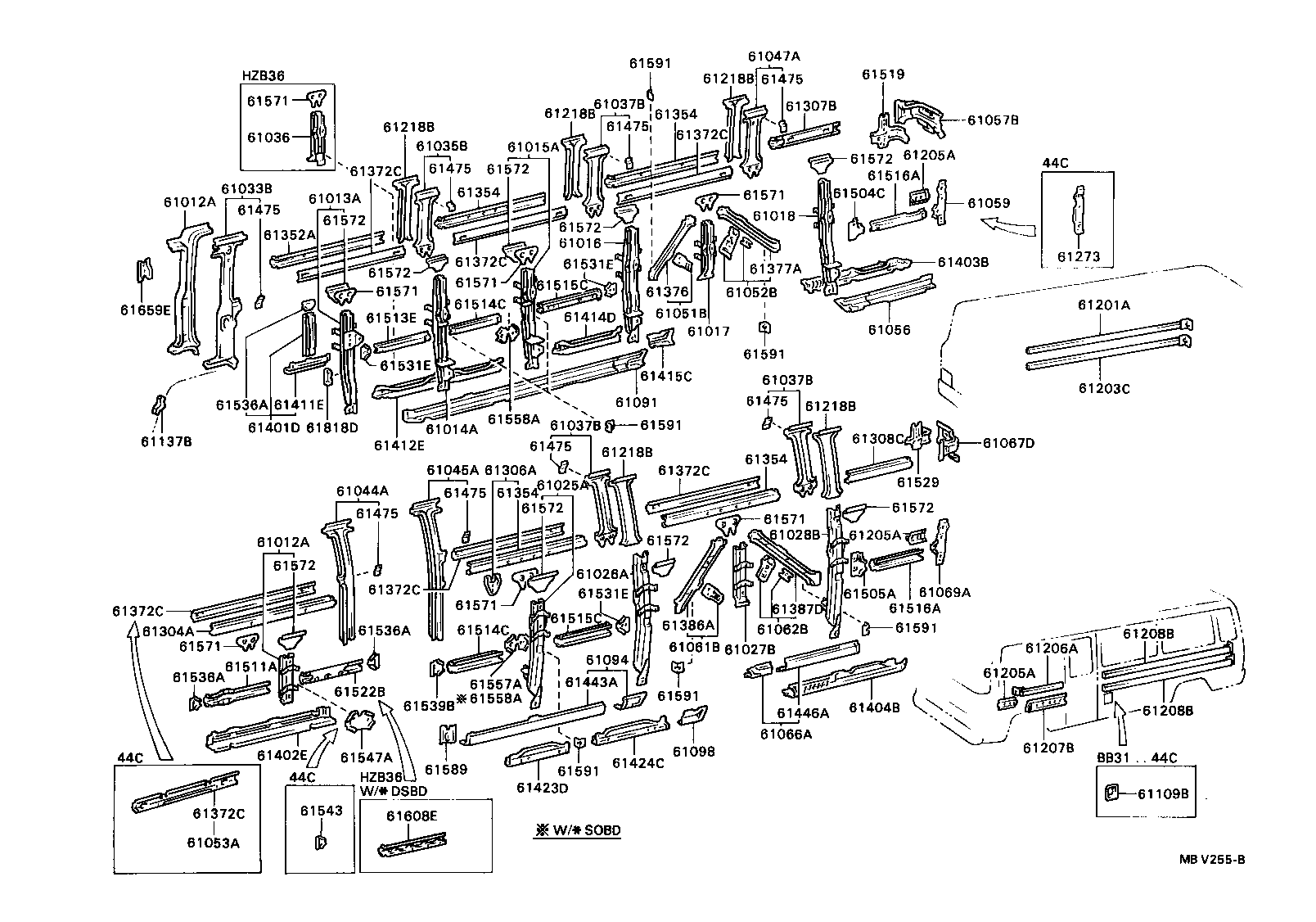

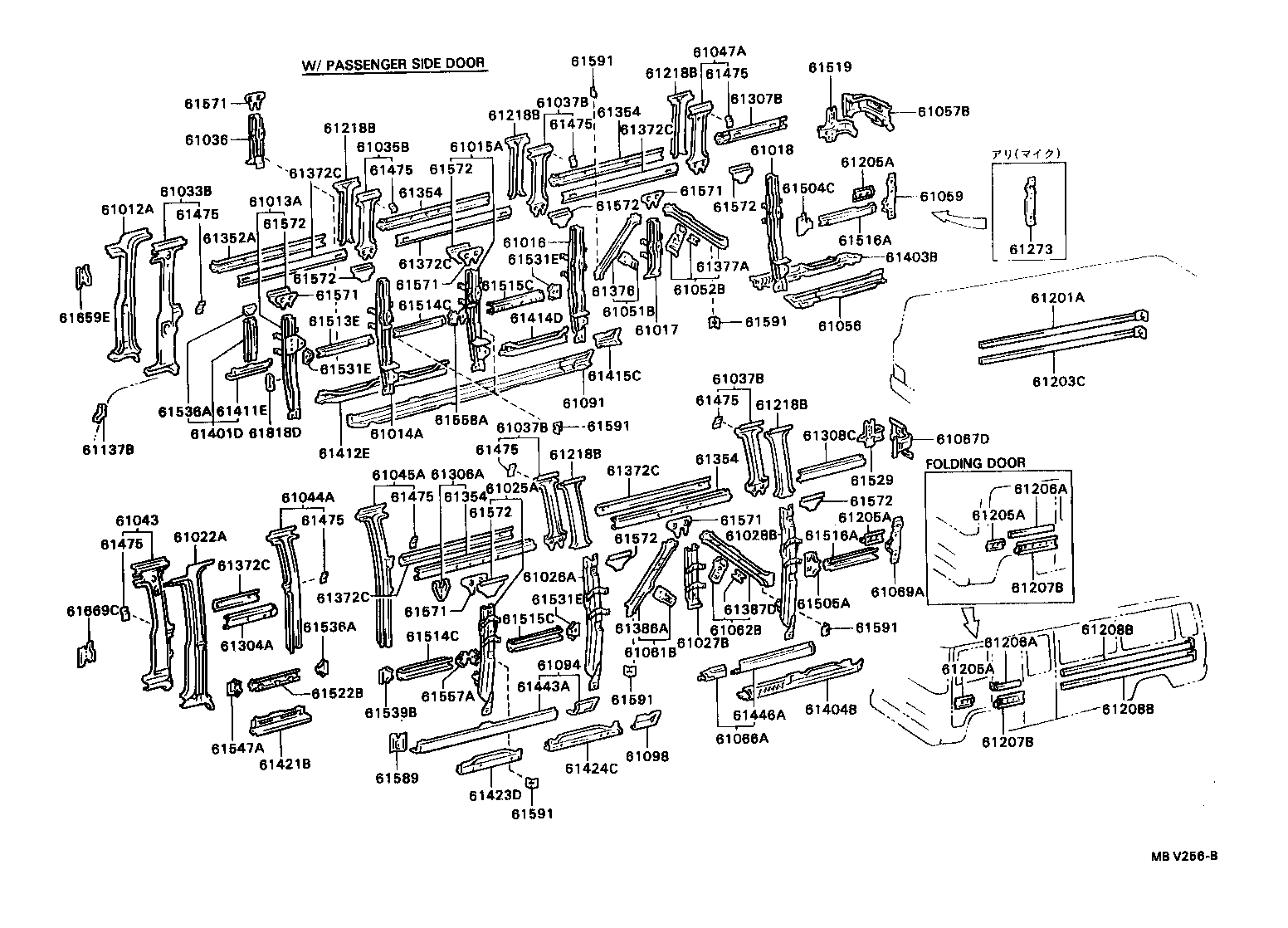

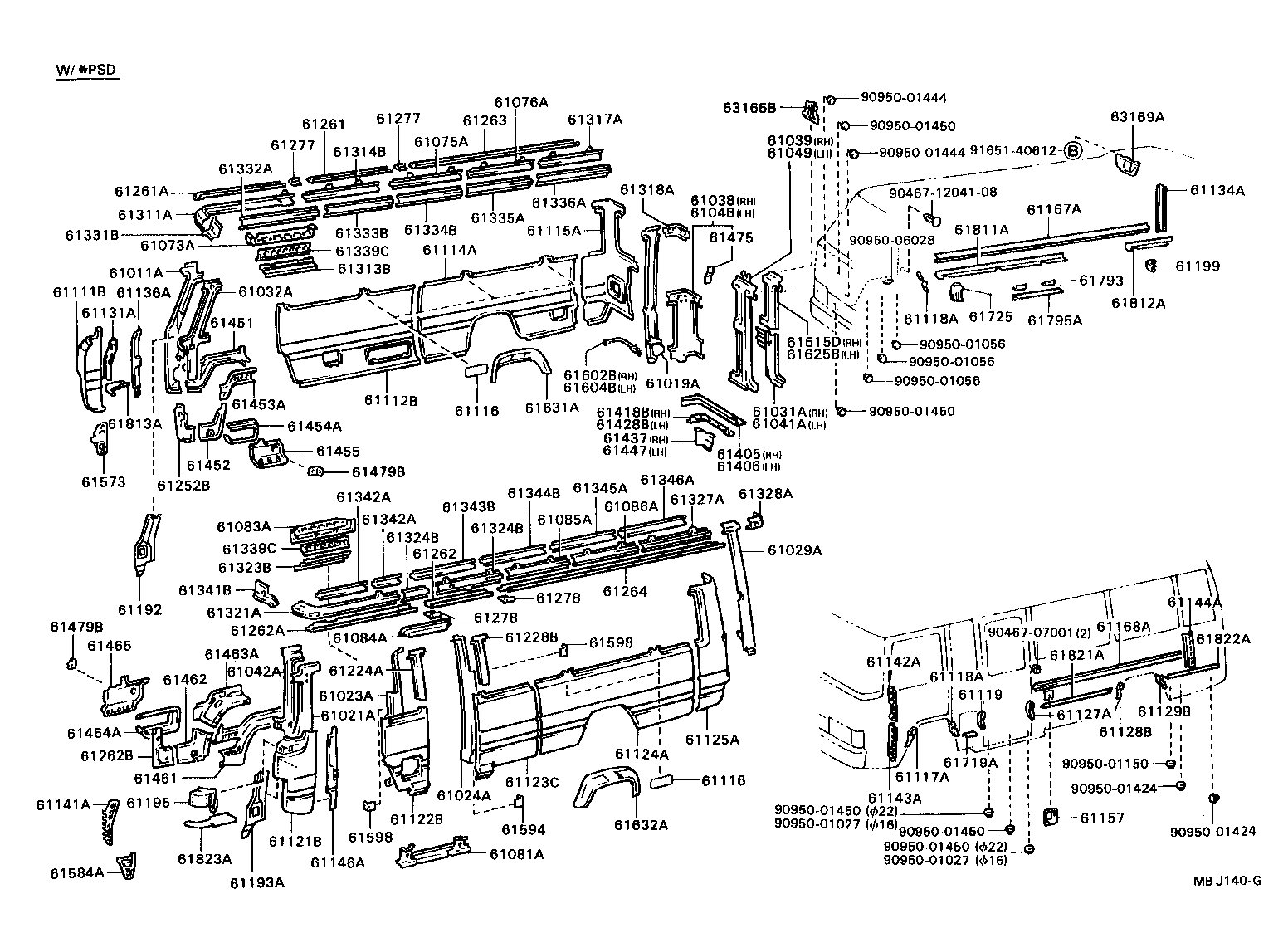

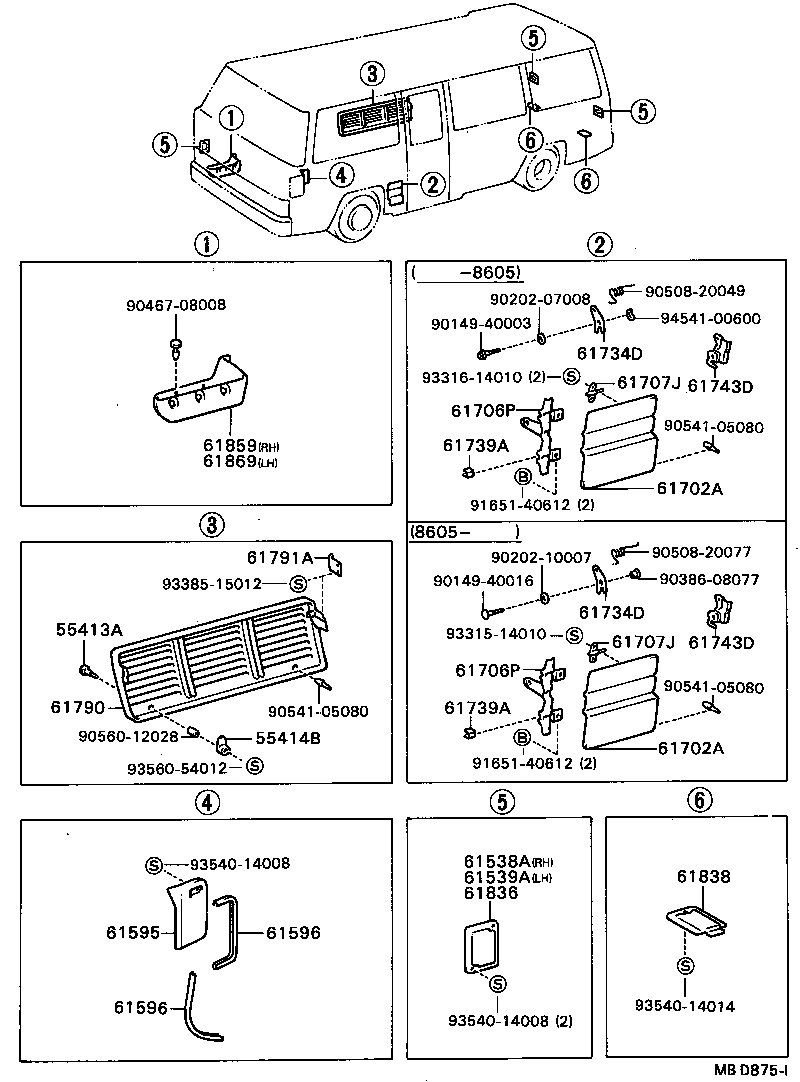

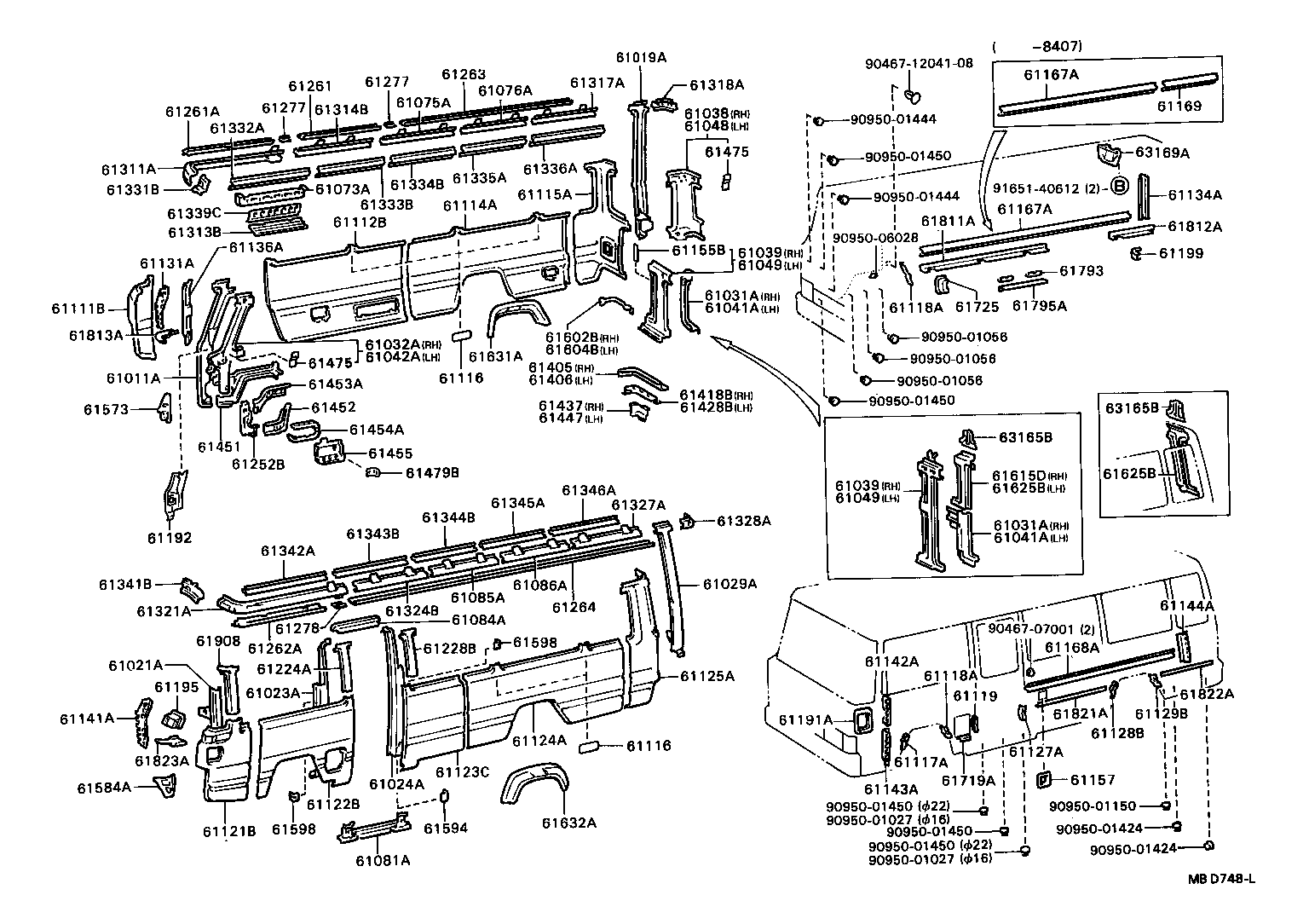

Figure MBD747J MBD747J 1982-05 → — Figure MBJ139G MBJ139G 1984-08 → — Figure MBD748L MBD748L 1982-05 → — Figure MBJ140G MBJ140G 1984-08 → — Figure MBV253B MBV253B 1990-01 → — Figure MBV254A MBV254A 1990-01 → — Figure MBV255B MBV255B 1982-05 → — Figure MBV256B MBV256B 1990-01 → — Figure MBD875I MBD875I 1982-05 → —

Part groups

PNCDescription
55413A Cylinder, Cooler Condenser Air Intake Cover
55414B Stopper, Cooler Condenser Air Intake Cover
61011A Pillar Sub-assy, NO.1 RH
61012A Pillar Sub-assy, NO.2 RH
61013A Pillar Sub-assy, NO.3 RH
61014A Pillar Sub-assy, NO.4 RH
61015A Pillar Sub-assy, NO.5 RH
61016 Pillar Sub-assy, NO.6 RH
61017 Pillar Sub-assy, NO.7 RH
61018 Pillar Sub-assy, NO.8 RH
61019A Pillar Sub-assy, NO.9 RH
61021A Pillar Sub-assy, NO.1 LH
61022A Pillar Sub-assy, NO.2 LH
61023A Pillar Sub-assy, NO.3 LH
61024A Pillar Sub-assy, NO.4 LH
61025A Pillar Sub-assy, NO.5 LH
61026A Pillar Sub-assy, NO.6 LH
61027B Pillar Sub-assy, NO.7, LH
61028B Pillar Sub-assy, NO.8 LH
61029A Pillar Sub-assy, NO.9 LH
61031A Pillar Sub-assy, NO.10 RH
61032A Pillar Sub-assy, NO.1 Inner, RH
61033B Pillar Sub-assy, NO.2 Inner, RH
61035B Pillar Sub-assy, NO.4 Inner, RH
61036 Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
61037B Pillar Sub-assy, NO.6 Inner NO.1
61038 Pillar Sub-assy, NO.9 Inner, RH
61039 Pillar Sub-assy, NO.10 Inner, RH
61041A Pillar Sub-assy, NO.10, LH
61042A Pillar Sub-assy, NO.1 Inner, LH
61043 Pillar Sub-assy, NO.2 Inner, LH
61044A Pillar Sub-assy, NO.3 Inner, LH
61045A Pillar Sub-assy, NO.4 Inner, LH
61047A Pillar Sub-assy, NO.6 Inner, NO.2
61048 Pillar Sub-assy, NO.9 Inner, LH
61049 Pillar Sub-assy, NO.10 Inner, LH
61051B Brace Sub-assy, Rear Wheel, Upper Front RH
61052B Brace Sub-assy, Rear Wheel, Upper Rear RH
61053A Rail Sub-assy, NO.1 Center, Inner
61056 Rail Sub-assy, NO.6 Lower Inner, RH
61057B Rail Sub-assy, Rear Side, RH
61059 Pillar Sub-assy, NO.9 Inner, Lower RH
61061B Brace Sub-assy, Rear Wheel, Upper Front LH
61062B Brace Sub-assy, Rear Wheel, Upper Rear LH
61066A Rail Sub-assy, NO.6 Lower, Inner LH
61067D Rail Sub-assy, Rear Side, LH
61069A Pillar Sub-assy, NO.9 Inner, Lower LH
61073A Panel Sub-assy, Front Ventilator, RH
61075A Rail Sub-assy, NO.3 Upper Outer, RH
61076A Rail Sub-assy, NO.4 Upper Outer, RH
61081A Rail Sub-assy, NO.2 Lower Outer, LH
61083A Panel Sub-assy, Front Ventilator, LH
61084A Rail Sub-assy, Center Door, LH
61085A Rail Sub-assy, NO.3 Upper Outer, LH
61086A Rail Sub-assy, NO.4 Upper Outer, LH
61091 Rail Sub-assy, NO.2 Lower Inner, RH
61094 Rail Sub-assy, NO.3 Lower Inner, LH
61098 Rail Sub-assy, NO.5 Lower Outer, LH
61109B Panel Sub-assy, Side, NO.3 Front
61111B Panel, NO.1 Side, RH
61112B Panel, NO.2 Side, RH
61114A Panel, NO.3 Side, RH
61115A Panel, NO.4 Side, RH
61116 Lining, Side Panel, Reinforcement
61117A Gusset, Side Panel Relief, NO.1
61118A Gusset, Side Panel Relief, NO.2
61119 Gusset, Side Panel Relief, NO.3
61121B Panel, NO.1 Side, LH
61122B Panel, NO.2 Side, LH
61123C Panel, NO.2 Side, Rear, LH
61124A Panel, NO.3 Side, LH
61125A Panel, NO.4 Side, LH
61127A Gusset, Side Panel Relief, NO.4
61128B Gusset, Side Panel Relief, NO.5
61129B Gusset, Side Panel Relief, NO.6
61131A Strength, Side Panel, NO.1 RH
61134A Strength, Side Panel, NO.3 Upper RH
61136A Panel, Front Side End, RH
61137B Gusset, Rocker Outer Reinforcement, RH
61141A Strength, Side Panel, NO.1 LH
61142A Strength, Side Panel, NO.2 Upper LH
61143A Strength, Side Panel, NO.2 Lower LH
61144A Strength, Side Panel, NO.3 Upper LH
61146A Panel, Front Side End, LH
61155B Gusset, Center Rail, Outer
61157 Bracket, NO.2 Side Panel
61167A Stiffener, Side Panel, Lower RH
61168A Stiffener, Side Panel, Lower LH
61169 Stiffener, Side Panel, Lower NO.2
61191A Reinforcement, Side Lower Window
61192 Reinforcement, NO.1 Outer Pillar, RH
61193A Reinforcement, NO.1 Outer Pillar, LH
61195 Retainer, Outer Side Mirror, LH
61199 Bracket, Side Panel TO Rear Mudguard
61201A Stiffener Sub-assy, Side Panel, NO.1
61203C Stiffener Sub-assy, Side Panel, NO.3
61205A Stiffener Sub-assy, Side Panel, NO.5
61206A Stiffener Sub-assy, Side Panel, NO.6
61207B Stiffener Sub-assy, Side Panel, NO.7
61208B Stiffener Sub-assy, Side Panel, NO.8
61218B Pillar, NO.4 Outer, Upper
61224A Pillar, NO.3 Outer, Upper LH
61228B Pillar, NO.4 Outer, Upper LH
61252B Pillar, NO.1 Inner, Lower RH
61261 Channel, Roof Drip, RH
61261A Channel, Roof Drip Side, Front RH
61262 Channel, Roof Drip, LH
61262A Channel, Roof Drip Side, Front LH
61262B Pillar, NO.1 Inner, Lower LH
61263 Channel, Roof Drip, Rear RH
61264 Channel, Roof Drip, Rear LH
61273 Pillar, NO.9 Inner, Lower RH
61277 Joint, Roof Drip Channel, Front RH
61278 Joint, Roof Drip Channel, Front LH
61304A Rail Sub-assy, NO.2 Center, Outer LH
61306A Rail Sub-assy, NO.3 Center, Outer LH
61307B Rail Sub-assy, NO.5 Center, Outer RH
61308C Rail Sub-assy, NO.5 Center Outer, LH
61311A Rail, NO.1 Upper Outer, RH
61313B Rail, NO.1 Upper Outer, Lower RH
61314B Rail, NO.2 Upper Outer, RH
61317A Rail, NO.3 Upper Outer, RH
61318A Rail, NO.6 Upper Outer, RH
61321A Rail, NO.1 Upper Outer, LH
61323B Rail, NO.1 Upper Outer, Lower LH
61324B Rail, NO.2 Upper Outer, LH
61327A Rail, NO.5 Upper Outer, LH
61328A Rail, NO.6 Upper Outer, LH
61331B Rail, NO.1 Upper Inner, Front RH
61332A Rail, NO.1 Upper Inner, Rear RH
61333B Rail, NO.2 Upper Inner, RH
61334B Rail, NO.3 Upper Inner, RH
61335A Rail, NO.4 Upper Inner, RH
61336A Rail, NO.5 Upper Inner, RH
61339C Rail, NO.1 Upper, Inner Lower
61341B Rail, NO.1 Upper Inner, Front LH
61342A Rail, NO.1 Upper Inner, Rear LH
61343B Rail, NO.2 Upper Inner, LH
61344B Rail, NO.3 Upper Inner, LH
61345A Rail, NO.4 Upper Inner, LH
61346A Rail, NO.5 Upper Inner, LH
61352A Rail, NO.2 Center Outer, RH
61354 Rail, NO.4 Center Outer, RH
61372C Rail, NO.2 Center, Inner
61375 Rail, NO.5 Center Inner, RH
61376 Brace, Rear Wheel, Upper Front RH
61377A Brace, Rear Wheel, Upper Rear RH
61385A Rail, NO.5 Center Inner, LH
61386A Brace, Rear Wheel, Upper Front LH
61387D Brace, Rear Wheel, Upper Rear LH
61401D Rail Sub-assy, NO.1 Lower Outer, RH
61402E Brace Sub-assy, NO.1 Lower Outer, LH
61403B Rail Sub-assy, NO.6 Lower Outer, RH
61404B Rail Sub-assy, NO.6 Lower Outer, LH
61405 Rail Sub-assy, NO.7 Lower Inner, Lower RH
61406 Rail Sub-assy, NO.7 Lower Inner, Lower LH
61411E Rail, NO.1 Lower Outer, RH
61412E Rail, NO.2 Lower Outer, RH
61414D Rail, NO.4 Lower Outer, RH
61415C Rail, NO.5 Lower Outer, RH
61418B Rail, NO.8 Lower Outer, RH
61421B Rail, NO.1 Lower Outer, LH
61423D Rail, NO.3 Lower Outer, LH
61424C Rail, NO.4 Lower Outer, LH
61428B Rail, NO.8 Lower Outer, LH
61437 Rail, NO.7 Lower Inner, RH
61443A Rail, NO.3 Lower Inner, LH
61446A Rail, NO.6 Lower Inner, LH
61447 Rail, NO.7 Lower Inner, LH
61451 Panel, Rocker, Outer RH
61452 Panel, Rocker Inner, Front RH
61453A Panel, Rocker Inner, Rear RH
61454A Panel, Front Door Step, RH
61455 Panel, Front Door Step Side, RH
61461 Panel, Rocker, Outer LH
61462 Panel, Rocker, Inner Front LH
61463A Panel, Rocker, Inner Rear LH
61464A Panel, Front Door Step, LH
61465 Panel, Front Door Step Side, LH
61475 Bracket, Center Rail Inside Cushion, NO.1
61479B Bracket, Front Door Step Mudguard
61504C Gusset Sub-assy, Seat Anchor, NO.4
61505A Gusset Sub-assy, Seat Anchor, NO.5
61511A Rail, Seat Anchor, NO.1
61513E Rail, Seat Anchor, NO.3
61514C Rail, Seat Anchor, NO.4
61515C Rail, Seat Anchor, NO.5
61516A Rail, Seat Anchor, NO.6
61519 Gusset, Rear Side Rail, RH
61522B Rail, Seat Anchor, NO.2 LH
61529 Gusset, Rear Side Rail, LH
61531E Gusset, Seat Anchor, NO.1
61536A Gusset, Seat Anchor, NO.6
61538A Cover, Back Corner Hole, RH
61539A Cover, Back Corner Hole, LH
61539B Gusset, Seat Anchor, NO.9
61543 Gusset, Seat Anchor, NO.3 LH
61547A Gusset, Seat Anchor, NO.7 LH
61557A Gusset, Seat Anchor, NO.15
61558A Gusset, Seat Anchor, NO.16
61571 Gusset, Seat Rail, Inner
61572 Gusset, Center Rail, Outer
61573 Extension, Floor Panel, NO.1
61584A Extension, Floor Panel, NO.2 LH
61589 Gusset, NO.4 Pillar, Center LH
61591 Bracket, Stiffener, NO.1
61594 Bracket, Stiffener, NO.4
61595 Lid, Pillar Hole
61596 Protector, Pillar Hole Lid
61598 Bracket, Stiffener, NO.5
61602B Strength Sub-assy, Rear Corner, Inner RH
61604B Strength Sub-assy, Rear Corner, Inner LH
61608E Rail Sub-assy, Seat Anchor, NO.2 LH
61615D Pillar, NO.10 Outer, Upper RH
61625B Pillar, NO.10 Outer, Upper LH
61631A Panel, Quarter Wheel House, Outer RH
61632A Panel, Quarter Wheel House, Outer LH
61659E Reinforcement, NO.2, Pillar, Outer RH
61669C Reinforce, NO.2 Pillar, Outer LH
61702A Cover Sub-assy, Battery Service Hole, LH
61706P Hinge Sub-assy, Battery Cover, LH
61707J Bracket Sub-assy, Battery Cover Lock
61719A Stiffener, Battery Service Hole
61725 Box, Fuel Inlet
61734D Lever, Battery Cover Lock
61739A Cushion, Battery Cover Stopper
61743D Hinge, Battery Cover Lock, LH
61790 Cover Assy, Cooler Condenser Air Intake
61791A Bracket, Cooler Condenser Cover
61793 Plate, Cooler Condenser Cover Lock
61795A Plate, Cooler Condenser Cover Shield
61811A Rail, Dustproof, Front RH
61812A Rail, Dustproof, Rear RH
61813A Plate, Dustproof, NO.1 RH
61818D Plate, Duct Proof, NO.6 RH
61821A Rail, Dustproof, Front LH
61822A Rail, Dustproof, Rear LH
61823A Panel, Dustproof, NO.1 LH
61836 Cover, Pillar Inner Service Hole
61838 Cover, Rail Lower Inner Service Hole
61859 Cover, Front Door Step, RH
61869 Cover, Front Door Step, LH
61908 Pillar Sub-assy, NO.1 Outer, Upper LH
63165B Bracket, Evaporator, Outer NO.4
63169A Bracket, Evaporator, Inner NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
