Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

147 part groups · 15 illustrations

Illustrations

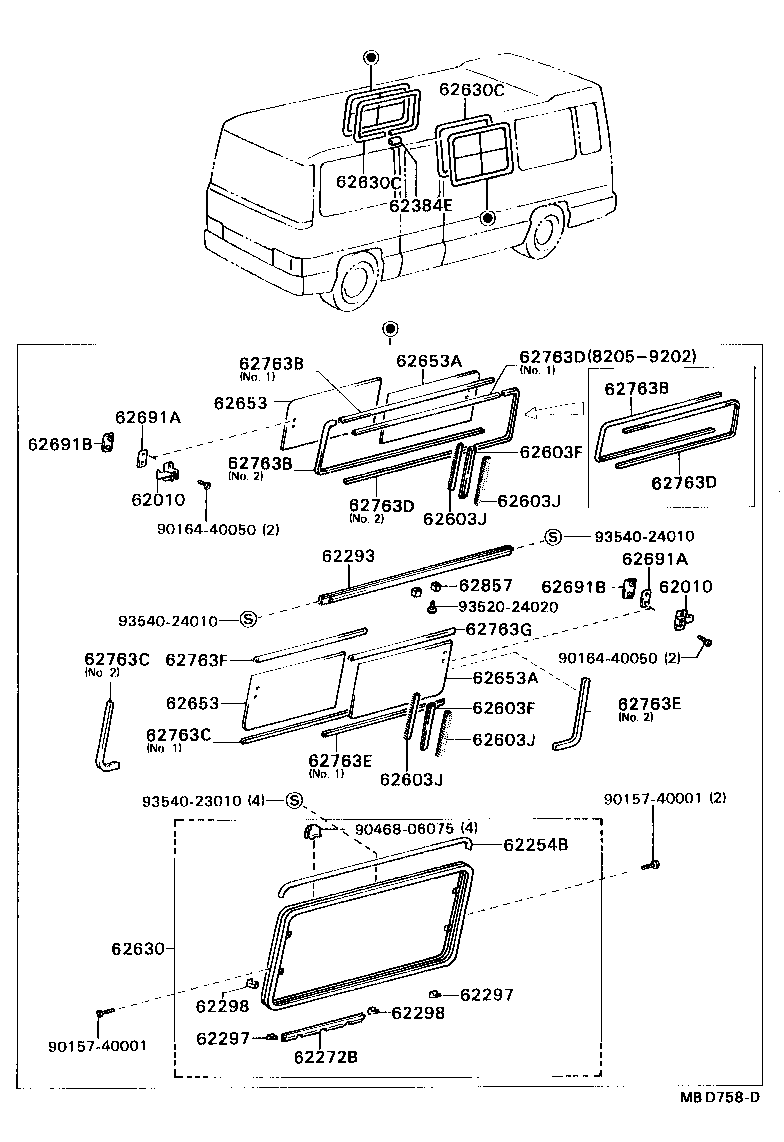

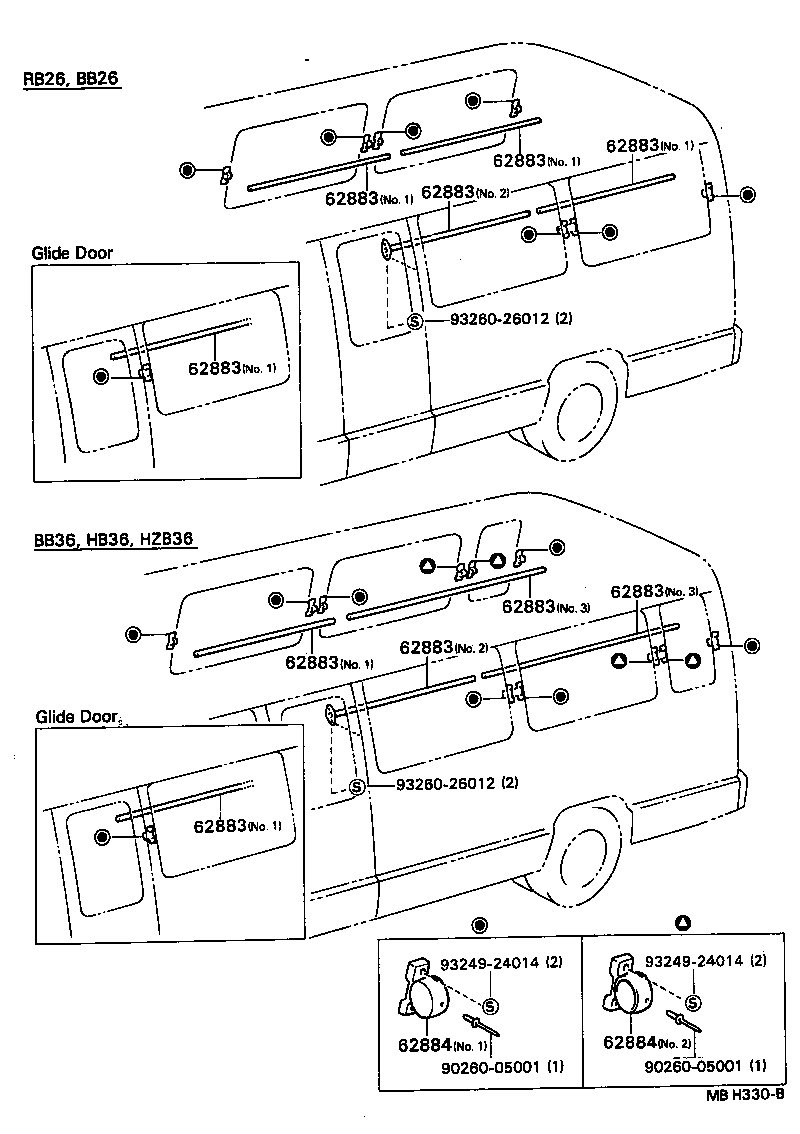

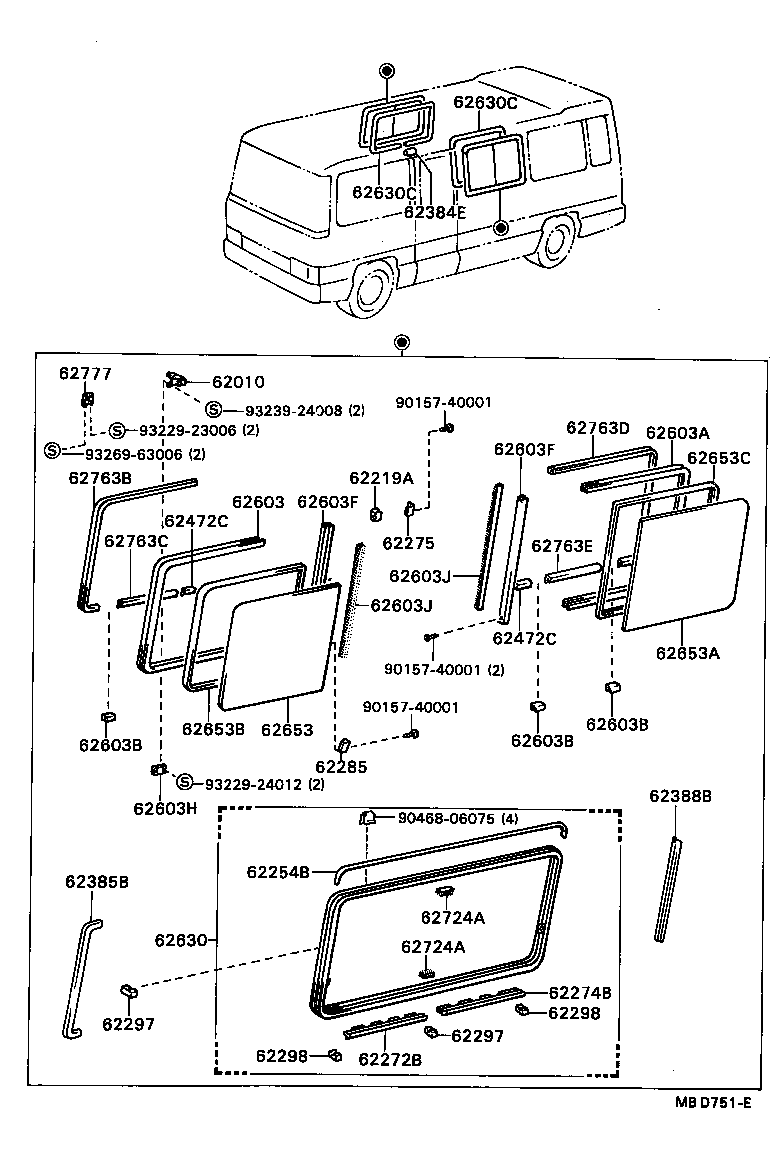

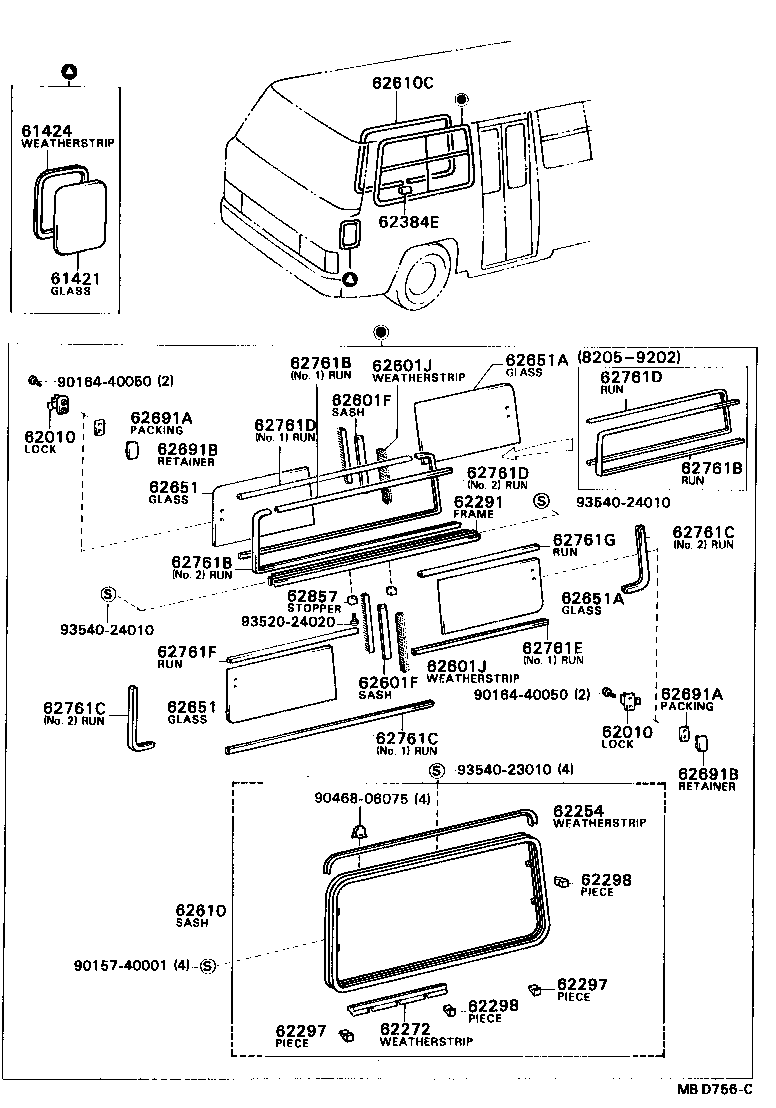

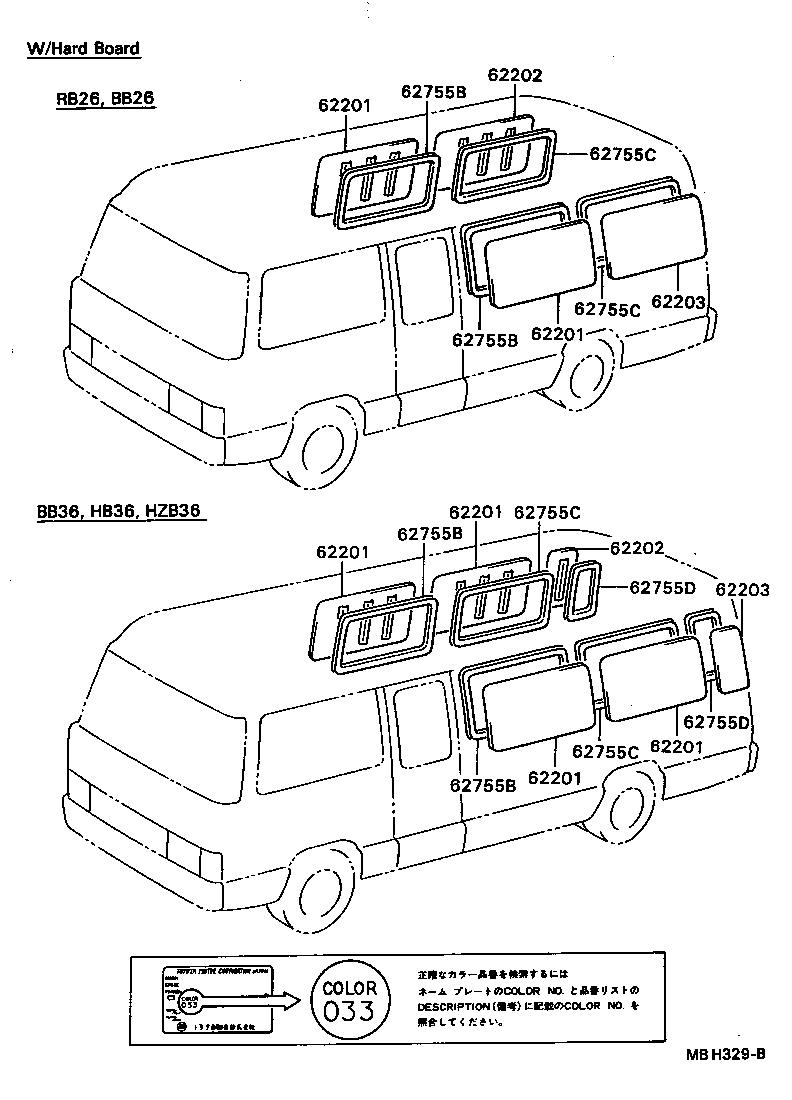

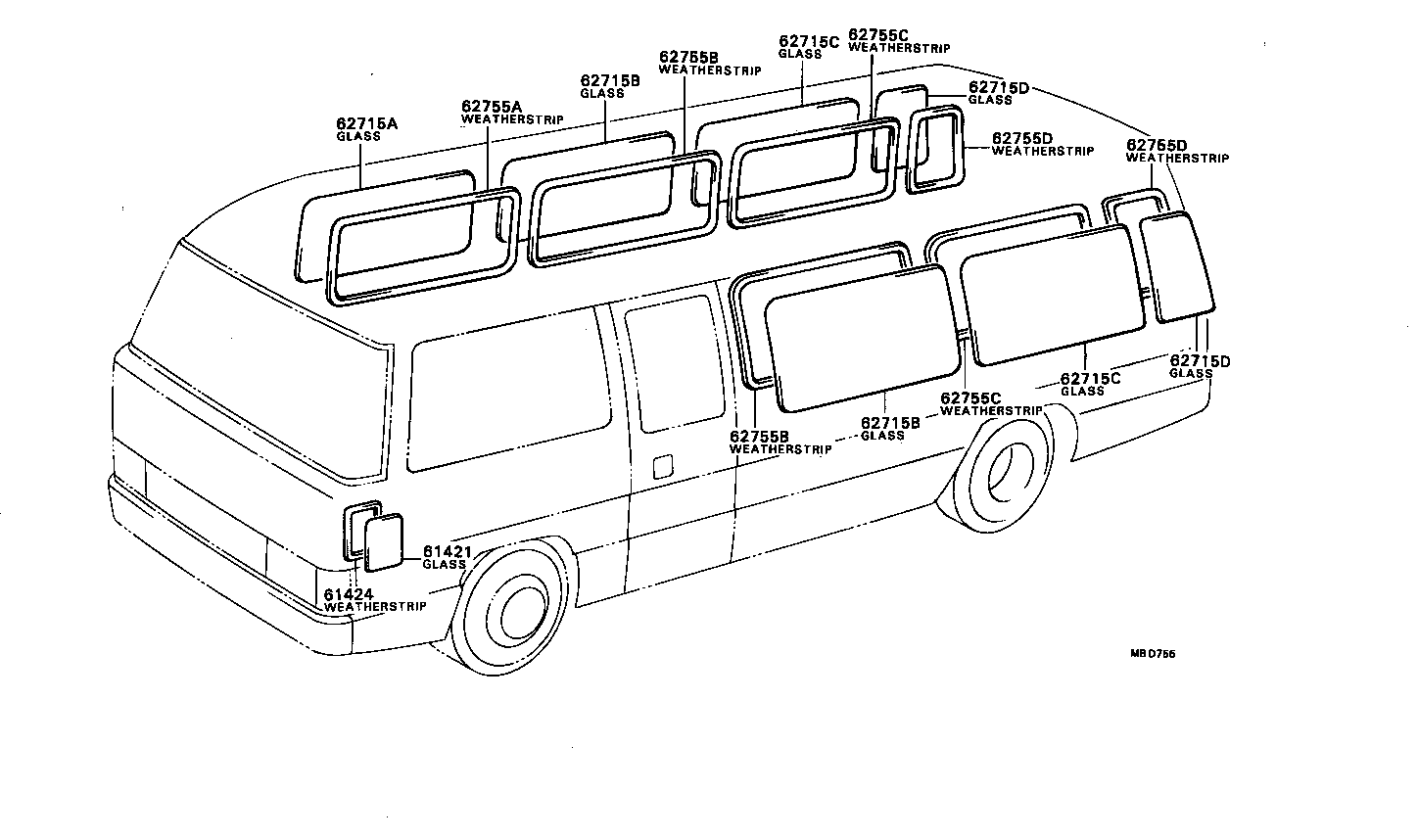

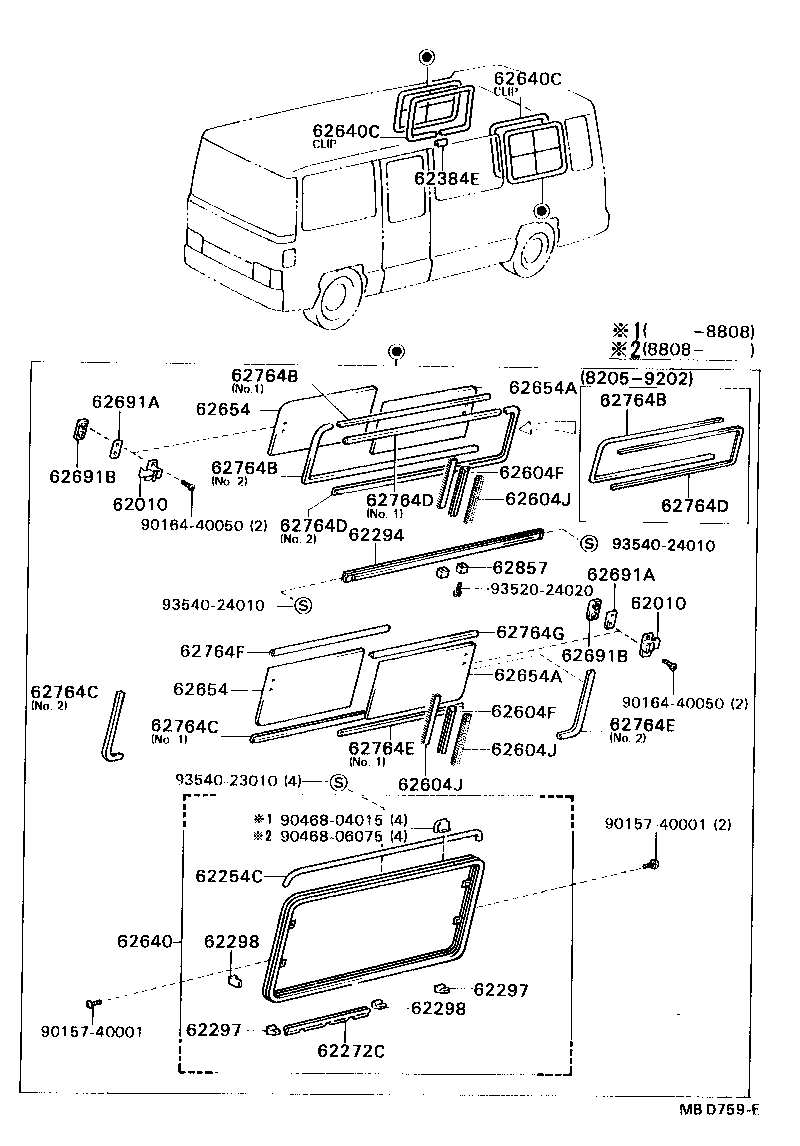

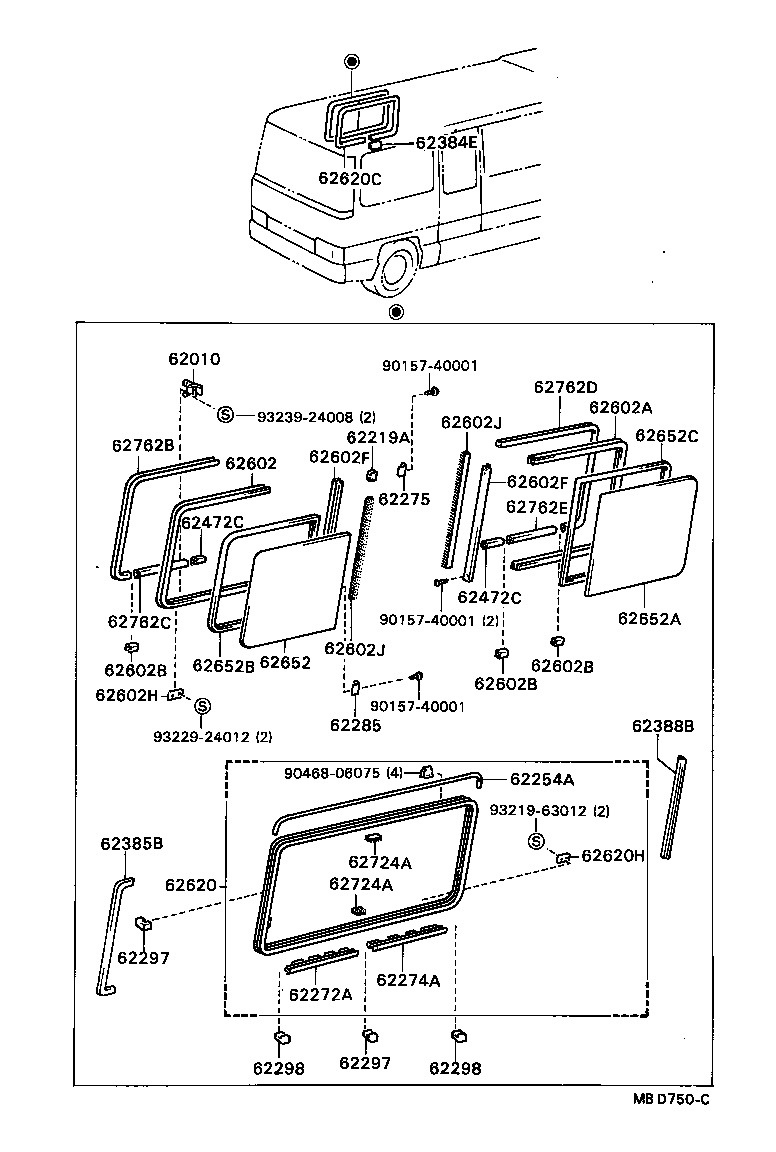

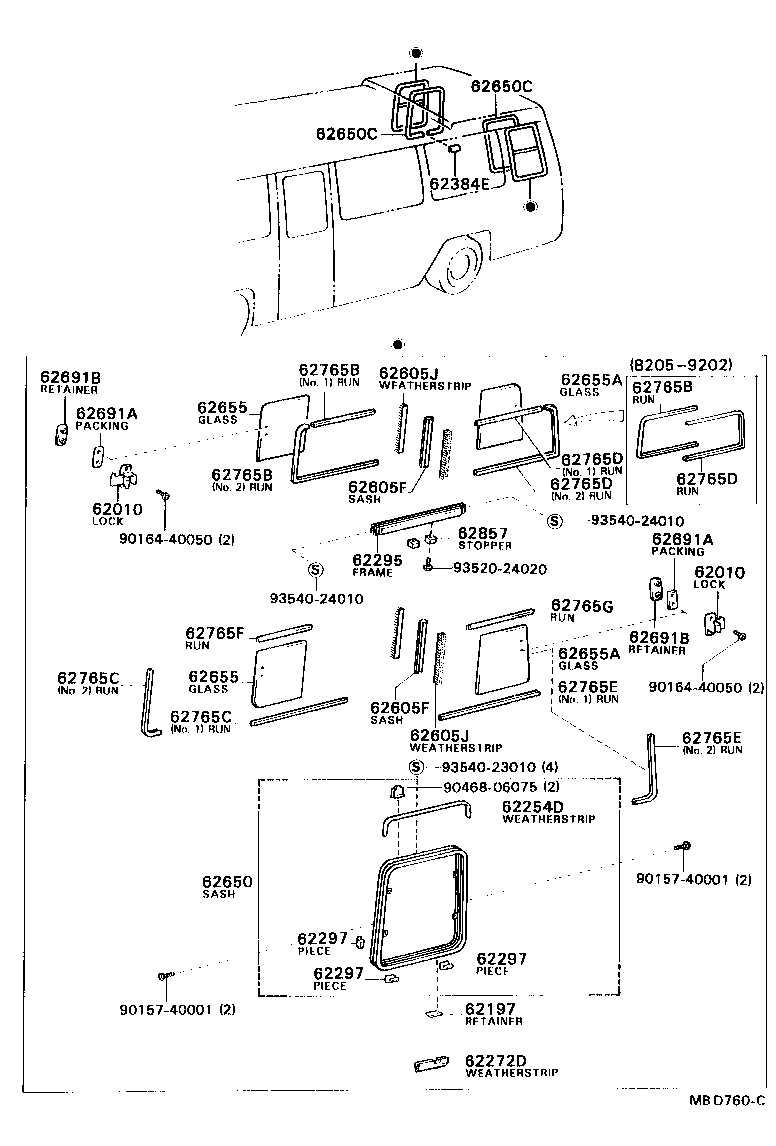

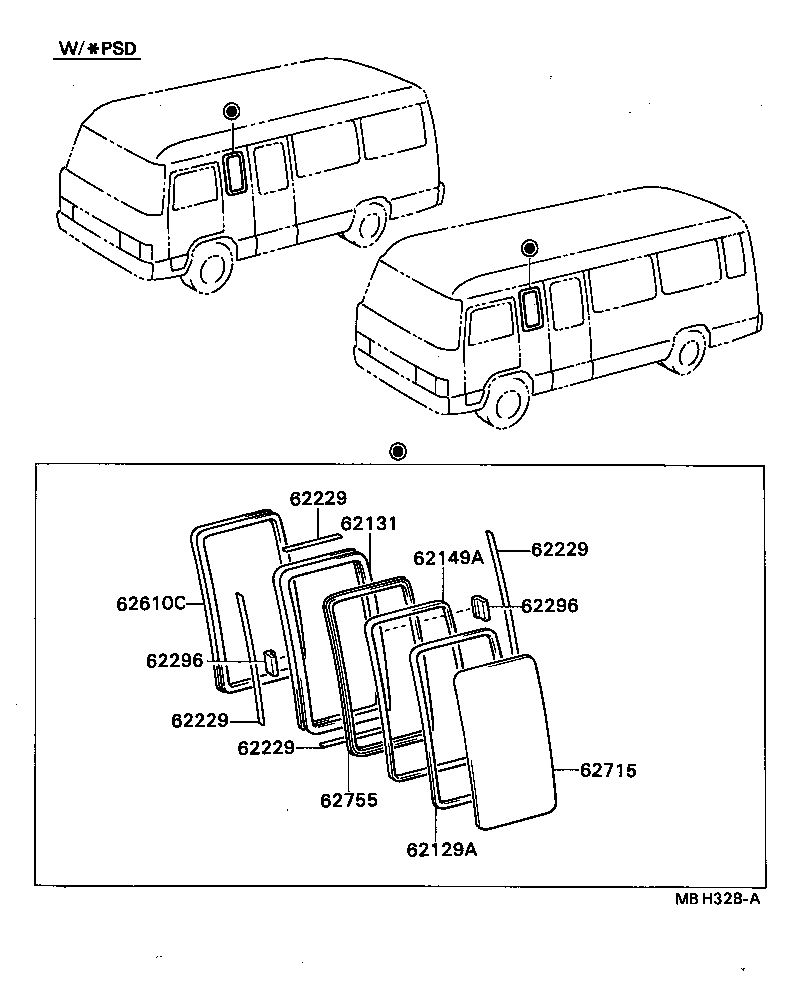

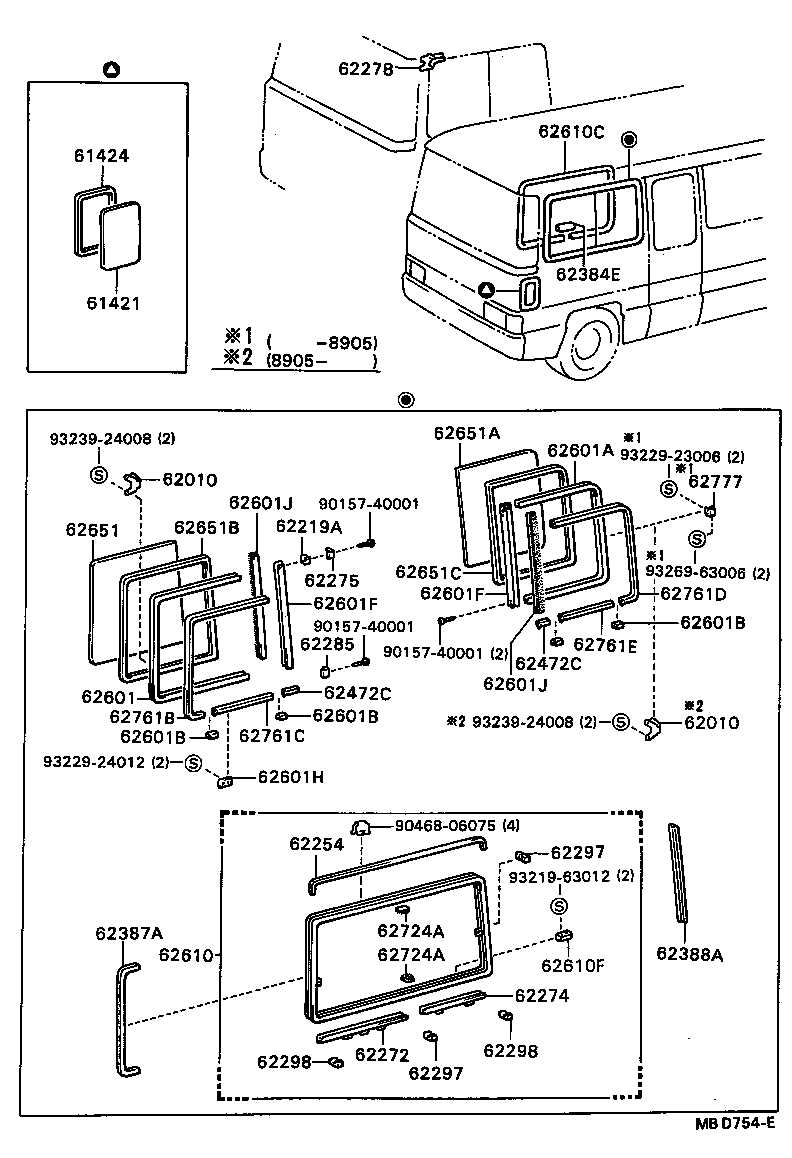

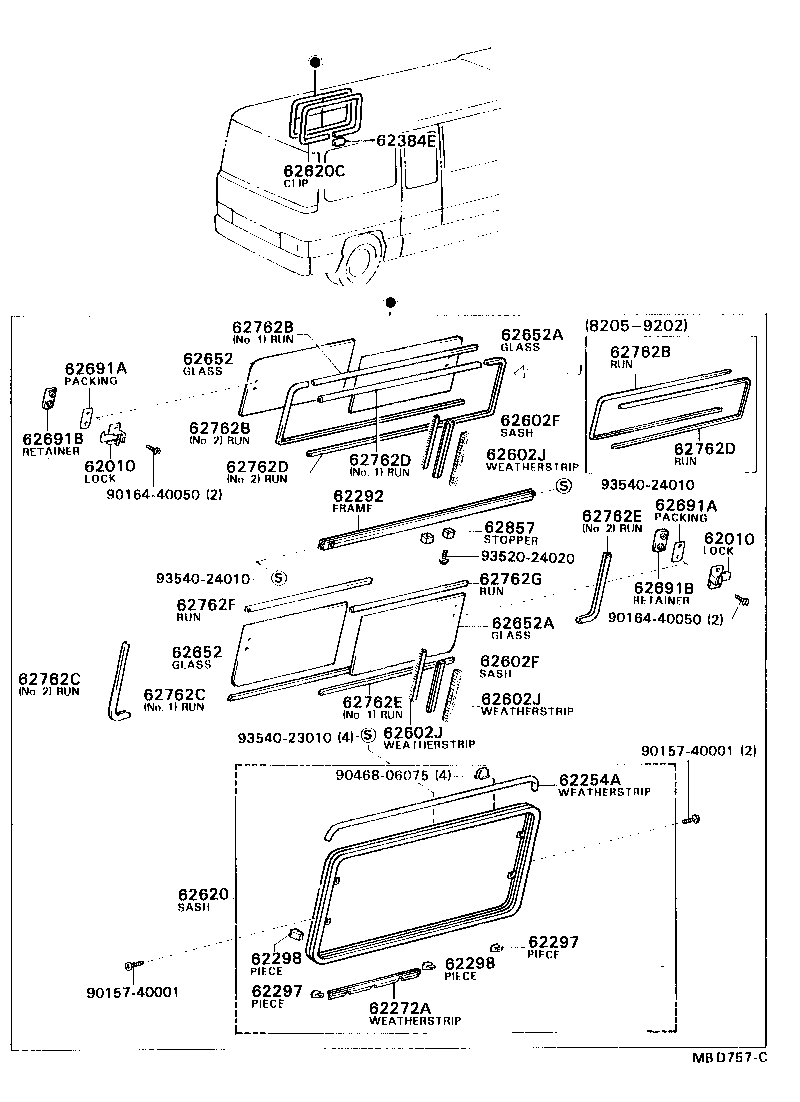

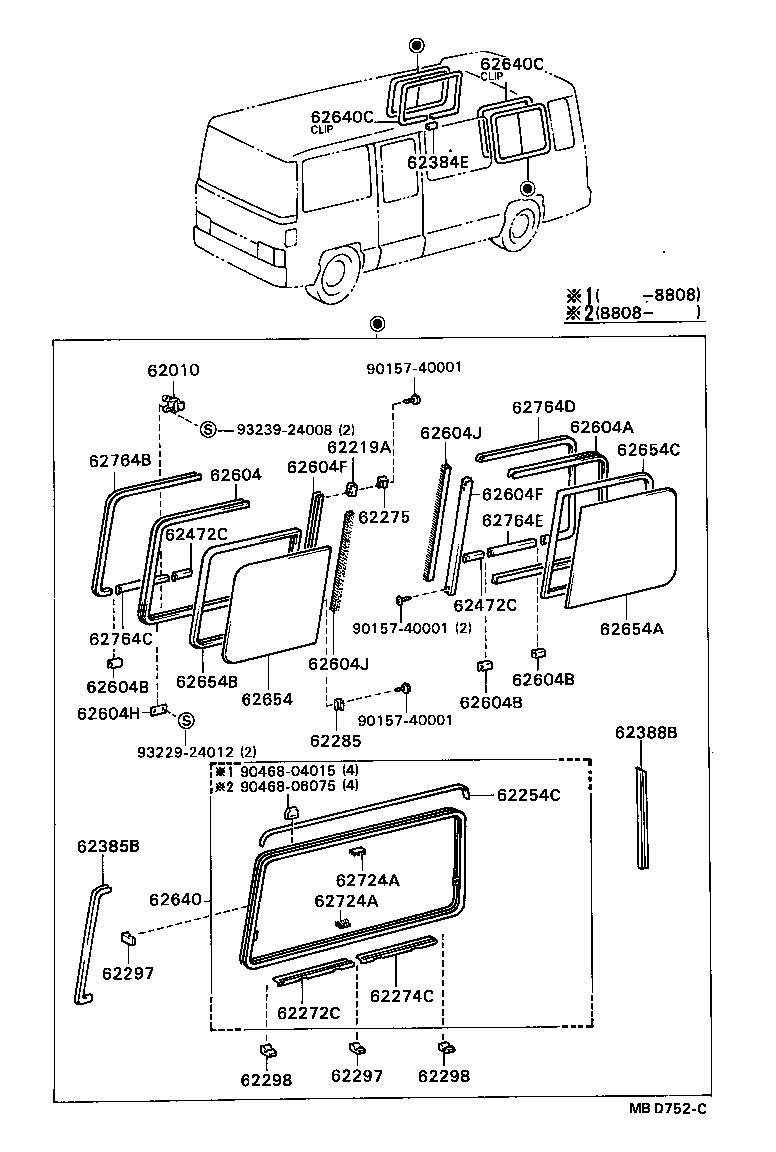

Figure MBD749F MBD749F 1982-05 → — Figure MBH328A MBH328A 1984-08 → — Figure MBD750C MBD750C 1982-05 → — Figure MBD751E MBD751E 1982-05 → — Figure MBD752C MBD752C 1982-05 → — Figure MBD753A MBD753A 1982-05 → — Figure MBH329B MBH329B 1984-08 → — Figure MBH330B MBH330B 1984-08 → — Figure MBD754E MBD754E 1990-01 → — Figure MBD755 MBD755 1990-01 → — Figure MBD756C MBD756C 1982-05 → — Figure MBD757C MBD757C 1982-05 → — Figure MBD758D MBD758D 1982-05 → — Figure MBD759E MBD759E 1982-05 → — Figure MBD760C MBD760C 1982-05 → —

Part groups

PNCDescription
61421 Glass, Side Lower Window
61424 Weatherstrip, Side Lower Window Glass
62010 Lock Assy, Side Window
62129A Packing, Side Window Glass
62131 Frame, Front Side Window
62135 Frame, Rear Side Window
62149A Tape, Side Window Frame
62197 Retainer, Side Window
62201 Board Sub-assy, Side Window
62202 Board Sub-assy, Rear Side Window, RH
62203 Board Sub-assy, Rear Side Window, LH
62219A Guide, Side Window
62229 Packing, Side Window
62254 Weatherstrip, Side Window, Upper NO.1
62254A Weatherstrip, Side Window, Upper NO.2
62254B Weatherstrip, Side Window, Upper NO.3
62254C Weatherstrip, Side Window, Upper NO.4
62254D Weatherstrip, Side Window, Upper NO.5
62272 Weatherstrip, Side Window, Front Lower NO.1
62272A Weatherstrip, Side Window, Front Lower NO.2
62272B Weatherstrip, Side Window, Front Lower NO.3
62272C Weatherstrip, Side Window, Front Lower NO.4
62272D Weatherstrip, Side Window, Front Lower NO.5
62274 Weatherstrip, Side Window, Rear Lower NO.1
62274A Weatherstrip, Side Window, Rear Lower NO.2
62274B Weatherstrip, Side Window, Rear Lower NO.3
62274C Weatherstrip, Side Window, Rear Lower NO.4
62275 Cover, Side Window, Upper
62278 Protector, Side Window
62285 Cover, Side Window, Lower
62291 Frame, Side Window, Center, NO.1
62292 Frame, Side Window, Center, NO.2
62293 Frame, Side Window, Center, NO.3
62294 Frame, Side Window, Center, NO.4
62295 Frame, Side Window, Center, NO.5
62296 Piece, Side Window, NO.3
62297 Piece, Side Window, NO.1
62298 Piece, Side Window, NO.2
62384E Cap, Side Window
62385B Seal, Side Window, NO.5
62387A Seal, Side Window, NO.3
62388A Seal, Side Window, NO.4
62388B Seal, Side Window, NO.6
62472C Run, Side Window, Lower
62601 Sash Sub-assy, Side Window Inner Front, NO.1
62601A Sash Sub-assy, Side Window Inner Rear, NO.1
62601B Guide, Side Window Inner Sash, NO.1
62601F Sash, Side Window Inner Center, NO.1
62601H Stopper, Side Window, NO.1
62601J Weatherstrip, Side Window Center, NO.1
62602 Sash Sub-assy, Side Window Inner Front, NO.2
62602A Sash Sub-assy, Side Window Inner Rear, NO.2
62602B Guide, Side Window Inner Sash, NO.2
62602F Sash, Side Window Inner Center, NO.2
62602H Stopper, Side Window, NO.2
62602J Weatherstrip, Side Window Center, NO.2
62603 Sash Sub-assy, Side Window Inner Front, NO.3
62603A Sash Sub-assy, Side Window Inner Rear, NO.3
62603B Guide, Side Window Inner Sash, NO.3
62603F Sash, Side Window Inner Center, NO.3
62603H Stopper, Side Window, NO.3
62603J Weatherstrip, Side Window Center, NO.3
62604 Sash Sub-assy, Side Window Inner Front, NO.4
62604A Sash Sub-assy, Side Window Inner Rear, NO.4
62604B Guide, Side Window Inner Sash, NO.4
62604F Sash, Side Window Inner Center, NO.4
62604H Stopper, Side Window, NO.4
62604J Weatherstrip, Side Window Center, NO.4
62605F Sash, Side Window Inner Center,NO.5
62605J Weatherstrip, Side Window Center, NO.5
62610 Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
62610C Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
62610F Stopper, Side Window, Rear
62620 Sash Assy, Side Window Outer, NO.2 (FOR SLIDE TYPE)
62620C Clip, Side Window Outer Sash, NO.2 (FOR SLIDE TYPE)
62620H Stopper, Side Window, Rear
62630 Sash Assy, Side Window Outer, NO.3 (FOR SLIDE TYPE)
62630C Clip, Side Window Outer Sash, NO.3 (FOR SLIDE TYPE)
62640 Sash Assy, Side Window Outer, NO.4 (FOR SLIDE TYPE)
62640C Clip, Side Window Outer Sash, NO.4 (FOR SLIDE TYPE)
62650 Sash Assy, Side Window Outer, NO.5 (FOR SLIDE TYPE)
62650C Clip, Side Window Outer Sash, NO.5 (FOR SLIDE TYPE)
62651 Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
62651A Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
62651B Weatherstrip, Side Window, Front NO.1
62651C Weatherstrip, Side Window, Rear NO.1
62652 Glass, Side Window, NO.2, Front (FOR SLIDE TYPE)
62652A Glass, Side Window, NO.2, Rear (FOR SLIDE TYPE)
62652B Weatherstrip, Side Window, Front NO.2
62652C Weatherstrip, Side Window, Rear NO.2
62653 Glass, Side Window, NO.3, Front (FOR SLIDE TYPE)
62653A Glass, Side Window, NO.3, Rear (FOR SLIDE TYPE)
62653B Weatherstrip, Side Window, Front NO.3
62653C Weatherstrip, Side Window, Rear NO.3
62654 Glass, Side Window, NO.4, Front (FOR SLIDE TYPE)
62654A Glass, Side Window, NO.4, Rear (FOR SLIDE TYPE)
62654B Weatherstrip, Side Window, Front NO.4
62654C Weatherstrip, Side Window, Rear NO.4
62655 Glass, Side Window, NO.5, Front (FOR SLIDE TYPE)
62655A Glass, Side Window, NO.5, Rear (FOR SLIDE TYPE)
62691A Packing, Side Window Lock, NO.1
62691B Retainer, Side Window Lock, NO.1
62715 Glass, Side Window, NO.1(FOR FIXED TYPE)
62715A Glass, Side Window, NO.2(FOR FIXED TYPE)
62715B Glass, Side Window, NO.3(FOR FIXED TYPE)
62715C Glass, Side Window, NO.4(FOR FIXED TYPE)
62715D Glass, Side Window, NO.5(FOR FIXED TYPE)
62724A Weatherstrip, Water Proof
62755 Weatherstrip, Side Window, NO.1(FOR FIXED TYPE)
62755A Weatherstrip, Side Window, NO.2(FOR FIXED TYPE)
62755B Weatherstrip, Side Window, NO.3(FOR FIXED TYPE)
62755C Weatherstrip, Side Window, NO.4(FOR FIXED TYPE)
62755D Weatherstrip, Side Window, NO.5(FOR FIXED TYPE)
62761B Run, Side Window, Front Upper, NO.1(FOR SLIDE TYPE)
62761C Run, Side Window, Front Lower, NO.1(FOR SLIDE TYPE)
62761D Run, Side Window, Rear Upper, NO.1(FOR SLIDE TYPE)
62761E Run, Side Window, Rear Lower NO.1(FOR SLIDE TYPE)
62761F Run, Side Window, Front Center Lower NO.1(FOR SLIDE TYPE)
62761G Run, Side Window, Rear Center Lower NO.1(FOR SLIDE TYPE)
62762B Run, Side Window, Front Upper NO.2 (FOR SLIDE TYPE)
62762C Run, Side Window, Front Lower NO.2(FOR SLIDE TYPE)
62762D Run, Side Window, Rear Upper NO.2(FOR SLIDE TYPE)
62762E Run, Side Window, Rear Lower NO.2(FOR SLIDE TYPE)
62762F Run, Side Window, Front Center Lower NO.2(FOR SLIDE TYPE)
62762G Run, Side Window, Rear Center Lower NO.2(FOR SLIDE TYPE)
62763B Run, Side Window, Front Upper NO.3(FOR SLIDE TYPE)
62763C Run, Side Window, Front Lower NO.3(FOR SLIDE TYPE)
62763D Run, Side Window, Rear Upper NO.3(FOR SLIDE TYPE)
62763E Run, Side Window, Rear Lower NO.3(FOR SLIDE TYPE)
62763F Run, Side Window, Front Center Lower NO.3(FOR SLIDE TYPE)
62763G Run, Side Window, Rear Center Lower NO.3(FOR SLIDE TYPE)
62764B Run, Side Window, Front Upper NO.4(FOR SLIDE TYPE)
62764C Run, Side Window, Front Lower NO.4(FOR SLIDE TYPE)
62764D Run, Side Window, Rear Upper NO.4(FOR SLIDE TYPE)
62764E Run, Side Window, Rear Lower NO.4(FOR SLIDE TYPE)
62764F Run, Side Window, Rear Center Lower NO.4(FOR SLIDE TYPE)
62764G Run, Side Window, FR Center Lower NO.4(FOR SLIDE TYPE)
62765B Run, Side Window, Front Upper NO.5(FOR SLIDE TYPE)
62765C Run, Side Window, Front Lower NO.5(FOR SLIDE TYPE)
62765D Run, Side Window, Rear Upper NO.5(FOR SLIDE TYPE)
62765E Run, Side Window Rear Lower, NO.5(FOR SLIDE TYPE)
62765F Run, Side Window, Rear Center Lower NO.5(FOR SLIDE TYPE)
62765G Run, Side Window, Front Center Lower NO.5(FOR SLIDE TYPE)
62777 Stopper, Side Window
62857 Stopper, Sliding Window
62883 Guard Assy, Side Window
62884 Bracket, Side Window Guard
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
