Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

304 part groups · 24 illustrations

Illustrations

MBD847F 1982-05 → 1985-04

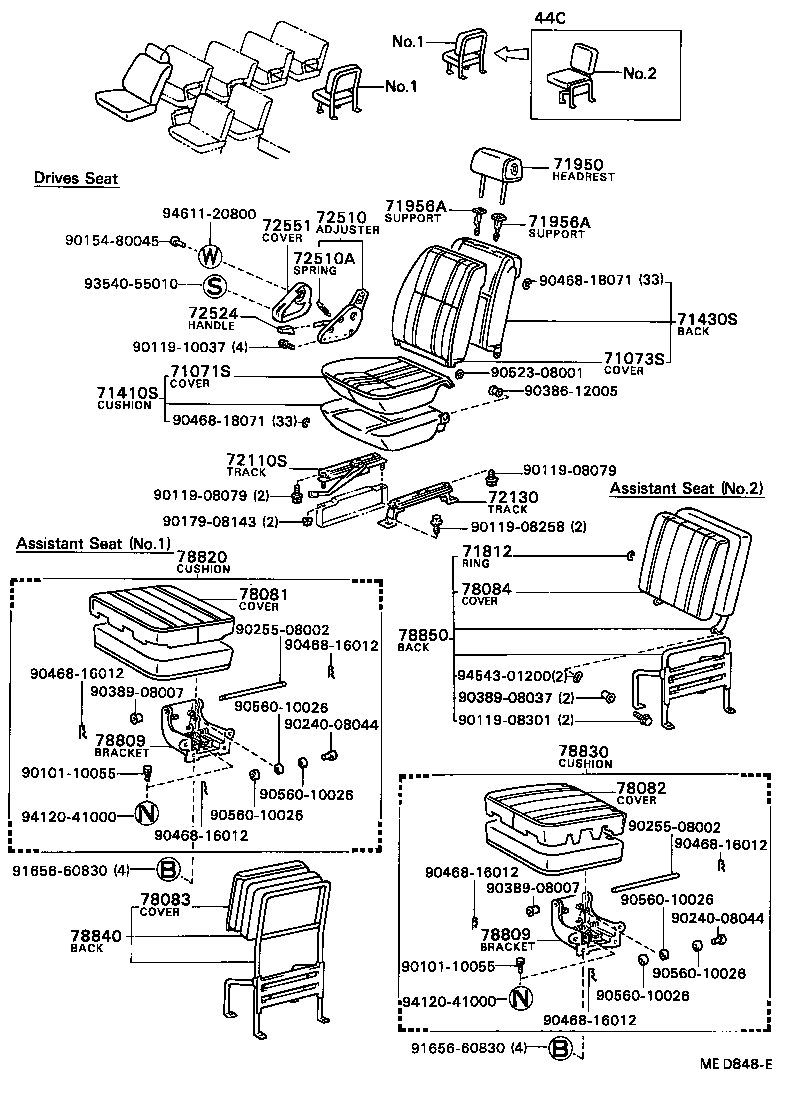

MBD848E 1982-05 → 1985-04

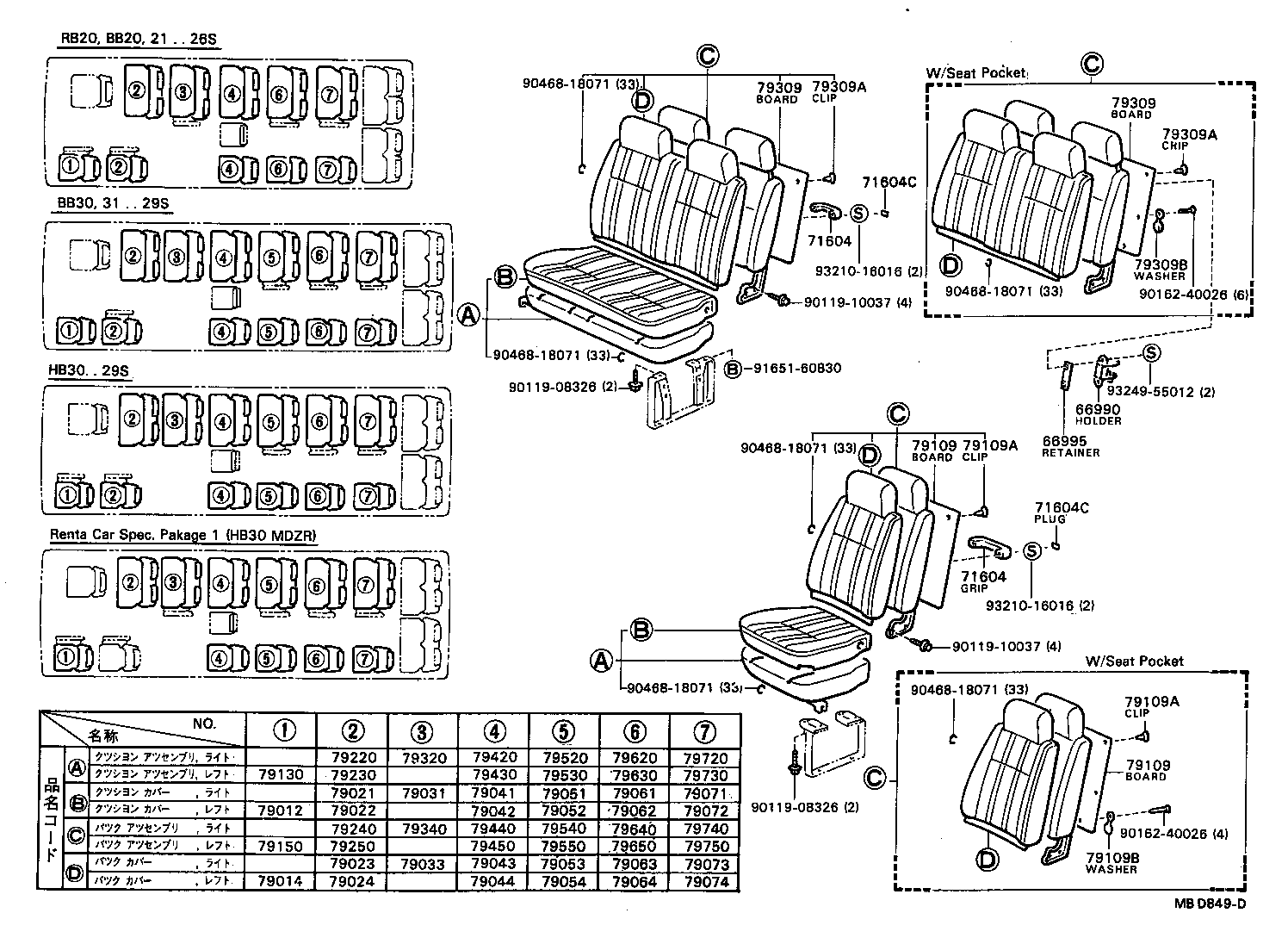

MBD849D 1982-05 → 1985-04

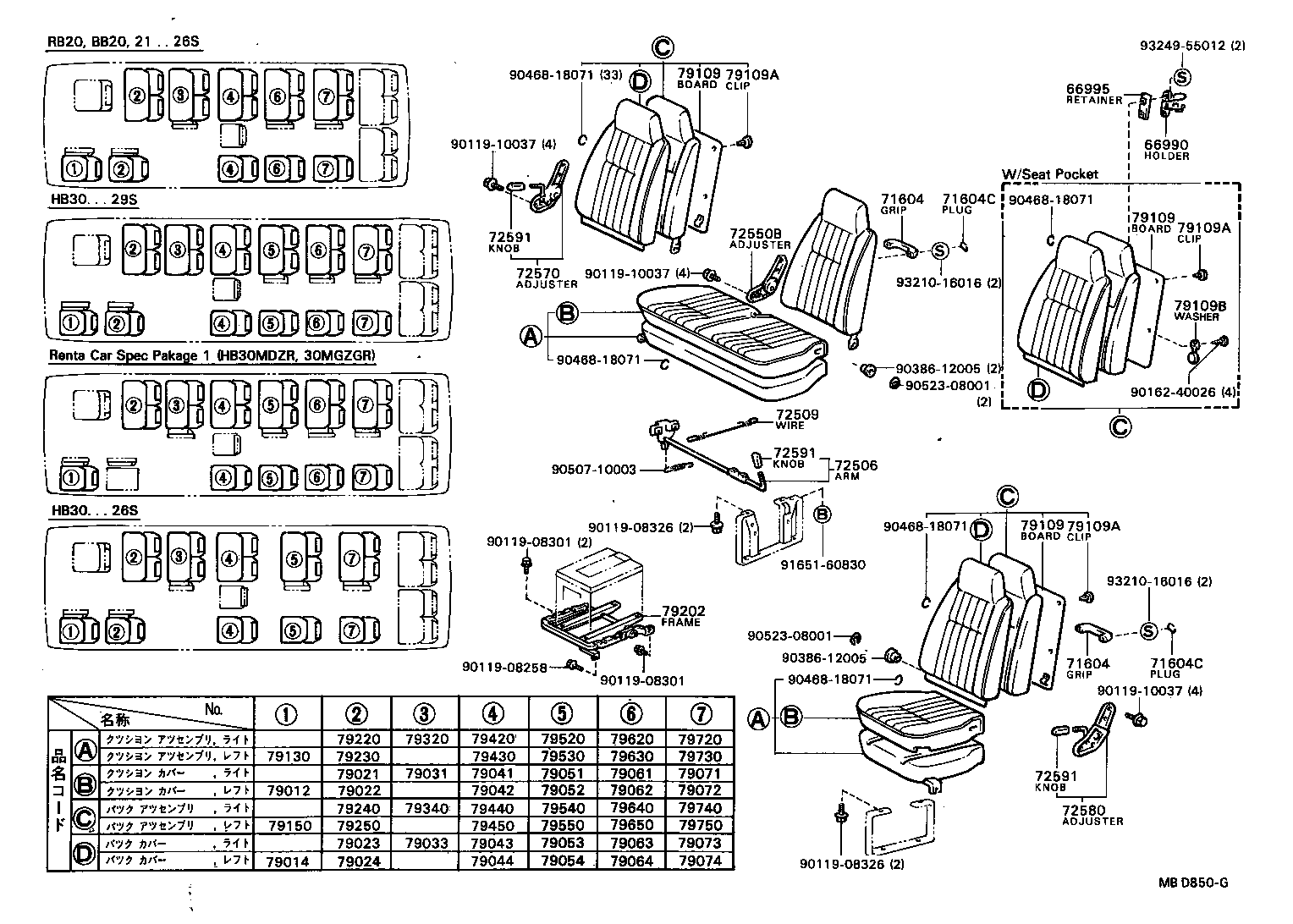

MBD850G 1982-05 → 1985-04

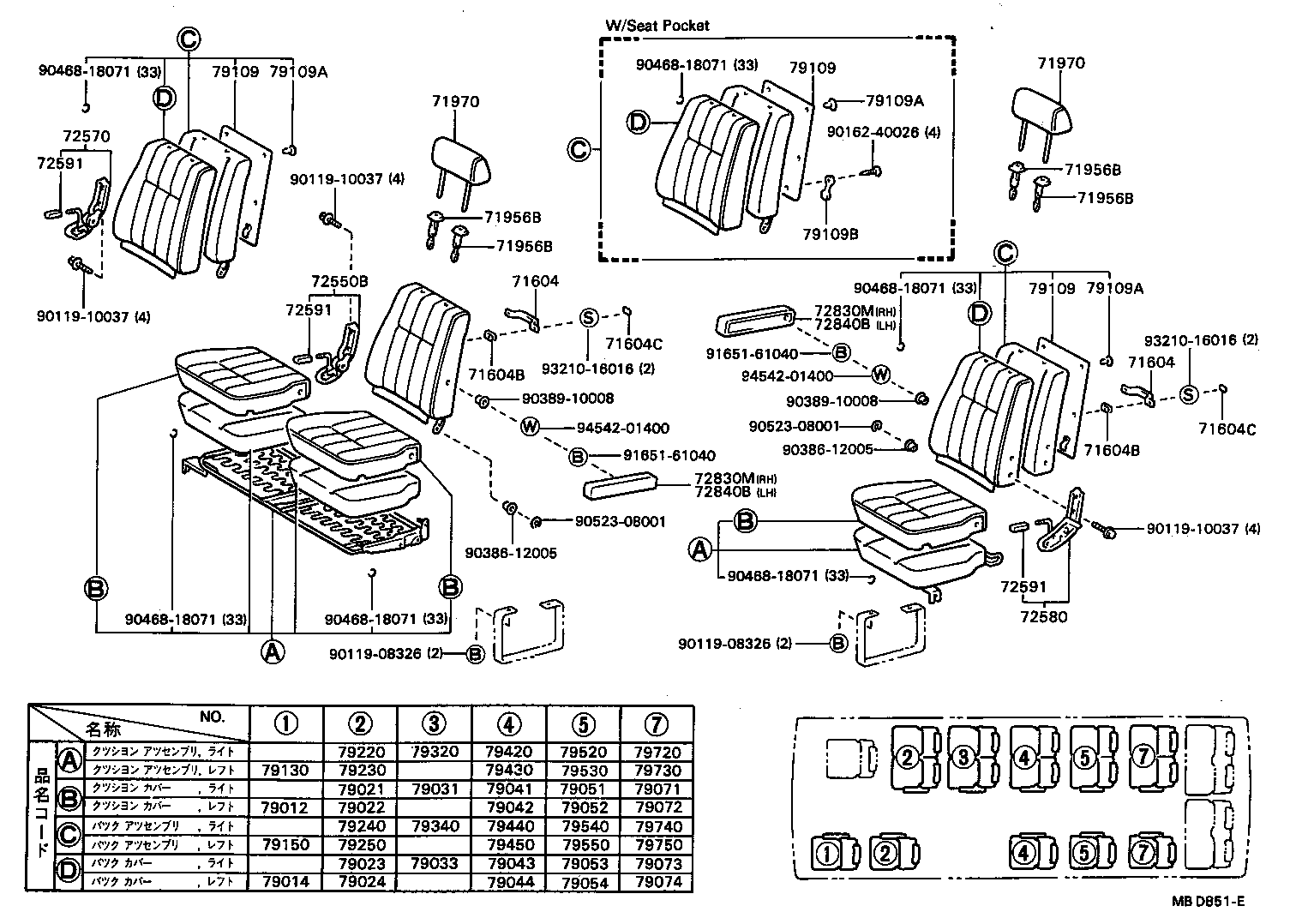

MBD851E 1982-05 → 1985-04

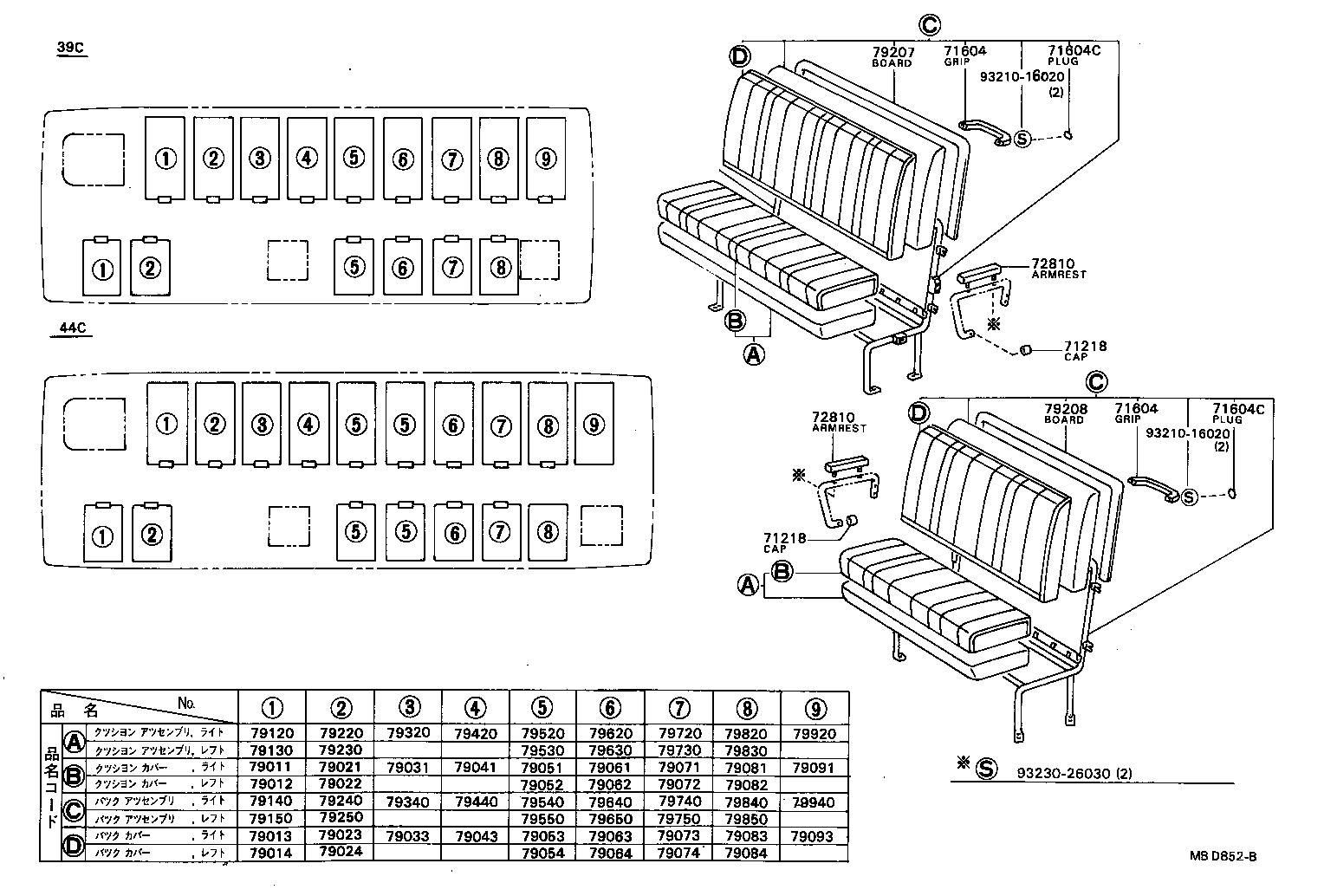

MBD852B 1982-05 → 1985-04

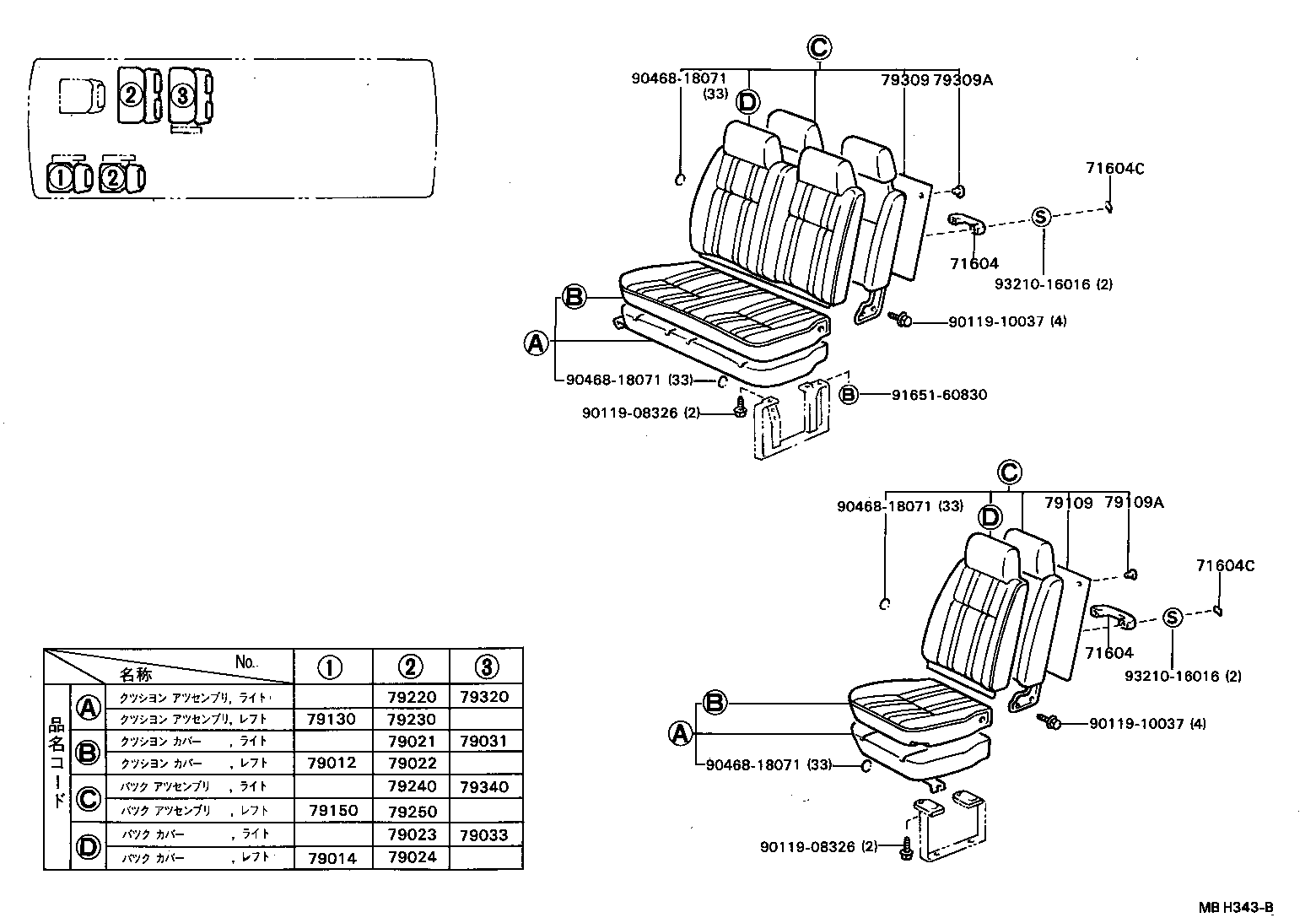

MBH343B 1984-08 → 1985-04

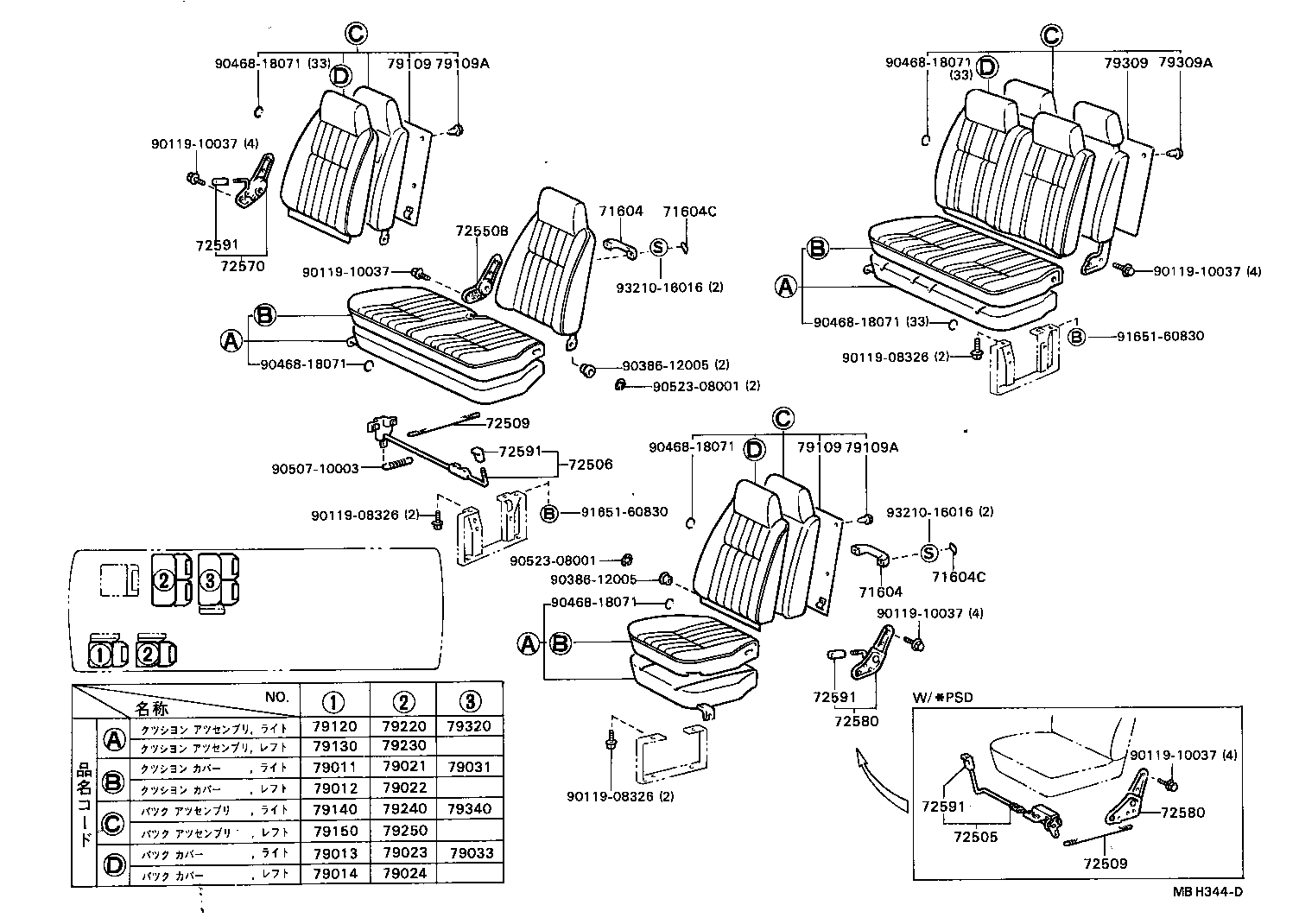

MBH344D 1984-08 → 1985-04

MBD853C 1982-05 → 1985-04

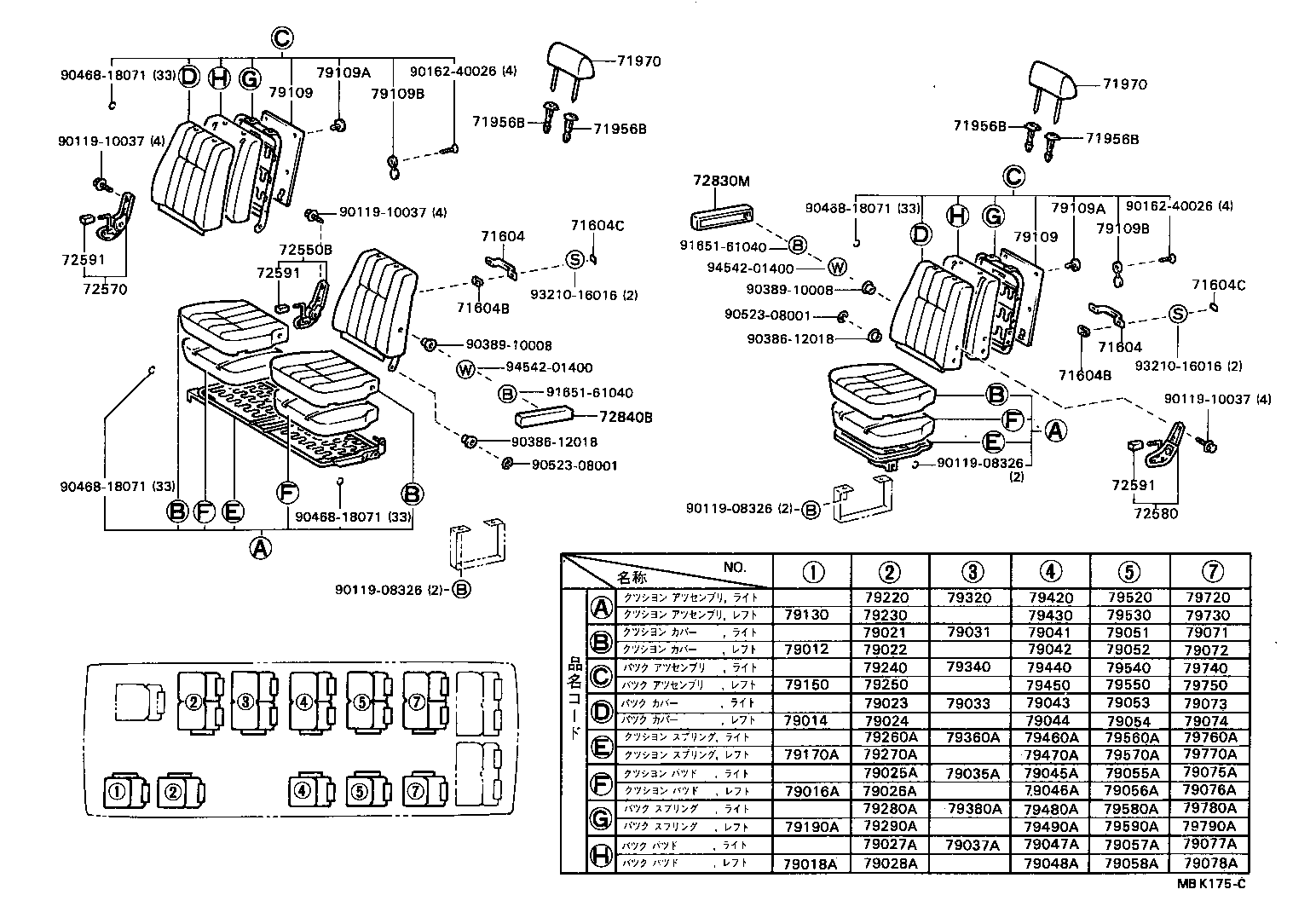

MBK175C 1985-04 → 1990-01

Part groups

PNC	Description
55358D	Protector, Edge
66990	Holder Assy, Cup
66995	Retainer, Cup Holder
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71109A	Leg Sub-assy, Front Seat
71146	Silencer, Front Seatback
71148	Silencer, Front Seat Cushion
71218	Cap, Seat Cushion Frame
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71572A	Pad, Front Seatback Silencer, B
71604	Grip Sub-assy, Assist(FOR SEATBACK)
71604B	Support, Assist Grip
71604C	Plug, Hole(FOR ASSIST GRIP)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
71956B	Support, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72130	Track Assy, RH Seat, Inner
72331A	Board, Assistant Seat, Back
72341	Pad, Assistant Seatback
72505	Arm Sub-assy, Reclining Adjuster, Center RH
72506	Arm Sub-assy, Reclining Adjuster, Center LH
72509	Wire Sub-assy, Adjuster Equlizing
72510	Adjuster Assy, Reclining Seatback, RH
72510A	Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72524	Handle, Reclining Adjuster Release
72550B	Adjuster Assy, Reclining Seat, Center RH
72551	Cover, Reclining Hinge, NO.1
72570	Adjuster Assy, Rear Reclining Seat, RH
72580	Adjuster Assy, Rear Reclining Seat, LH
72591	Knob, Reclining Remote Control Lever
72750D	Adjuster Assy, Lumbar Support, RH
72791	Lever, Lumbar Support
72810	Armrest Assy, Junior Seat
72830M	Armrest Assy, Seat Center, RH
72840B	Armrest Assy, Seat Center, LH
72853	Pad, Junior Seat Armrest
72907A	Cover Sub-assy, Rear Seat Turn, RH
72908	Cover Sub-assy, Rear Seat Turn, LH
72927	Cover, Rear Seat Cushion Under, RH
72960B	Table Assy, Rear Seat Turn, RH
72969	Knob, Rear Seat Turn Lock
72970	Table Assy, Rear Seat Turn, LH
72988	Frame, Junior Seat Armrest, RH
72989	Frame, Junior Seat Armrest, LH
78071	Cover Sub-assy, Sub Seat Cushion, RH
78072	Cover Sub-assy, Sub Seat Cushion, LH
78073	Cover Sub-assy, Sub Seatback, RH
78074	Cover Sub-assy, Sub Seatback, LH
78077	Board Sub-assy, Sub Seat Cushion
78081	Cover Sub-assy, Assistant Seat Cushion, NO.1
78082	Cover Sub-assy, Assistant Seat Cushion, NO.2
78083	Cover Sub-assy, Assistant Seatback, NO.1
78084	Cover Sub-assy, Assistant Seatback, NO.2
78701	Frame Sub-assy, Sub Seat Cushion, RH
78702	Frame Sub-assy, Sub Seat Cushion, LH
78703	Frame Sub-assy, Sub Seatback
78705	Bracket Sub-assy, Sub Seat Cushion
78707	Frame Sub-assy, Sub Seatback, Lower RH
78708	Frame Sub-assy, Sub Seatback, Lower LH
78709	Panel Sub-assy, Sub Seat Cushion
78720	Cushion Assy, Sub Seat, RH
78726	Cushion, Sub Seat Cushion Frame
78730	Cushion Assy, Sub Seat, LH
78735	Pad, Sub Seat Cushion
78740A	Back Assy, Sub Seat, RH
78750A	Back Assy, Sub Seat, LH
78773A	Hoop, Sub Seatback Guide
78775	Pad, Sub Seatback
78798	Spacer, Sub Seatback Frame
78801	Frame Sub-assy, Assistant Seat, NO.1
78802	Frame Sub-assy, Assistant Seat, NO.2
78805A	Frame Sub-assy, Assistant Seat Cushion, NO.1
78809	Bracket Sub-assy, Assistant Seat
78820	Cushion Assy, Assistant Seat, NO.1
78830	Cushion Assy, Assistant Seat, NO.2
78840	Back Assy, Assistant Seat, NO.1
78850	Back Assy, Assistant Seat, NO.2
78901	Lock Sub-assy, Fold Seat Leg
78903	Striker Sub-assy, Fold Seat Leg Lock
78905	Lock Sub-assy, Fold RH Seatback, RH
78905A	Knob, Folding Seatback Lock
78906	Lock Sub-assy, Fold RH Seatback, LH
78907	Lock Sub-assy, Fold LH Seatback, RH
78908	Lock Sub-assy, Fold LH Seatback, LH
78910	Cable Assy, Fold Seat Lock Control, NO.1
78920	Cable Assy, Fold Seat Lock Control, NO.2
78950	Band Assy, Fold Seat Stopper, NO.1
78958	Seal, Rear Floor Fold Striker Base
78959	Plate, Rear Floor Fold Striker Base
78960	Band Assy, Fold Seat Stopper, NO.2
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79014	Cover Sub-assy, NO.1 Seatback, LH
79016A	Pad Sub-assy, NO.1 Seat Cushion, LH
79018A	Pad Sub-assy, NO.1 Seatback, LH
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79025A	Pad Sub-assy, NO.2 Seat Cushion, RH
79026A	Pad Sub-assy, NO.2 Seat Cushion, LH
79027A	Pad Sub-assy, NO.2 Seatback, RH
79028A	Pad Sub-assy, NO.2 Seatback, LH
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79033	Cover Sub-assy, NO.3 Seatback, RH
79035A	Pad Sub-assy, NO.3 Seat Cushion, RH
79037A	Pad Sub-assy, NO.3 Seatback, RH
79041	Cover Sub-assy, NO.4 Seat Cushion, RH
79042	Cover Sub-assy, NO.4 Seat Cushion, LH
79043	Cover Sub-assy, NO.4 Seatback, RH
79044	Cover Sub-assy, NO.4 Seatback, LH
79045A	Pad Sub-assy, NO.4 Seat Cushion, RH
79046A	Pad Sub-assy, NO.4 Seat Cushion, LH
79047A	Pad Sub-assy, NO.4 Seatback, RH
79048A	Pad Sub-assy, NO.4 Seatback, LH
79051	Cover Sub-assy, NO.5 Seat Cushion, RH
79052	Cover Sub-assy, NO.5 Seat Cushion, LH
79053	Cover Sub-assy, NO.5 Seatback, RH
79054	Cover Sub-assy, NO.5 Seatback, LH
79055A	Pad Sub-assy, NO.5 Seat Cushion, RH
79056A	Pad Sub-assy, NO.5 Seat Cushion, LH
79057A	Pad Sub-assy, NO.5 Seatback, RH
79058A	Pad Sub-assy, NO.5 Seatback, LH
79061	Cover Sub-assy, NO.6 Seat Cushion, RH
79062	Cover Sub-assy, NO.6 Seat Cushion, LH
79063	Cover Sub-assy, NO.6 Seatback, RH
79064	Cover Sub-assy, NO.6 Seatback, LH
79065A	Pad Sub-assy, NO.6 Seat Cushion, RH
79066A	Pad Sub-assy, NO.6 Seat Cushion, LH
79067A	Pad Sub-assy, NO.6 Seatback, RH
79068A	Pad Sub-assy, NO.6 Seatback, LH
79071	Cover Sub-assy, NO.7 Seat Cushion, RH
79072	Cover Sub-assy, NO.7 Seat Cushion, LH
79073	Cover Sub-assy, NO.7 Seatback, RH
79074	Cover Sub-assy, NO.7 Seatback, LH
79075A	Pad Sub-assy, NO.7 Seat Cushion, RH
79076A	Pad Sub-assy, NO.7 Seat Cushion
79077A	Pad Sub-assy, NO.7 Seatback, RH
79078A	Pad Sub-assy, NO.7 Seatback, LH
79081	Cover Sub-assy, NO.8 Seat Cushion, RH
79081A	Cover Sub-assy, NO.8 Seat Cushion
79081B	Cover Sub-assy, Fold Seat Cushion, RH
79082	Cover Sub-assy, NO.8 Seat Cushion, LH
79082B	Cover Sub-assy, Fold Seat Cushion, LH
79083	Cover Sub-assy, NO.8 Seatback, RH
79083A	Cover Sub-assy, NO.8 Seatback
79083B	Cover Sub-assy, Fold Seatback, RH
79084	Cover Sub-assy, NO.8 Seatback, LH
79084B	Cover Sub-assy, Fold Seatback, LH
79085	Pad Sub-assy, NO.8 Seat Cushion
79085A	Pad Sub-assy, Fold Seat Cushion, RH
79086A	Pad Sub-assy, Fold Seat Cushion, LH
79087A	Pad Sub-assy, Fold Seatback, RH
79088A	Pad Sub-assy, Fold Seatback, LH
79091	Cover Sub-assy, NO.9 Seat Cushion, RH
79091A	Garnish Sub-assy, Rear Seat Leg Side
79091B	Clip, Rear Seat Leg Side Garnish
79092	Garnish Sub-assy, Rear Seat Leg Side, NO.2
79093	Cover Sub-assy, NO.9 Seatback, RH
79093B	Garnish Sub-assy, Rear Seat Leg Side, NO.3
79094A	Garnish Sub-assy, Rear Seat Leg Side, NO.4
79095A	Garnish Sub-assy, Rear Seat Leg Side, NO.5
79096B	Garnish Sub-assy, Rear Seat Leg Side, NO.6
79097	Partition Sub-assy, Luggage Compartment Wall
79101A	Frame Sub-assy, NO.1 Junior Seat, RH
79102A	Frame Sub-assy, NO.1 Junior Seat, LH
79106	Leg Sub Assy, NO.1 Seat, LH
79109	Board Sub-assy, NO.1 Seatback
79109A	Clip (FOR NO.1 SEATBACK BOARD)
79109B	Washer (FOR NO.1 SEATBACK BOARD)
79120	Cushion Assy, NO.1 Seat, RH
79130	Cushion Assy, NO.1 Seat, LH
79140	Back Assy, NO.1 Seat, RH
79150	Back Assy, NO.1 Seat, LH
79170A	Spring Assy, NO.1 Seat Cusuion, LH
79179	Pad, NO.1 Seatback Headrest
79190A	Spring Assy, NO.1 Seatback, LH
79201A	Frame Sub-assy, NO.2 Junior Seat, RH
79202	Frame Sub-assy, NO.2 Seat Cushion, LH
79202A	Frame Sub-assy, NO.2 Junior Seat, LH
79205B	Leg Sub-assy, NO.2 Seat, RH
79206B	Leg Sub-assy, NO.2 Seat, LH
79207	Board Sub-assy, Junior Seatback, RH
79208	Board Sub-assy, Junior Seatback, LH
79217	Board, Junior Seat Cushion, RH
79220	Cushion Assy, NO.2 Seat, RH
79227	Board, Junior Seat Cushion, LH
79230	Cushion Assy, NO.2 Seat, LH
79235B	Pad, Junior Seat Cushion, RH
79240	Back Assy, NO.2 Seat, RH
79245B	Pad, Junior Seat Cushion, LH
79250	Back Assy, NO.2 Seat, LH
79260A	Spring Assy, NO.2 Seat Cushion, RH
79270A	Spring Assy, NO.2 Seat Cushion, LH
79275A	Pad, Junior Seatback, RH
79276A	Pad, Junior Seatback Safety, RH
79277	Pad, Junior Seatback Safety, A
79278	Pad, Junior Seatback Safety, B
79280A	Spring Assy, NO.2 Seatback, RH
79285A	Pad, Junior Seatback, LH
79286A	Pad, Junior Seatback Safety, LH
79290A	Spring Assy, NO.2 Seatback, LH
79291A	Spring, Junior Seat Cushion, NO.1
79292A	Spring, Junior Seat Cushion, NO.2
79301A	Frame Sub-assy, NO.3 Junior Seat, RH
79305A	Leg Sub-assy, NO.3 Seat, RH
79309	Board Sub-assy, NO.3 Seatback
79309A	Clip (FOR NO.3 SEATBACK BOARD)
79309B	Washer (FOR NO.3 SEATBACK BOARD)
79320	Cushion Assy, NO.3 Seat, RH
79340	Back Assy, NO.3 Seat, RH
79360A	Spring Assy, NO.3 Seat Cushion, RH
79380A	Spring Assy, NO.3 Seatback, RH
79401A	Frame Sub-assy, NO.4 Junior Seat, RH
79405A	Leg Sub-assy, NO.4 Seat, RH
79406A	Leg Sub-assy, NO.4 Seat, LH
79420	Cushion Assy, NO.4 Seat, RH
79430	Cushion Assy, NO.4 Seat, LH
79440	Back Assy, NO.4 Seat, RH
79450	Back Assy, NO.4 Seat, LH
79460A	Spring Assy, NO.4 Seat Cushion, RH
79470A	Spring Assy, NO.4 Seat Cushion, LH
79480A	Spring Assy, NO.4 Seatback, RH
79490A	Spring Assy, NO.4 Seatback, LH
79501A	Frame Sub-assy, NO.5 Junior Seat, RH
79502A	Frame Sub-assy, NO.5 Junior Seat, LH
79505	Leg Sub-assy, NO.5 Seat, RH
79506	Leg Sub-assy, NO.5 Seat, LH
79520	Cushion Assy, NO.5 Seat, RH
79530	Cushion Assy, NO.5 Seat, LH
79540	Back Assy, NO.5 Seat, RH
79550	Back Assy, NO.5 Seat, LH
79560A	Spring Assy, NO.5 Seat Cushion, RH
79570A	Spring Assy, NO.5 Seat Cushion, LH
79580A	Spring Assy, NO.5 Seatback, RH
79590A	Spring Assy, NO.5 Seatback, LH
79601A	Frame Sub-assy, NO.6 Junior Seat, RH
79602A	Frame Sub-assy, NO.6 Junior Seat, LH
79605	Leg Sub-assy, NO.6 Seat, RH
79606	Leg Sub-assy, NO.6 Seat, LH
79620	Cushion Assy, NO.6 Seat, RH
79630	Cushion Assy, NO.6 Seat, LH
79640	Back Assy, NO.6 Seat, RH
79650	Back Assy, NO.6 Seat, LH
79660A	Spring Assy, NO.6 Seat Cushion, RH
79670B	Spring Assy, NO.6 Seat Cushion, LH
79680B	Spring Assy, NO.6 Seatback, RH
79690A	Spring Assy, NO.6 Seatback, LH
79701A	Frame Sub-assy, NO.7 Junior Seat, RH
79702A	Frame Sub-assy, NO.7 Junior Seat, LH
79705	Leg Sub-assy, NO.7 Seat, RH
79706	Leg Sub-assy, NO.7 Seat, LH
79720	Cushion Assy, NO.7 Seat, RH
79730	Cushion Assy, NO.7 Seat, LH
79740	Back Assy, NO.7 Seat, RH
79750	Back Assy, NO.7 Seat, LH
79760A	Spring Assy, NO.7 Seat Cushion, RH
79770A	Spring Assy, NO.7 Seat Cushion, LH
79780A	Spring Assy, NO.7 Seatback, RH
79790A	Spring Assy, NO.7 Seatback, LH
79801A	Frame Sub-assy, NO.8 Junior Seat, RH
79802A	Frame Sub-assy, NO.8 Junior Seat, LH
79806	Leg Sub-assy, Fold Seat, Rear RH
79807	Leg Sub-assy, Fold Seat, Rear LH
79809	Board Sub-assy, NO.8 Seatback
79809A	Clip (FOR NO.8 SEATBACK BOARD)
79820	Cushion Assy, NO.8 Seat, RH
79820A	Cushion Assy, NO.8 Seat
79820B	Cushion Assy, Fold Seat, RH
79830	Cushion Assy, NO.8 Seat, LH
79830B	Cushion Assy, Fold Seat, LH
79831	Leg, NO.8 Seat, FR
79832	Leg, NO.8 Seat, RR
79840	Back Assy, NO.8 Seat, RH
79840A	Back Assy, NO.8 Seat
79840B	Back Assy, Fold Seat, RH
79850	Back Assy, NO.8 Seat, LH
79850B	Back Assy, Fold Seat, LH
79860	Spring Assy, NO.8 Seat Cushion
79860A	Spring Assy, Fold Seat Cushion, RH
79870A	Spring Assy, Fold Seat Cushion, LH
79874	Bracket, NO.8 Seatback Set
79875	Pad, NO.8 Seatback
79876	Pad, NO.8 Seatback, A
79877	Pad, NO.8 Seatback, B
79878	Pad, NO.8 Seatback, C
79880	Spring Assy, NO.8 Seatback
79880A	Spring Assy, Fold Seatback, RH
79890A	Spring Assy, Fold Seatback, LH
79901A	Frame Sub-assy, NO.9 Junior Seat, RH
79920	Cushion Assy, NO.9 Seat, RH
79929	Frame, Fold Seat Leg Stopper
79940	Back Assy, NO.9 Seat, RH
79981	Silencer, Luggage Compartment Wall

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
