Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

42 part groups · 11 illustrations

Illustrations

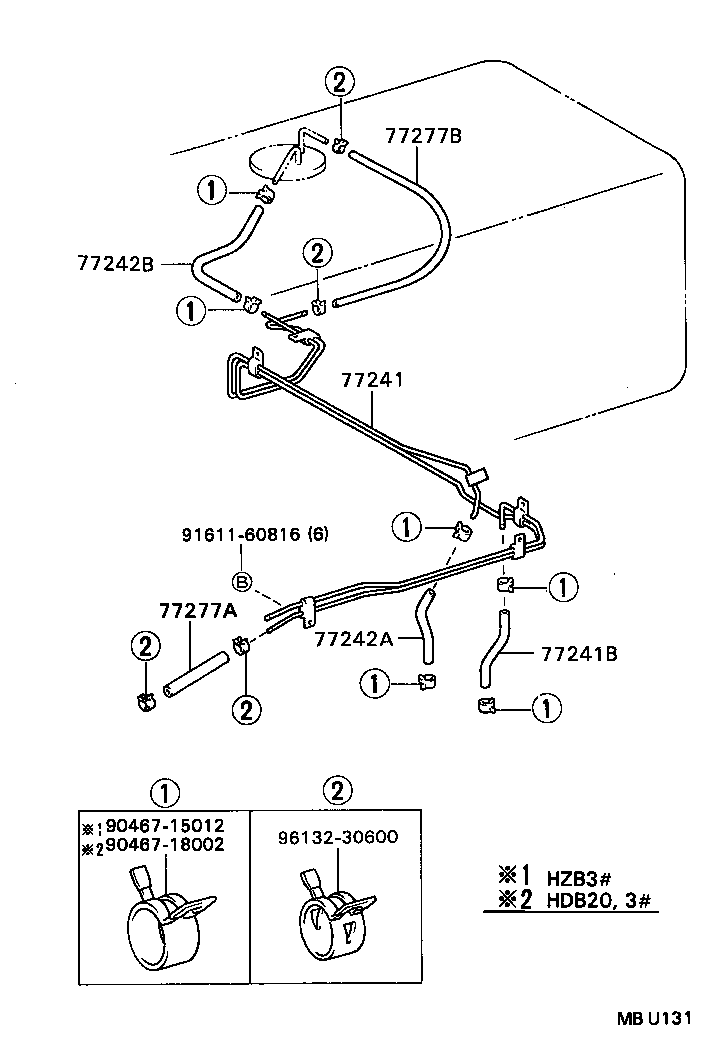

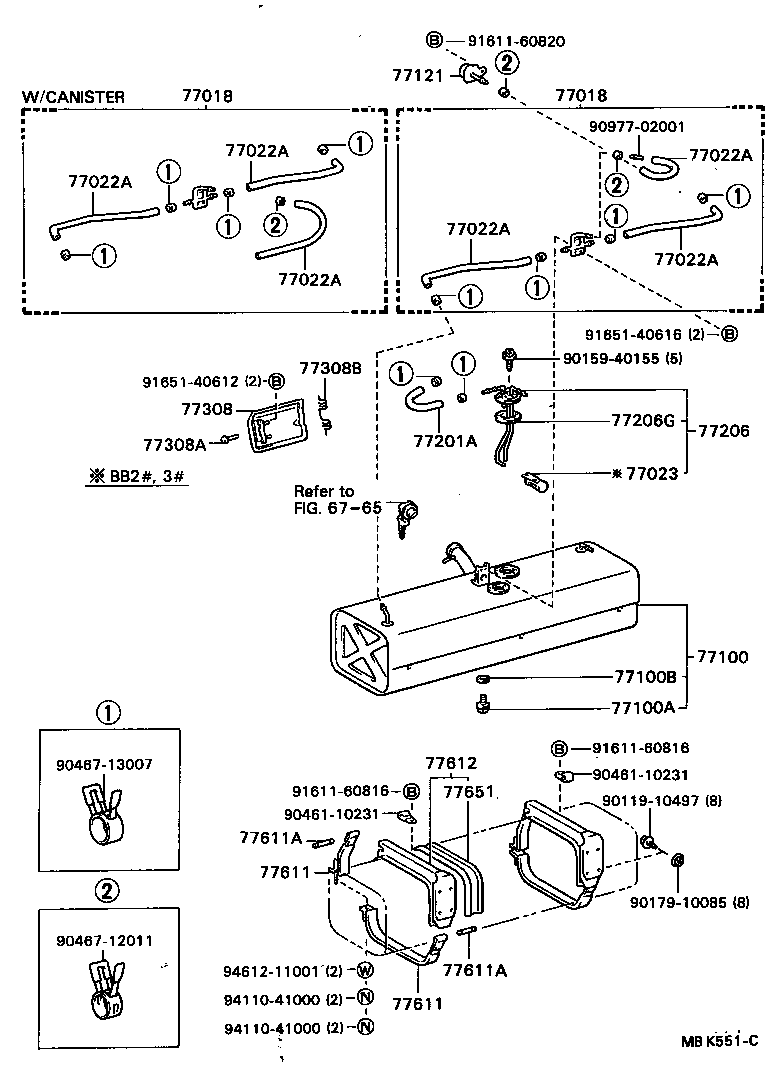

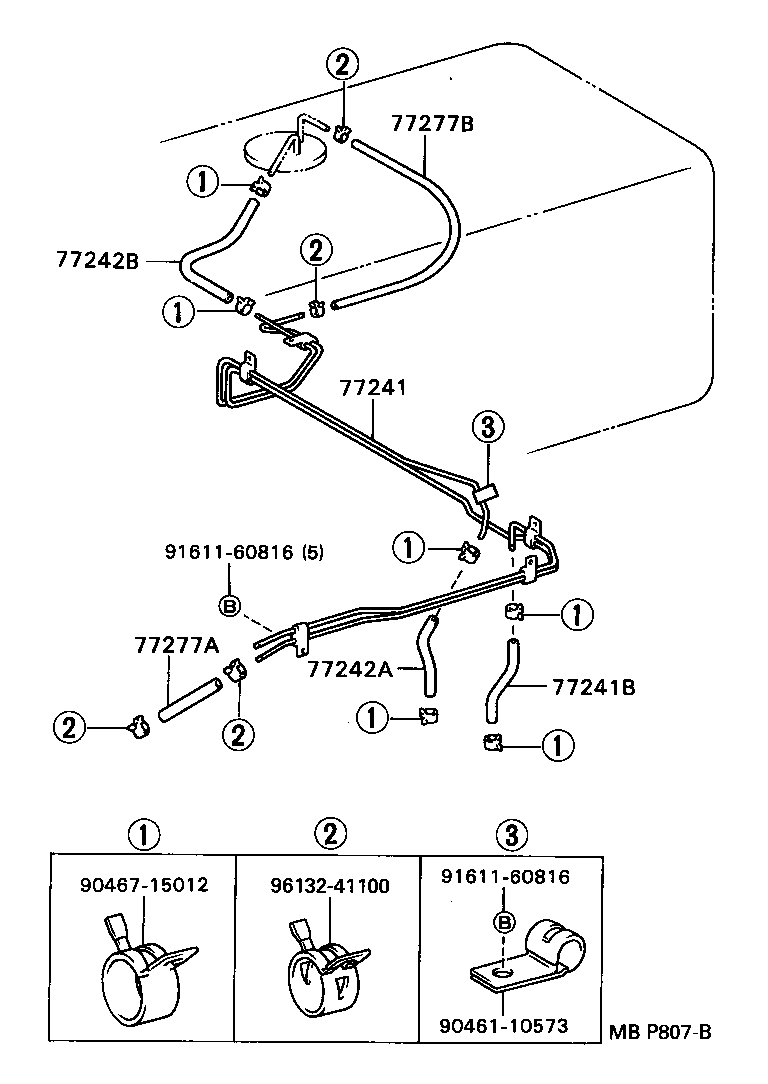

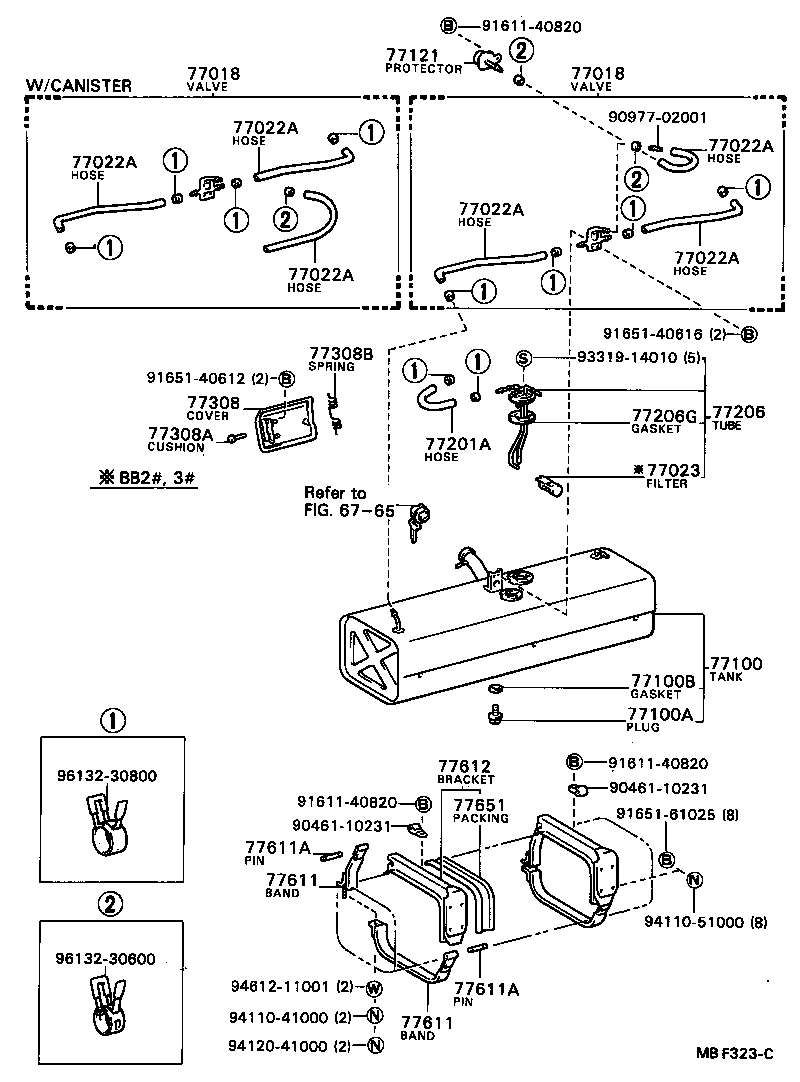

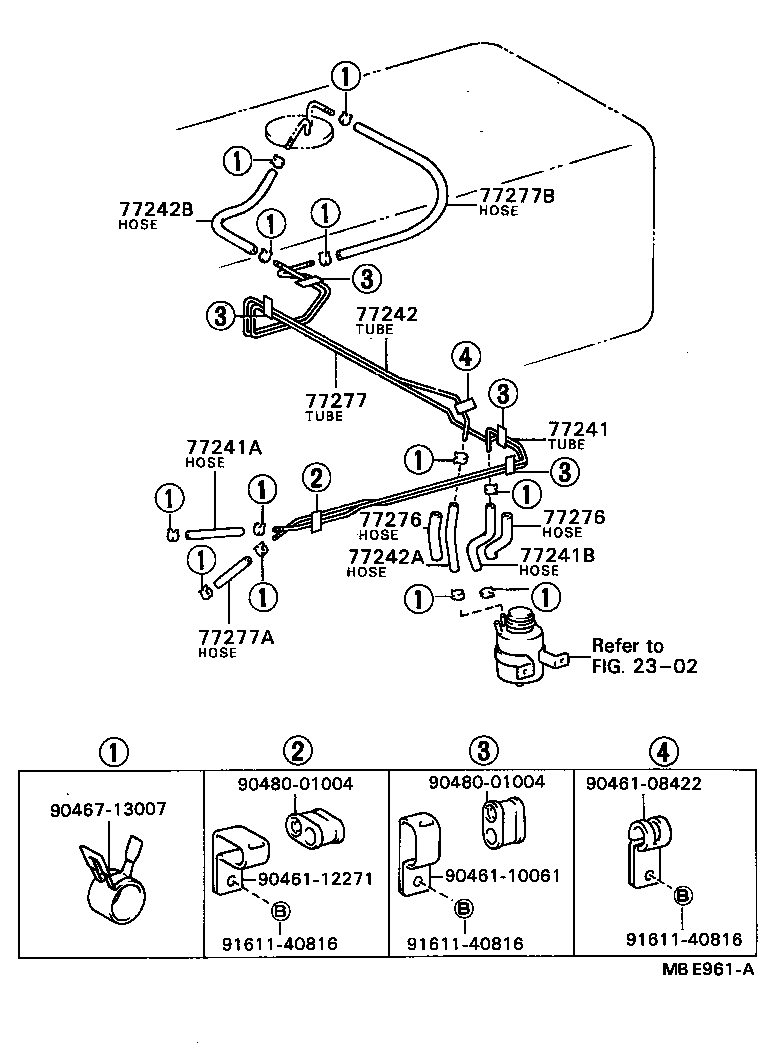

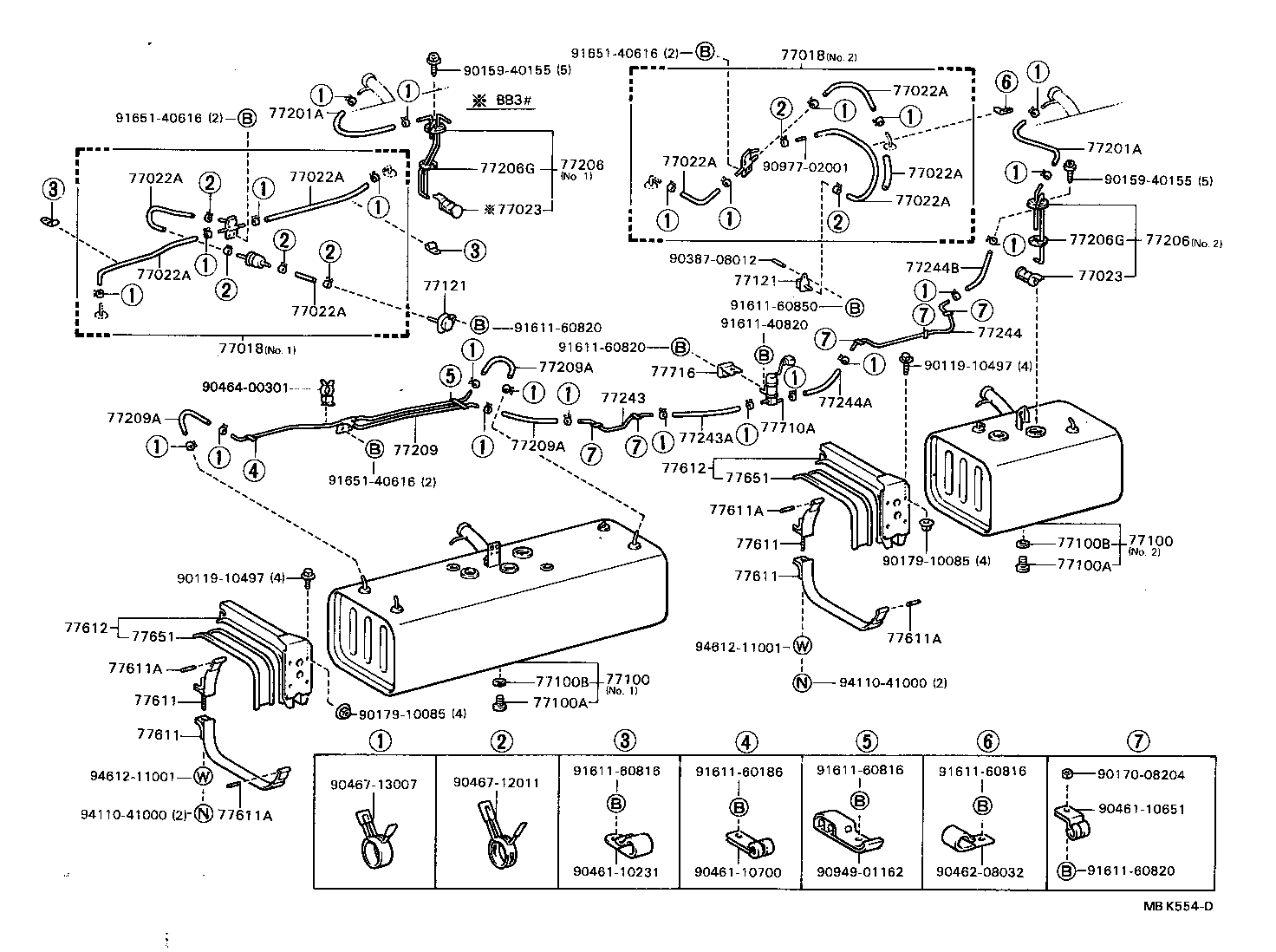

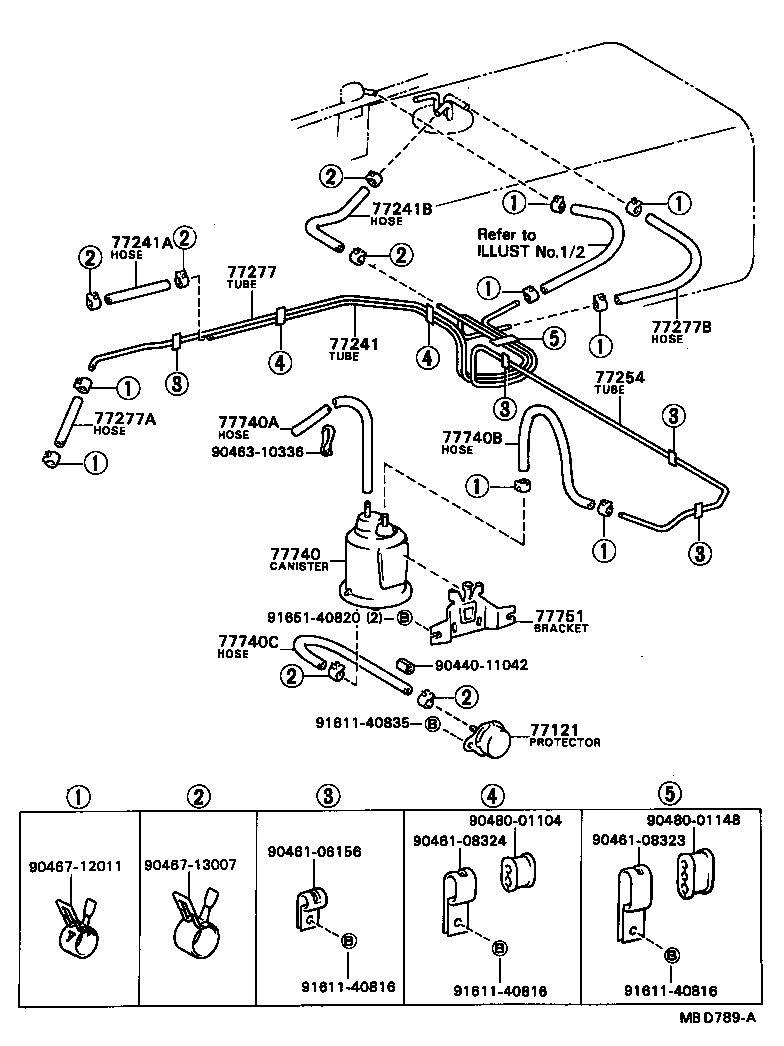

Figure MBD788D MBD788D 1982-05 → 1983-02 Figure MBF323C MBF323C 1983-02 → 1985-10 Figure MBK551C MBK551C 1985-10 → — Figure MBK554D MBK554D 1985-10 → — Figure MBD789A MBD789A 1982-05 → — Figure MBD790B MBD790B 1982-05 → 1983-02 Figure MBE961A MBE961A 1983-02 → 1988-08 Figure MBP807B MBP807B 1988-08 → — Figure MBE962B MBE962B 1982-05 → 1990-01 Figure MBK193A MBK193A 1985-10 → 1990-01 Figure MBU131 MBU131 1990-01 → —

Part groups

PNCDescription
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77121 Protector, Fuel Tube
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77206 Tube Sub-assy, Fuel Tank Suction
77206G Gasket (FOR FUEL TANK SUCTION TUBE)
77209 Connector Sub-assy, Fuel Tube
77209A Hose (FOR FUEL TUBE CONNECTOR)
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243 Tube, Fuel Main, NO.3
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77244 Tube, Fuel Main, NO.4
77244A Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4)
77244B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4)
77254 Tube, Fuel Emission, NO.1
77276 Protector, Fuel Hose
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77308B Spring, Torsion(FOR FUEL INLET BOX COVER)
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77612 Bracket Sub-assy, Fuel Tank
77651 Packing, Fuel Tank Bracket
77710A Valve Assy, Fuel Tank Solenoid Valve Main
77716 Bracket, Fuel Solenoid Valve Main
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
