Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

16 part groups · 3 illustrations

Illustrations

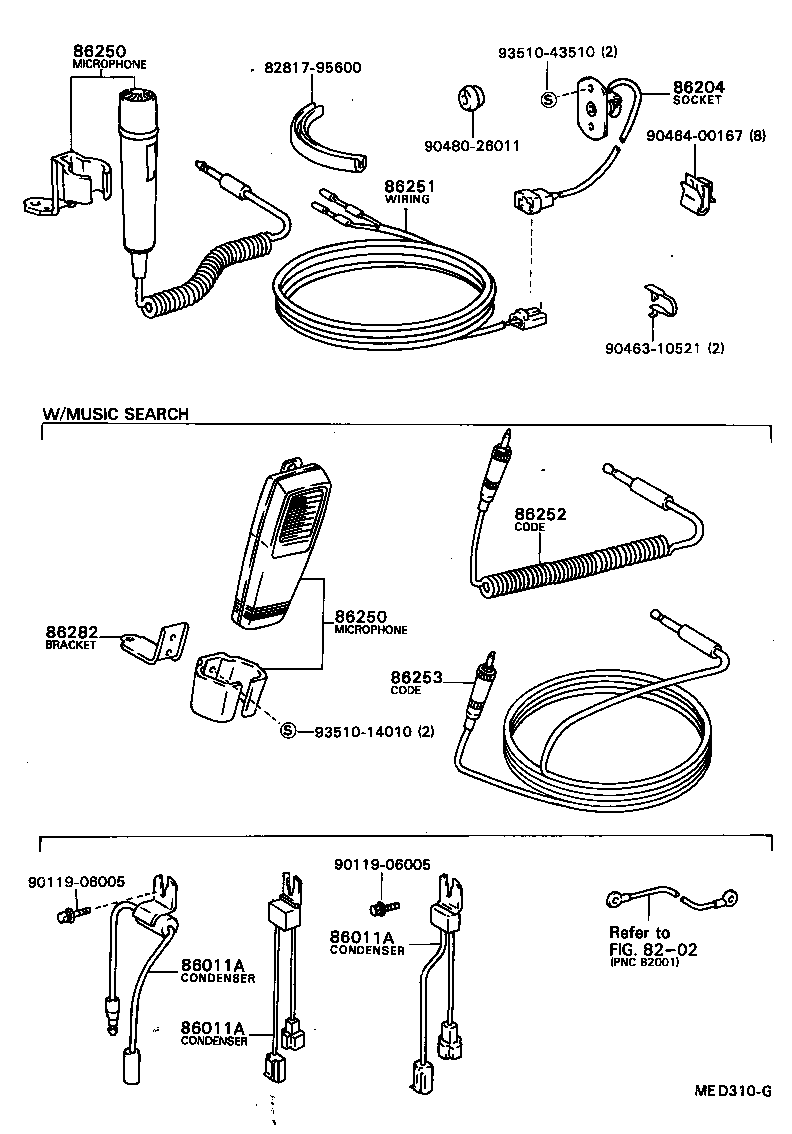

Figure MEB739G MEB739G 1982-05 → — Figure MEL475 MEL475 1988-08 → — Figure MED310G MED310G 1982-05 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86203 Wire, Radio
86204 Socket Sub-assy, Amplifier Microphone
86206 Converter Sub-assy, Voltage
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86250 Microphone Assy, Amplifier
86251 Wiring, Amplifier Microphone
86252 Code, Microphone, NO.1
86253 Code, Microphone, NO.2
86260 Tape Player Assy
86280 Amplifier Assy, Stereo Component
86282 Bracket, Microphone
86290A Amplifier Assy, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
