Toyota Coaster
1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan
Discontinued model
Data version 1993-12

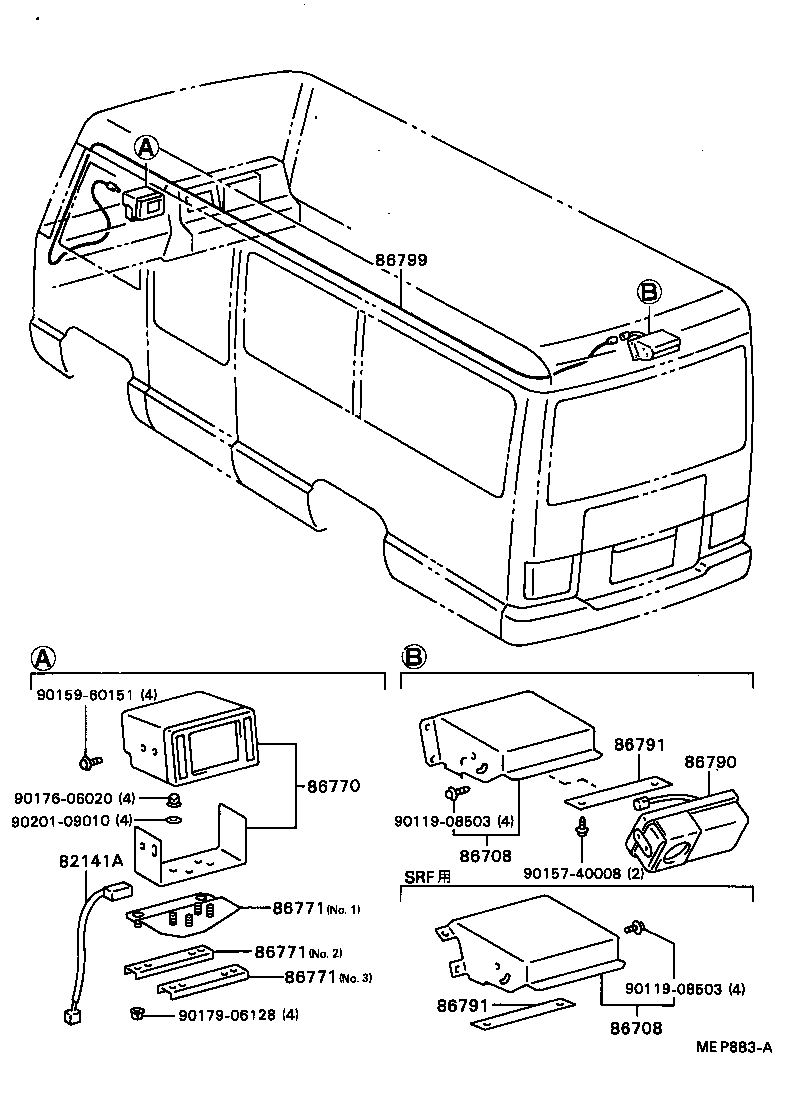

Camera & Rear Monitor Display
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82141A | Wire, Instrument Panel |
| 82630A | Holder Assy, Fuse |
| 86010A | Tuner Assy, Television |
| 86011J | Filter, Noise |
| 86050A | Antenna Assy, Television |
| 86136A | Filter, Multi Display |
| 86210 | Inverter Assy, Voltage |
| 86247 | Bracket, Voltage Inverter |
| 86291 | Bracket, Television |
| 86307 | Cable, Sub-assy |
| 86335A | Base, Antenna Pole |
| 86680A | Display Assy, Television |
| 86681A | Relay, Television |
| 86690A | Video Deck Assy |
| 86691 | Holder, Video |
| 86708 | Bracket Sub-assy, Television Camera |
| 86770 | Display Assy, Television |
| 86771 | Bracet, Television Camera Display |
| 86790 | Camera Assy, Television |
| 86791 | Bracket, Television Camera |
| 86799 | Wire, Television Camera |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
