Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

39 part groups · 41 illustrations

Illustrations

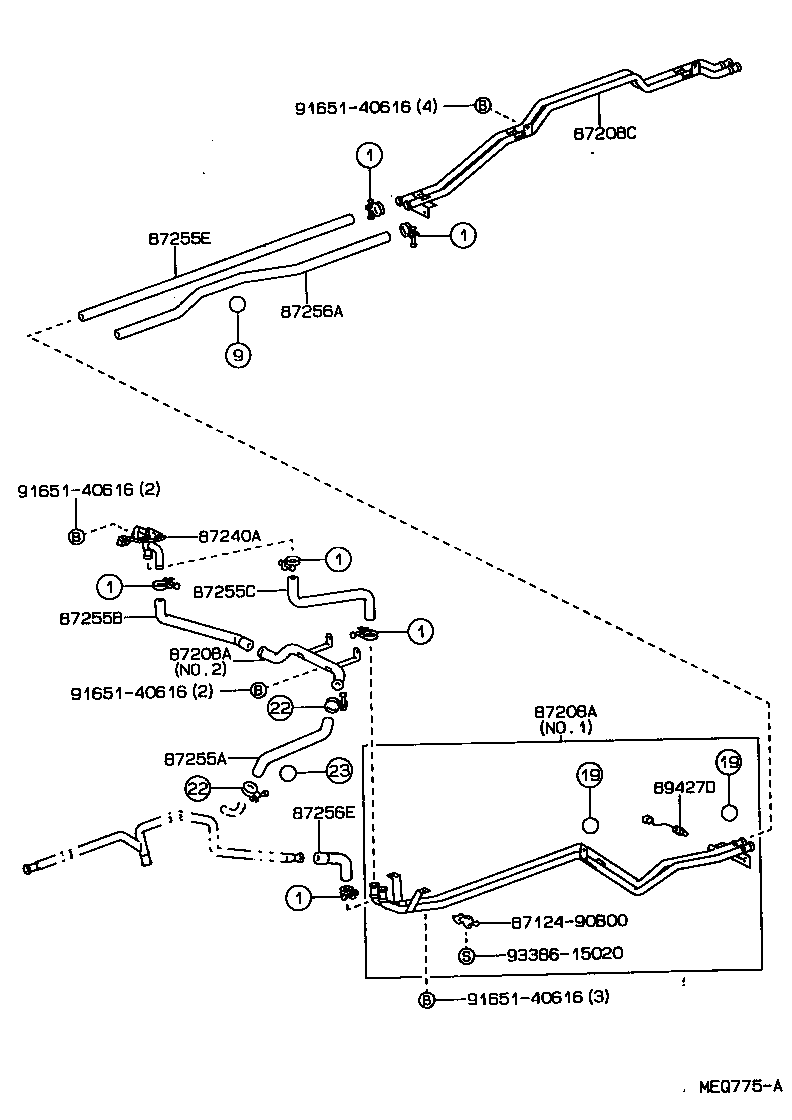

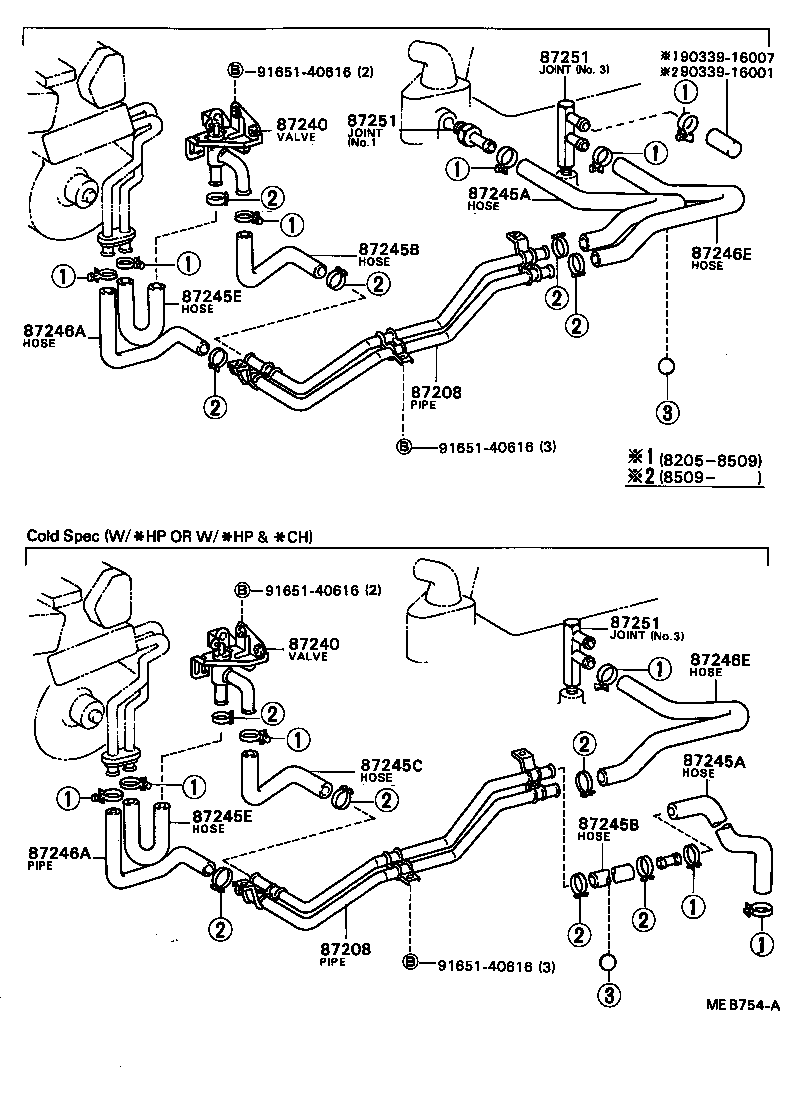

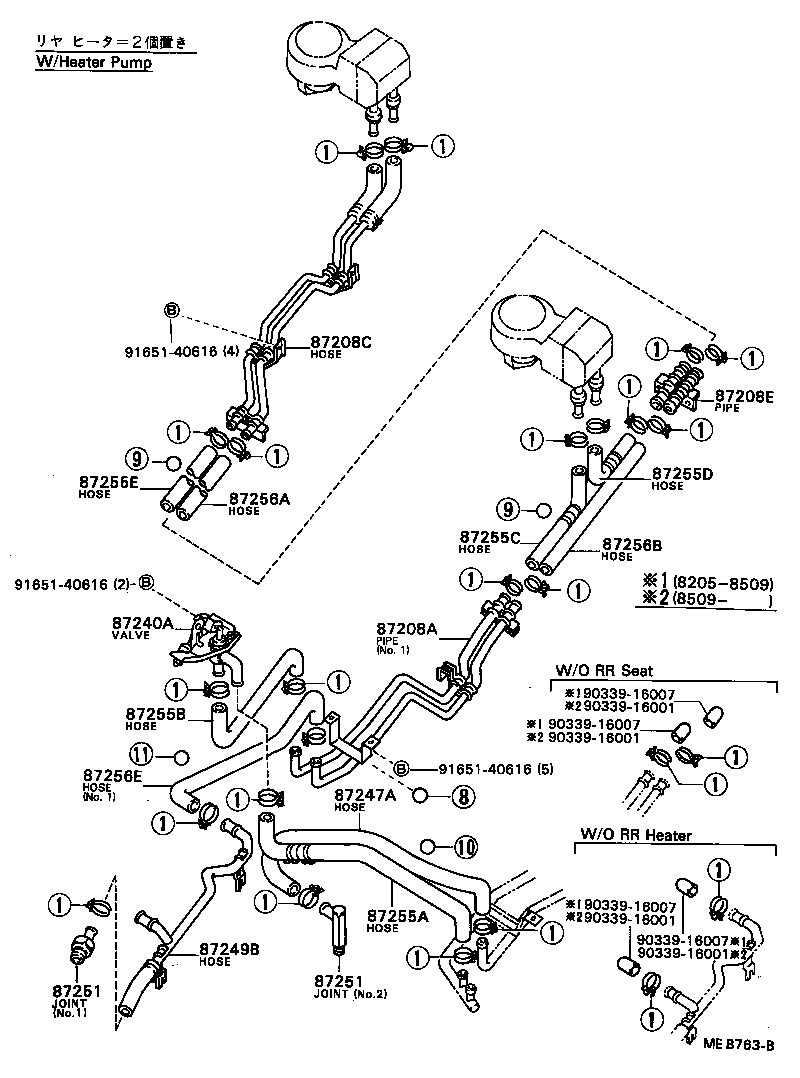

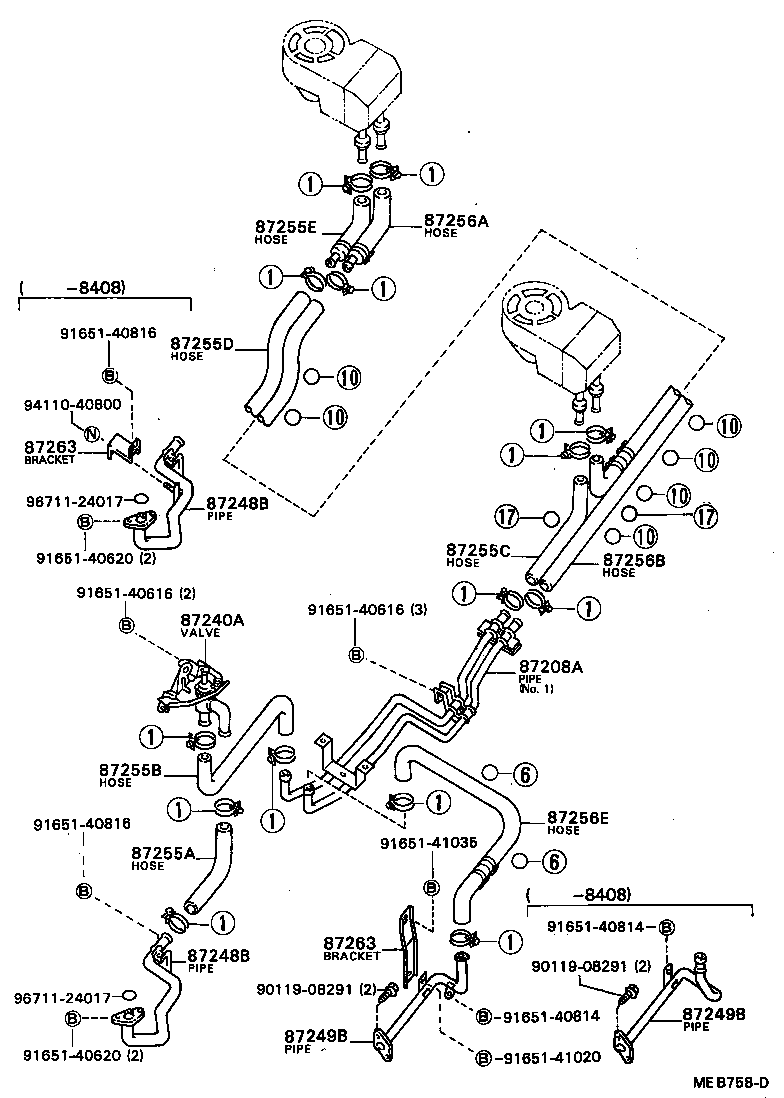

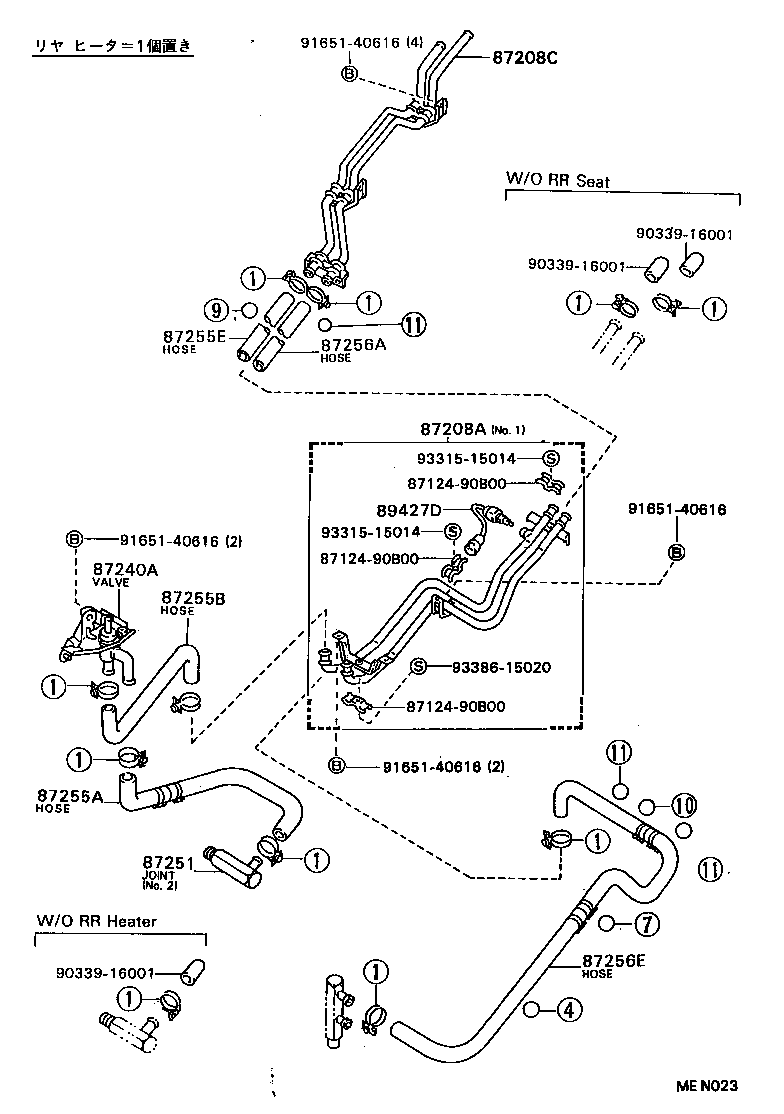

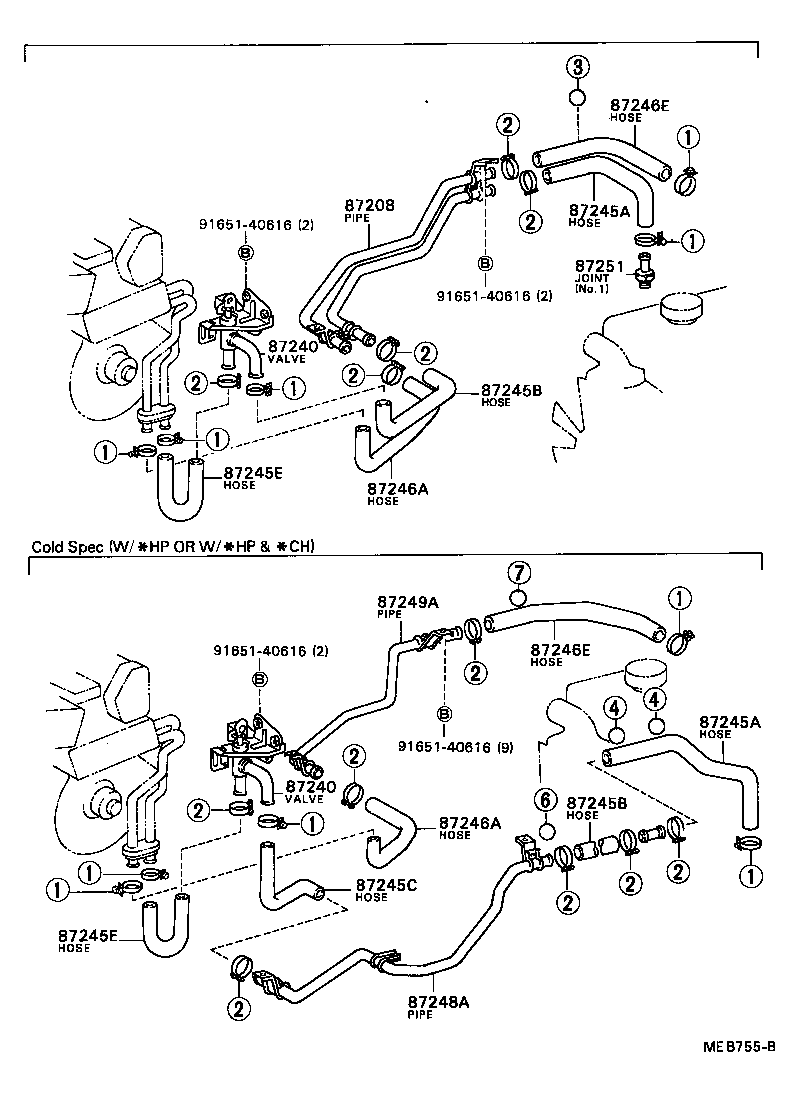

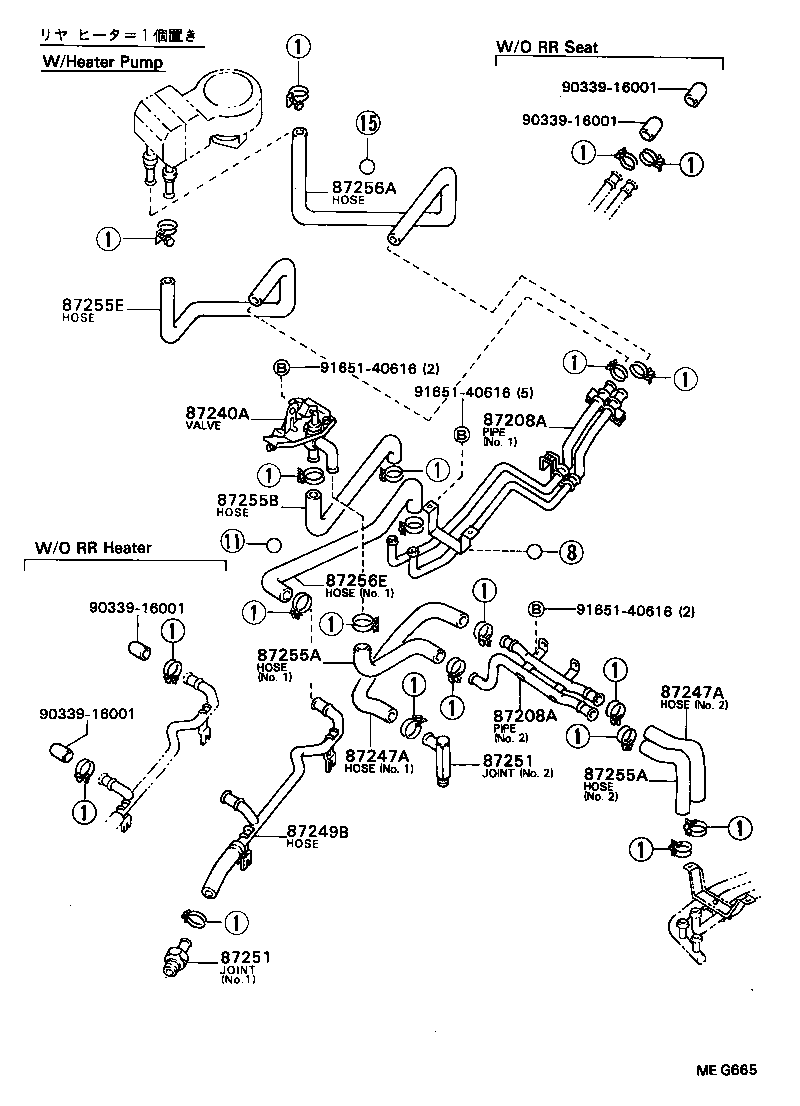

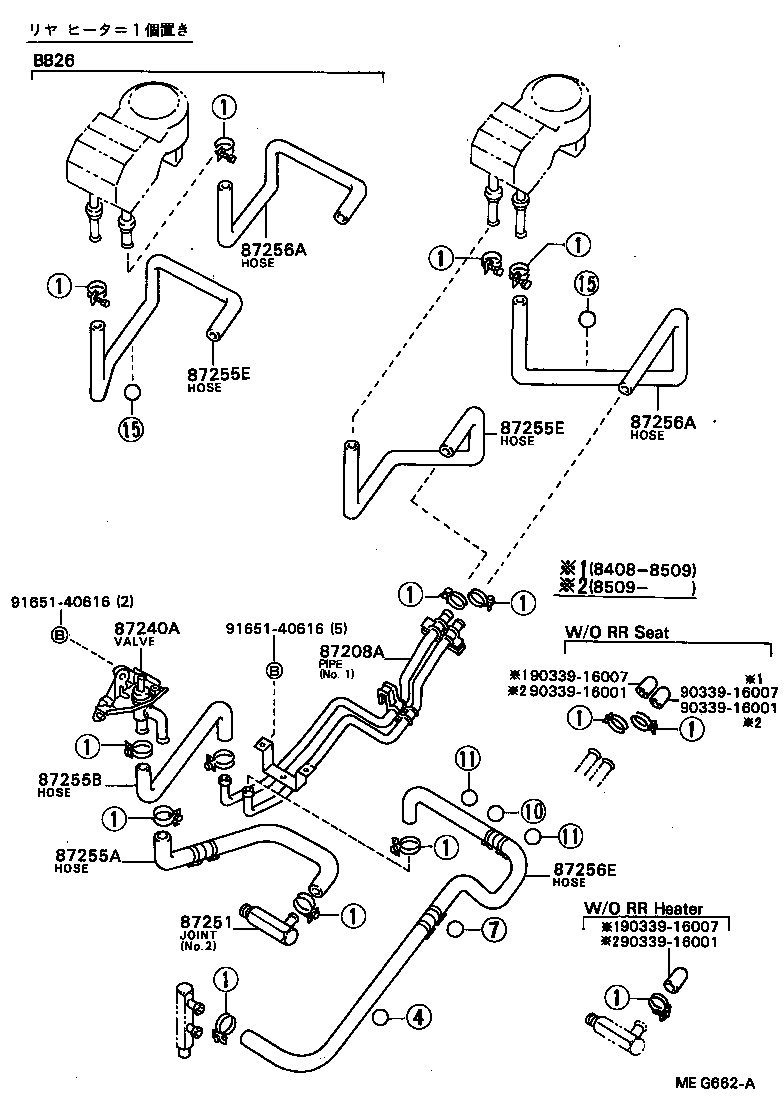

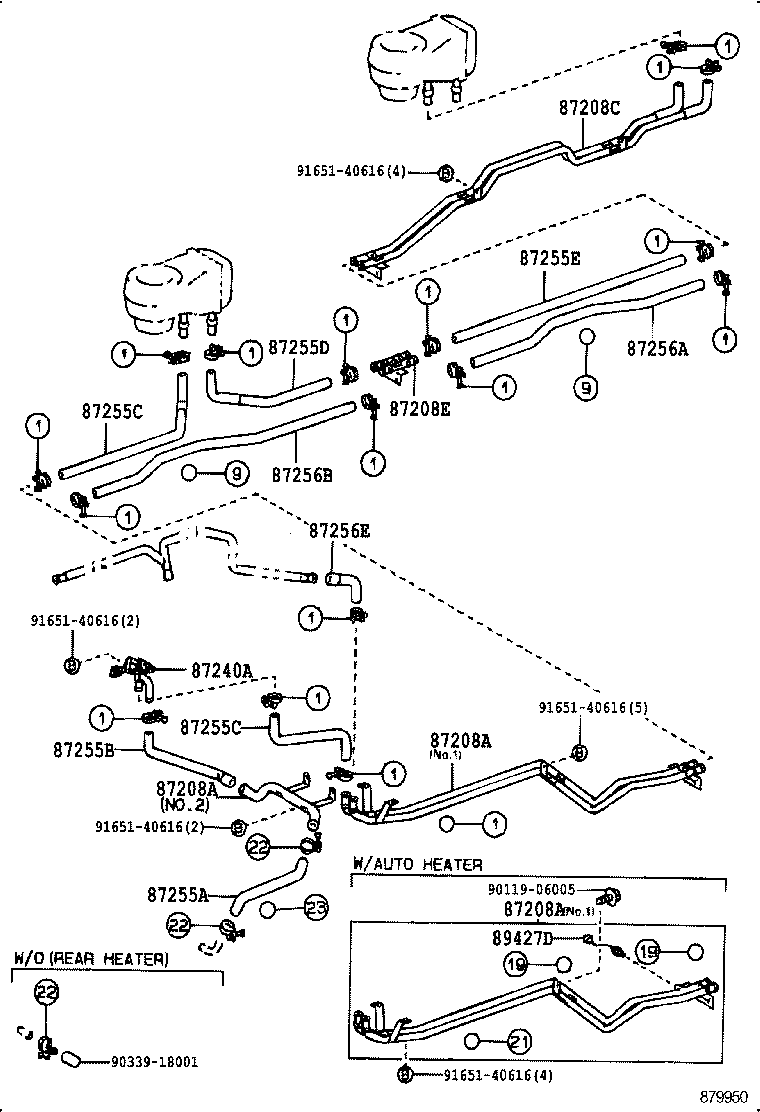

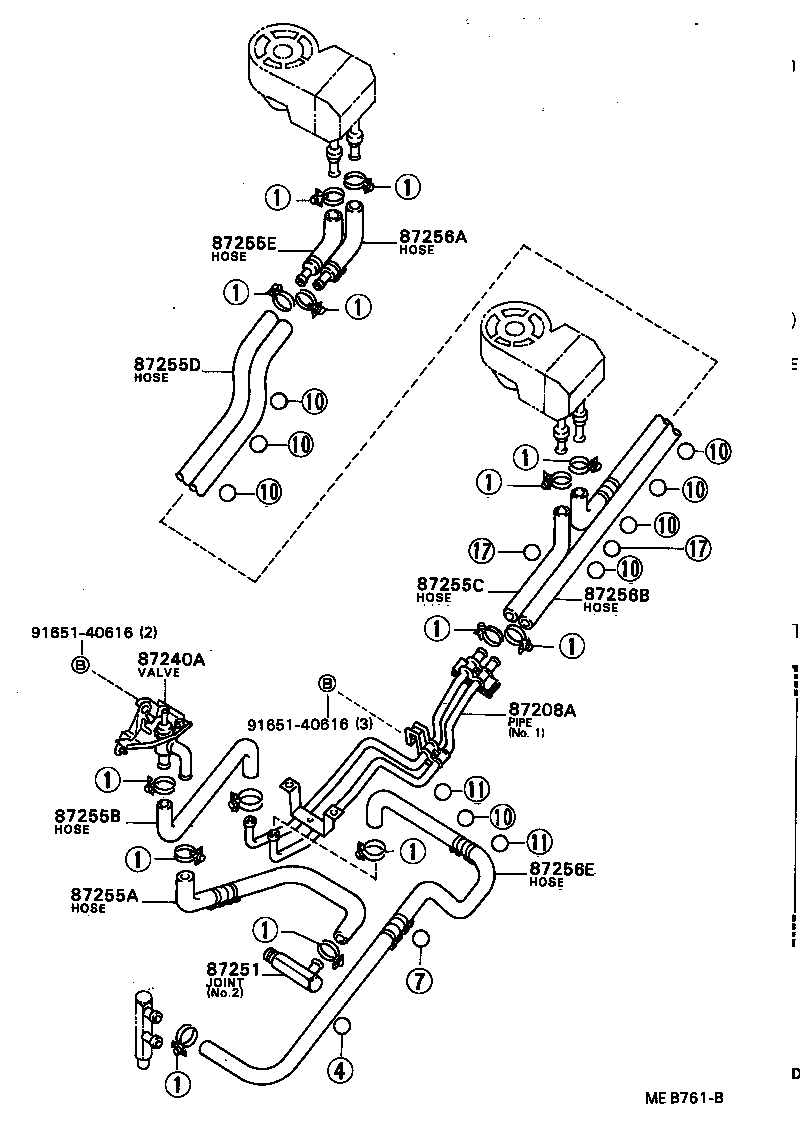

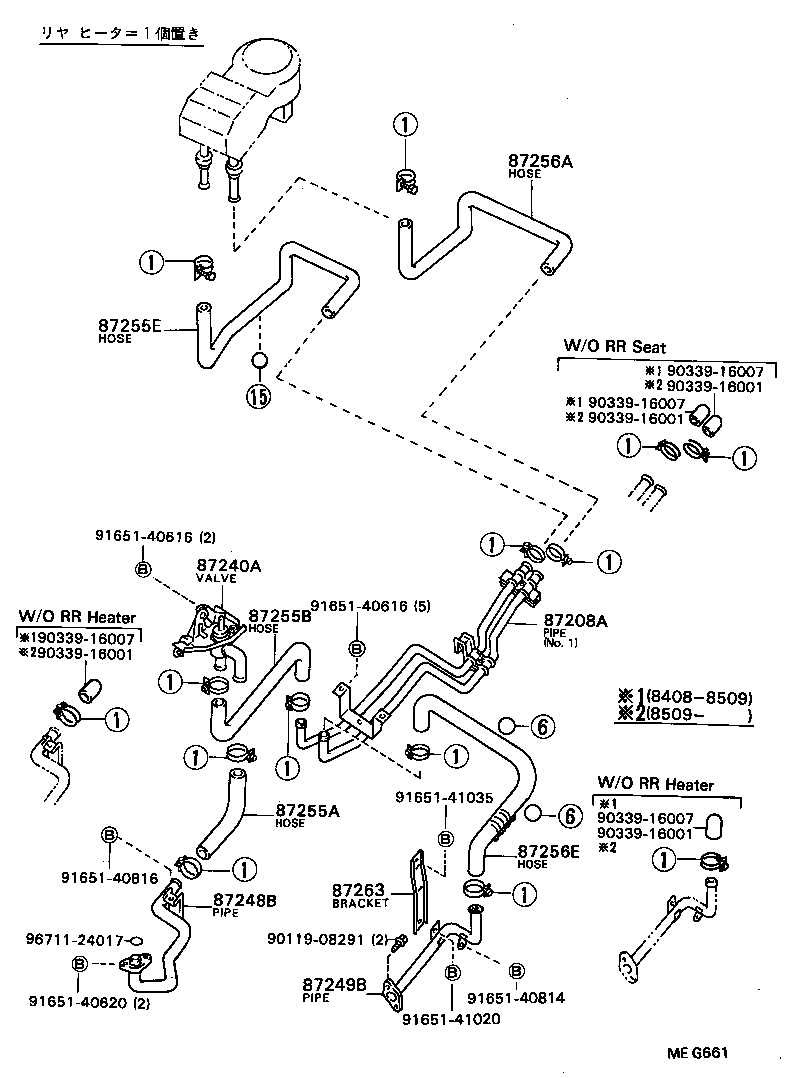

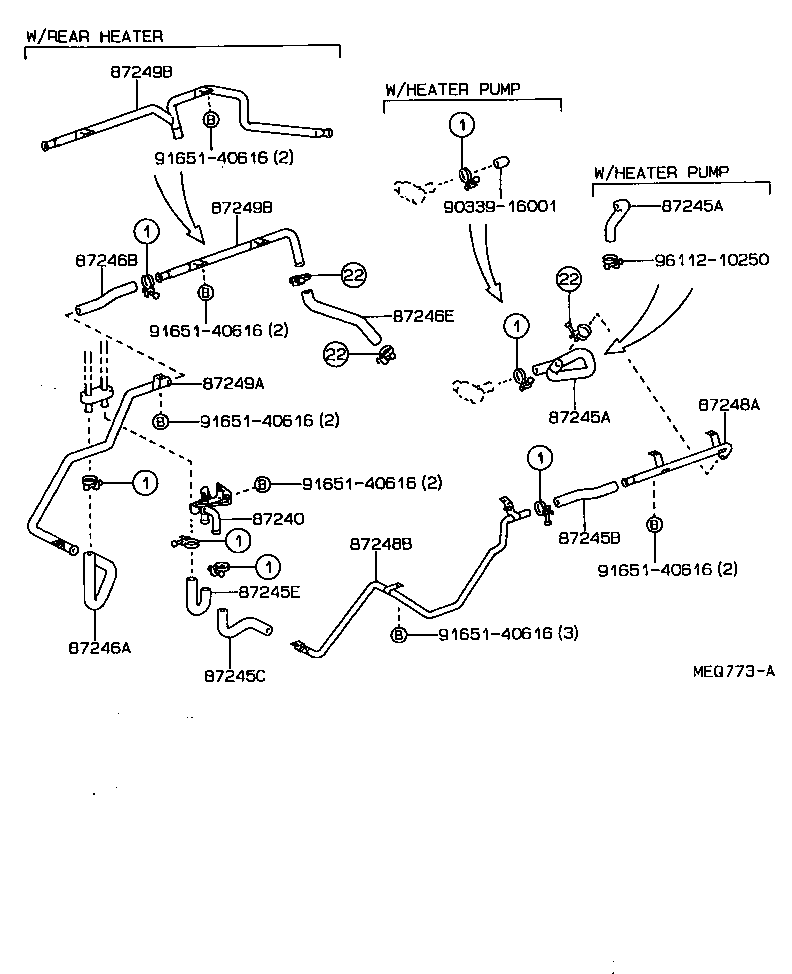

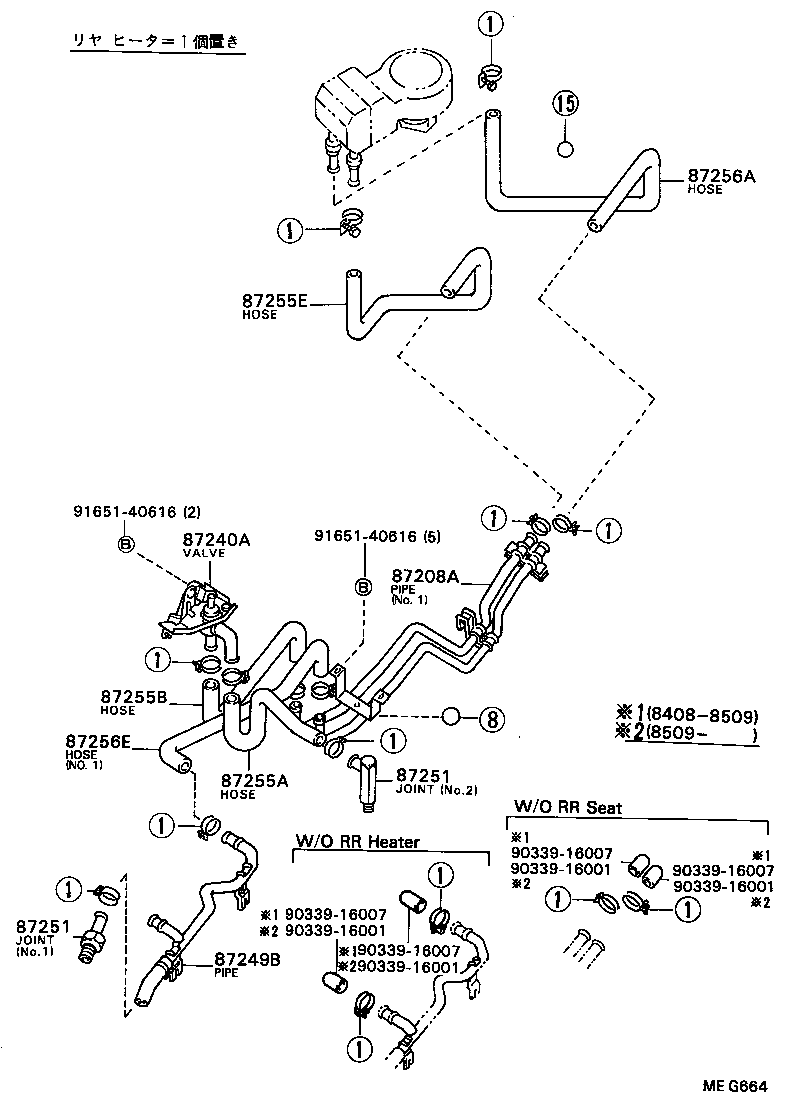

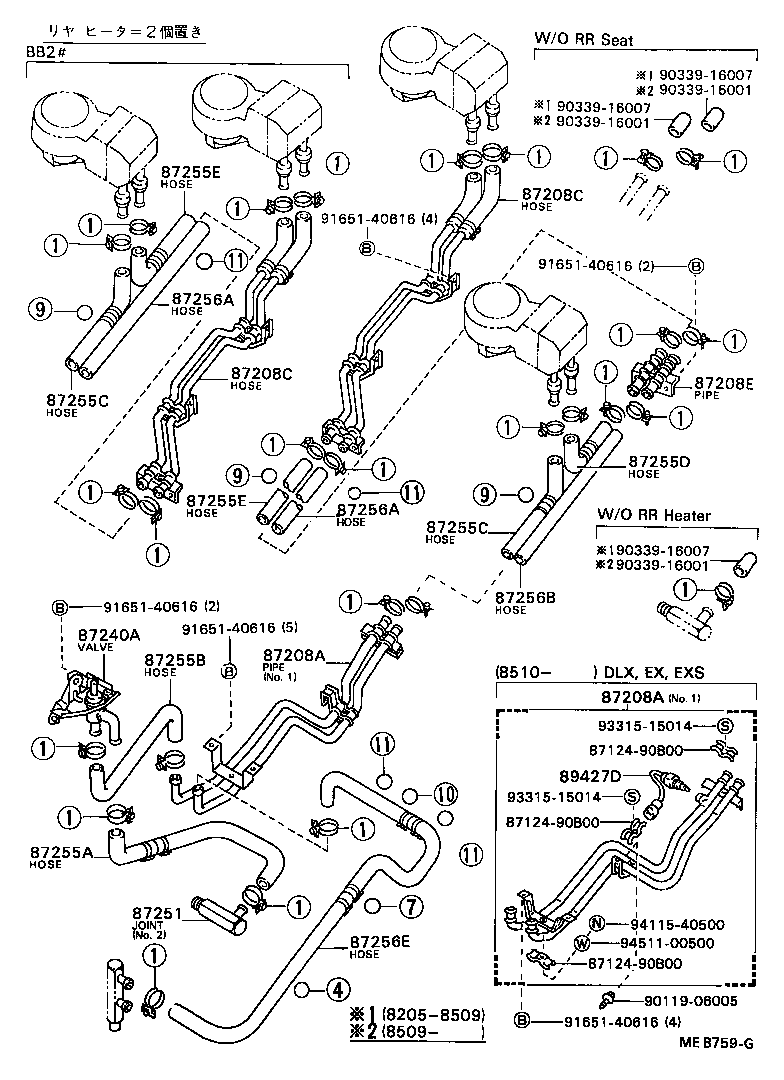

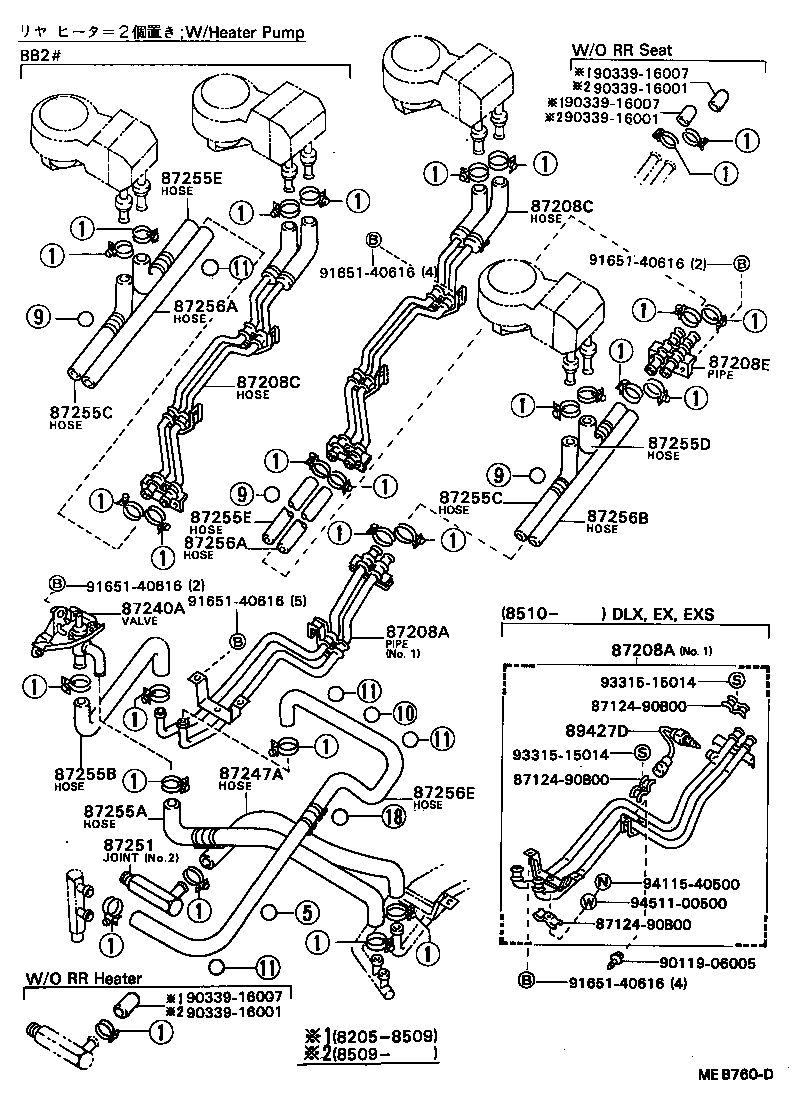

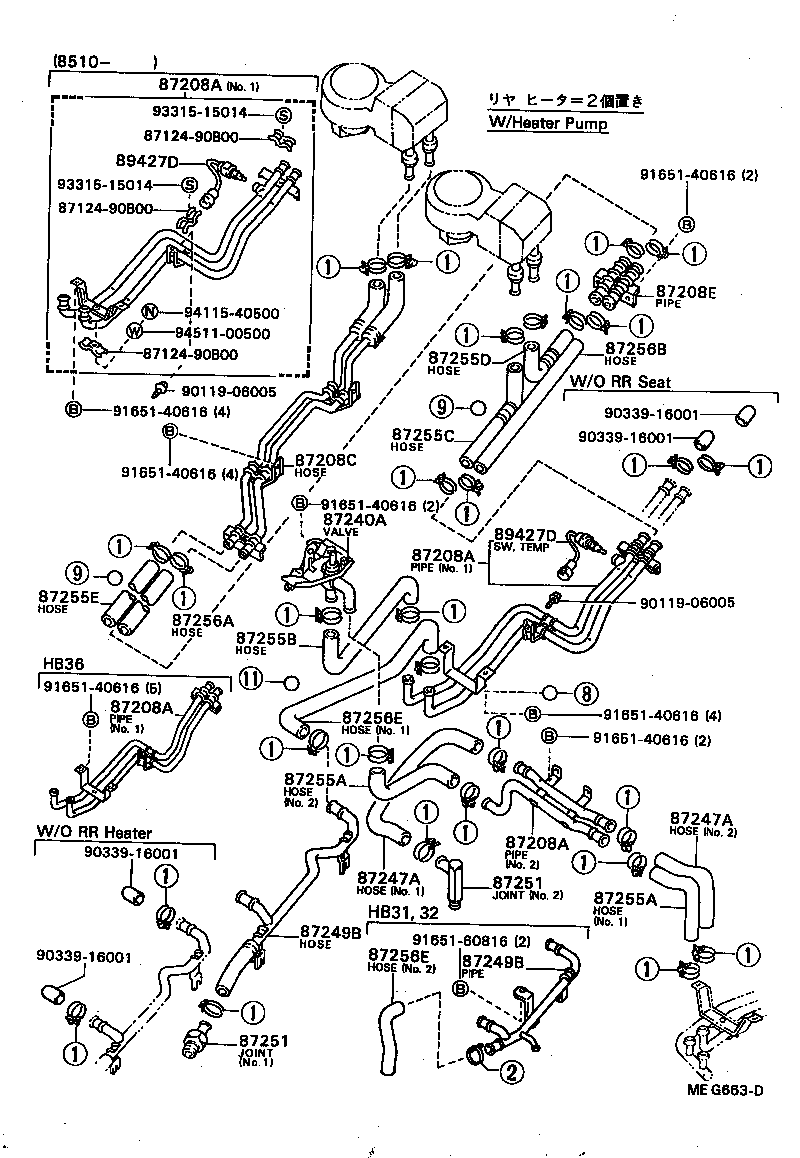

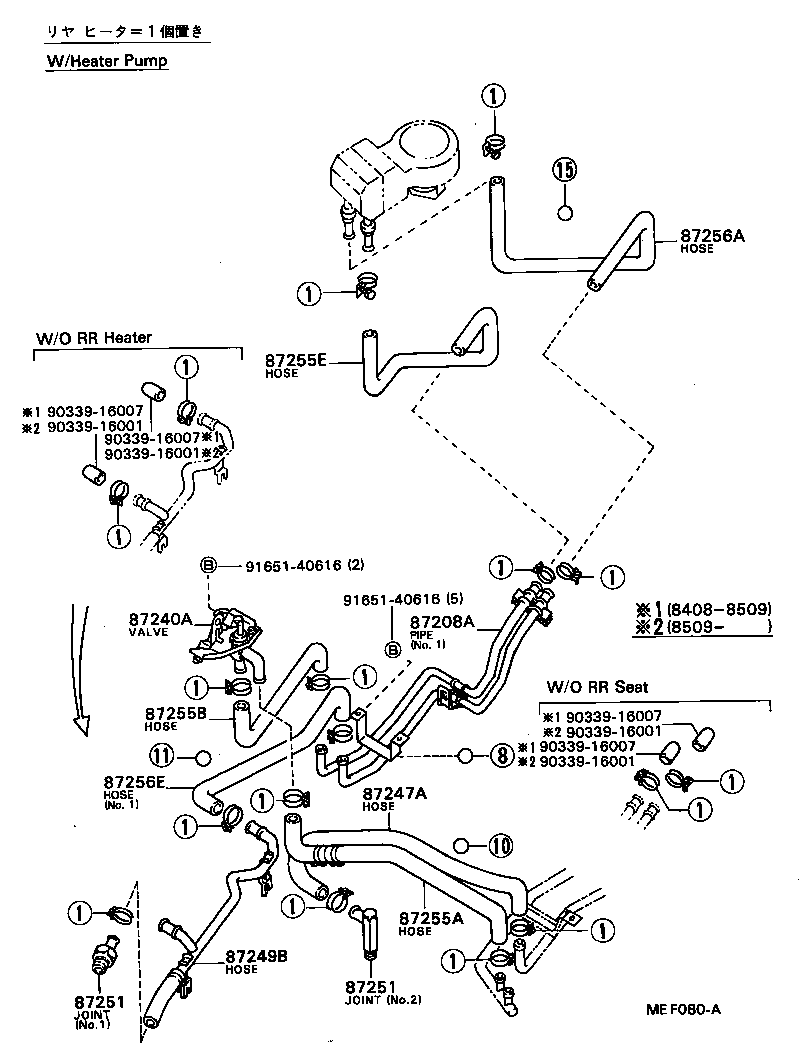

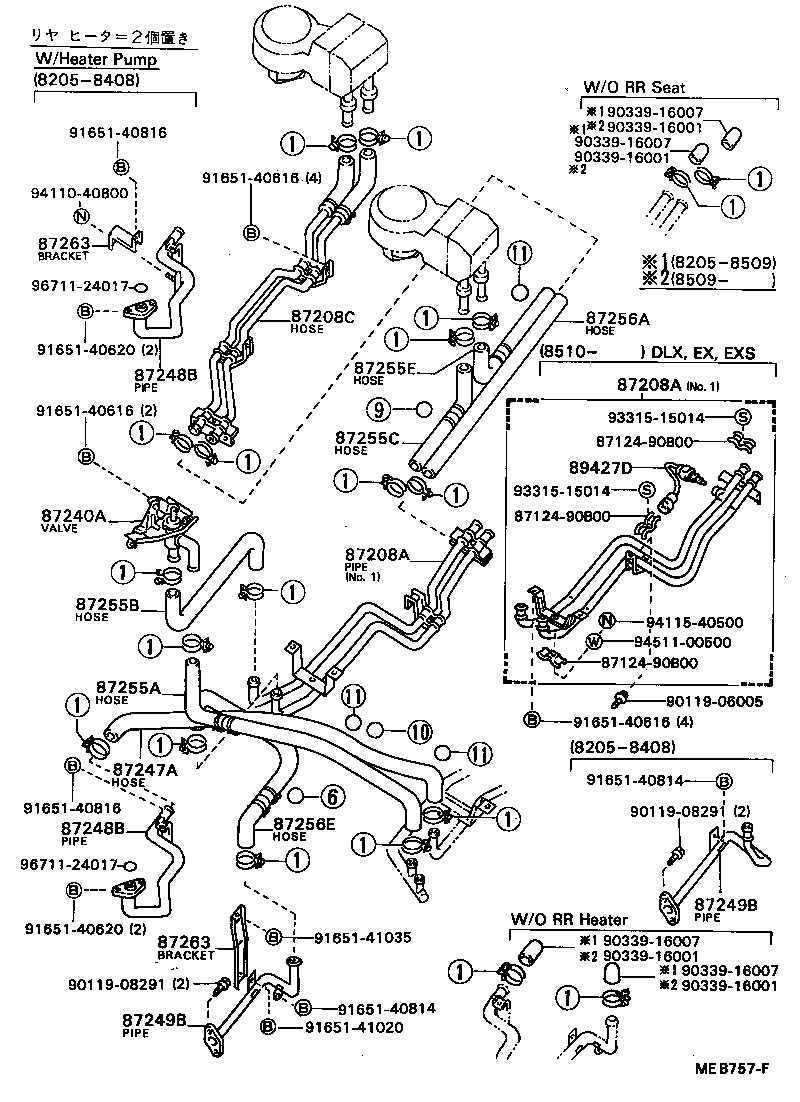

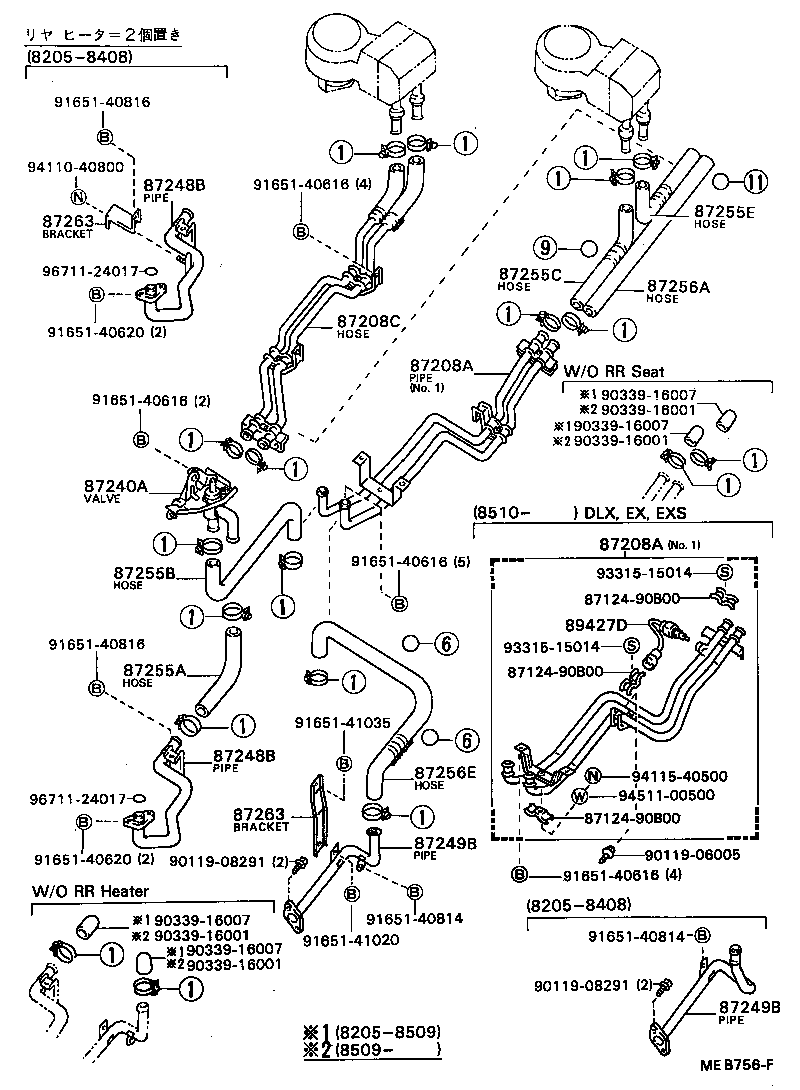

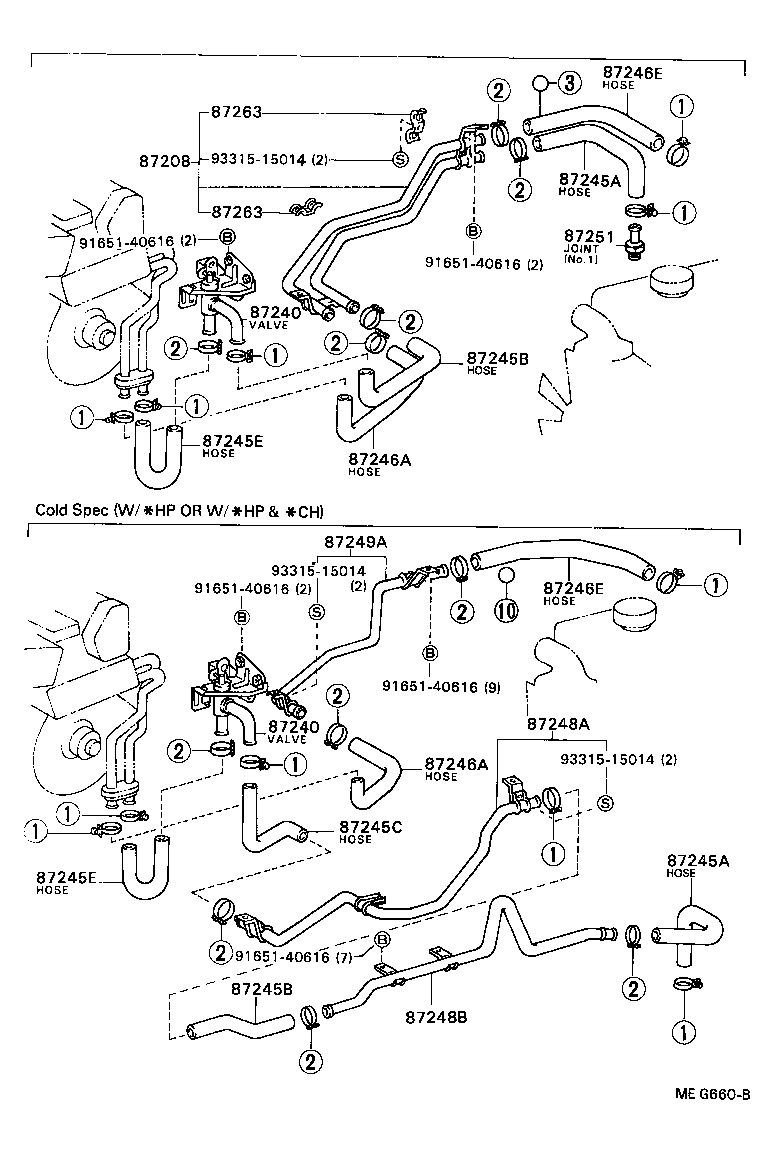

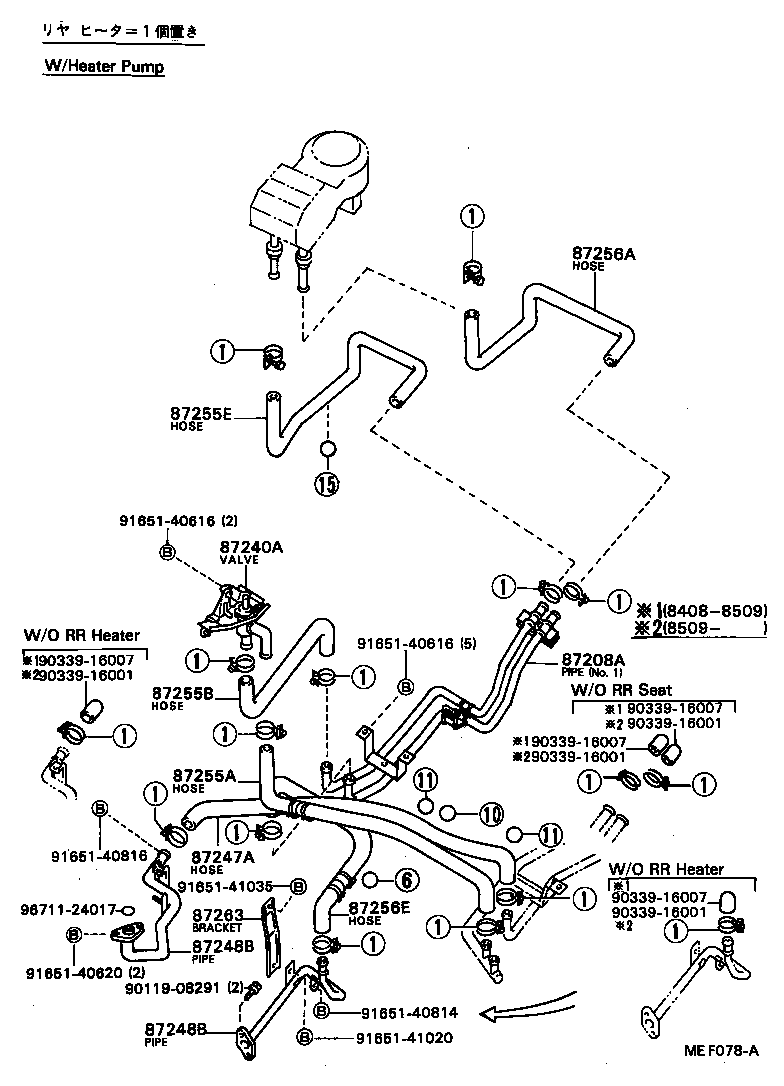

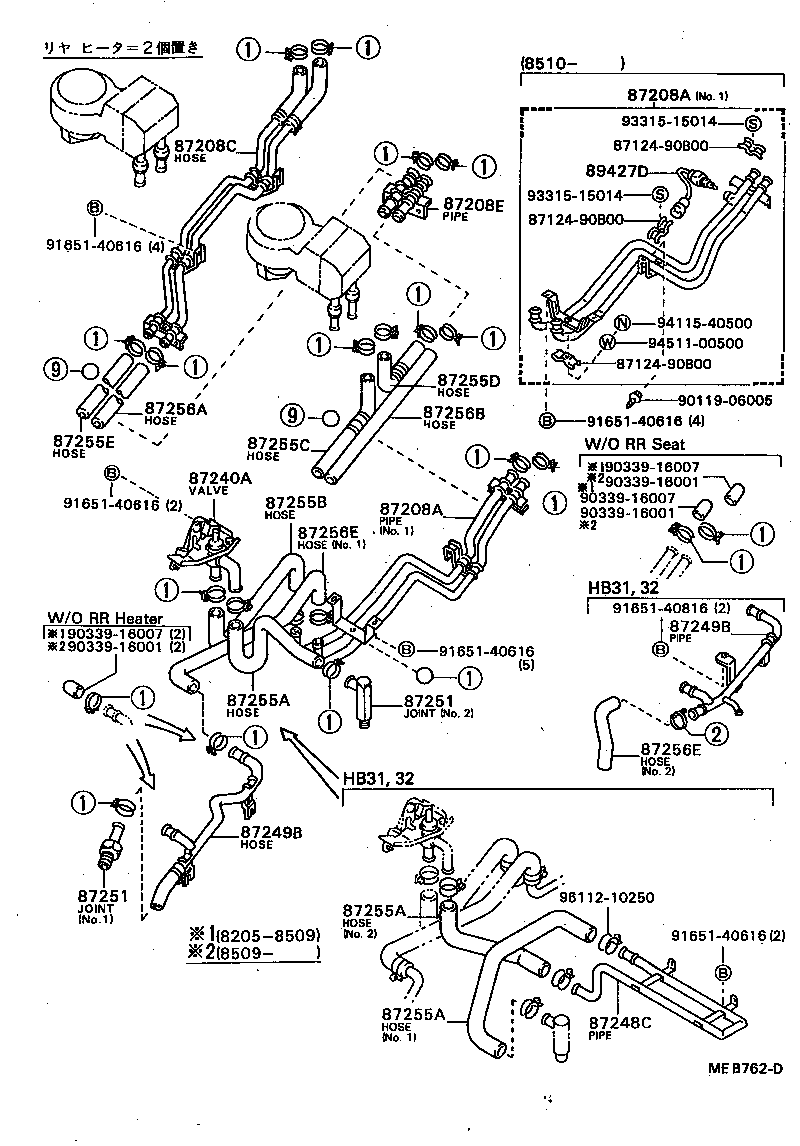

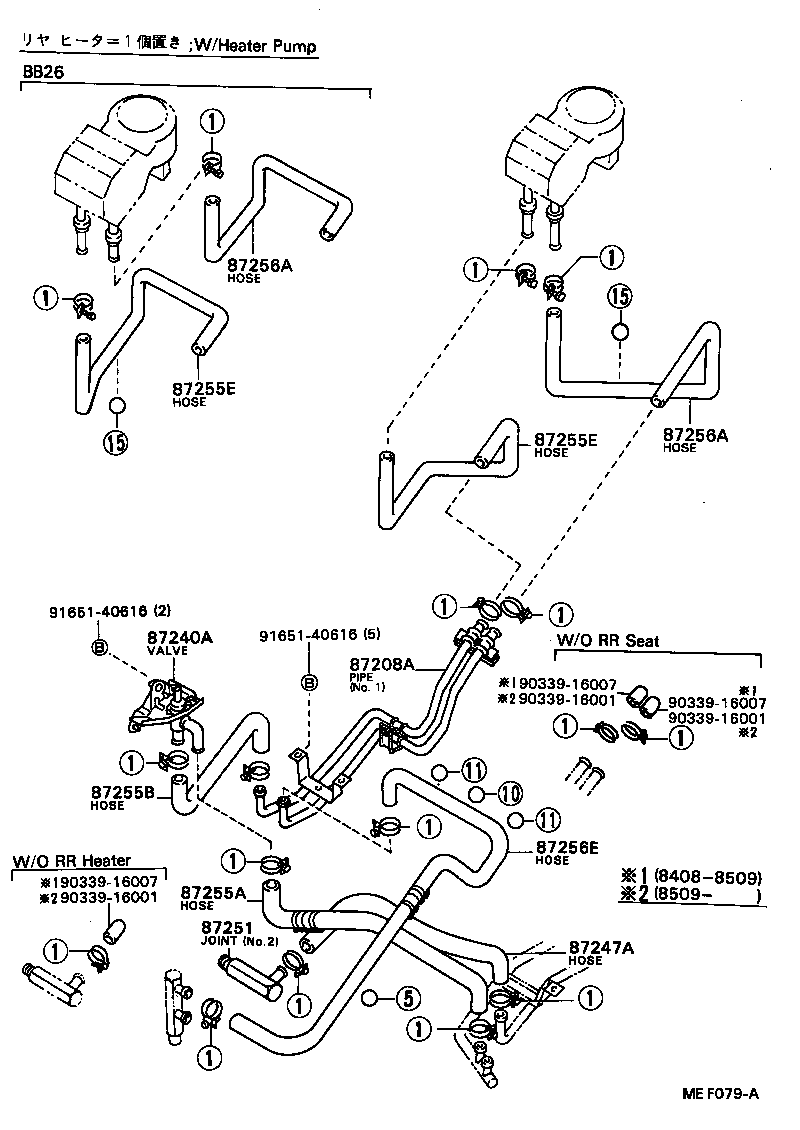

Figure MEB753B MEB753B 1982-05 → — Figure MEB754A MEB754A 1982-05 → — Figure MEB755B MEB755B 1982-05 → 1985-10 Figure MEG660B MEG660B 1985-10 → 1990-01 Figure MEQ773A MEQ773A 1990-01 → — Figure MEB756F MEB756F 1982-05 → — Figure MEB756F MEB756F 1985-07 → — Figure MEB757F MEB757F 1982-05 → — Figure MEB757F MEB757F 1985-07 → — Figure MEB758D MEB758D 1982-05 → — Figure MEG661 MEG661 1984-08 → — Figure MEF078A MEF078A 1984-08 → — Figure MEB759G MEB759G 1982-05 → — Figure MEB759G MEB759G 1985-07 → — Figure MEB759G MEB759G 1988-08 → — Figure MEN023 MEN023 1989-04 → — Figure MEB760D MEB760D 1982-05 → — Figure MEB760D MEB760D 1985-07 → — Figure MEB760D MEB760D 1988-08 → — Figure MEB761B MEB761B 1982-05 → — Figure MEG662A MEG662A 1984-08 → — Figure MEF079A MEF079A 1984-08 → — Figure MEB762D MEB762D 1982-05 → 1990-01 Figure MEB762D MEB762D 1985-07 → 1990-01 Figure MEB762D MEB762D 1988-08 → 1990-01 Figure MEB763B MEB763B 1982-05 → 1985-10 Figure MEB763B MEB763B 1985-07 → 1985-10 Figure MEG663D MEG663D 1985-10 → 1990-01 Figure MEG664 MEG664 1984-08 → 1990-01 Figure MEF080A MEF080A 1984-08 → 1985-10 Figure MEG665 MEG665 1985-10 → 1990-01 Figure MEQ775A MEQ775A 1990-01 → — Figure 879950 879950 1990-01 → — Figure MES068 MES068 1990-01 → — Figure MEQ777A MEQ777A 1990-01 → — Figure MES070 MES070 1990-01 → — Figure MEQ778A MEQ778A 1990-01 → — Figure MEB764D MEB764D 1985-10 → — Figure MES067 MES067 1990-01 → — Figure MEB765E MEB765E 1982-05 → — Figure 872743 872743 1982-05 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87240 Valve Assy, Heater Water
87240A Valve Assy, Rear Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87247A Hose, Heater Water, A
87247B Hose, Heater Water, B
87247C Hose, Heater Water, C
87247D Hose, Heater Water, D
87247E Hose, Heater Water, E
87247F Hose, Heater Water, F
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87260 Pump Assy, Heater
87263 Bracket, Heater Water Pipe, NO.1
87264 Bracket, Heater Water Hose
89427D Switch, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
