Toyota Coaster

1982-05 → 1993-01 · chassis RB2#,BB2#,3#,HB3#,HZB3#,HDB20,3# · catalogue 811120 · Japan

Discontinued model Data version 1993-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

18 part groups · 7 illustrations

Illustrations

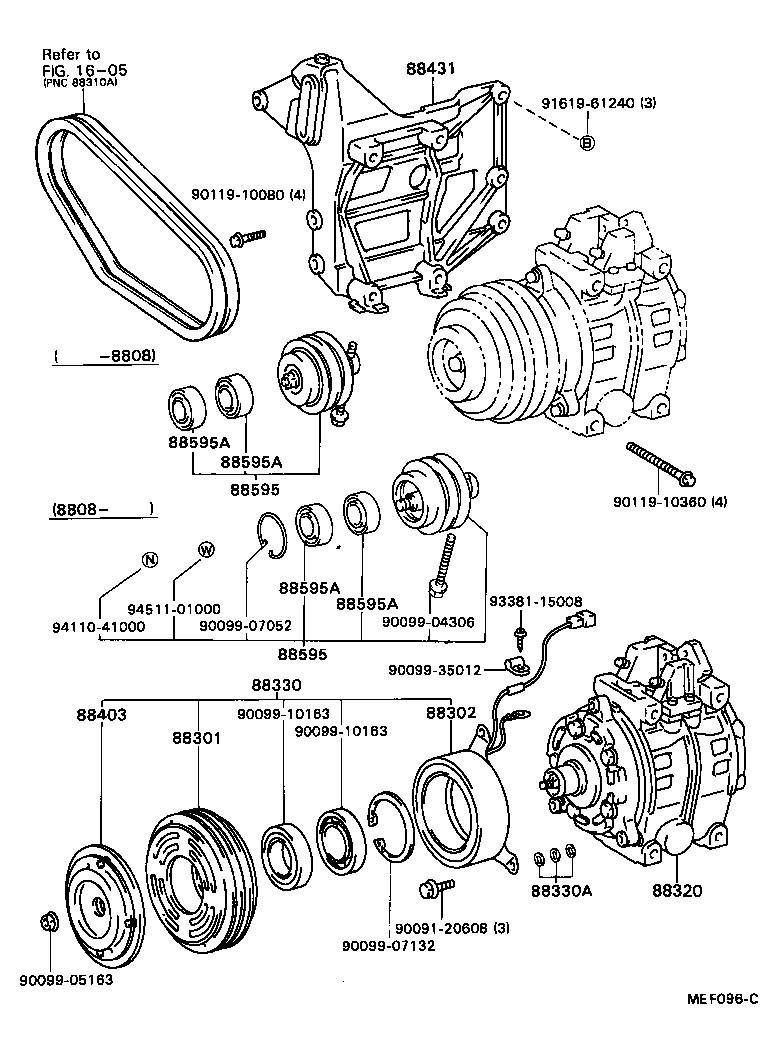

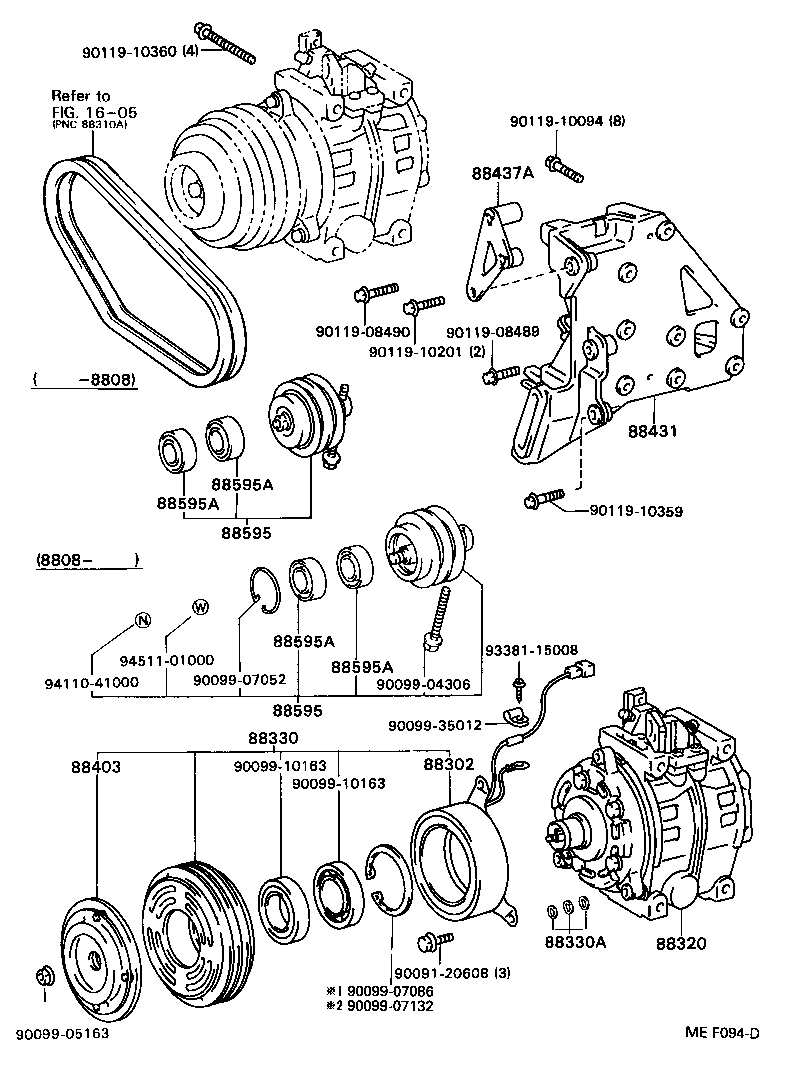

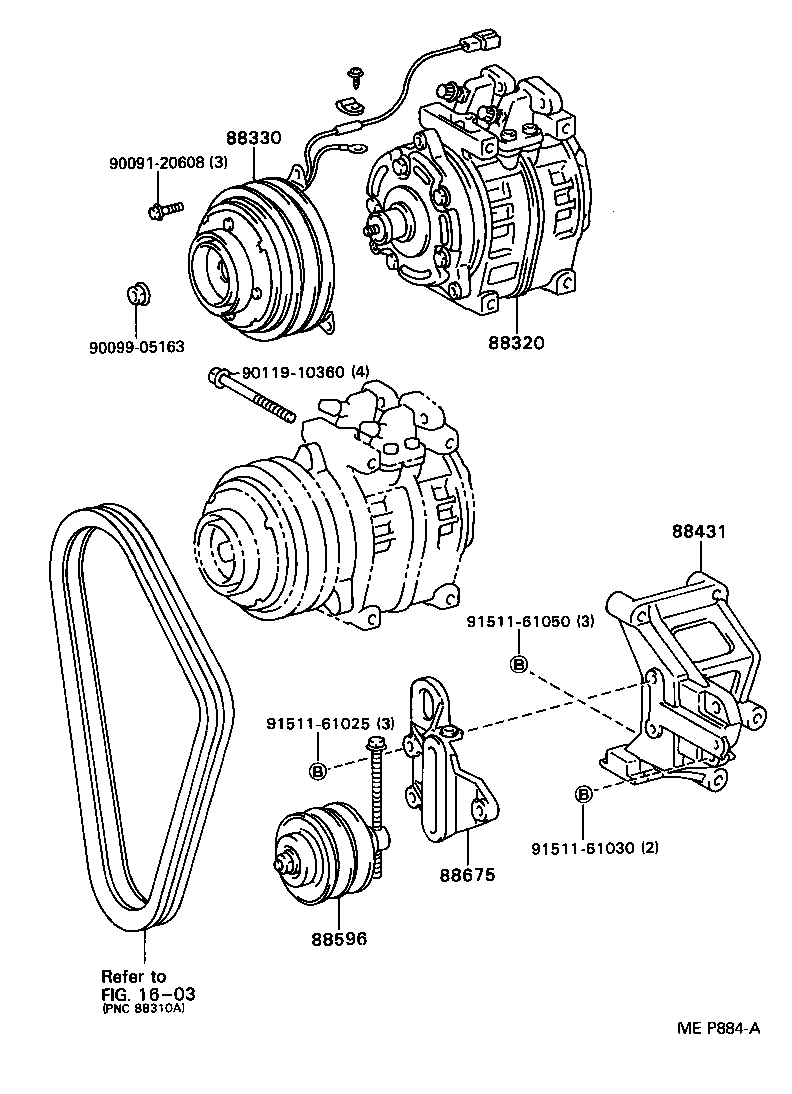

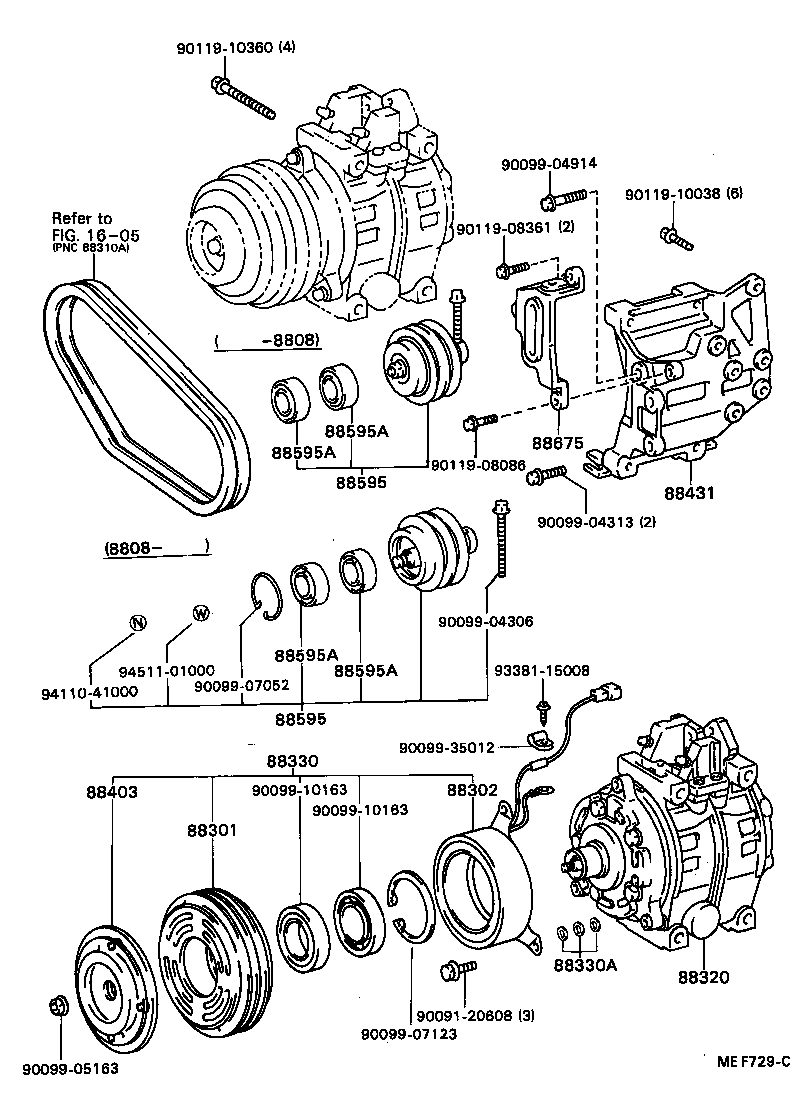

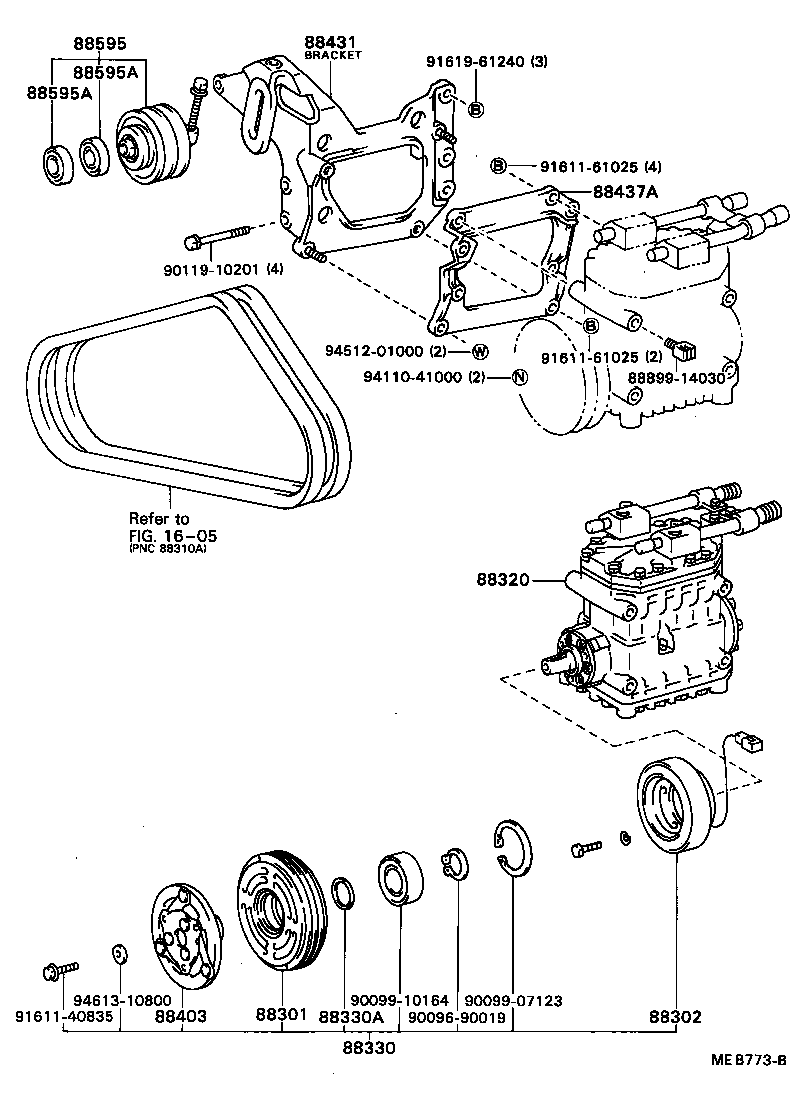

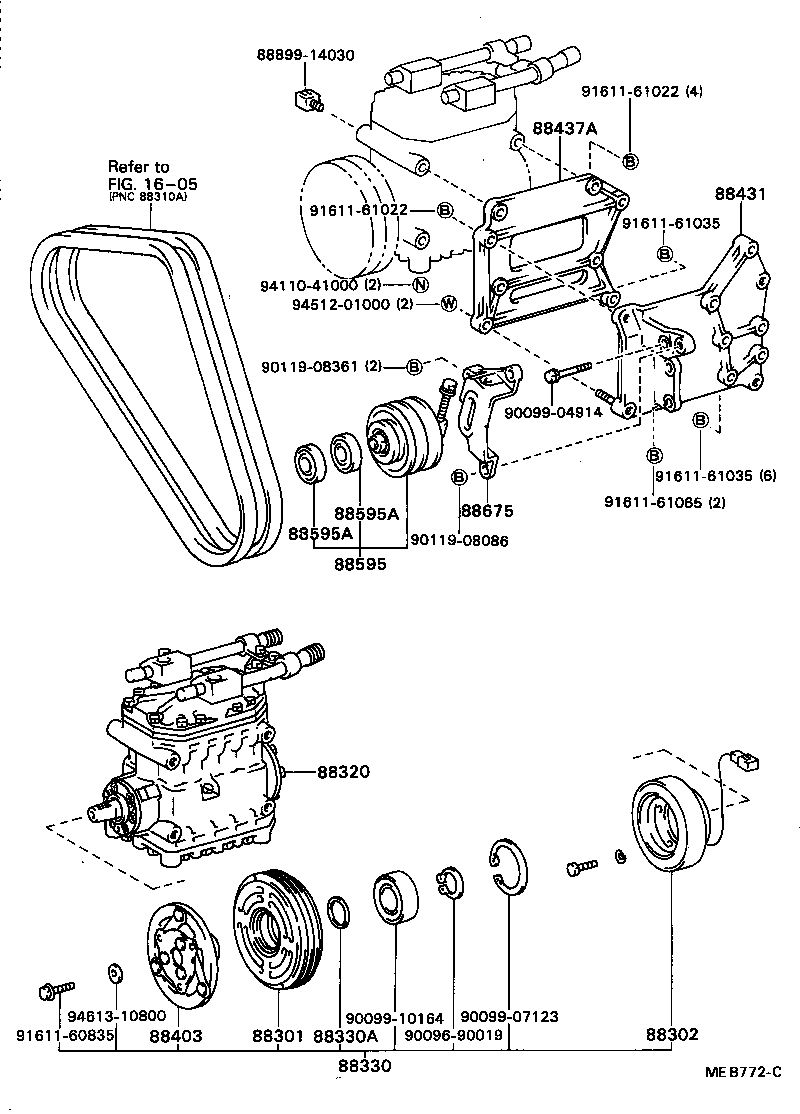

Figure MEB771D MEB771D 1982-05 → 1984-08 Figure MEF094D MEF094D 1984-08 → — Figure MEB772C MEB772C 1982-05 → 1984-08 Figure MEF729C MEF729C 1984-08 → — Figure MEB773B MEB773B 1982-05 → 1984-08 Figure MEF096C MEF096C 1984-08 → 1990-01 Figure MEP884A MEP884A 1990-01 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88434 Bracket, Compressor Mounting, NO.4
88435 Bracket, Compressor Mounting, NO.5
88437A Attachment, Compressor
88437B Attachment, Compressor, NO.1
88437C Attachment, Compressor, NO.2
88595 Pulley, Cooler Compressor Idle
88595A Bearing (FOR COOLER IDLE PULLEY)
88596 Pulley Assy, Idle, NO.2
88675 Bracket, Idler Pulley (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
