Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

66 part groups · 9 illustrations

Illustrations

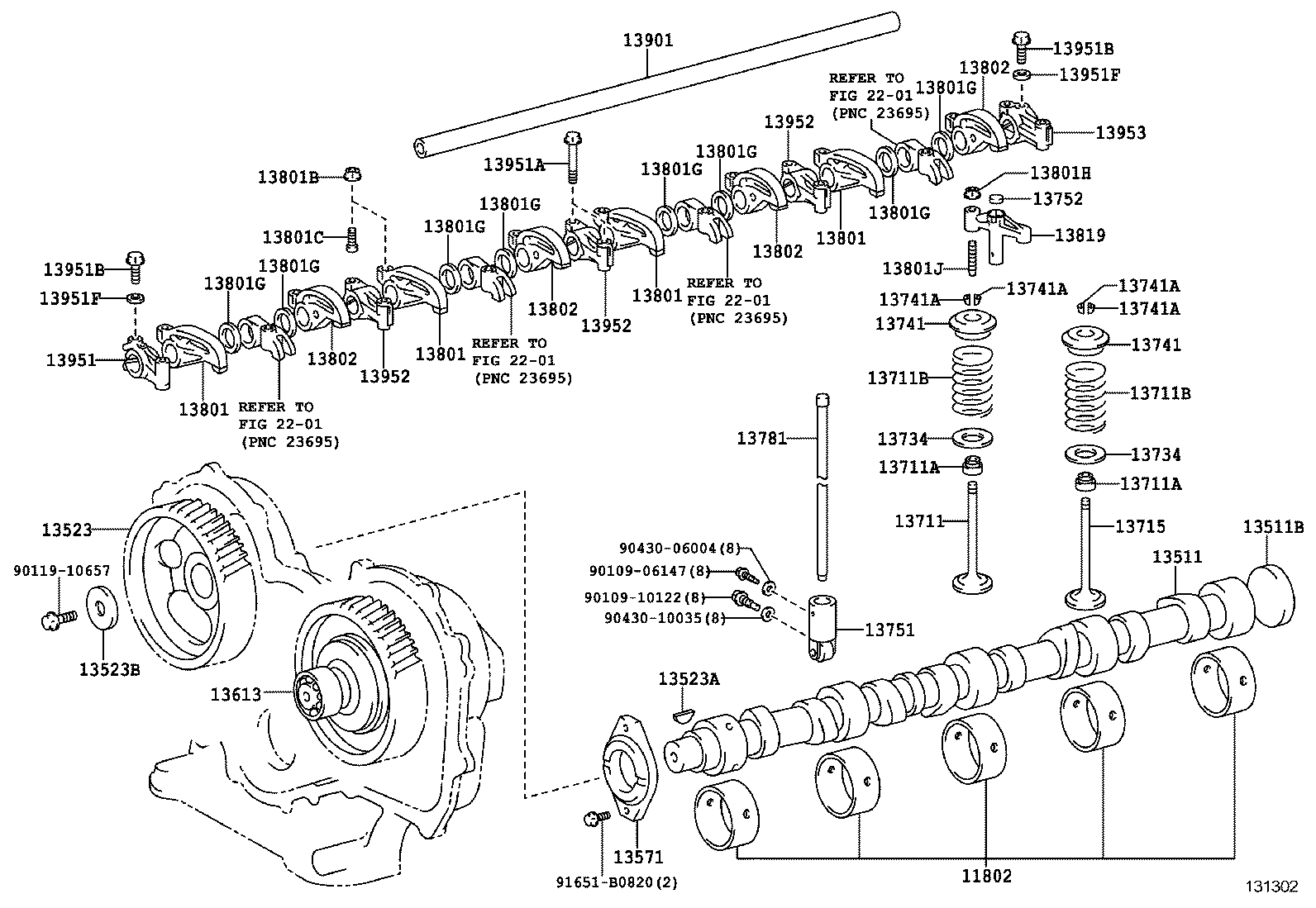

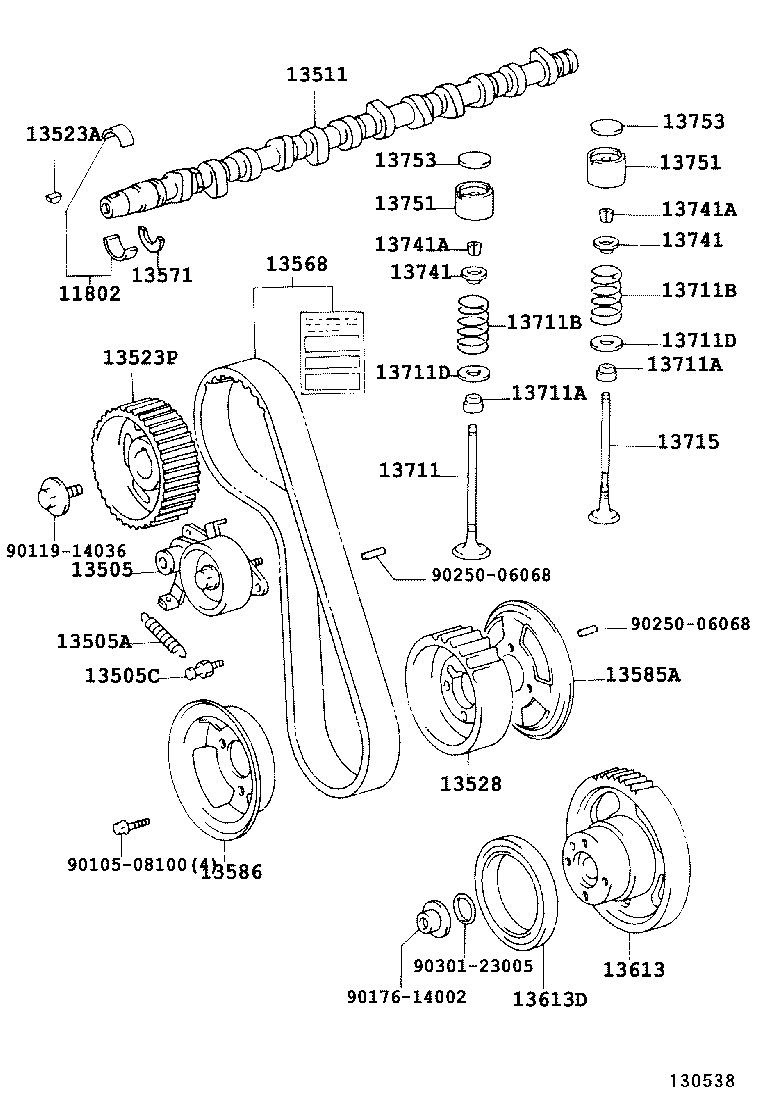

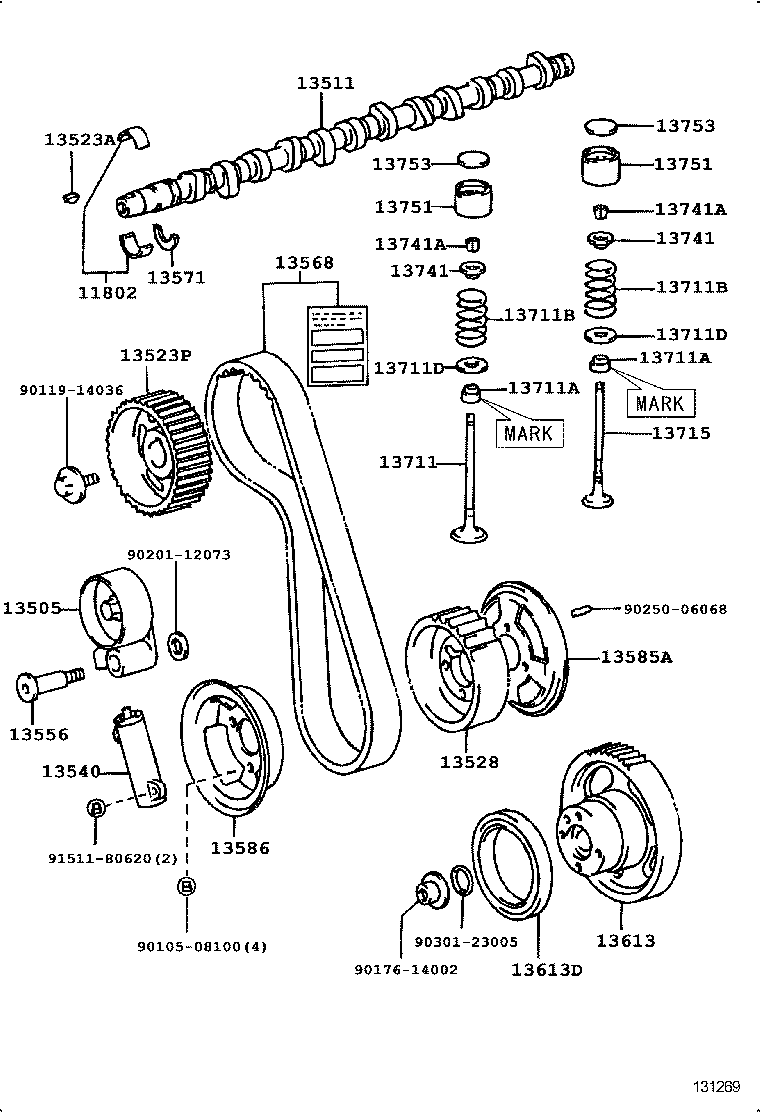

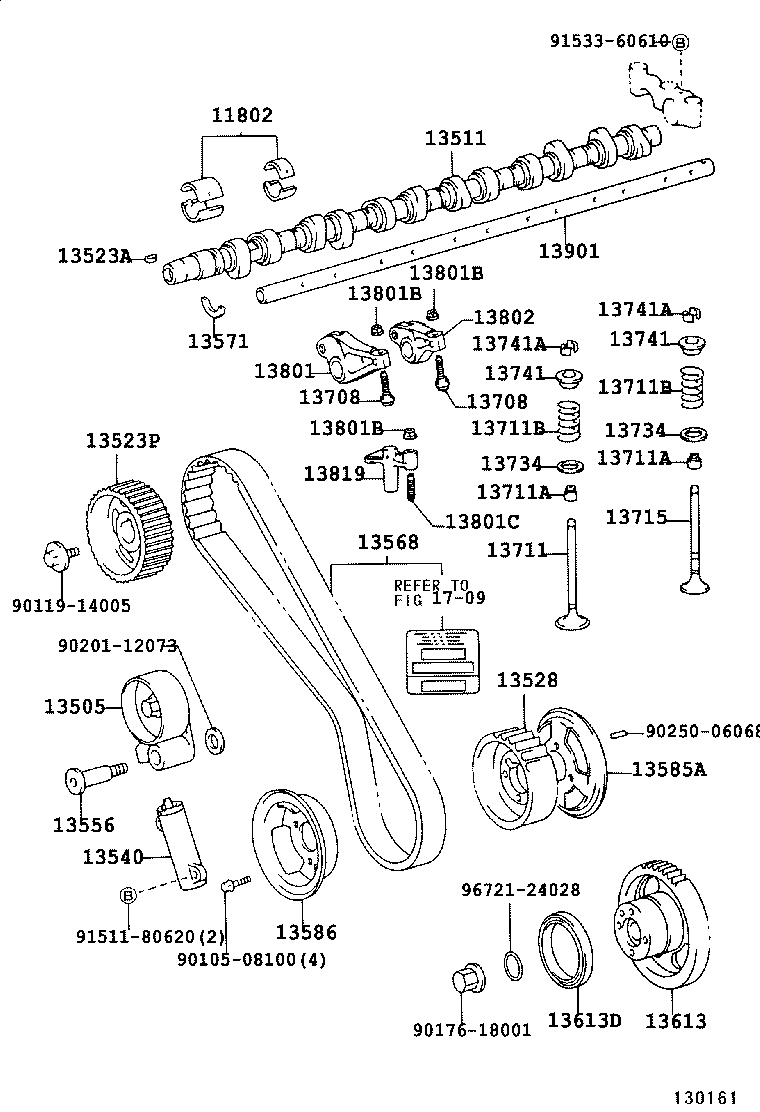

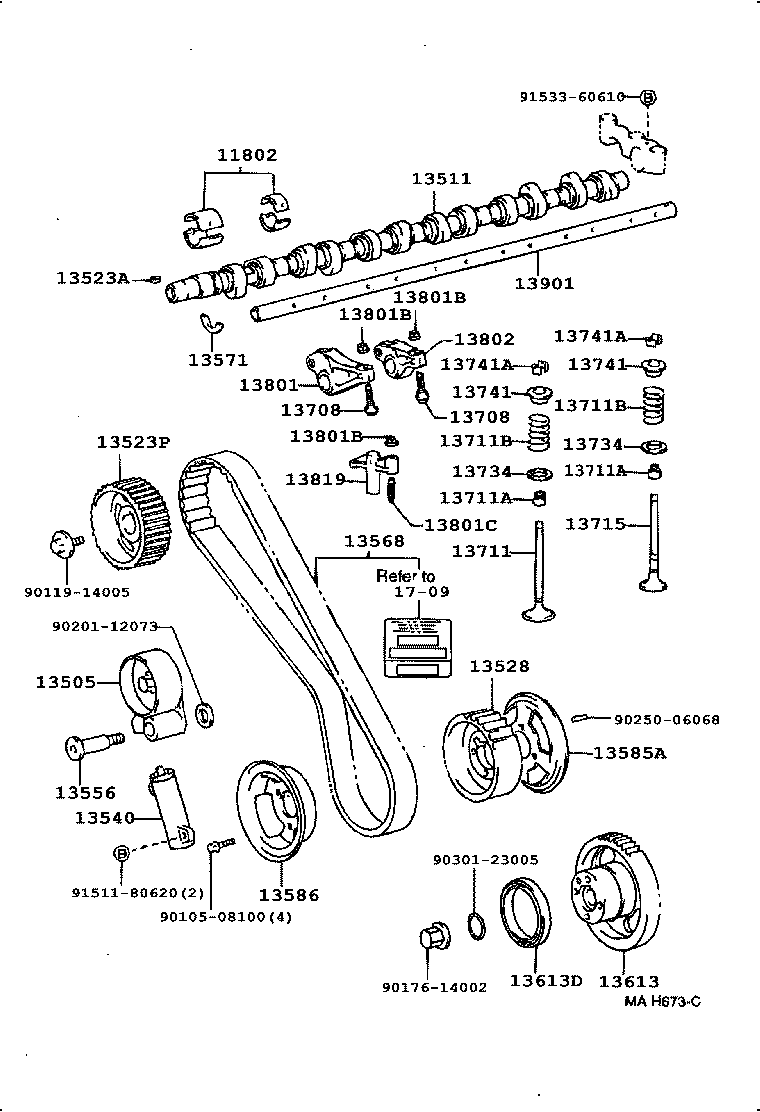

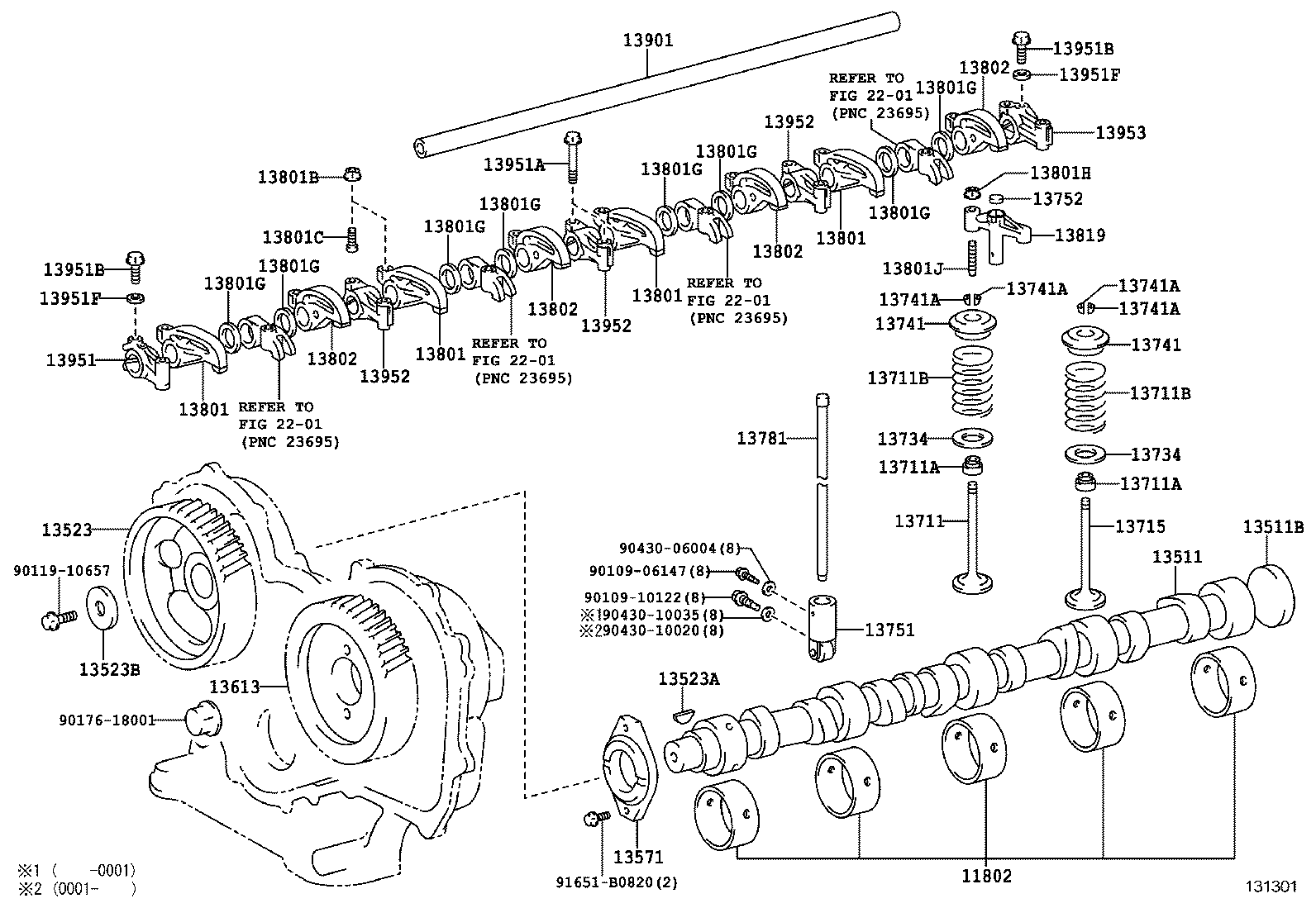

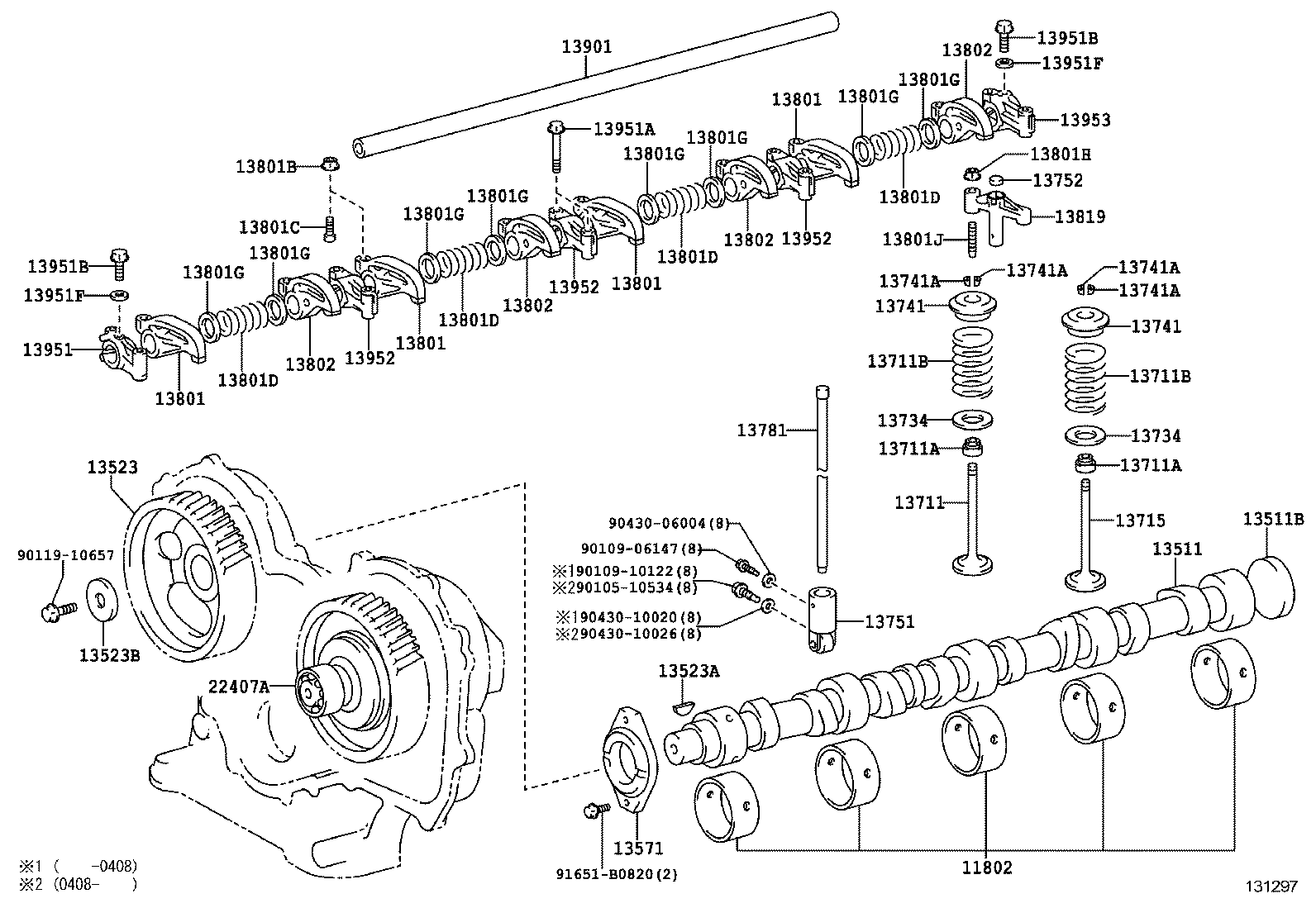

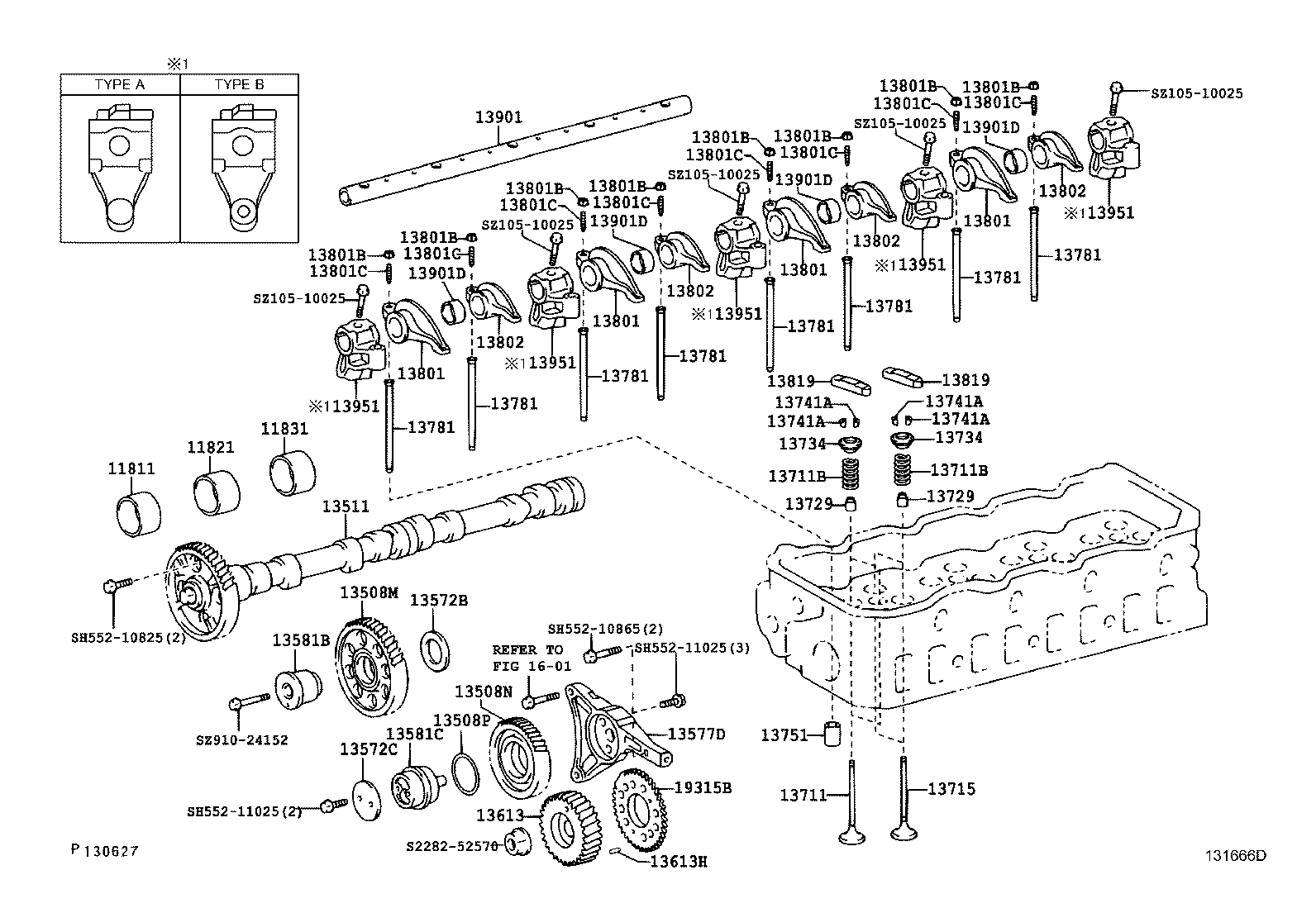

Figure 131296 131296 1993-01 → 1999-07 Figure 131302 131302 1995-12 → 1999-07 Figure 131301 131301 1999-07 → 2004-08 Figure 131297 131297 2002-03 → — Figure 130538 130538 1993-01 → 1997-05 Figure 131269 131269 1997-05 → 2004-08 Figure MAH673C MAH673C 1995-05 → 1999-07 Figure 130161 130161 1999-07 → 2004-08 Figure 131666D 131666D 2004-08 → —

Part groups

PNCDescription
11802 Bearing Set, Camshaft
11811 Bearing, Camshaft, NO.1
11821 Bearing, Camshaft, NO.2
11831 Bearing, Camshaft, NO.3
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13505C Pin(FOR IDLER SPRING TENSION)
13508M Gear Sub-assy, Idle, NO.1
13508N Gear Sub-assy, Idle, NO.2
13508P Ring, O(FOR IDLE GEAR)
13511 Camshaft
13511B Plug, Expansion(FOR CAMSHAFT)
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13528 Gear, Camshaft Drive
13540 Tensioner Assy, Chain, NO.1
13556 Shaft, Timing Belt Idler
13568 Belt, Timing
13571 Plate, Camshaft Thrust
13572B Plate, Idle Gear Thrust, NO.1
13572C Plate, Idle Gear Thrust, NO.2
13577D Plate, Lock
13581B Shaft, Idle Gear, NO.1
13581C Shaft, Idle Gear. NO.2
13585A Flange, Camshaft Timing Pulley, NO.1
13586 Flange, Camshaft Timing Pulley, NO.2
13613 Gear, Injection Pump Drive
13613D Bearing, Radial Ball
13613H Pin, Straight(FOR INJECTION PUMP DRIVE GEAR)
13708 Screw Sub-assy, Valve Adjusting
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13716 Cap, Valve Stem
13729 Shield, Valve Stem Oil
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13752 Pad, Valve Lifter
13753 Shim, Valve Adjusting
13781 Rod, Valve Push
13801 Arm Sub-assy, Valve Rocker, NO.1
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13801G Washer, Plate(FOR VALVE ROCKER ARM)
13801H Nut
13801J Screw, Valve Adjusting
13802 Arm Sub-assy, Valve Rocker, NO.2
13819 Bridge, Valve
13901 Shaft Sub-assy, Valve Rocker, NO.1
13901D Collar(FOR VALVE ROCKER SHAFT)
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951B Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
13951F Washer, Plate(FOR VALVE ROCKER SUPPORT)
13952 Support, Valve Rocker, NO.2
13953 Support, Valve Rocker, NO.3
19315B Plate, Crank Angle Sensor
22407A Gear Sub-assy, Distributor Drive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
