Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

50 part groups · 13 illustrations

Illustrations

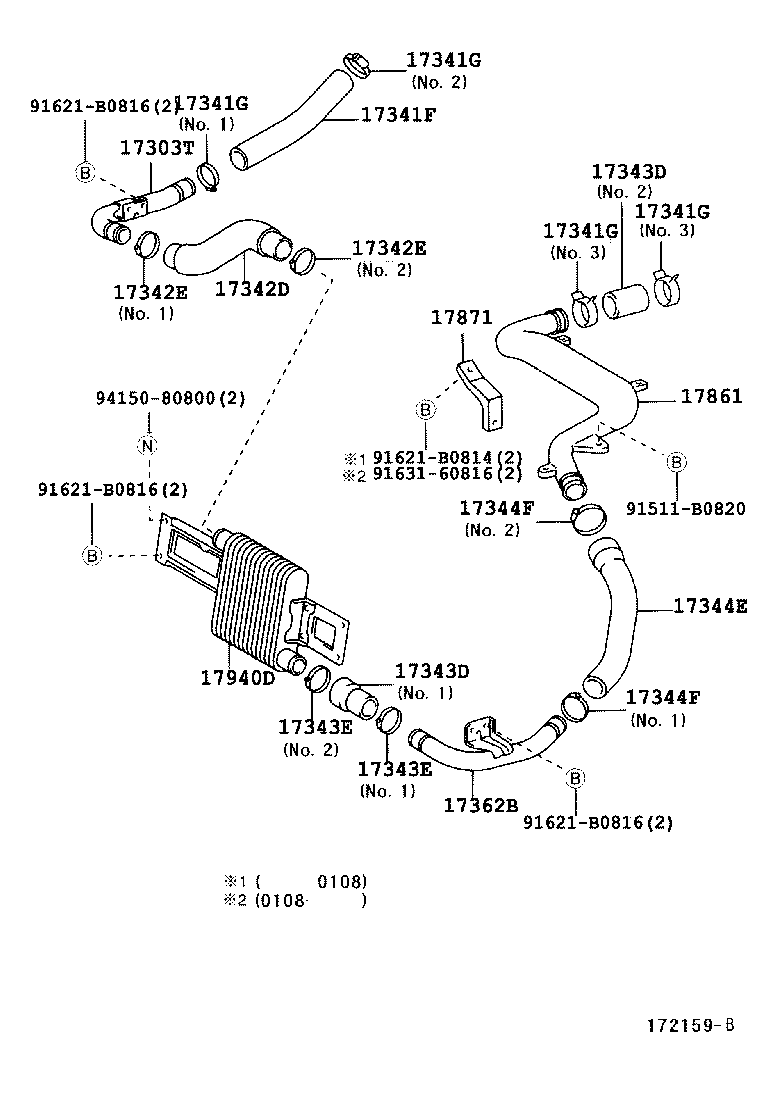

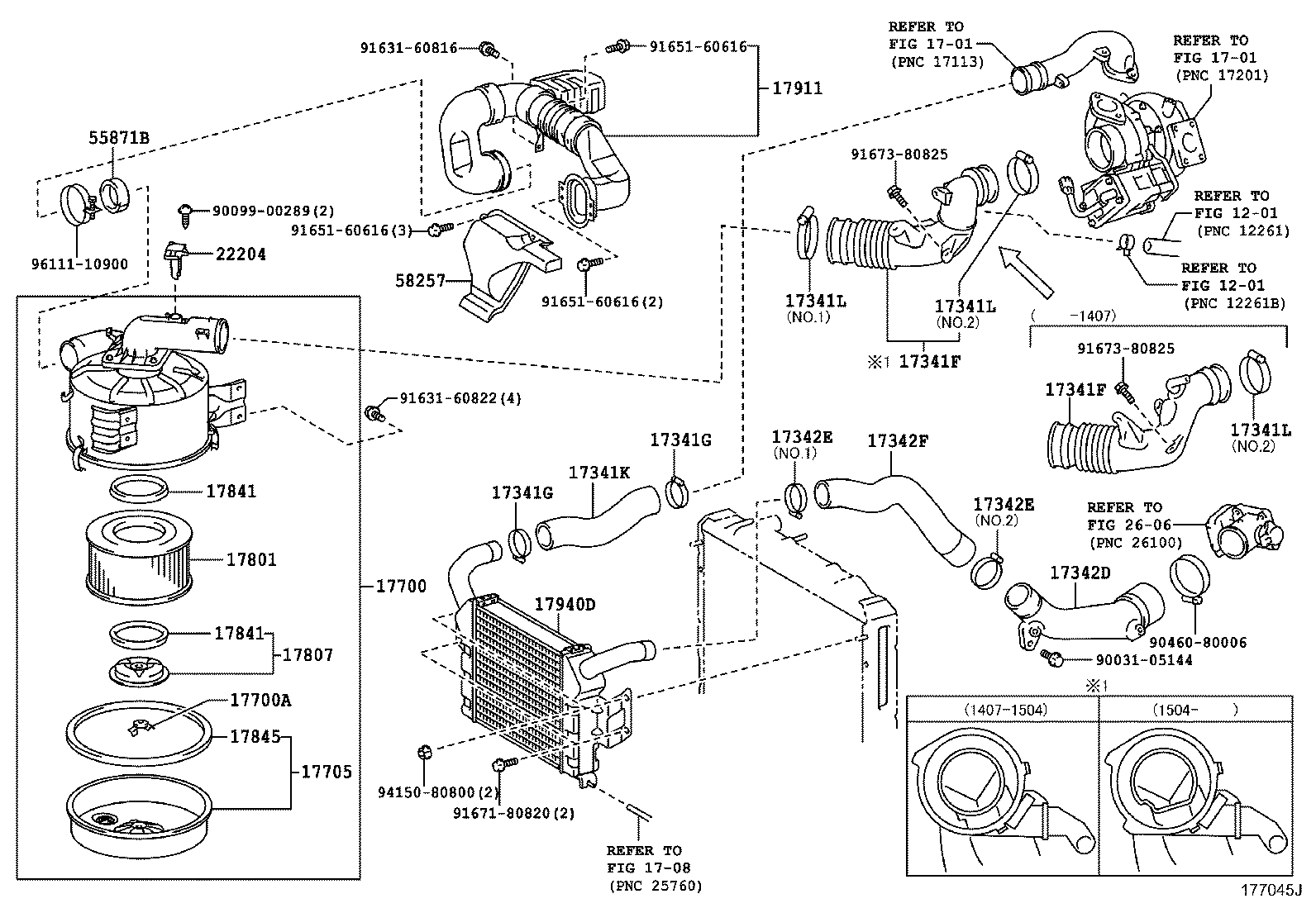

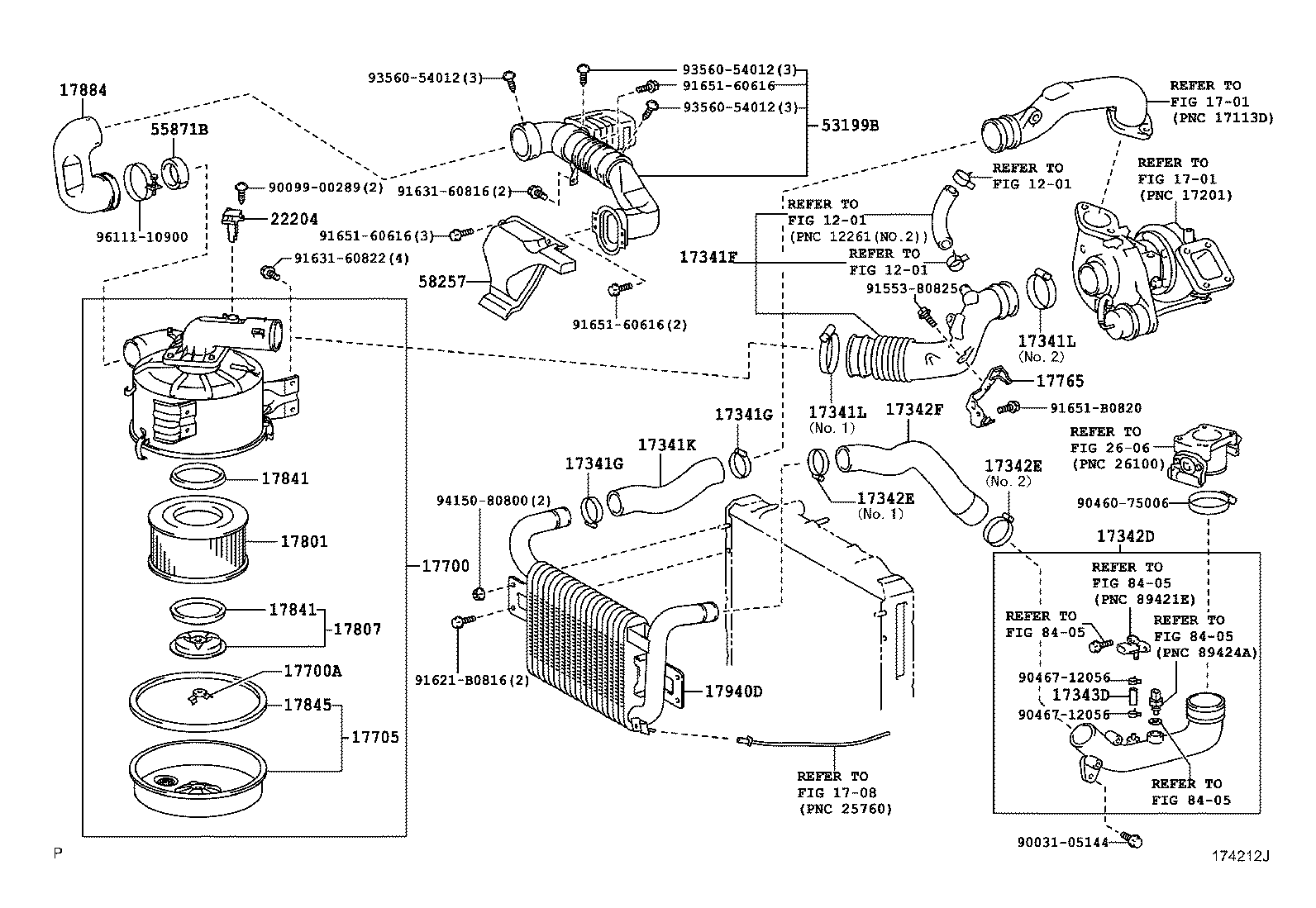

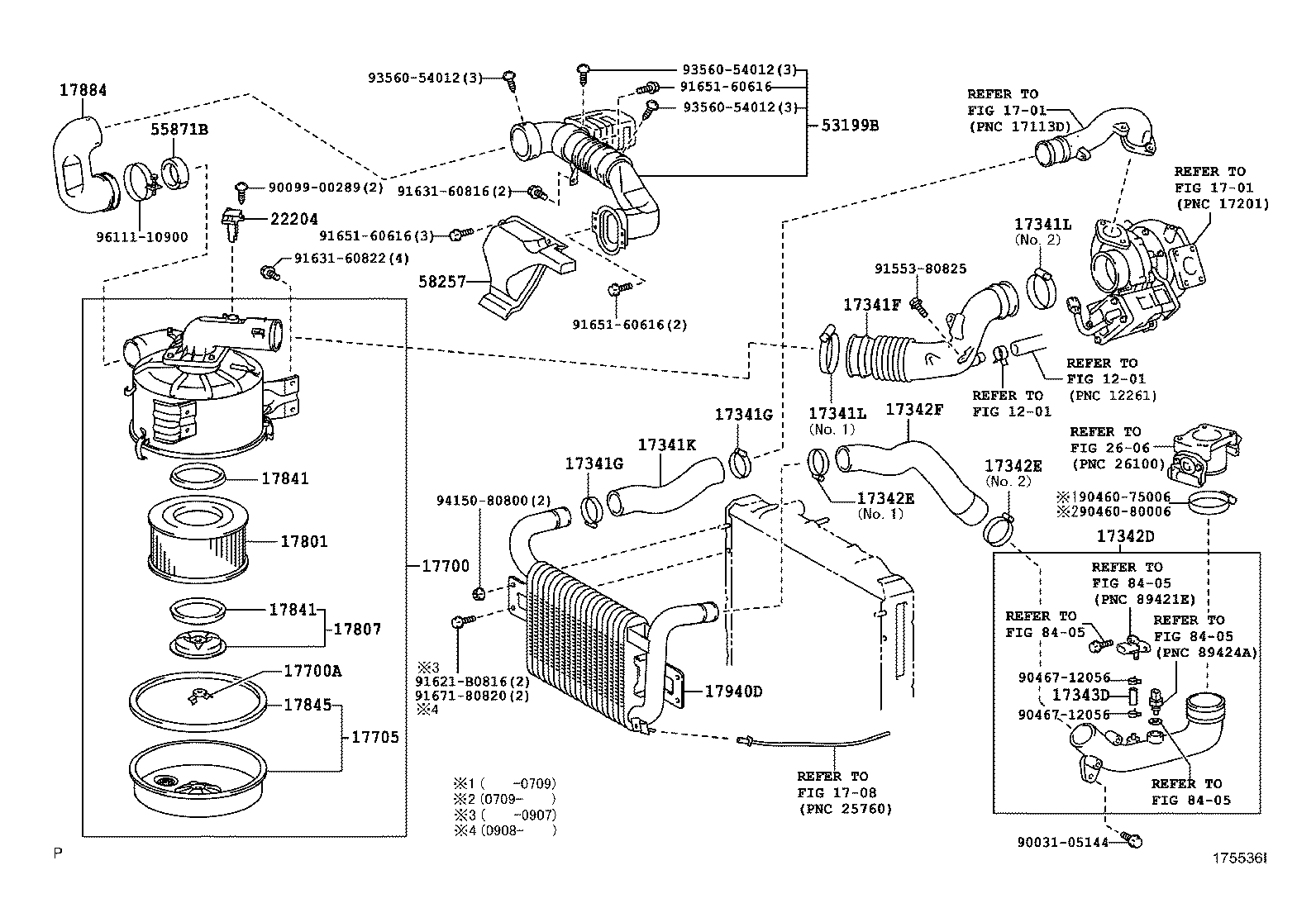

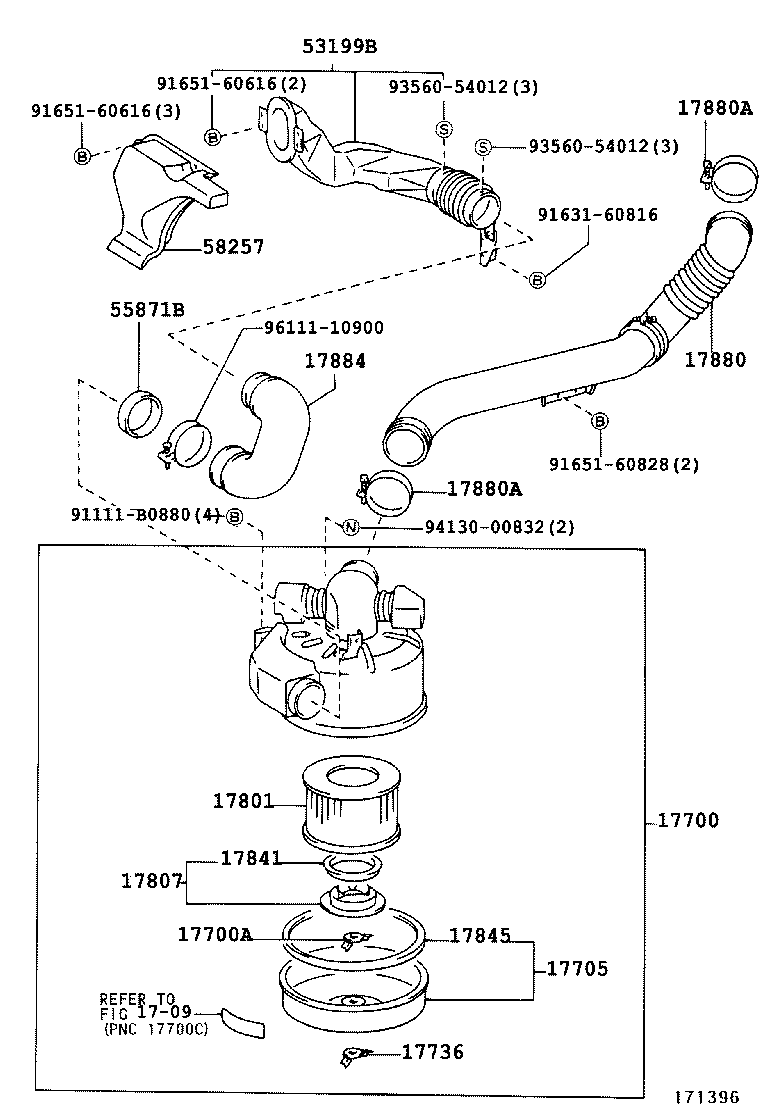

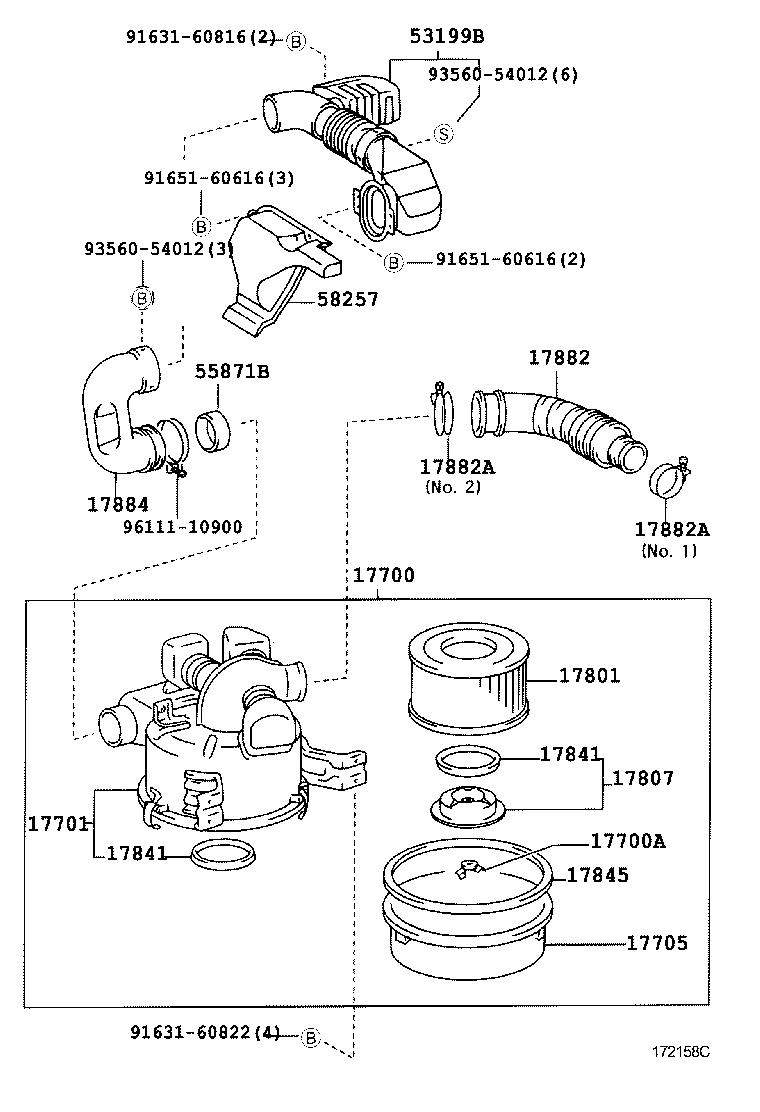

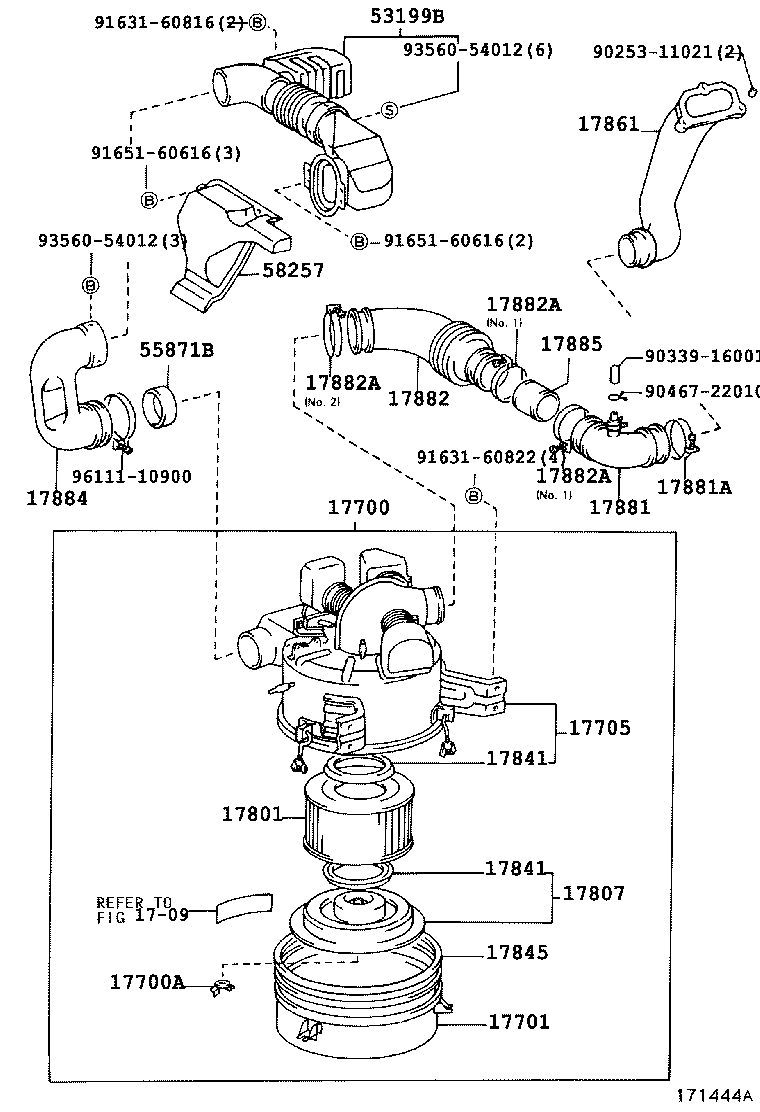

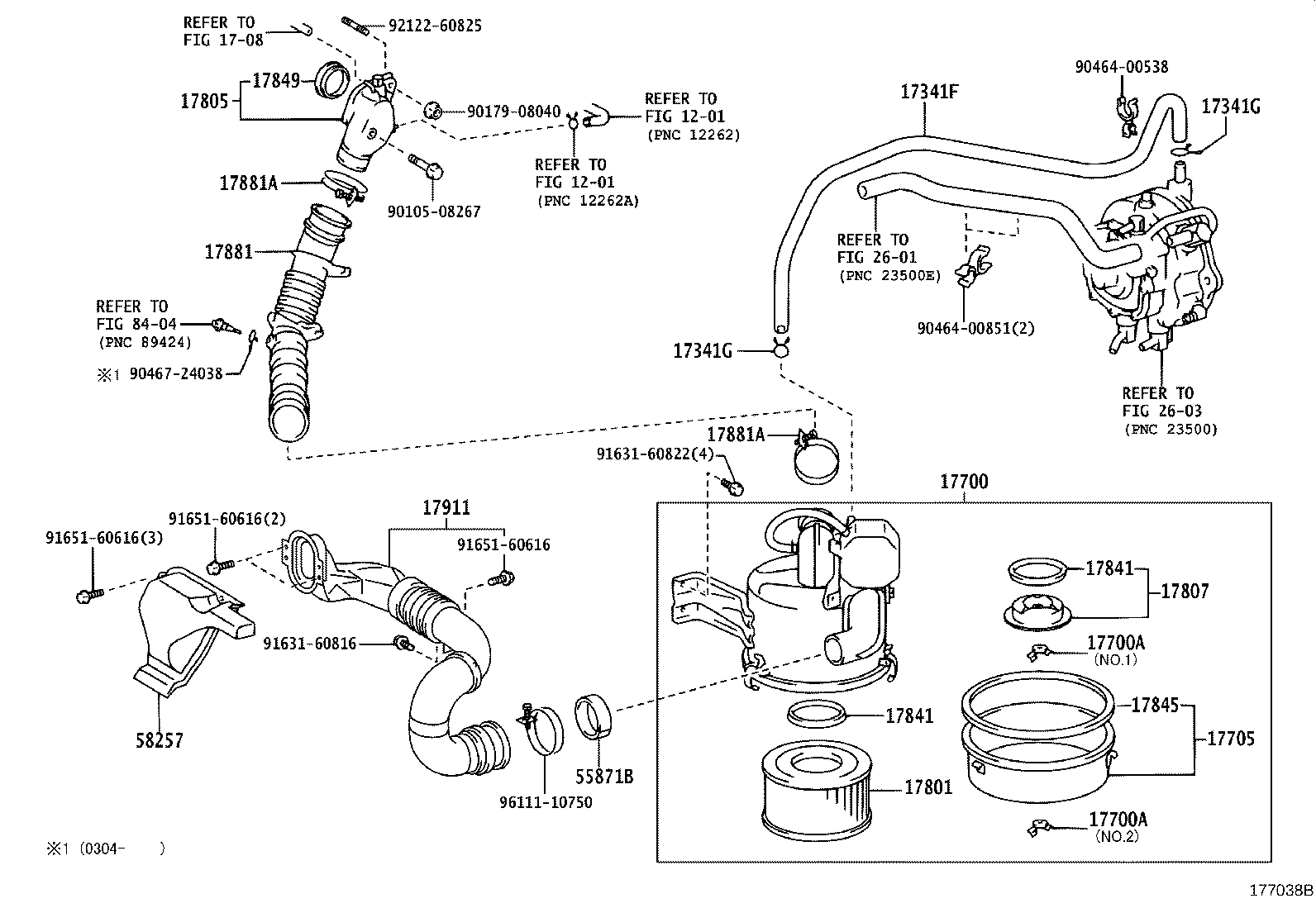

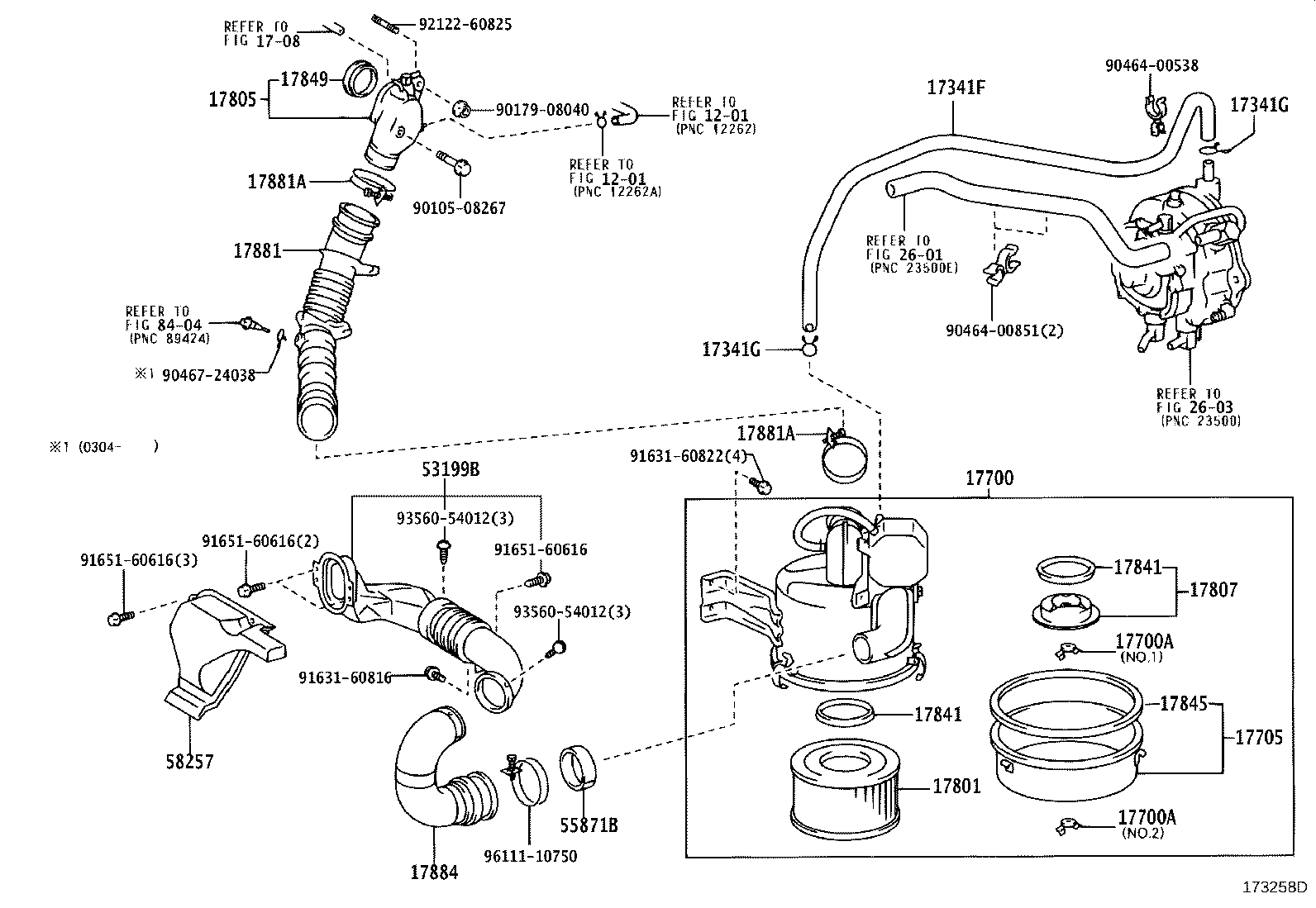

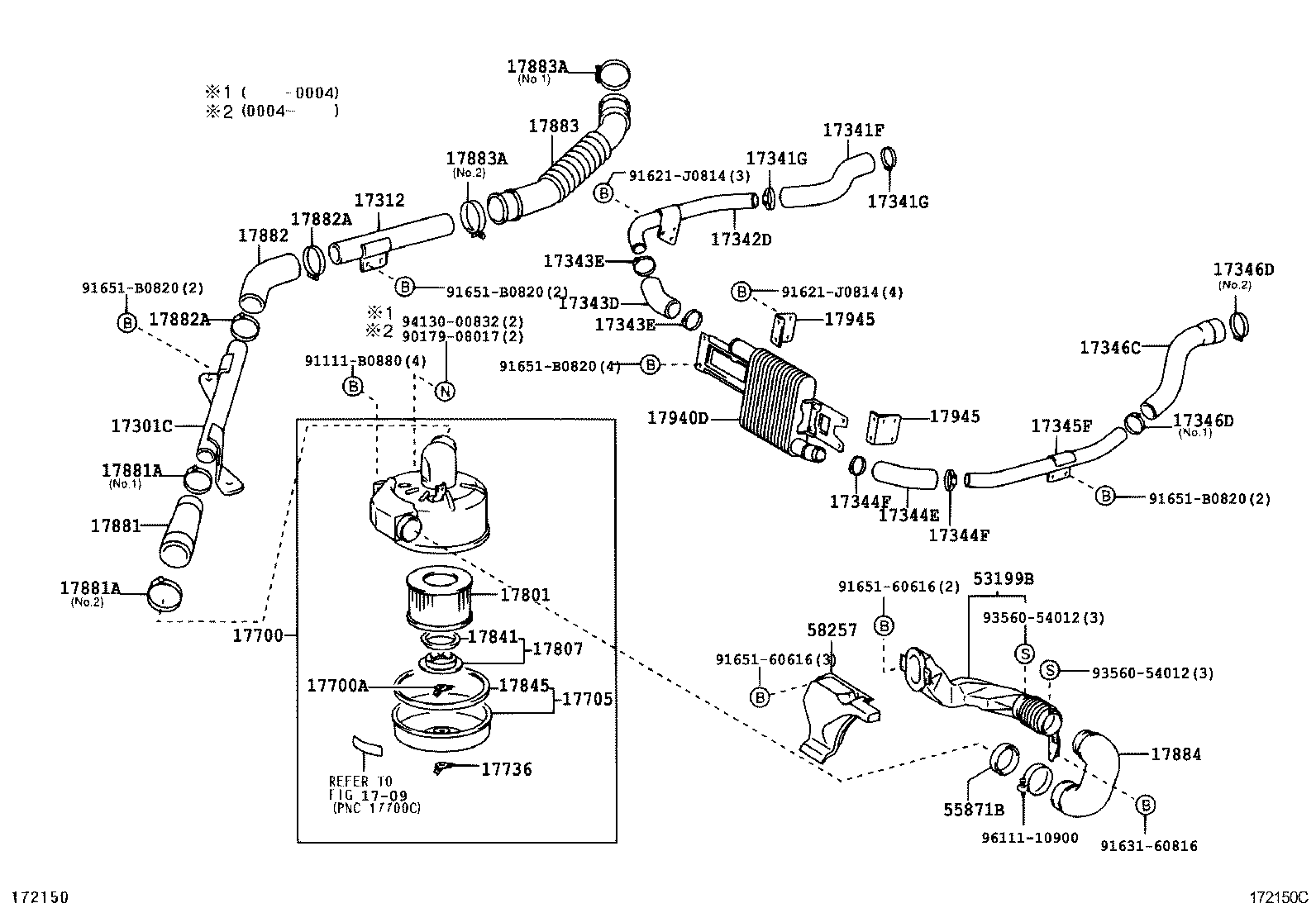

Figure 171395 171395 1993-01 → 1999-07 Figure 171396 171396 1995-12 → 1999-07 Figure 172150C 172150C 1999-07 → 2004-08 Figure 173258D 173258D 2002-03 → 2011-08 Figure 177038B 177038B 2011-08 → — Figure 171444A 171444A 1993-01 → 1999-07 Figure 172157C 172157C 1999-07 → 2004-08 Figure 171445 171445 1993-01 → 1999-07 Figure 172158C 172158C 1999-07 → 2004-08 Figure 172159B 172159B 1999-07 → 2004-08 Figure 174212J 174212J 2004-08 → 2007-08 Figure 175536I 175536I 2007-08 → 2011-08 Figure 177045J 177045J 2011-08 → —

Part groups

PNCDescription
17301C Duct Sub-assy, Air Inlet, NO.1
17303T Pipe Sub-assy, Air
17312 Duct, Air Inlet, NO.2
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17345F Hose, Air, NO.5
17346C Hose, NO.6
17346D Clamp OR Clip(FOR AIR HOSE NO.6)
17362B Tube, Air, NO.2
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17736 Nut, Air Cleaner Case
17765 Stay, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17871 Stay, Air Connector
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17885 Pipe, Air Cleaner
17911 Duct, Cool Air Intake, NO.1
17940D Intercooler Assy
17945 Bracket, Intercooler Support
22204 Meter Sub-assy, Intake Air Flow
22817A Bracket, Pump Stay
53199B Duct Sub-assy, Cool Air Intake
55871B Seal, Air Duct
58257 Plate, Air Cleaner House
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
