Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

26 part groups · 11 illustrations

Illustrations

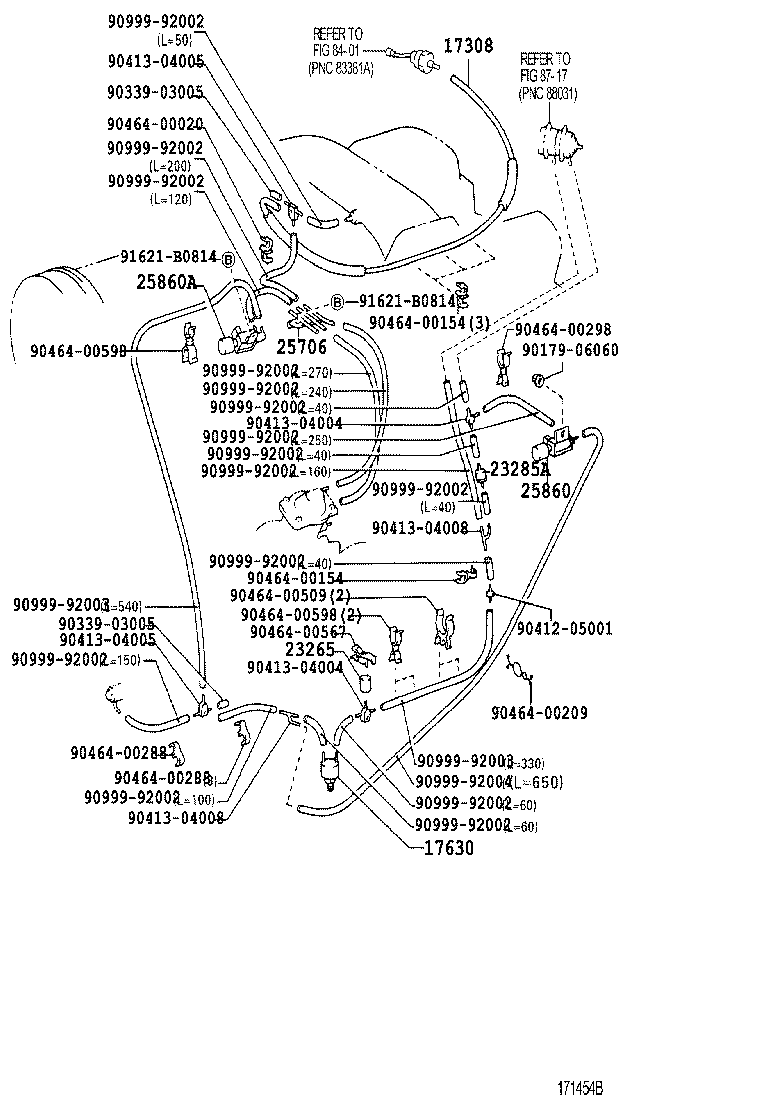

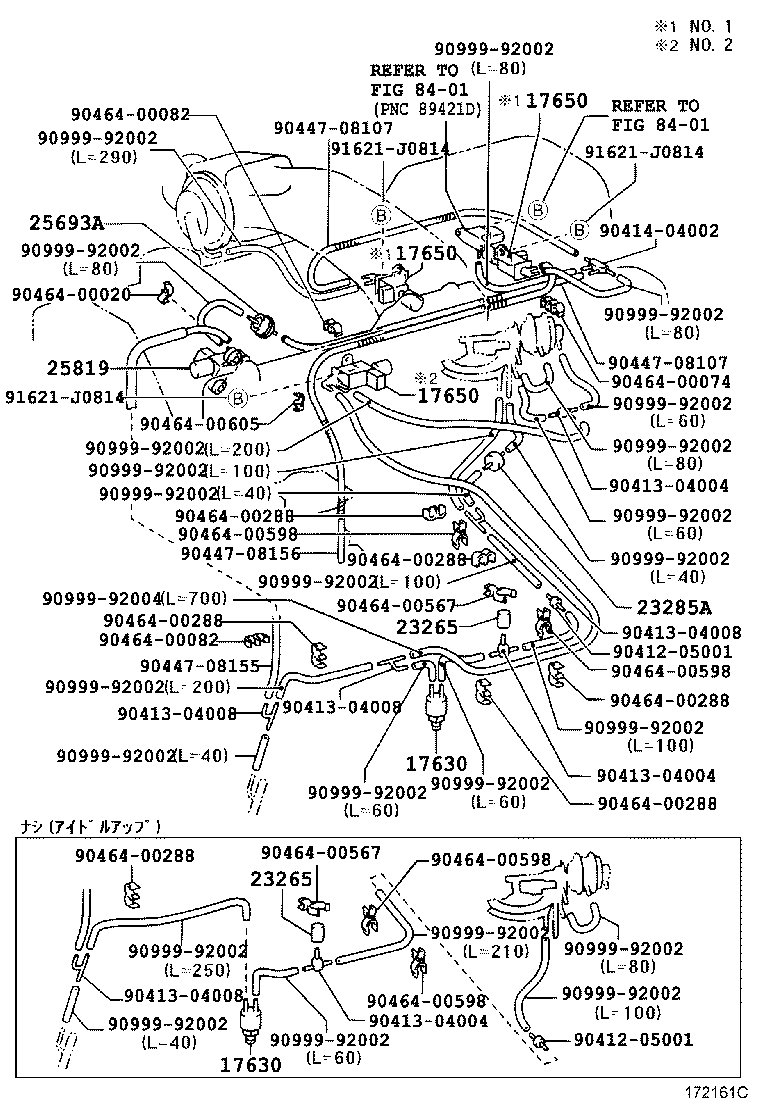

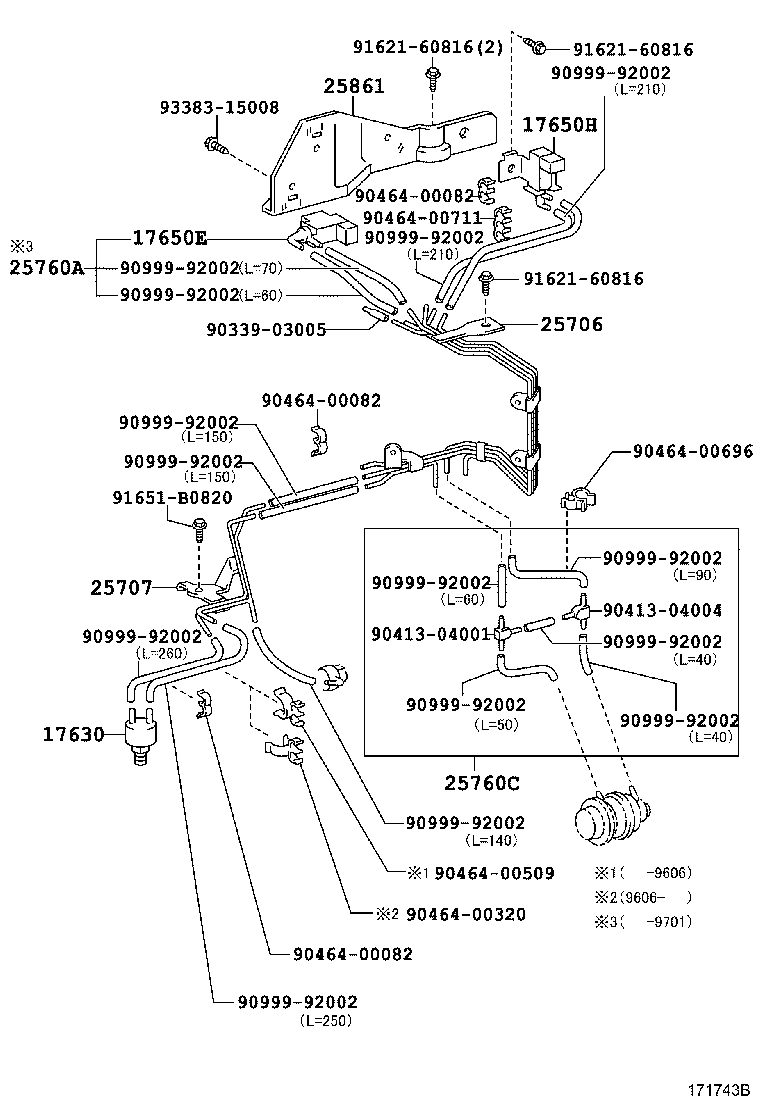

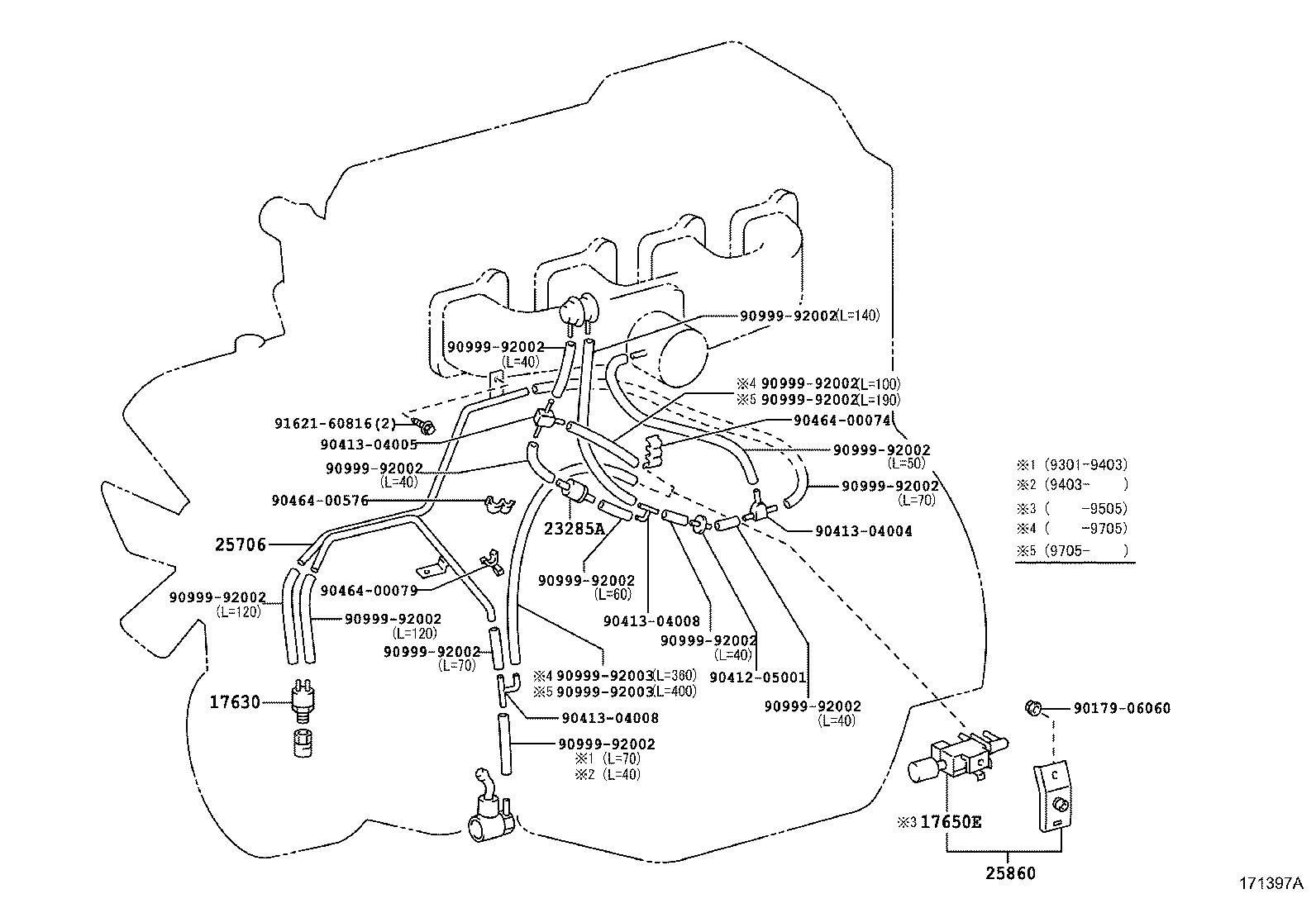

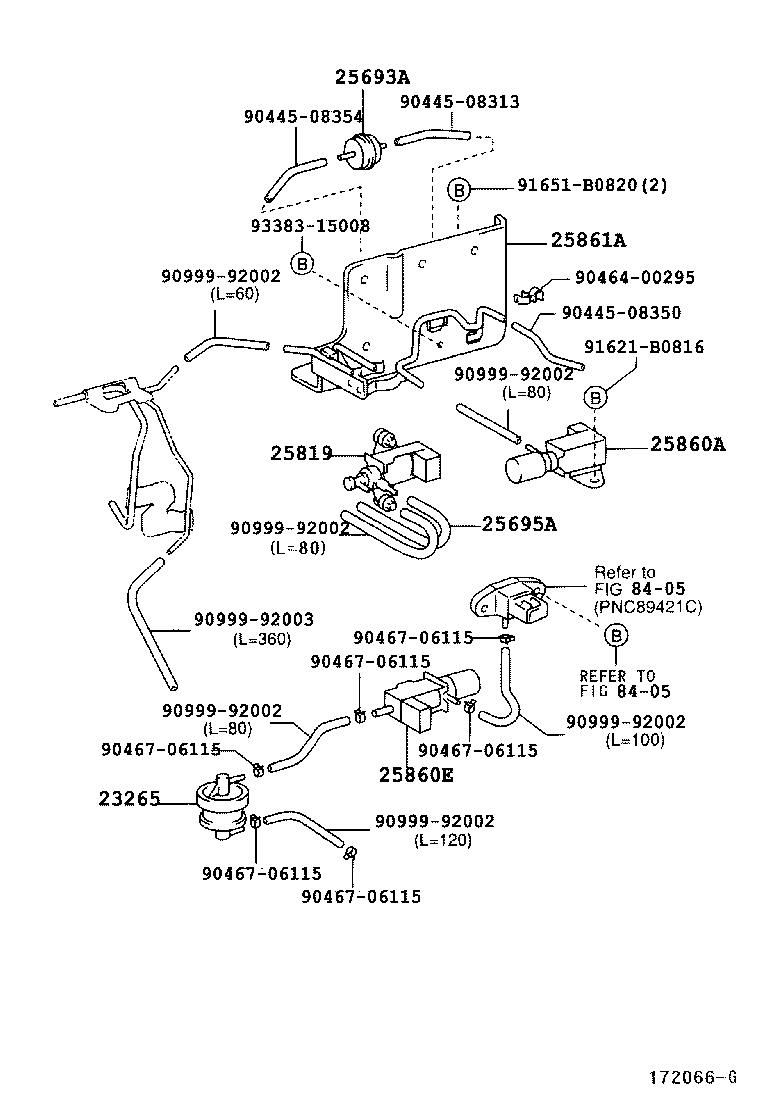

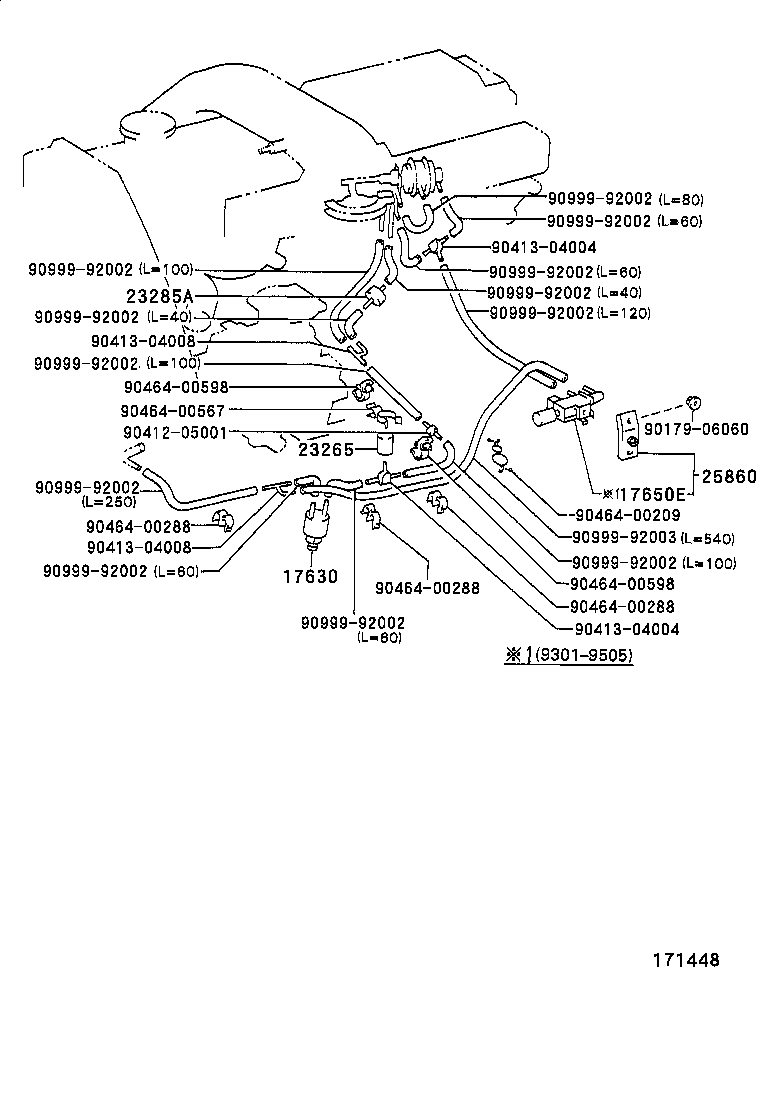

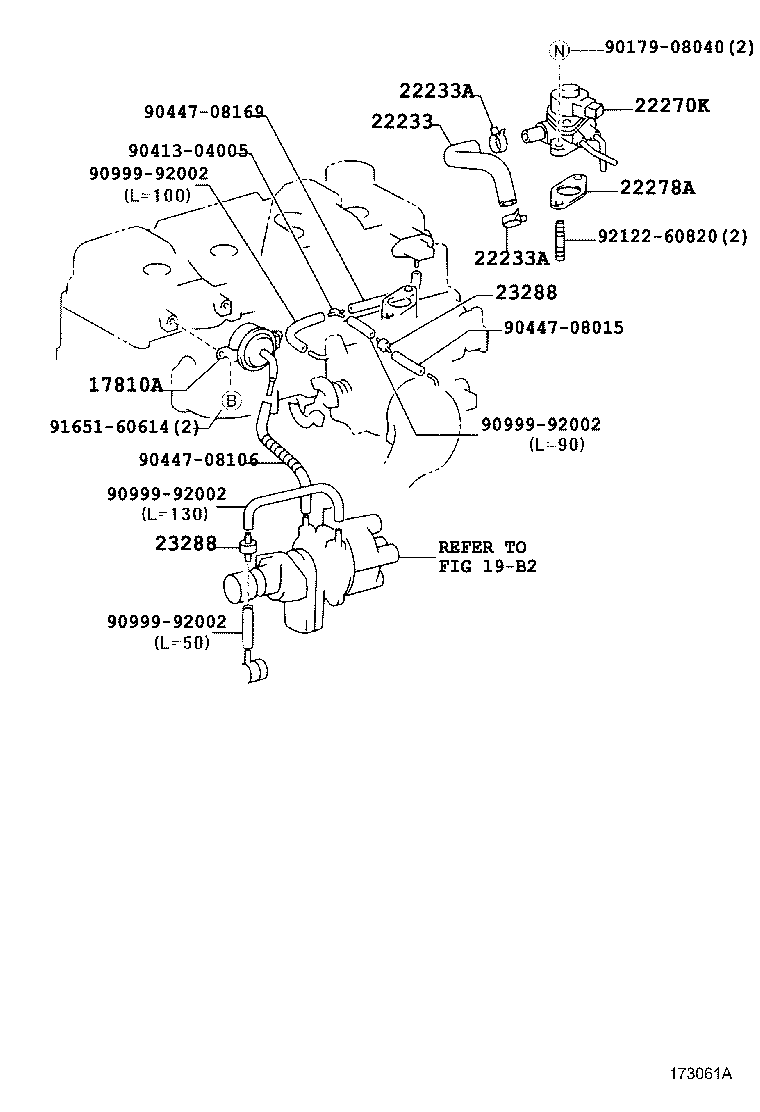

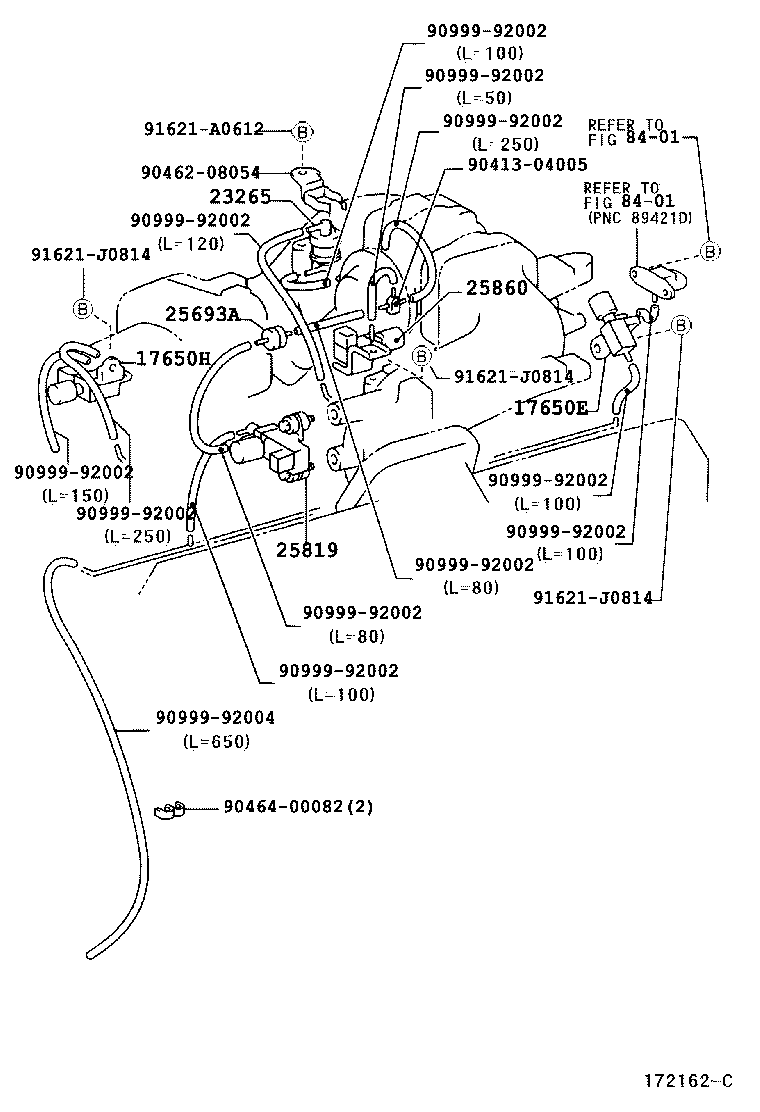

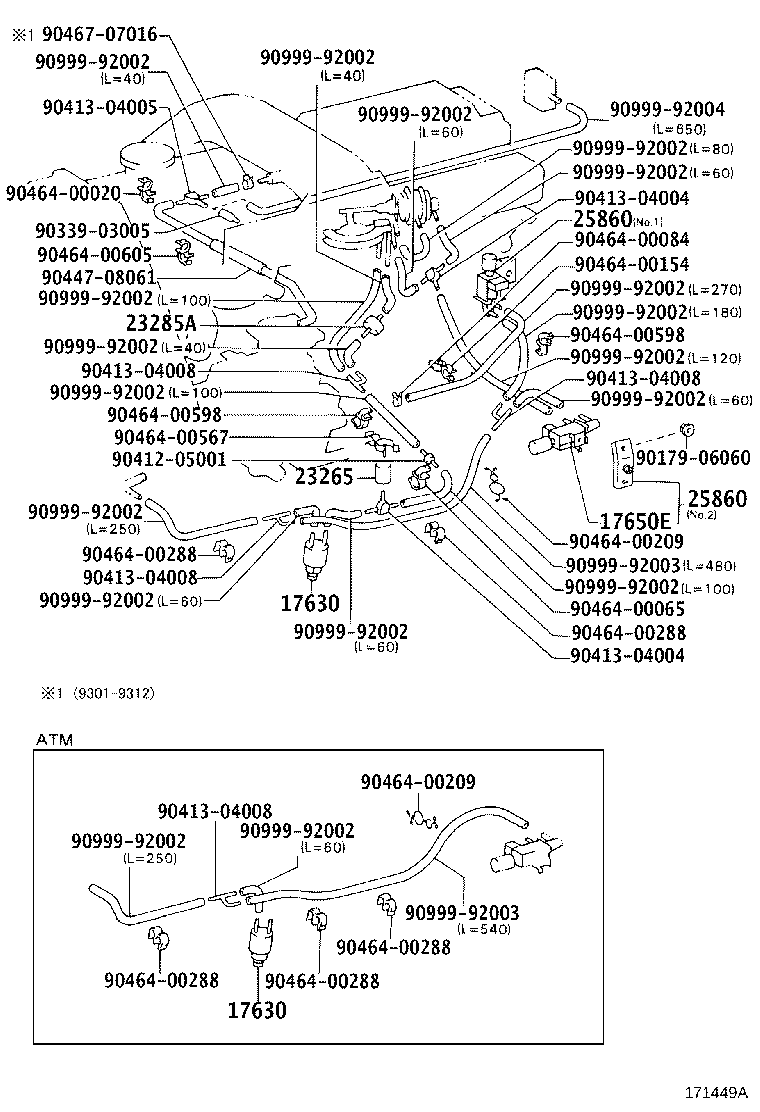

Figure 170020 170020 1993-01 → — Figure 171397A 171397A 1993-01 → 1999-07 Figure 171743B 171743B 1995-12 → 1999-07 Figure 172066G 172066G 1999-07 → 2004-08 Figure 173061A 173061A 2002-03 → — Figure 171448 171448 1993-01 → 1999-07 Figure 172161C 172161C 1999-07 → — Figure 171454B 171454B 1995-05 → 1999-07 Figure 171449A 171449A 1993-01 → 1995-05 Figure 172162C 172162C 1999-07 → — Figure 174213A 174213A 2004-08 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650H Valve, Vacuum Switching
17810A Filter Assy, Air
22233 Hose, Lpg Auxiliary Air Valve, NO.1
22233A Clip(FOR LPG AUXILIARY AIR VALVE NO.1)
22270K Valve Assy, Lpg Idle Speed Control
22278A Gasket, Lpg Idle Speed Control Valve
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25693A Damper, Egr Vacuum Modulator
25695A Hose, Egr Vacuum Modulator
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25760C Hose Assy, Vacuum Transmitting, NO.3
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
