Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

20 part groups · 6 illustrations

Illustrations

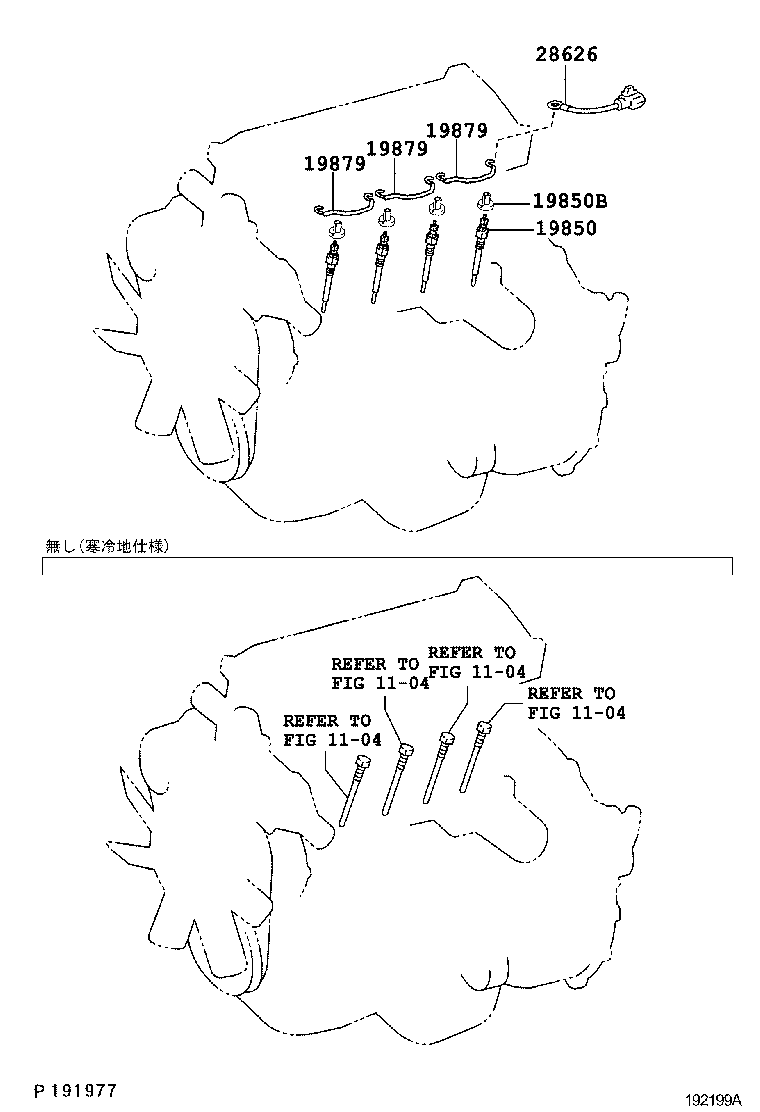

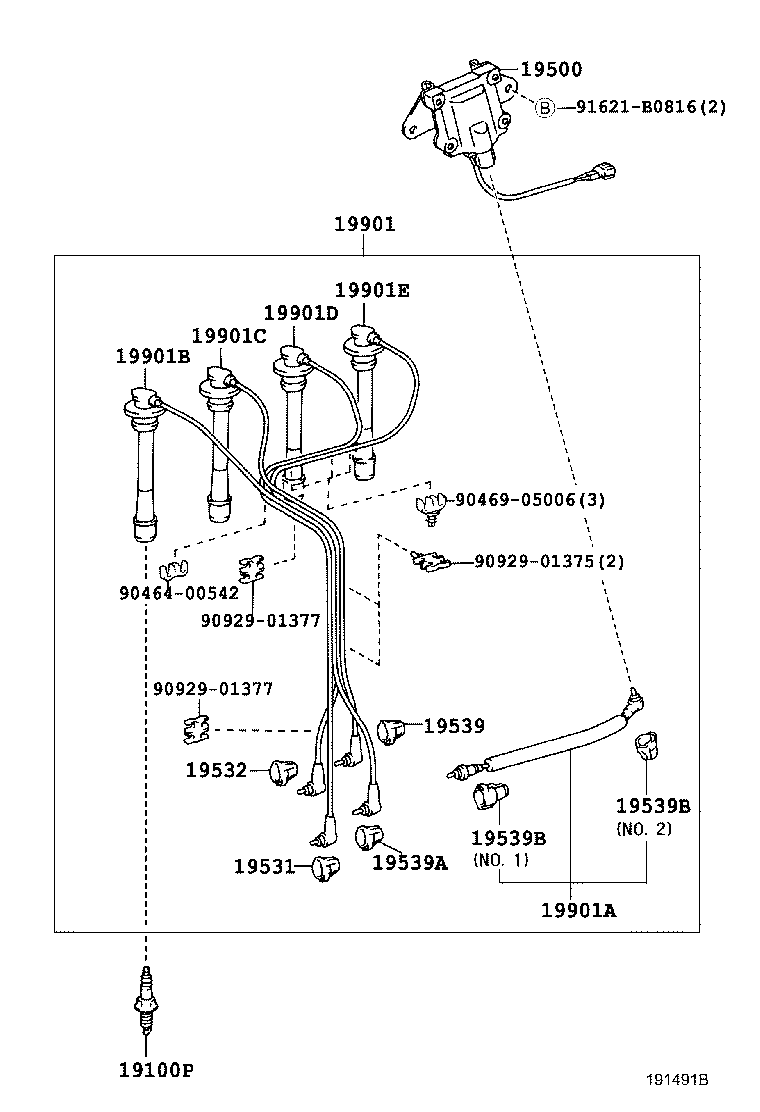

Figure MAG340 MAG340 1993-01 → 1999-07 Figure 190941A 190941A 1995-12 → — Figure 191491B 191491B 2002-03 → — Figure MAF908 MAF908 1993-01 → 2004-08 Figure 190666B 190666B 1999-07 → 2004-08 Figure 192199A 192199A 2004-08 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19531 Holder, Resistive Cord, NO.1
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19539A Holder, Resistive Code, NO.5
19539B Holder, Resistive Code, NO.6
19810 Heater Assy, Intake
19829A Gasket, Intake Heater
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19879 Wire, Glow Plug Ground
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
28626 Wire, Glow Plug
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
