Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

62 part groups · 12 illustrations

Illustrations

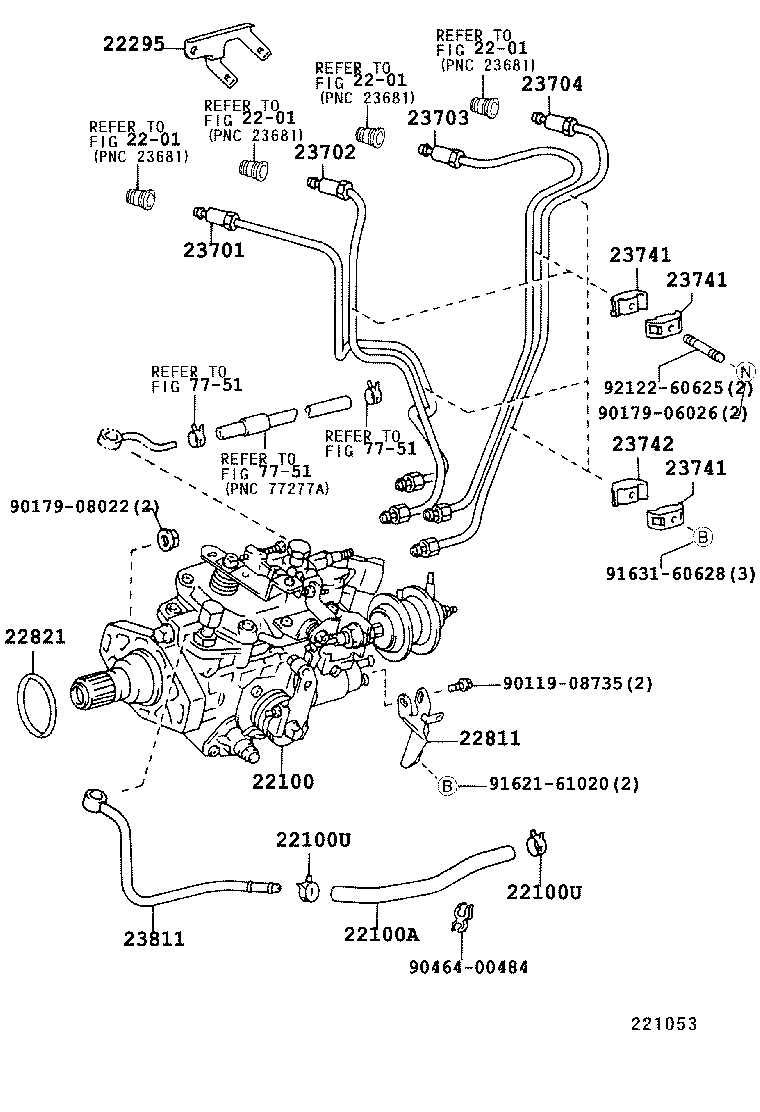

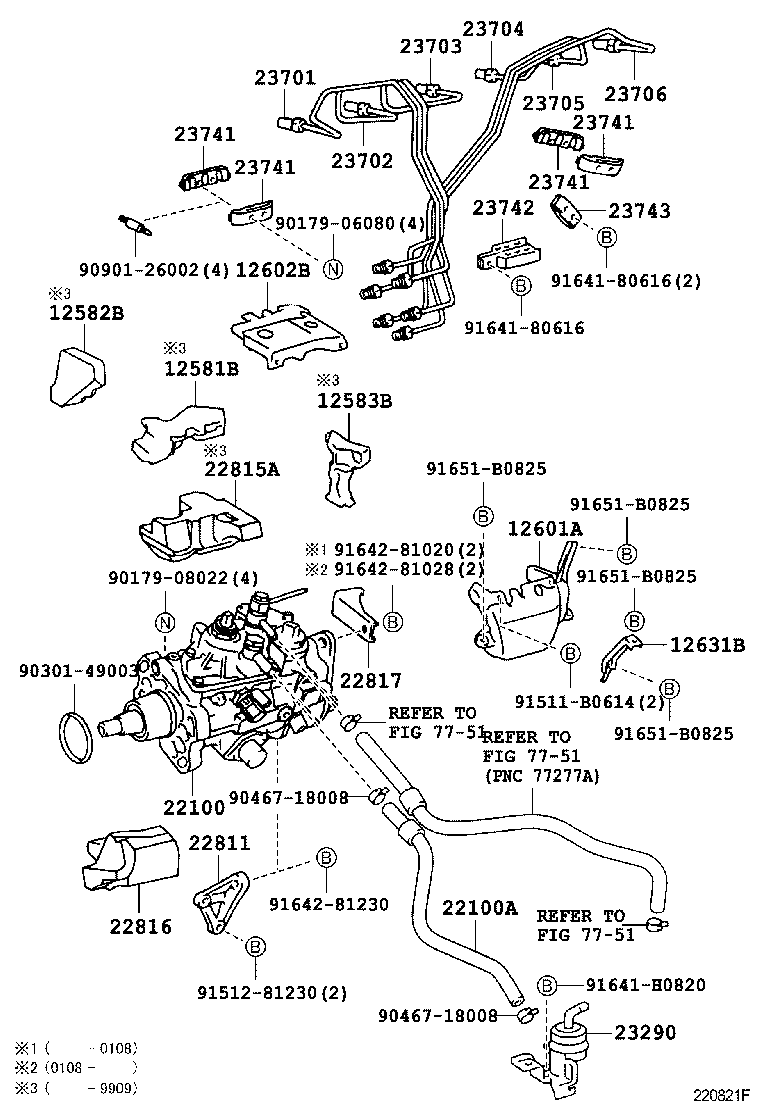

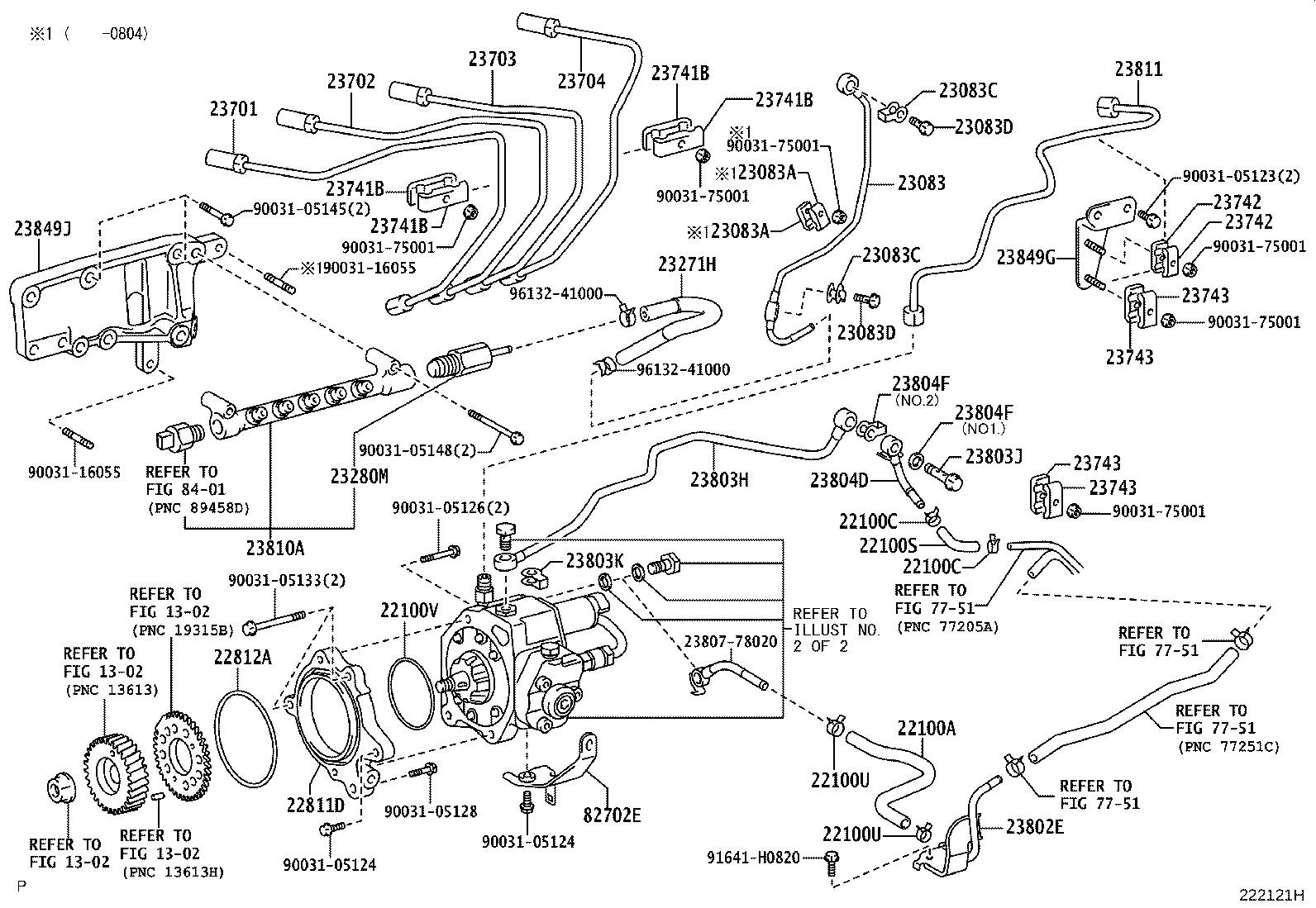

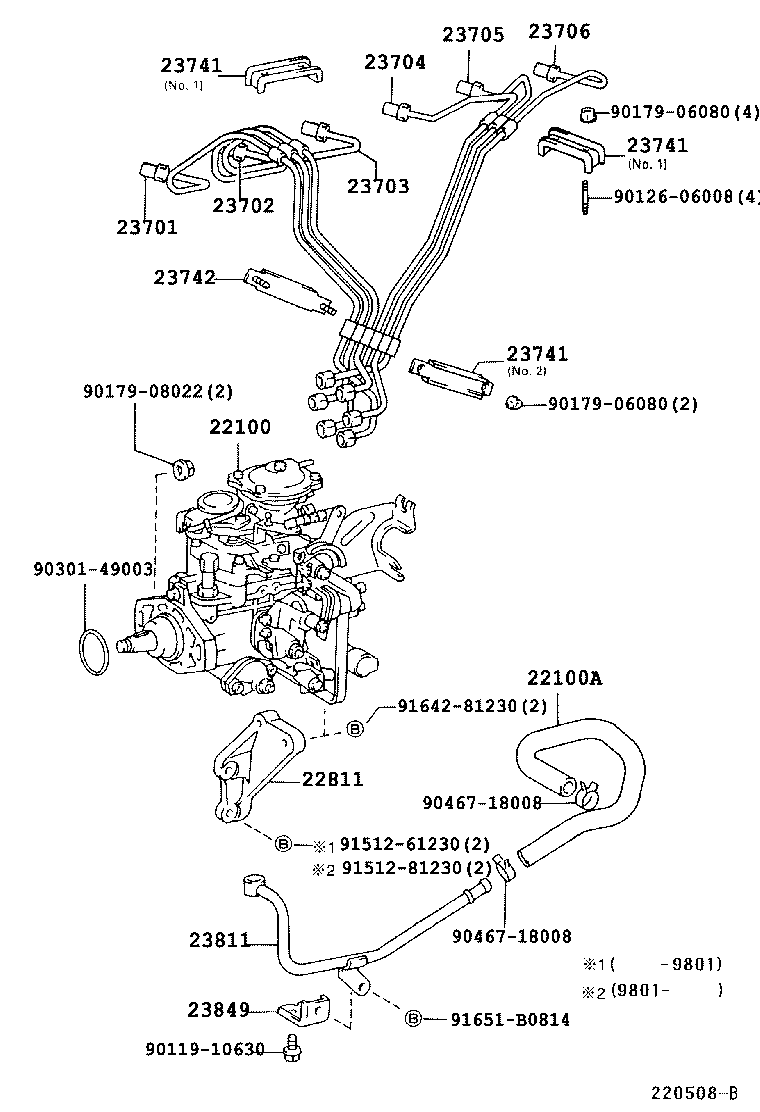

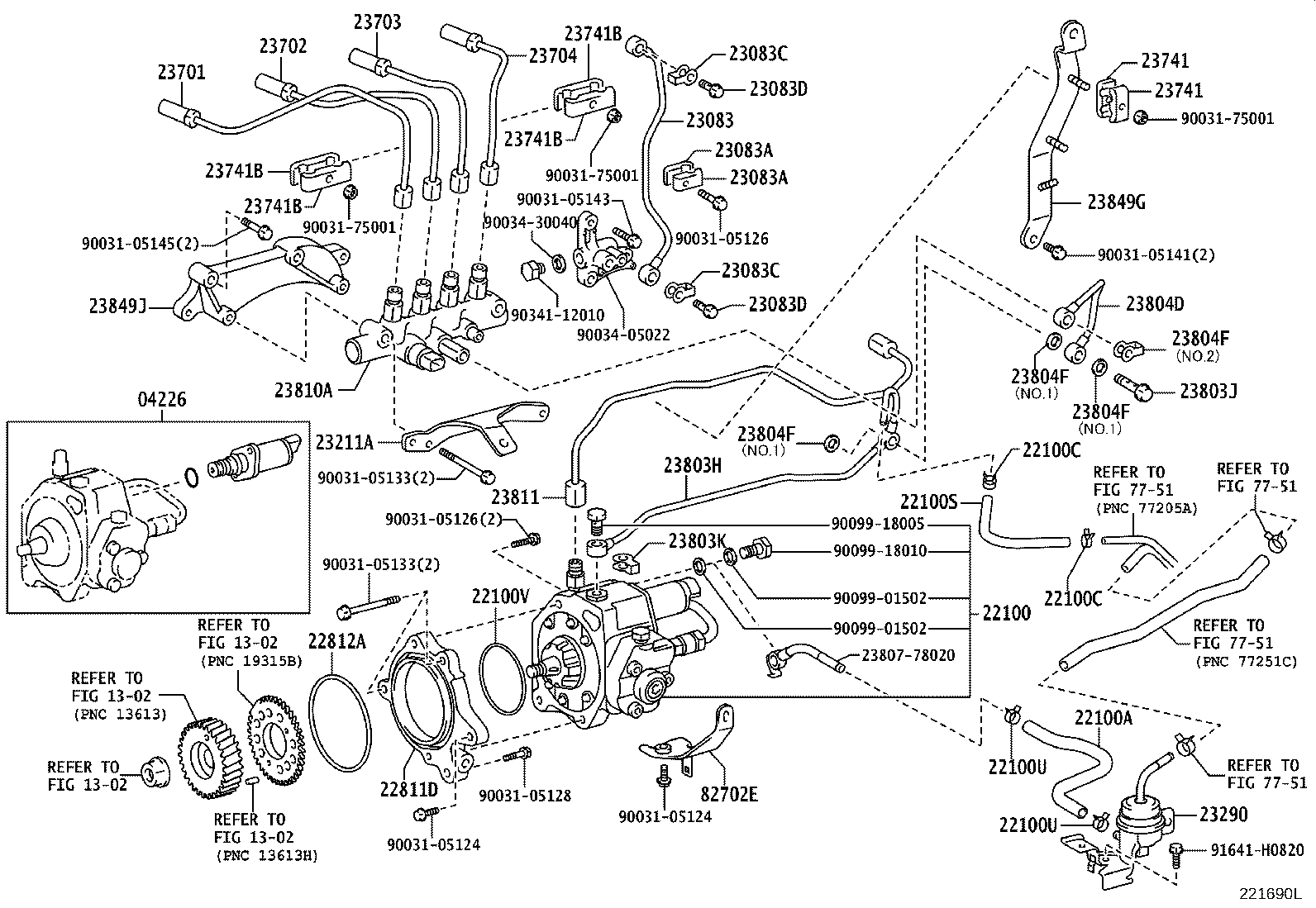

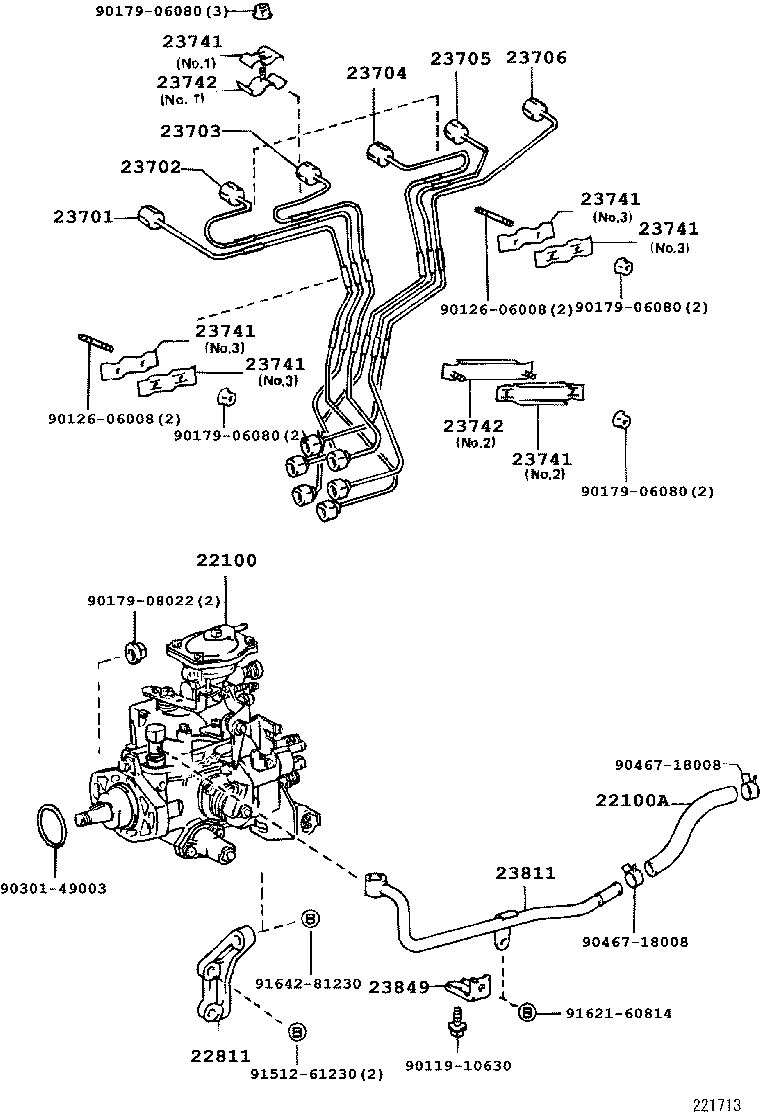

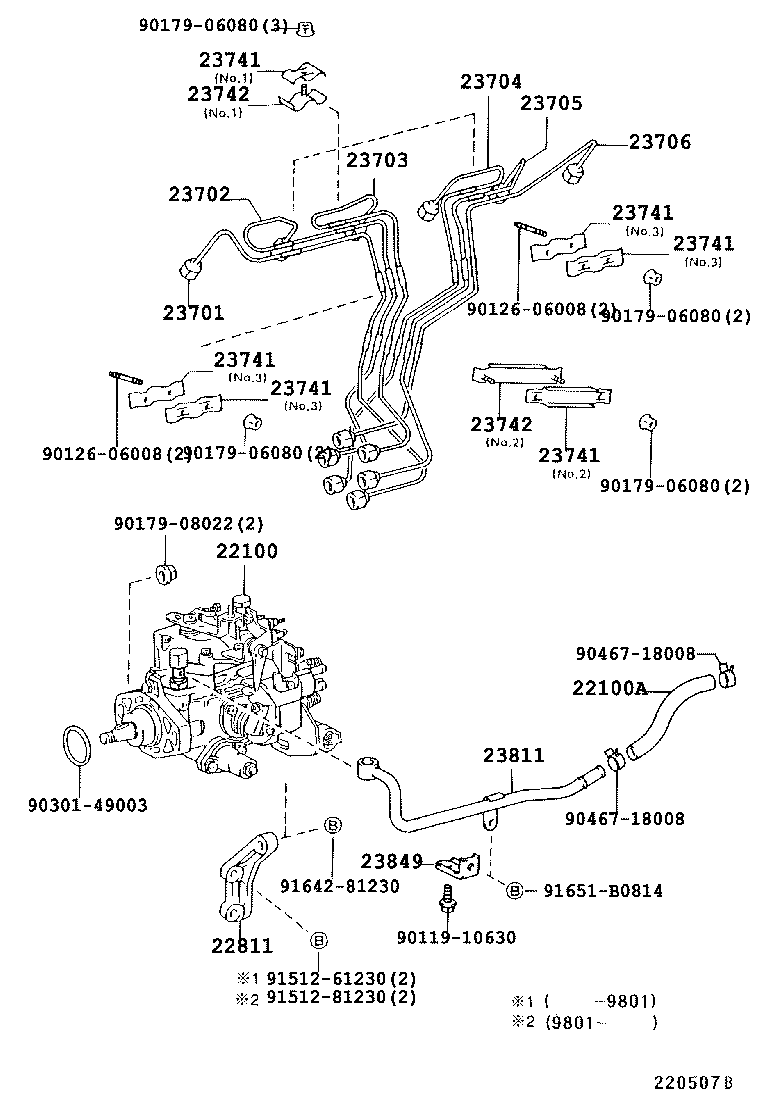

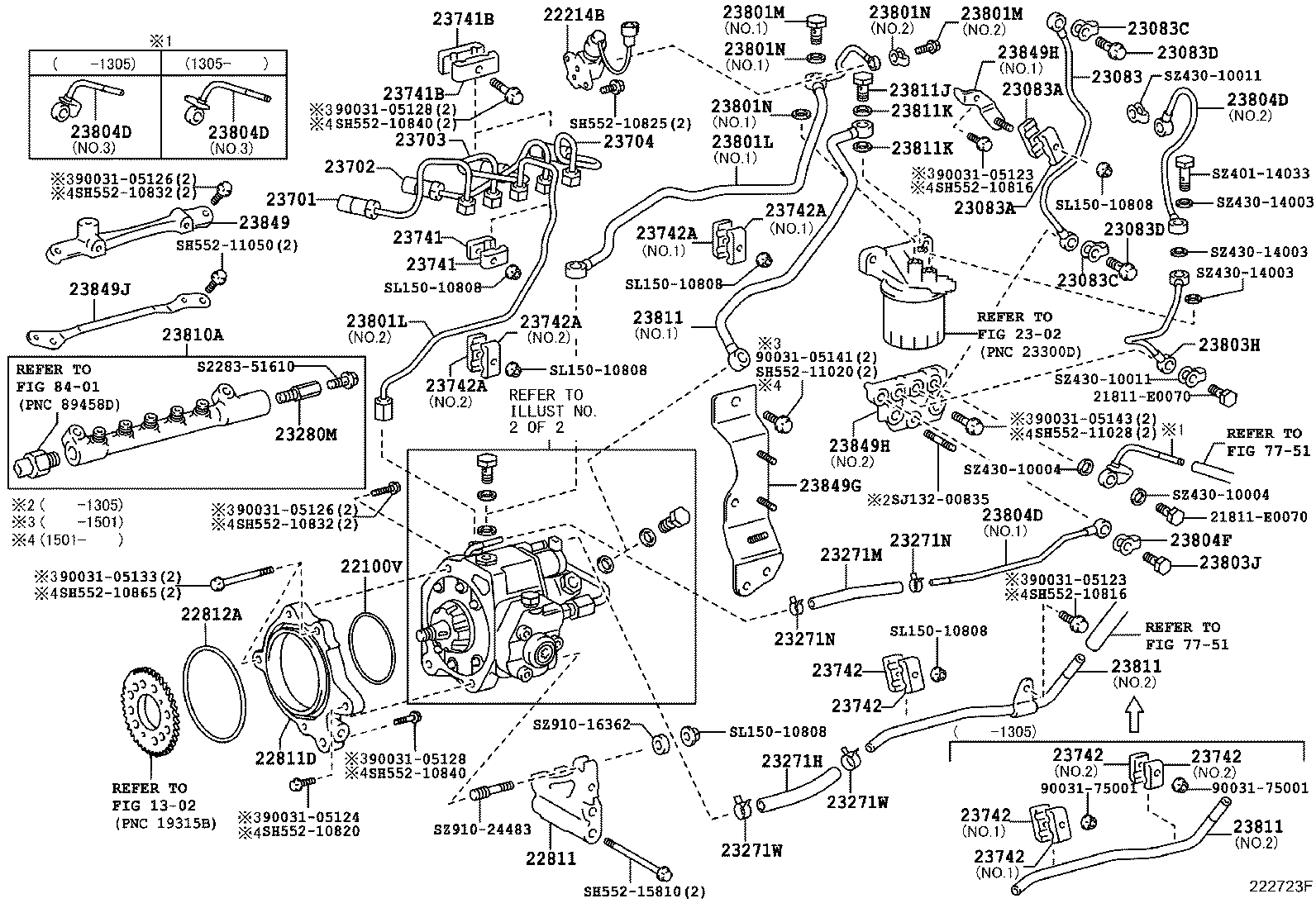

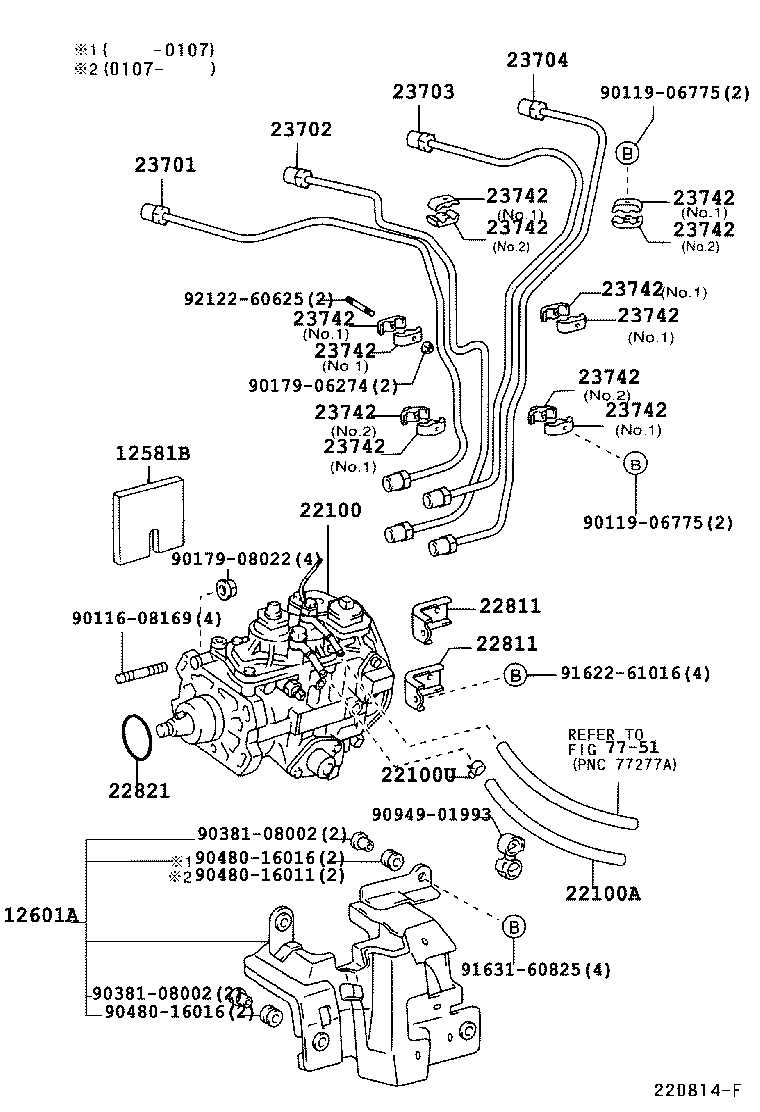

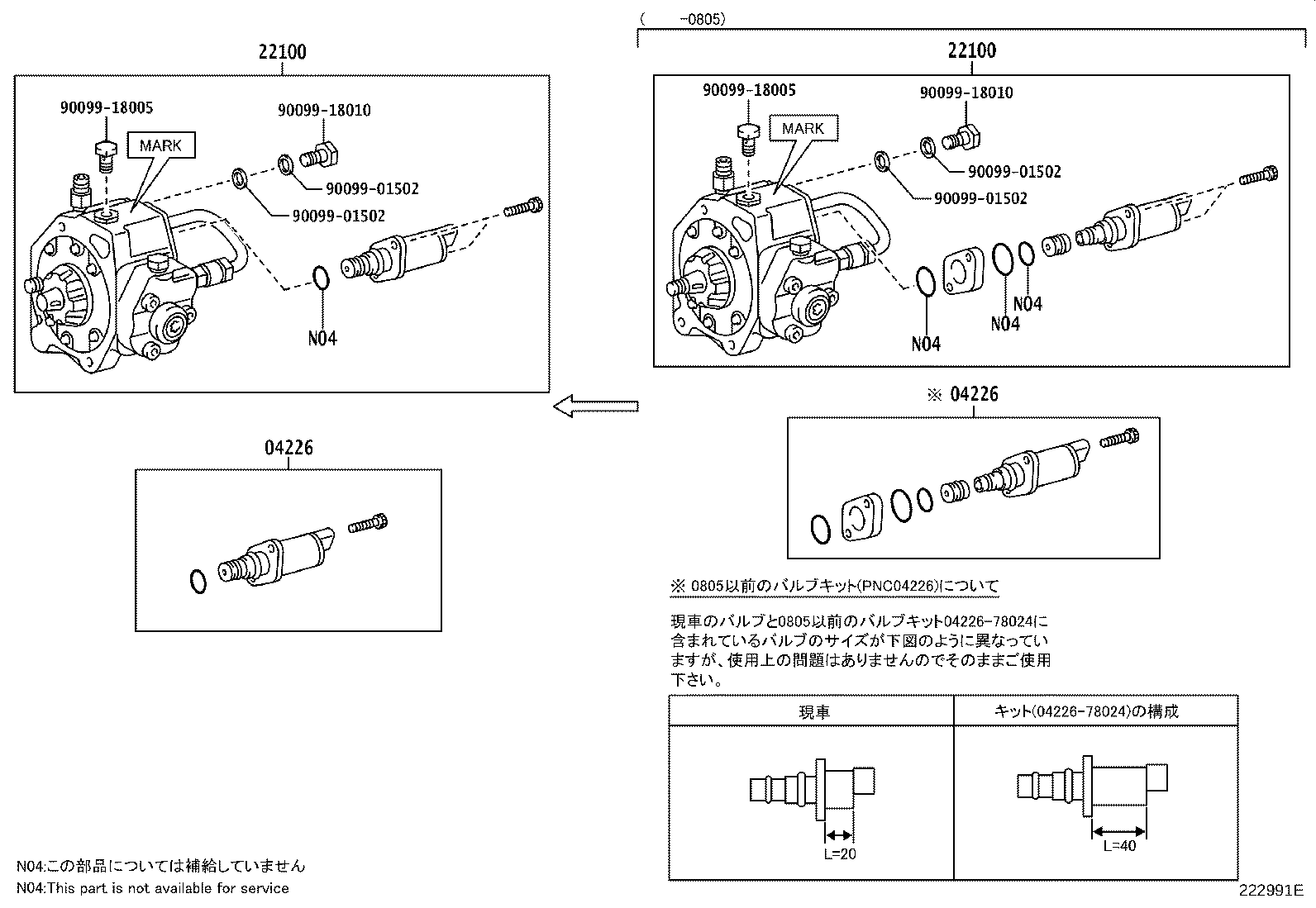

Figure 220813 220813 1993-01 → 1999-07 Figure 221053 221053 1995-12 → 1999-07 Figure 220814F 220814F 1999-07 → — Figure 220507B 220507B 1993-01 → — Figure 220508B 220508B 1995-05 → 1999-07 Figure 221713 221713 1993-01 → 1995-05 Figure 220821F 220821F 1999-07 → — Figure 221690L 221690L 2004-08 → 2007-08 Figure 222121H 222121H 2007-08 → 2011-08 Figure 222991E 222991E 2007-08 → 2011-08 Figure 222723F 222723F 2011-08 → — Figure 222724F 222724F 2011-08 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
12581B Insulator, Cylinder Block, NO.1
12582B Insulator, Cylinder Block, NO.2
12583B Insulator, Cylinder Block, NO.3
12601A Insulator, Cylinder Block
12602B Cover Sub-assy, Engine, NO.2
12631B Bracket, Engine Cover
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100C Clamp, Fuel Hose, NO.2
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22100U Clip, Hose Fuel(FOR INJECTION PUMP)
22100V Ring, O(FOR INJECTION PUMP)
22214B Valve Assy, Fuel Addition Cut
22295 Bracket, Injection Pump Connector
22811 Stay, Injection Pump, NO.1
22811D Stay, Injection Pump, NO.2
22812A Ring, O
22815A Insulator, Injection Pump
22816 Insulator, Injection Pump, NO.2
22817 Bracket, Pump Stay
22821 Gasket, Injection Pump
23083 Pipe Sub-assy, Nozzle Leakage, NO.3
23083A Clamp, Nozzle Leakage
23083C Gasket(NOZZLE LEKAGE PIPE NO.3)
23083D Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3)
23211A Bracket(FOR INJECTION PIPE NO.3)
23271H Hose, Fuel, NO.1
23271M Hose, Fuel
23271N Clip, Hose
23271W Clip(FOR FUEL HOSE NO.1)
23280M Limitter Assy, Fuel Pressure
23290 Damper Assy, Fuel Suction
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23705 Pipe Sub-assy, Injection, NO.5
23706 Pipe Sub-assy, Injection, NO.6
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23801L Pipe Sub-assy, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23801M Bolt, Union
23801N Gasket
23802E Pipe Sub-assy, Fuel
23803H Pipe Sub-assy, Fuel Return
23803J Bolt, Union(FOR FUEL RETURN PIPE)
23803K Gasket(FOR FUEL RETURN PIPE)
23804D Pipe Sub-assy, Fuel, NO.4
23804F Gasket(FOR FUEL PIPE NO.4)
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23811J Bolt, Union
23811K Gasket
23849 Support, Fuel
23849G Support, Fuel Pipe
23849H Support, Fuel Pipe
23849J Support, Fuel Pipe(FOR RAIL ASSY, COMMON)
82702E Bracket Sub-assy, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
