Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12

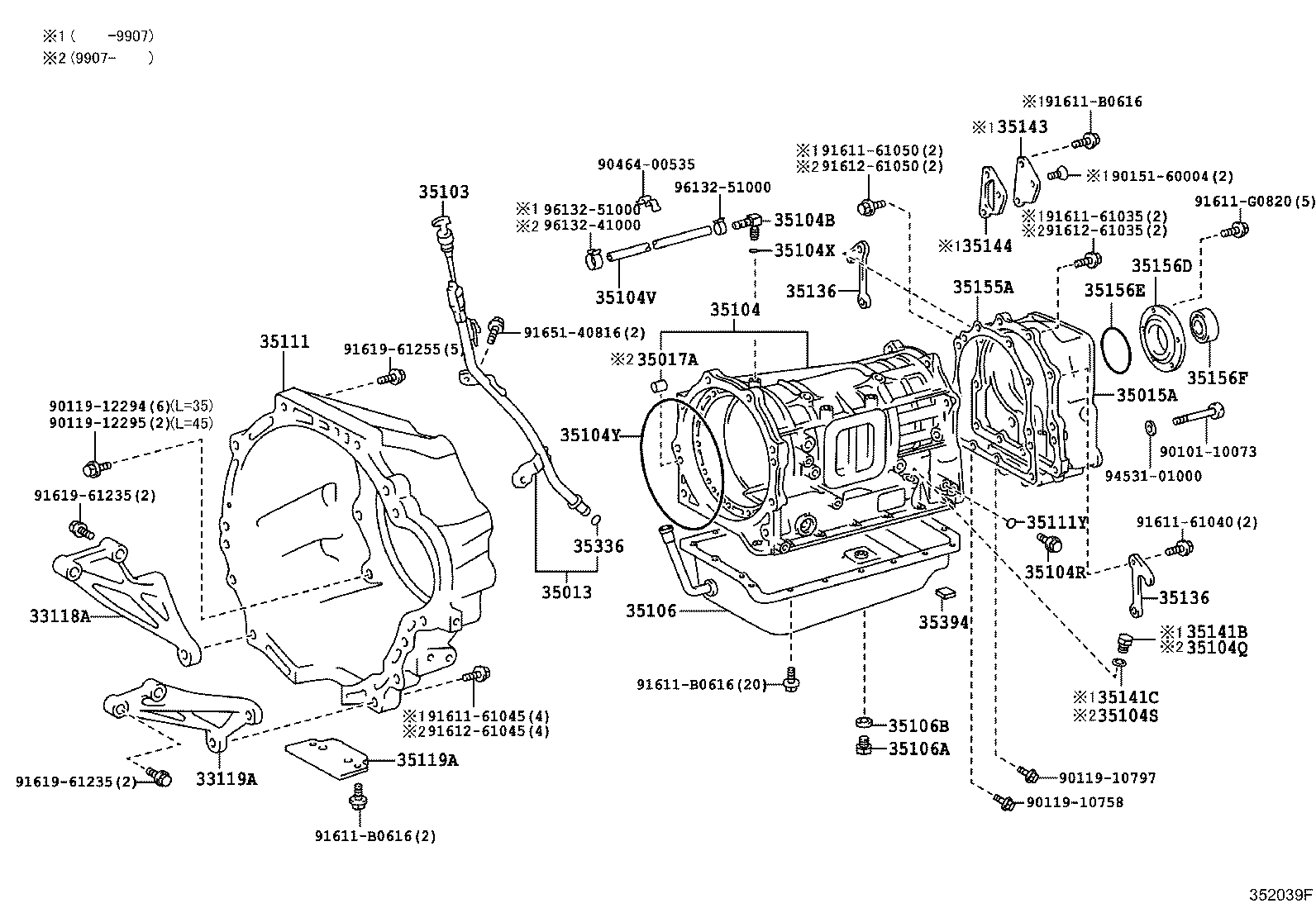

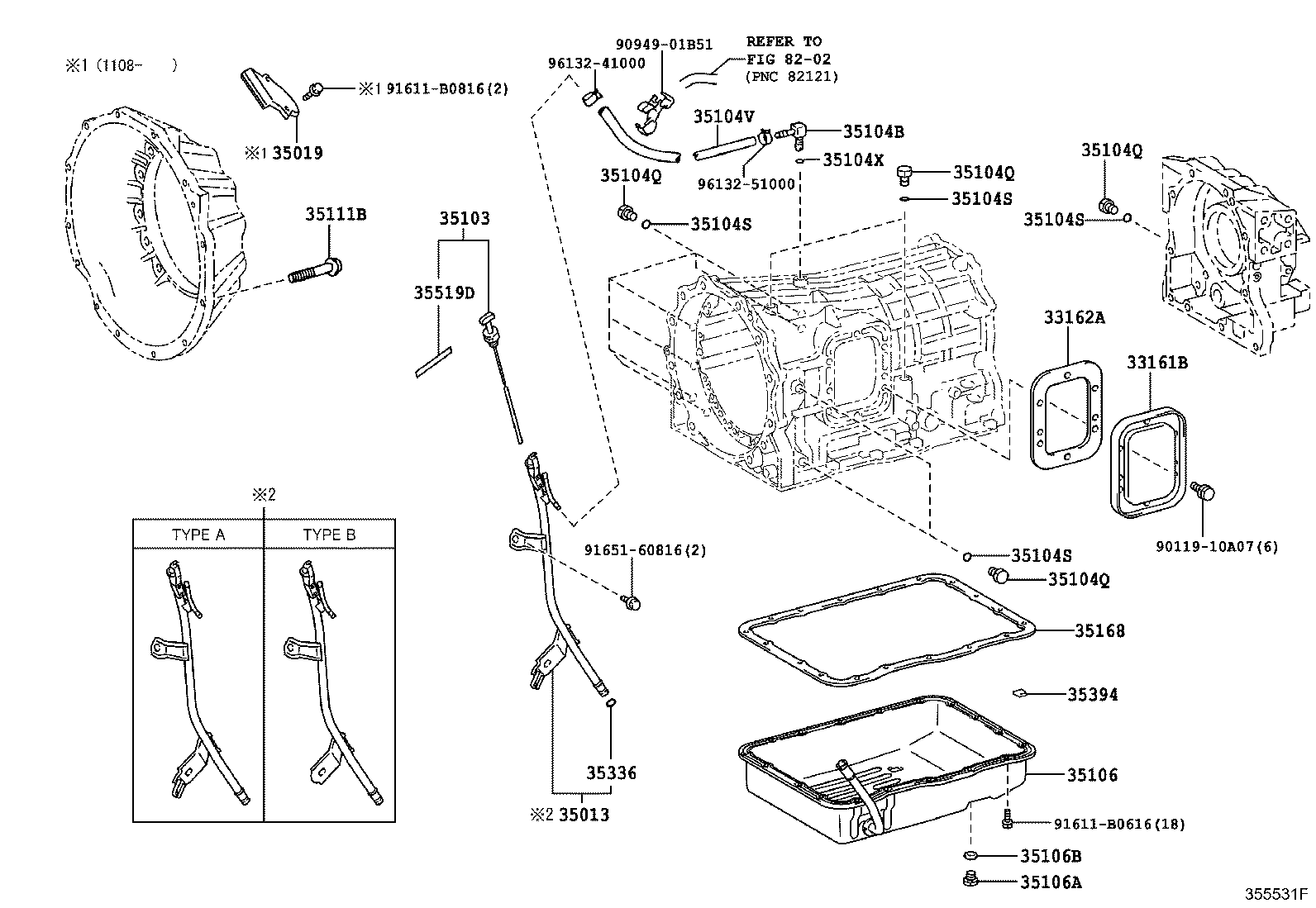

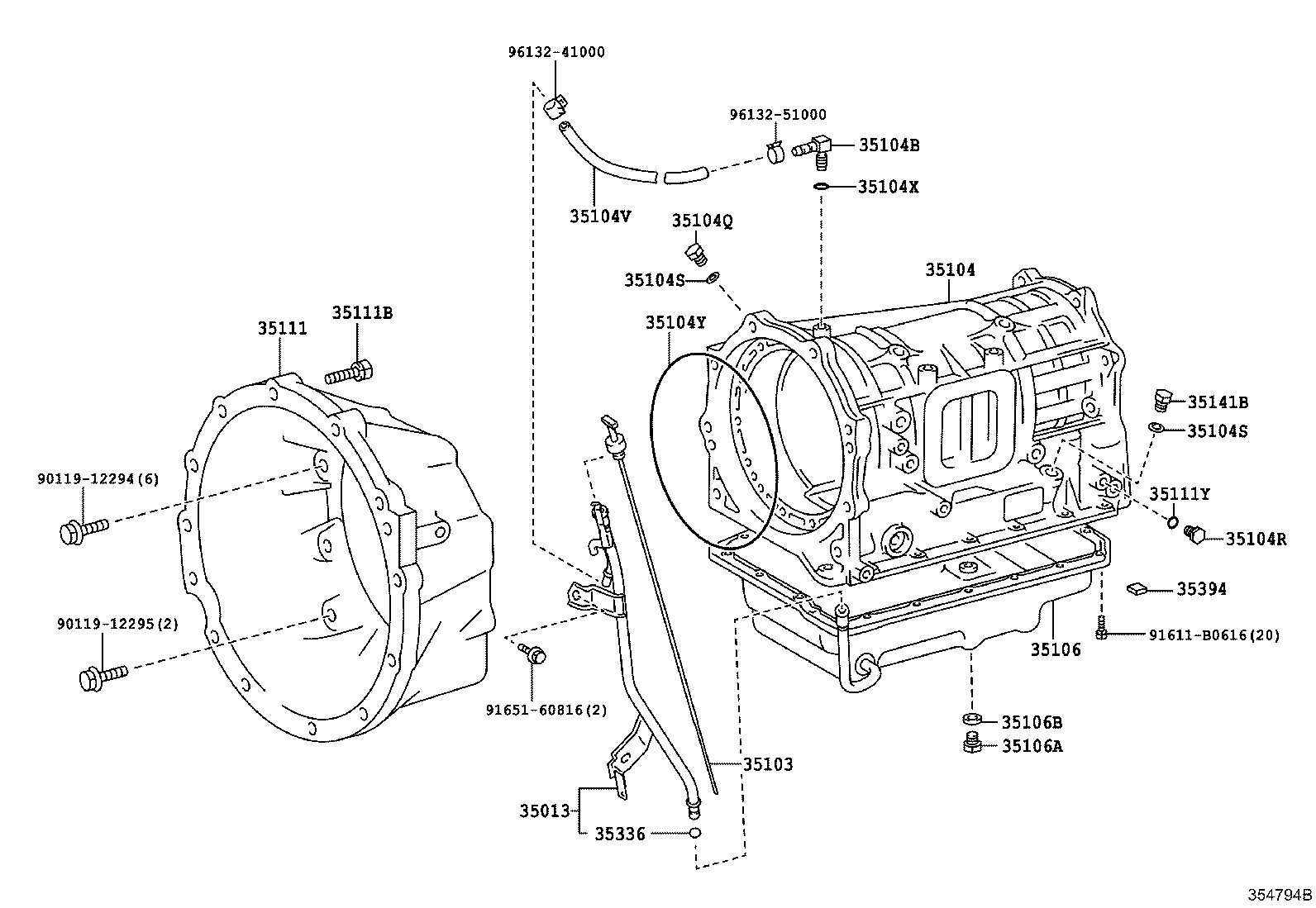

Transmission Case & Oil Pan (ATM)
37 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33118A | Plate, Stiffener, RH(ATM) |
| 33119A | Plate, Stiffener, LH(ATM) |
| 33161B | Cover, Transmission Power Take-off |
| 33162A | Gasket, Transmission Power Take-off |
| 35013 | Tube Sub-assy, Transmission Oil Filler |
| 35015A | Adapter Sub-assy, Transmission Case, Rear |
| 35017A | Pin, Straight(FOR TRANSMISSION HOUSING ADAPTER, FRONT) |
| 35019 | Cover Sub-assy, Transmission Case Dust |
| 35103 | Gage Sub-assy, Transmission Oil Level |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104Q | Plug, NO.1 (FOR TRANSAXLE CASE) |
| 35104R | Plug, NO.2 (FOR TRANSAXLE CASE) |
| 35104S | Ring, O (FOR TRANSAXLE CASE PLUG NO.1) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35104X | Ring, O (FOR BREATHER PLUG) |
| 35104Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35111 | Housing, Automatic Transmission |
| 35111B | Bolt (FOR TRANSMISSION HOUSING & ENGINE SETTING) |
| 35111Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35119A | Cover, Transmission Housing |
| 35136 | Hanger, Transmission,NO.1 |
| 35141B | Plug (FOR AUTOMATIC TRANSMISSION CASE) |
| 35141C | Washer, Plate (FOR AUTOMATIC TRANSMISSION CASE) |
| 35143 | Cover, Transmission Case, Rear |
| 35144 | Gasket, Transmission Case Rear Cover |
| 35155A | Gasket, Transmission Case Adapter |
| 35156D | Cover, Transmission Case Rear Adapter |
| 35156E | Ring, O(FOR TRANSMISSION CASE REAR ADAPTER COVER) |
| 35156F | Seal, Oil(FOR TRANSMISSION CASE REAR ADAPTER COVER) |
| 35168 | Gasket, Automatic Transmission Oil Pan |
| 35336 | Ring, O (FOR TRANSMISSION OIL FILLER TUBE) |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
| 35519D | Label, Automatic Transmission Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
