Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

13 part groups · 3 illustrations

Illustrations

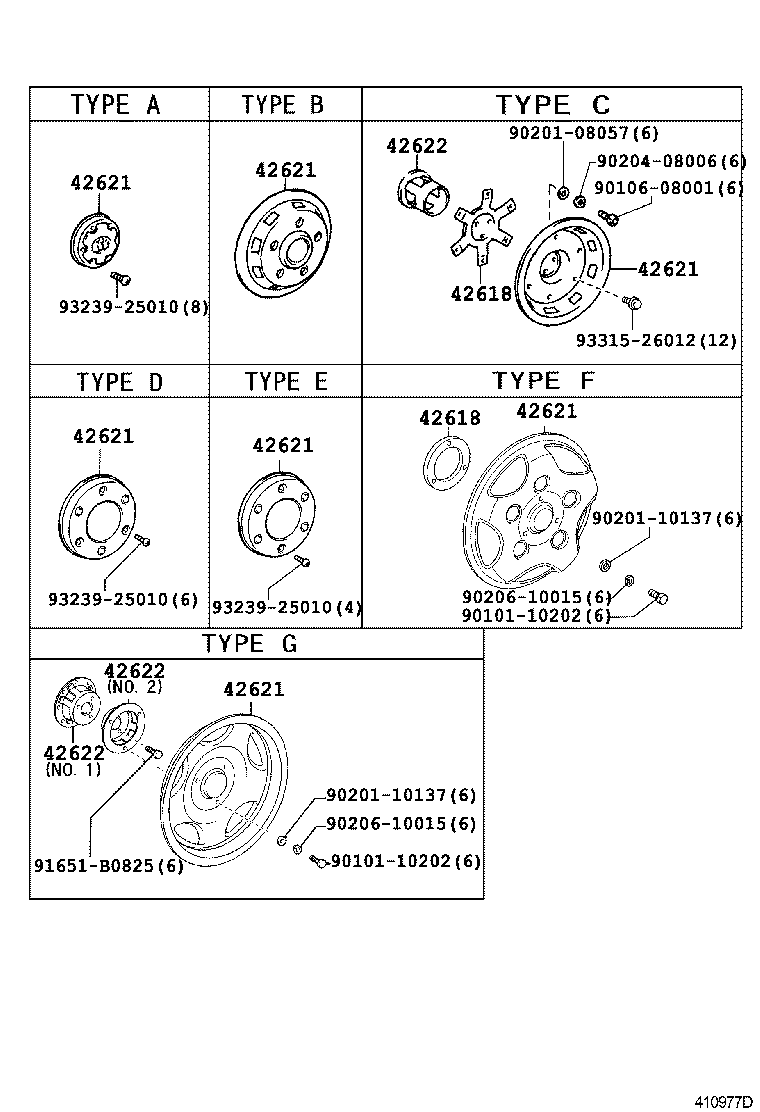

Figure 410635F 410635F 1993-01 → — Figure 410977D 410977D 1993-01 → — Figure 411617B 411617B 1993-01 → —

Part groups

PNCDescription
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42601F Wheel, Disc (FOR FRONT)
42601R Wheel, Disc (FOR REAR)
42611G Valve (FOR TUBELESS TIRE)
42611H Extension, Valve
42611J Valve (FOR TUBELESS TIRE SPARE)
42611Q Clip (FOR TUBE)
42611T Washer (FOR TUBE)
42613A Ring, Disc Wheel Side
42618 Retainer, Wheel Cap
42621 Cap, Wheel
42622 Holder, Wheel Cap
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
