Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12
Front Axle Housing & Differential
44 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 41101A | Carrier Sub-assy, Differential, Front |
| 41101D | Seal, Oil (FOR FRONT DIFFERENTIAL CARRIER) |
| 41110F | Carrier Assy, Differential, Front |
| 41110M | Plug, Front Differential Filler |
| 41110N | Gasket, Front Differential Filler Plug |
| 41110P | Plug, Front Differential Drain |
| 41110Q | Gasket, Front Differential Drain Plug |
| 41111D | Pin, Straight (FOR FRONT DIFFERENTIAL CARRIER) |
| 41148 | Retainer, Differential Bearing |
| 41181 | Cover, Front Differential Carrier |
| 41181B | Bolt (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) |
| 41181C | Plug, Breather (FOR FRONT DIFFERENTIAL CARRIER COVER) |
| 41201T | Final Gear Kit, Differential, Front |
| 41204D | Flange Sub-assy, Front Drive Pinion Companion, Front |
| 41204E | Nut (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) |
| 41204F | Washer, Plate (FOR DRIVE PINION COMPANION FLANGE FRONT) |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211C | Gear, Differential Ring |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41252A | Deflector, Dust (FOR FRONT DIFFERENTIAL) |
| 41304F | Shaft Sub-assy, Differential Side Gear, RH |
| 41304G | Bolt, Serration (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41304L | Bearing (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) |
| 41304M | Ring, Shaft Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) |
| 41304P | Seal, Oil (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41309F | Shaft Sub-assy, Differential Side Gear, LH |
| 41311 | Case, Front Differential |
| 41311A | Bearing (FOR FRONT DIFFERENTIAL CASE) |
| 41311B | Washer, Plate (FOR FRONT DIFFERENTIAL CASE) |
| 41320B | Bolt (FOR FRONT DIFFERENTIAL TUBE) |
| 41321 | Tube, Differential Extension Flange |
| 41324 | Guide, Front Differential Oil Seal |
| 41336G | Cover, Dust(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) |
| 41465J | Plug (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 43640G | Seal, Type T Oil (FOR FRONT AXLE DIFFERENTIAL CARRIER) |

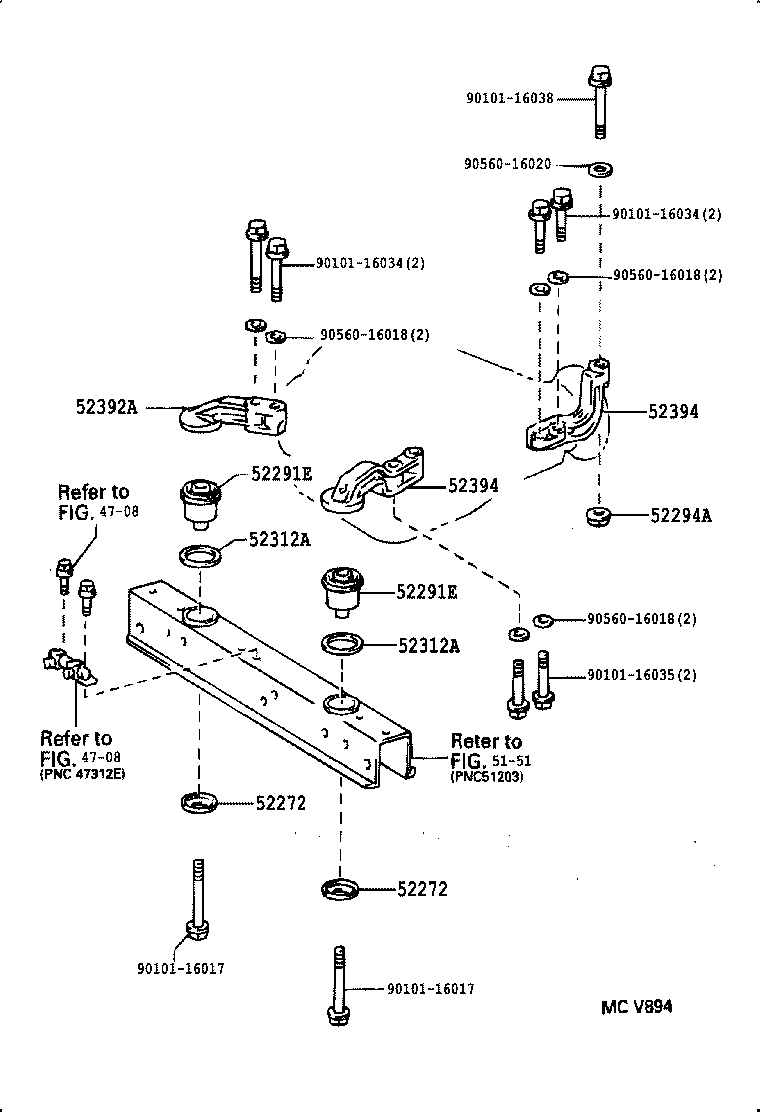

| 52272 | Stopper, Rear Suspension Member, Upper |
| 52291E | Cushion, Front Differential Support Member |
| 52294A | Cushion, Differential Support Bracket |
| 52312A | Plate, Body Mounting |
| 52392A | Support, Front Differential, NO.1 |
| 52394 | Support, Front Differential, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
