Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12

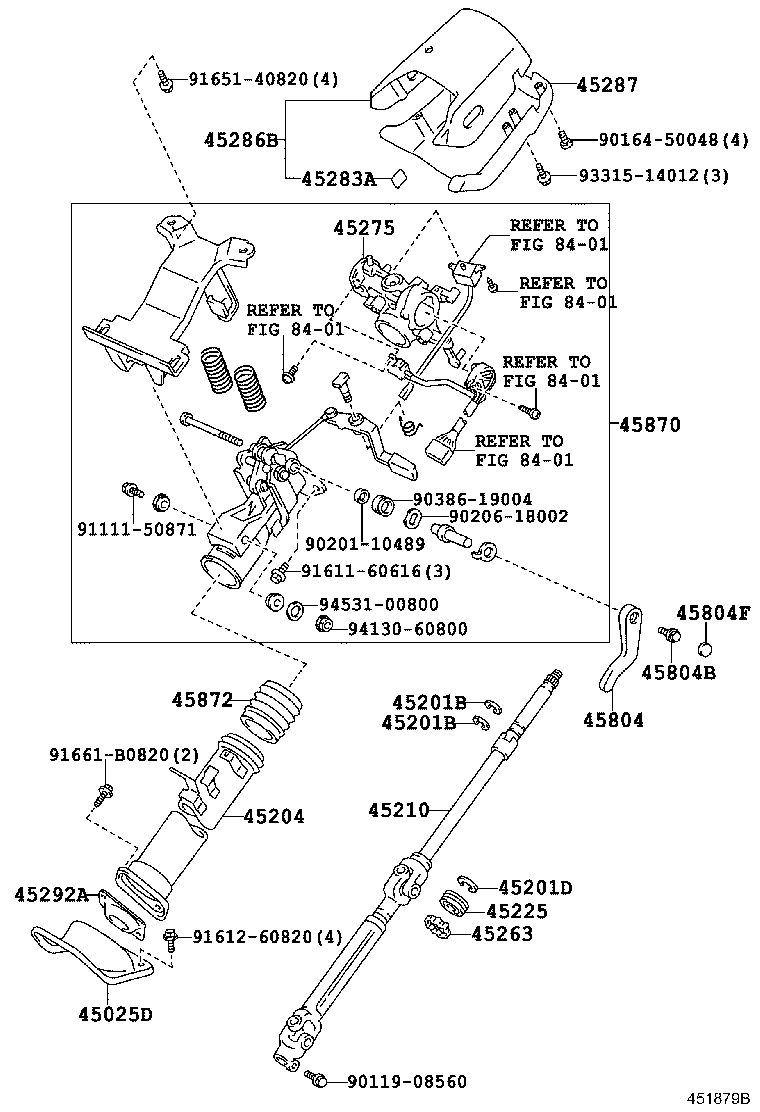

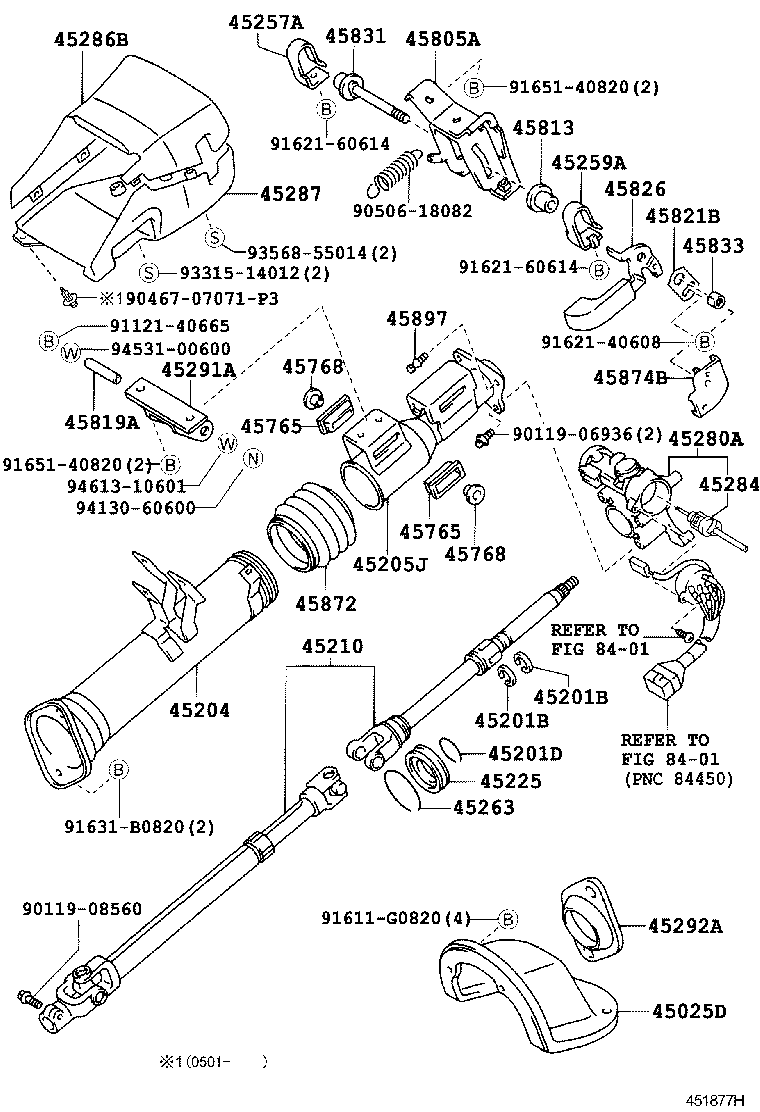

Steering Column & Shaft
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201D | Ring(FOR STEERING MAIN SHAFT) |
| 45204 | Tube Assy, Steering Column, Lower |
| 45205J | Tube Sub-assy, Steering Column, Upper |
| 45210 | Shaft Assy, Steering Main |
| 45225 | Block, Bearing |
| 45257A | Plate, Steering Column Energy Absorbing |
| 45259A | Sheet, Column Hole Cover Silencer |
| 45263 | Ring, Steering Column, NO.1 |
| 45275 | Bracket, Steering Column, Upper |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45283A | Plate, Beam Change & Turn Signal Caution |
| 45284 | Shaft, Steering Lock Cam |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45291A | Support, Steering Column Tube |
| 45292A | Cover, Main Shaft Lower Dust |
| 45765 | Guide, Telescopic Steering |
| 45768 | Bush, Telescopic Steering |
| 45804 | Lever Sub-assy, Steering Tilt |
| 45804B | Bolt(FOR STEERING TILT LEVER) |
| 45804F | Plug(FOR STEERING TILT LEVER) |
| 45805A | Support Sub-assy, Tilt Steering |
| 45813 | Collar, Tilt Steering Support, NO.1 |
| 45819A | Collar(FOR TILT LEVER RETAINER) |
| 45821B | Reinforce, Tilt Steering Support, NO.1 |
| 45826 | Lever, Steering Tilt |
| 45831 | Bolt, Tilt Lever Lock, NO.1 |
| 45833 | Nut, Tilt Steering Adjusting, NO.1 |
| 45870 | Tube Assy, Steering Column |
| 45872 | Cover, Steering Column Tube |
| 45874B | Protector, Steering Column, NO.1 |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
